How to install a camera system for added home security

A Swann security camera is mounted on a house wall.

Overview

If you're looking for a simple and effective way to monitor your home, installing a wireless security camera system is a smart upgrade. The Swann MaxRanger4K Solar Wireless Security System offers reliable coverage, remote access from your phone, and a long-range wireless connection - without the need for hardwiring. It’s an excellent solution for boosting security around the home with minimal fuss.

Safety tip: Always wear the appropriate safety equipment (safety glasses, gloves, ear muffs and a mask, for example) and always follow the instructions for the product or equipment.

Steps

1

Unpack your system

Start by unpacking your kit. Inside, you’ll find the hub, four solar security cameras, antennas, mounting brackets, screws and wall plugs, USB-C charging cables, a power adapter and an Ethernet cable. A microSD card for storage may already be pre-installed in the hub.
The image shows a Swann 4K security camera kit that includes four cameras, antennas, a hub, power adapter, cables, mounting brackets, screws, and a welcome guide.

2

Attach the antennas

Start by attaching the antennas to the back of the hub. These help maintain a strong connection between the hub and your wireless security cameras. Position the antennas upright or angled slightly downward - this improves signal coverage throughout your property and reduces the chance of dropouts. Make sure each antenna is screwed on firmly, but avoid over-tightening.

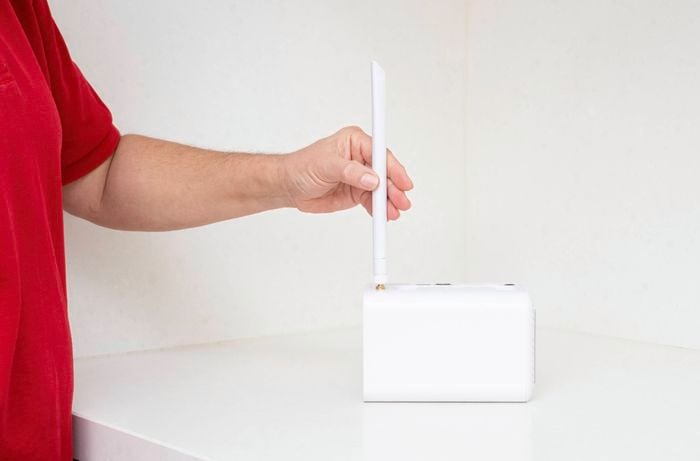

A person is attaching an antenna to a Swann security system hub to maintain a strong connection between the hub and your wireless cameras.

3

Connect the hub to your modem

Next, plug the Ethernet cable into the back of the hub and connect the other end directly into your modem or router. This provides the hub with internet access for wireless security cameras, enabling remote viewing and cloud syncing. Then, plug in the power adapter and switch the hub on. The system will begin its startup process, which may take a couple of minutes.
Connect the hub to the modem by plugging the Ethernet cable into the back of the hub.

4

Set up the app and link your hub

While the hub powers up, download the Swann Security app on your phone. Use the QR code located on the hub to link it to your account. Most home security systems come pre-paired, so once the hub is online, your cameras are nearly ready to go. This system comes with built-in smart features including heat and motion detection, spotlight activation and two-way audio. All of these can be accessed and controlled through the app, giving you flexibility and peace of mind wherever you are. The hub also features local storage and a battery backup, so recording continues even during a power outage.

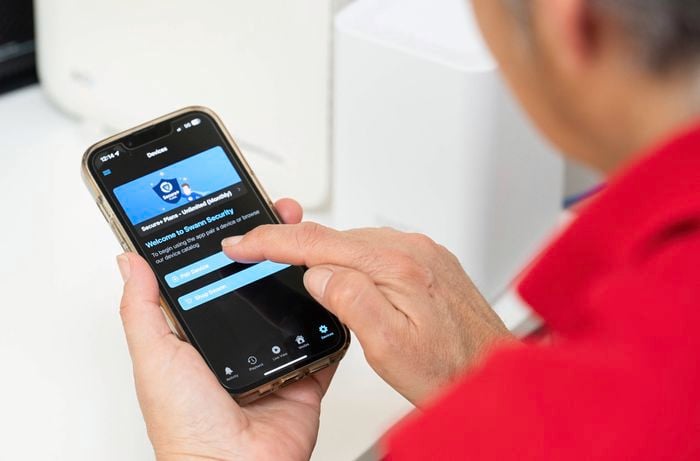

A person is using the Swann Security mobile app on their smartphone to connect the hub, offering flexibility and peace of mind from anywhere.

5

Charge your cameras

Using the USB-C charging cables provided, give each camera a full charge - this usually takes about 3 to 4 hours. Remove any plastic film from the camera lenses before installation. If you prefer a non-solar option, there are rechargeable wireless systems like the Swann Xtreem4K camera, which are ideal for areas that don’t get much sun.
Fully charging the cameras with the USB-C cables typically takes about 3 to 4 hours.

6

Plan your camera placement

Before you drill, walk around your home with a camera to test where you get the best signal and sunlight. Avoid placing cameras in heavy shade or areas with frequent glare, and try not to point them directly at the sky. Ideal security camera installation placement is around 4 metres high, angled slightly downward to maximise visibility. Focus on key entry points like driveways, front and back doors, side gates and sheds.

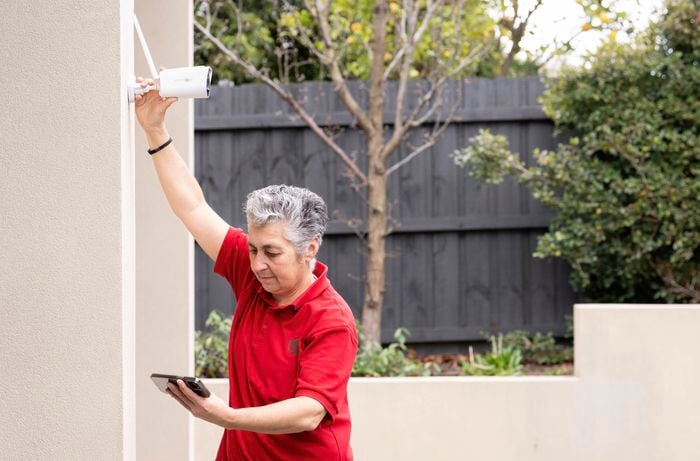

A Bunnings Team Member is installing a Swann security camera on a wall while using a smartphone to check the best signal placement.

7

Mark and drill the mounting holes

Once you’re happy with the position, mark the mounting holes using a pencil or marker. If you’re drilling into brick, concrete or masonry, use a masonry bit and insert wall plugs before securing the bracket. For timber or cladding, use the appropriate drill bit and screws directly.

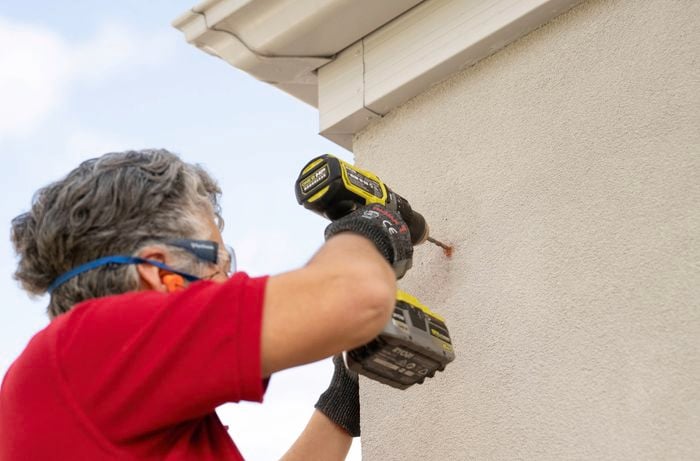

A person is drilling into the marked holes to get the wall ready for mounting a Swann security camera.

8

Attach the bracket

Position the bracket back over the drilled holes and secure it in place using the provided screws. Tighten each screw firmly to ensure the bracket is stable and ready to support the camera. A secure bracket is key to keeping your camera fixed and correctly angled over time.

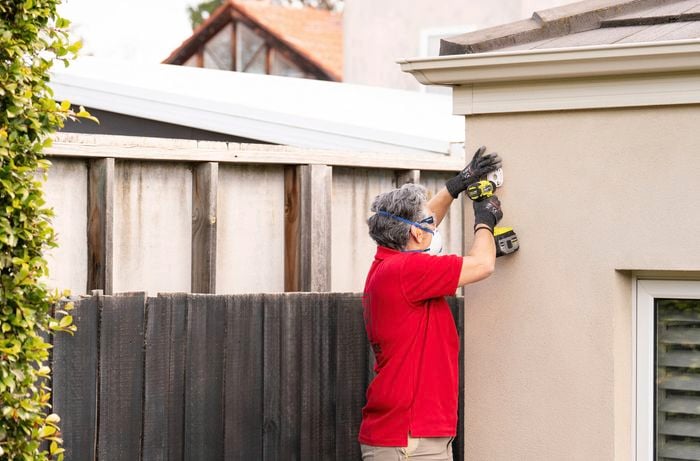

A Bunnings Team Member is using a power drill to attach a mounting bracket onto the wall.

9

Mount the cameras

Secure the mounting bracket to the wall, then clip the camera into place. Adjust the angle to cover your chosen area and tighten the bracket once it’s set. Solar panels should face towards the sun for the best exposure, ideally getting at least 4–6 hours of direct sunlight per day.
A person is attaching a Swann security camera to a wall mounted bracket.

10

Test and fine-tune

Walk through the areas covered by the cameras to test motion sensors and check your phone for alerts. Use the app or hub interface to adjust settings such as motion detection zones, recording schedules and notification preferences. Take your time fine-tuning until each camera is covering the right area with minimal false alerts.

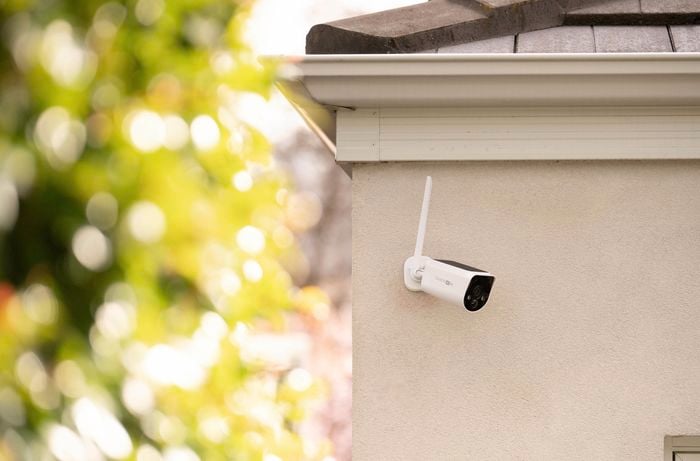

Test and fine-tune the cameras to check motion sensors and phone alerts.

11

Now that you’ve learnt how to keep your home safe

Health & Safety

Asbestos, lead-based paints and copper chromium arsenic (CCA) treated timber are health hazards you need to look out for when renovating older homes. These substances can easily be disturbed when renovating and exposure to them can cause a range of life-threatening diseases and conditions including cancer. For information on the dangers of asbestos, lead-based paint and CCA treated timber and tips for dealing with these materials contact your local council's Environmental Health Officer or visit our Health & Safety page.

When following our advice in our D.I.Y. videos, make sure you use all equipment, including PPE, safely by following the manufacturer’s instructions. Check that the equipment is suitable for the task and that PPE fits properly. If you are unsure, hire an expert to do the job or talk to a Bunnings Team Member.
