In a 900mm corner cabinet the shelf will be installed. Remove the shelf and place it on the bottom of the cabinet. Remove the shelf supports. Pre drill holes around the edges. Secure the shelf to the bottom of the cabinet using 28mm screws.
Always refer to your instructions. Measure from the front edge of the cabinet for the placement of the centre pole. Use a ruler to draw lines across the base to find the centre point. Drill a hole for the bottom pole bracket to slot into and then screw it into the base. Measure the top of the cabinet from the front edge to make sure it is identical to the bottom pole position. Pre drill a hole for the top pole bracket and secure it in place.
When you're drilling into a plastic fitting drill slowly and bear in mind that too much pressure could crack the fitting.
Refer to your instructions. This can be fiddly, so build the unit outside the cabinet first so you know how it fits together. Take it apart and reassemble inside the cabinet. Place the base of the centre pole into the bottom bracket. Extend the pole and place it into the top bracket and secure in place.

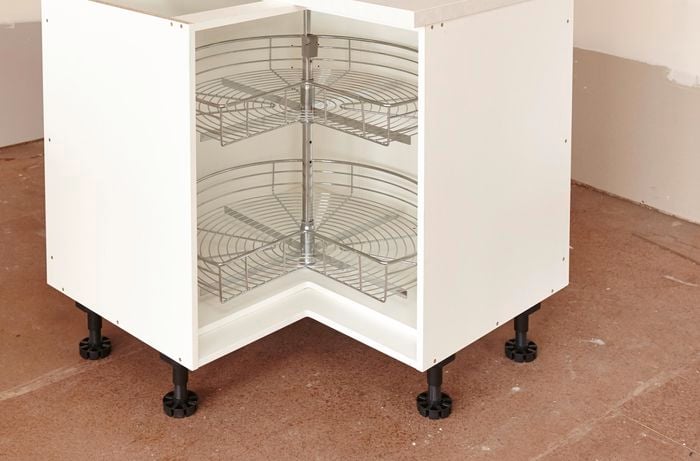

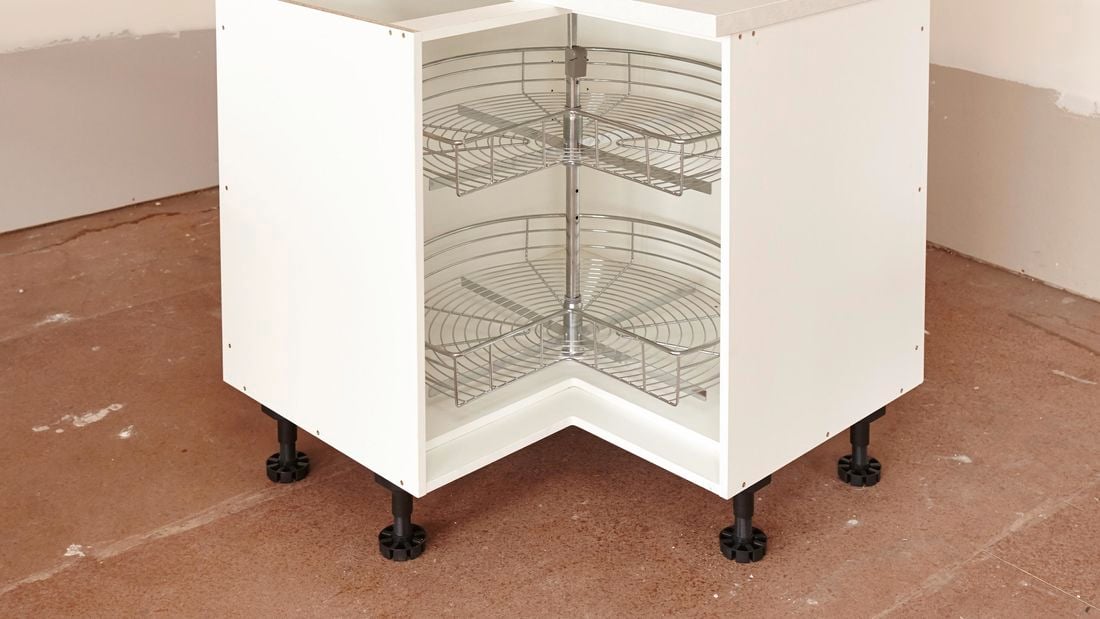

The locating holes on the pole allow you to adjust your baskets to the right height. To position the middle basket push the fixing pin through the pole at the desired height. Slide the mounting cap down and rotate to lock. Rest the basket on top. Secure the fixing clip on top of the basket. Position the lower basket and place the fixing clip on top to secure it in place.
Asbestos, lead-based paints and copper chromium arsenic (CCA) treated timber are health hazards you need to look out for when renovating older homes. These substances can easily be disturbed when renovating and exposure to them can cause a range of life-threatening diseases and conditions including cancer. For information on the dangers of asbestos, lead-based paint and CCA treated timber and tips for dealing with these materials contact your local council's Environmental Health Officer or visit our Health & Safety page.
When following our advice in our D.I.Y. videos, make sure you use all equipment, including PPE, safely by following the manufacturer’s instructions. Check that the equipment is suitable for the task and that PPE fits properly. If you are unsure, hire an expert to do the job or talk to a Bunnings Team Member.
