How to assemble a wine rack

Person drilling wine rack together.

Overview

Wine racks are a great feature to add to your kitchen design. The Kaboodle wine rack is easy to put together when you follow the instructions provided. We'll take you through the steps involved in assembling a wine rack for your kitchen.

Steps

1Screw the shelves to the side panel

Start by screwing the shelves in to one of the side panels using the 50mm screws. Place the back panel of the shelf down first to make sure this is at the right height before screwing it in. Follow this same process for the next five shelves. Remember to keep the white edge of the shelves facing up so it will be visible once assembled.
Person screwing wine shelves to side panel

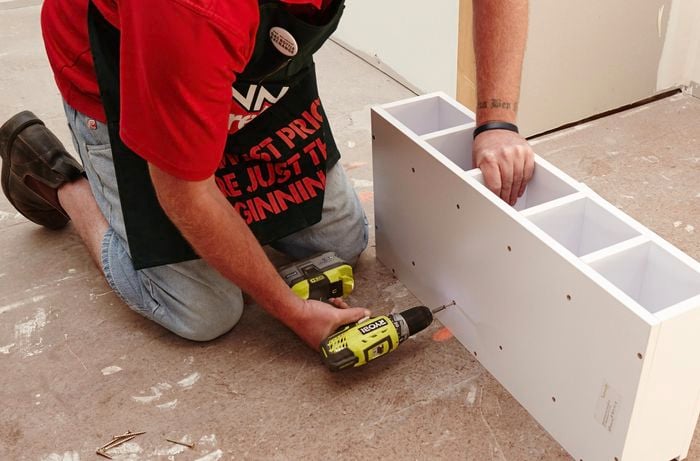

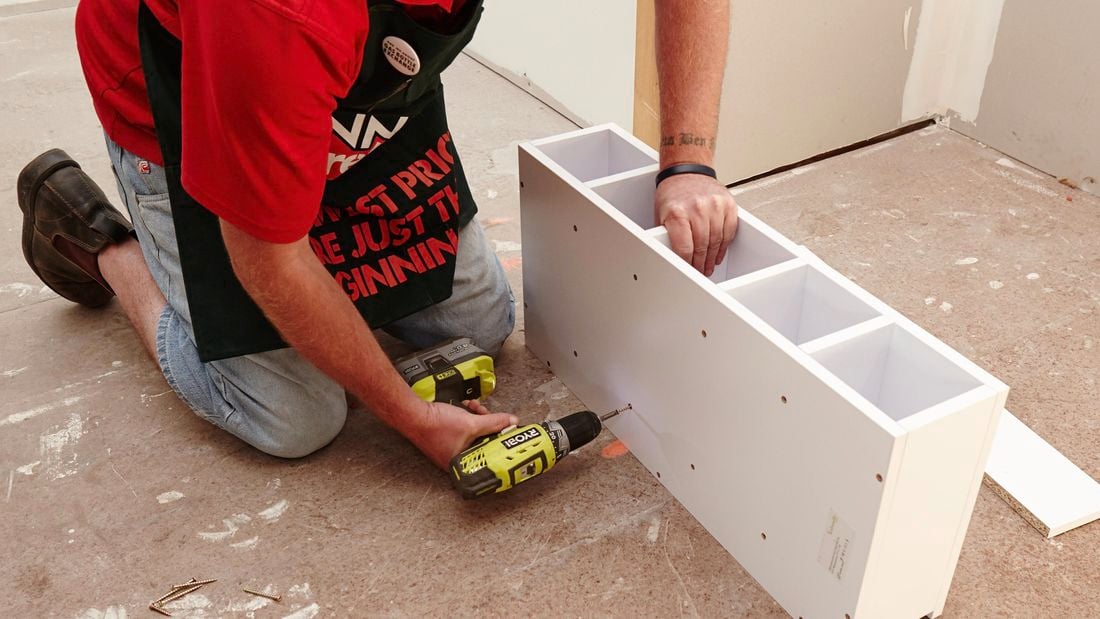

2Attach the side and back panels

Once you have screwed all the shelves in, you can flip the rack over and attach the other side panel. You will need to use your drill to screw this on, following your instructions. After attaching the side panel, drill the back panel onto the rack.
Person drilling wine rack together.

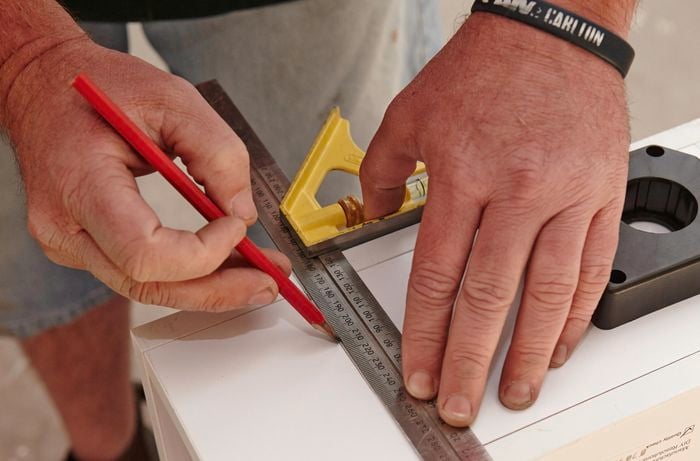

3Measure up for the adjustable feet

If you want to use your wine rack as a base cabinet, you need to attach the adjustable feet. Using the measurements in your instructions, use your tape measure and square and mark the position for the feet.

Person measuring and marking position for feet on bottom of wine rack

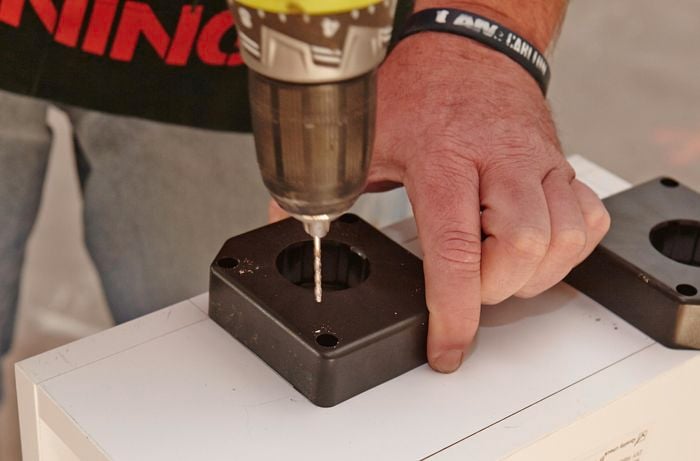

4Screw in the adjustable feet base

Place the feet in position on the rack before you screw these in using your base plate to keep them straight. Make sure the tapered edges of the feet are facing out. Pre-drill your holes and then screw down the feet to the rack using the 28mm screws.

Person screwing feet into base of wine rack with a drill

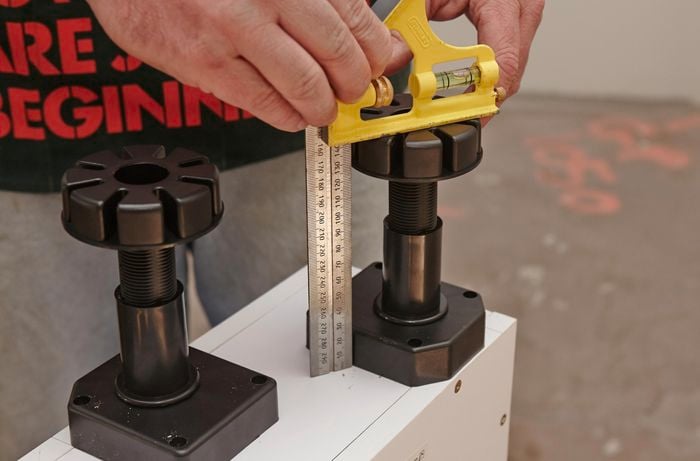

5Finish assembling the legs

Now that you have attached the base for the adjustable feet, you can finish assembling these. Set each of the legs to the right height, using your square at 145mm, and your wine rack is ready to install.

Person adjusting feet to be same length on base of wine rack

Inspiration from the Bunnings Workshop community

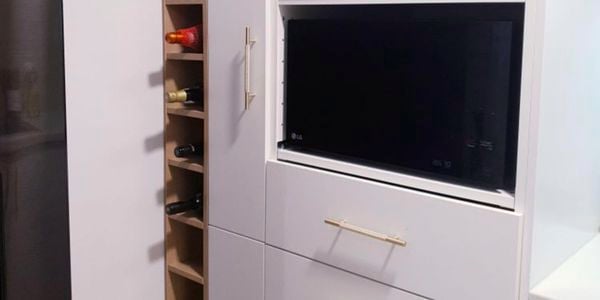

Built-in wine rack

Workshop member Rufaro built this timber custom wine rack using Melamine Colourboard to make use of what used to be the fridge space and bring warmth to an otherwise stark white kitchen.

View project
A vertical wine rack next to kitchen cabinets
Health & Safety

Asbestos, lead-based paints and copper chromium arsenic (CCA) treated timber are health hazards you need to look out for when renovating older homes. These substances can easily be disturbed when renovating and exposure to them can cause a range of life-threatening diseases and conditions including cancer. For information on the dangers of asbestos, lead-based paint and CCA treated timber and tips for dealing with these materials contact your local council's Environmental Health Officer or visit our Health & Safety page.

When following our advice in our D.I.Y. videos, make sure you use all equipment, including PPE, safely by following the manufacturer’s instructions. Check that the equipment is suitable for the task and that PPE fits properly. If you are unsure, hire an expert to do the job or talk to a Bunnings Team Member.
