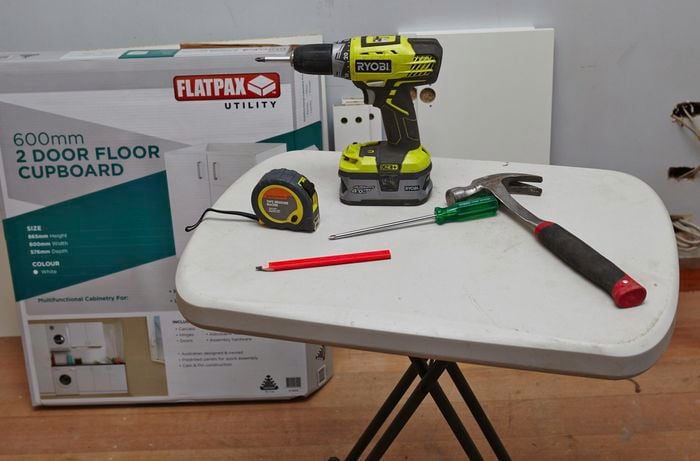

Before you start assembly, unpack all the pieces from the box and read the instructions. Lay the box out on the floor and build the cupboard on it. This will help to protect the cupboard.

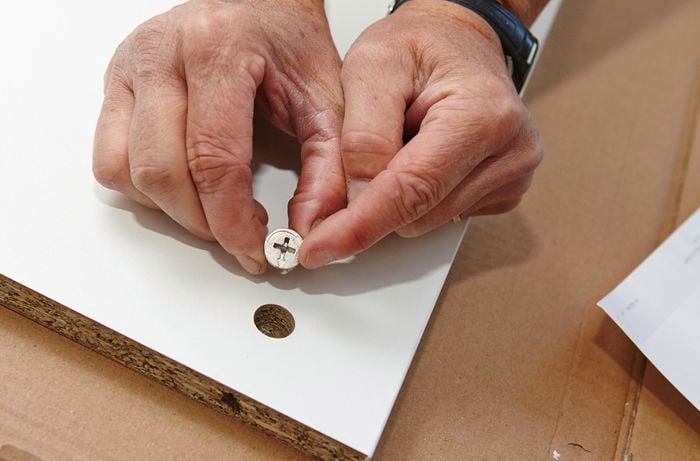

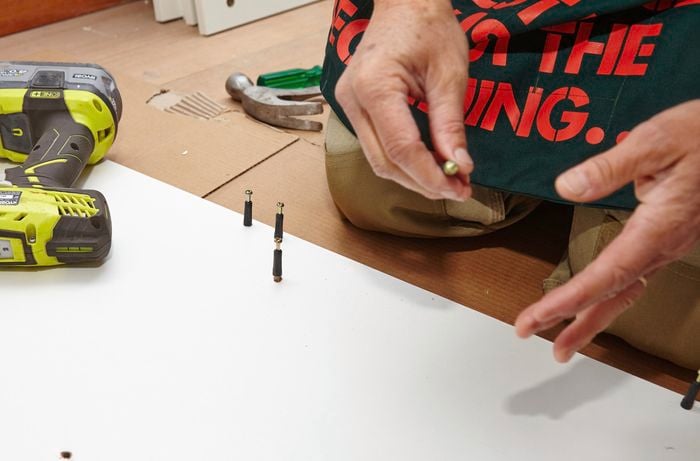

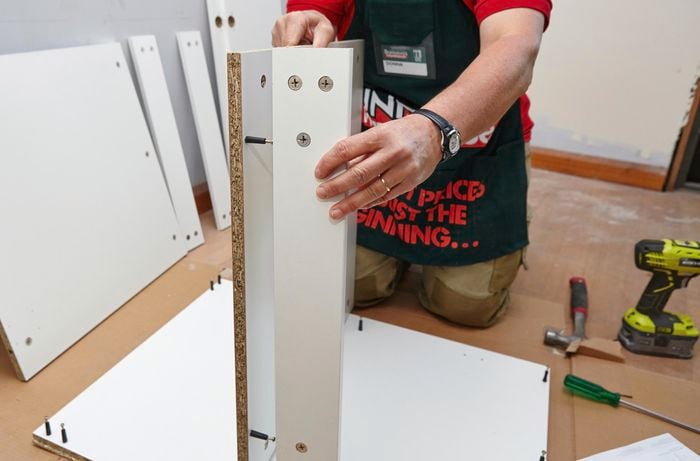

Attach the small rail to the middle shelf by sliding the cam lock fittings into the pins on the shelf. Tighten the cam locks with a screwdriver to secure the rail to the shelf.

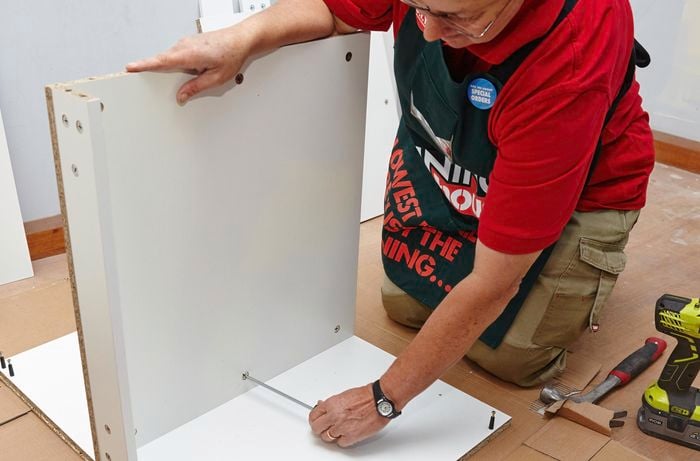

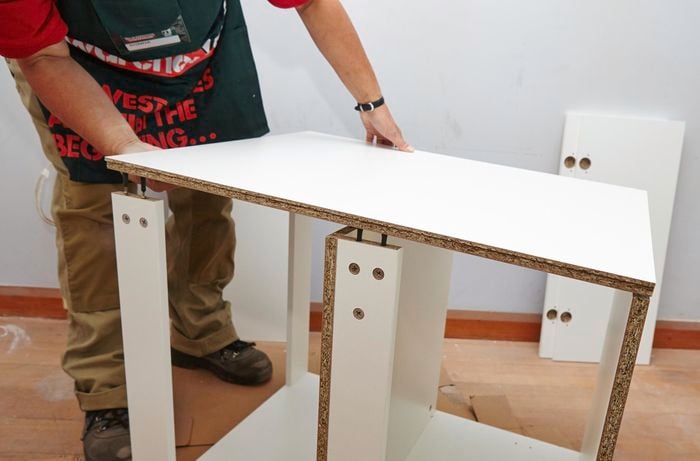

Place the holes at the end of the shelf, onto the pins in the middle of the panel. Tighten the three cam locks with a screwdriver.

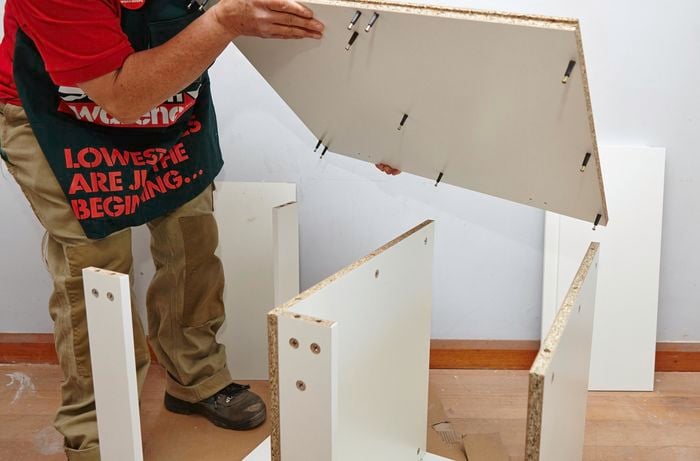

Place the holes at the end of the bottom of the cupboard, onto the pins at the bottom of the side panel. Tighten the three cam locks with a screwdriver. The bottom of the cupboard can be identified by the small pre-drilled holes where the feet will be attached.
Attach the two top rails, on the left and right hand-side of the cupboard by putting them onto the pins on either side. Tighten the cam locks on the rails with a screwdriver. Make sure all of the cam locks are on the outside of the cupboard and tighten them.

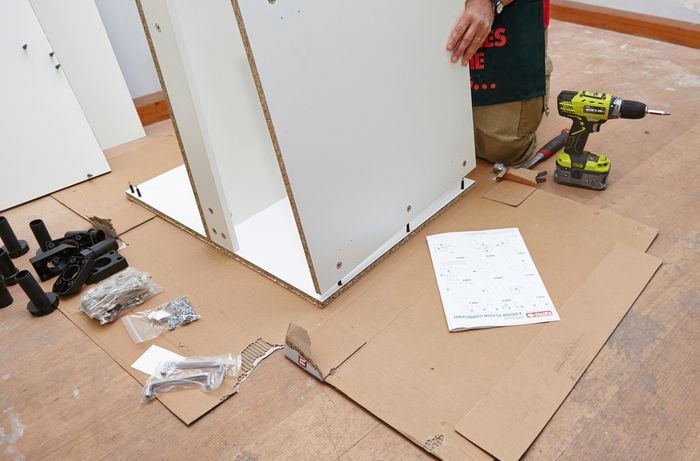

Attach the second side of the cupboard by lining it up with the pins and then tightening all of the cam locks at the top, bottom and middle of the cupboard.

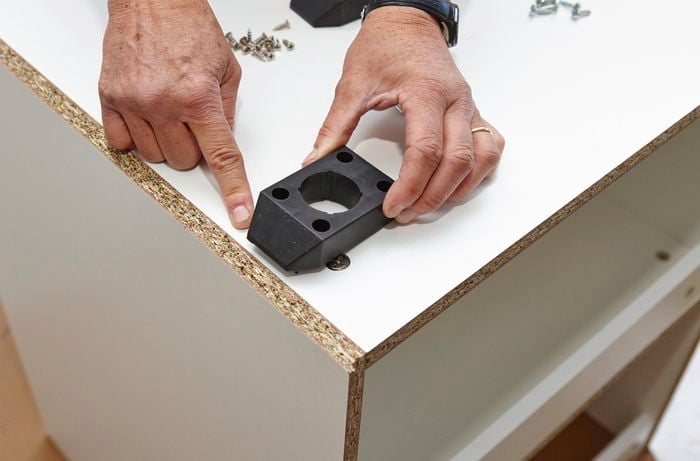

Turn the cupboard over, so that the bottom panel is, facing upwards. Use the cordless drill and screws to attach the four bases of the feet into the small pre-drilled holes. It's important the sloped angles of the feet are pointing towards the outside of the cupboard to help distribute the weight evenly.

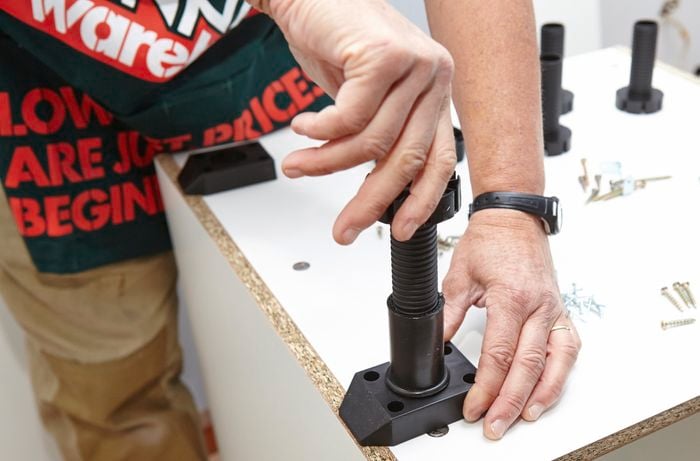

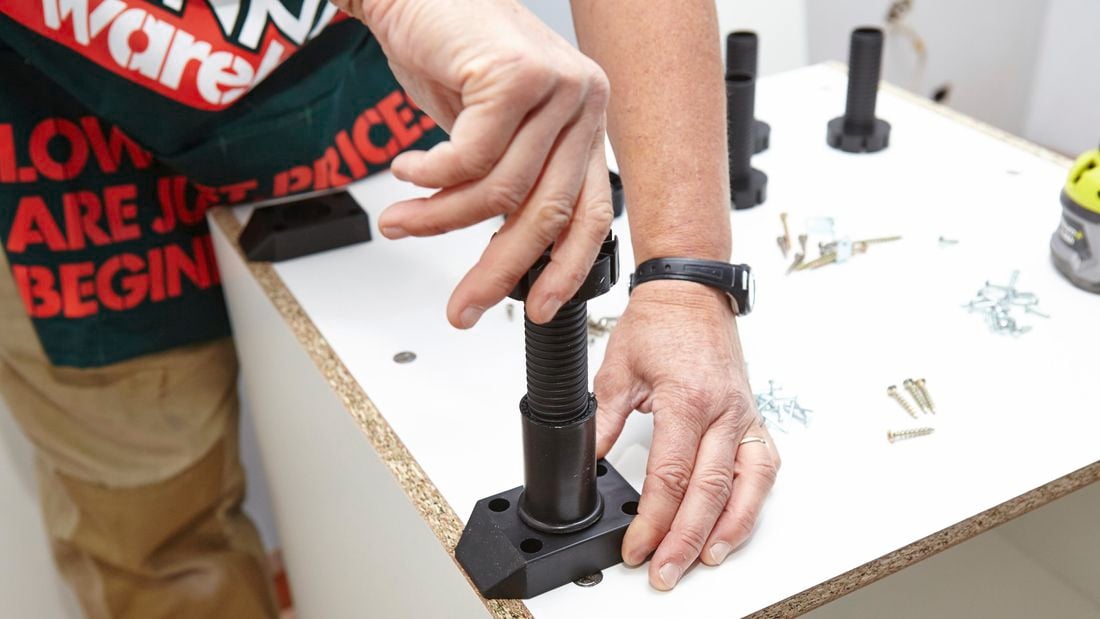

Attach the adjustable feet to the bases by clicking the four legs into place. Then screw in the adjustable feet and use the set square to set each leg to a height of 145mm.

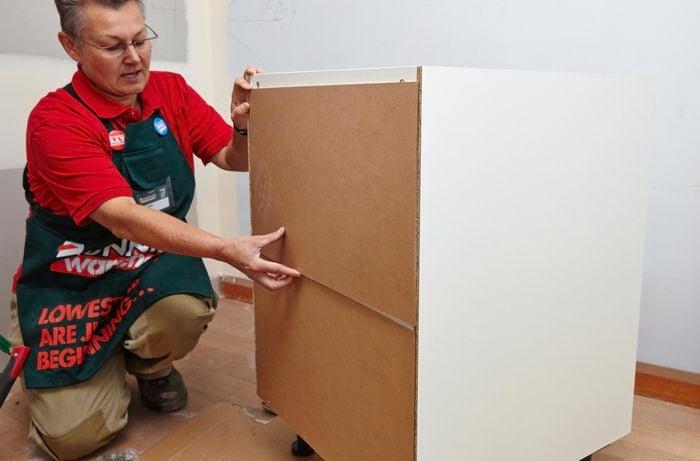

Turn the cabinet onto its feet, so you can put the two back panels onto the cupboard. With the white side of the panel facing inwards, line-up the bottom of the panel with the bottom of the cupboard. Attach it using a hammer and nails. Repeat this process to attach the top panel.

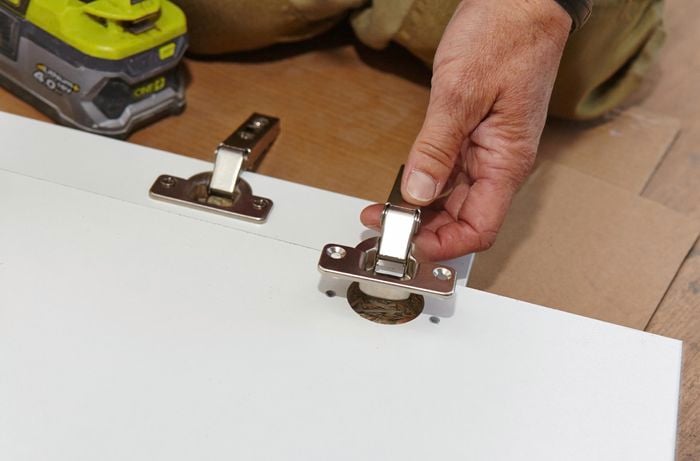

Separate the hinge plate from the hinge by pressing the button at the end and pulling them apart. Use the cordless drill and screws to attach the four hinges using the pre-drilled holes in the doors.

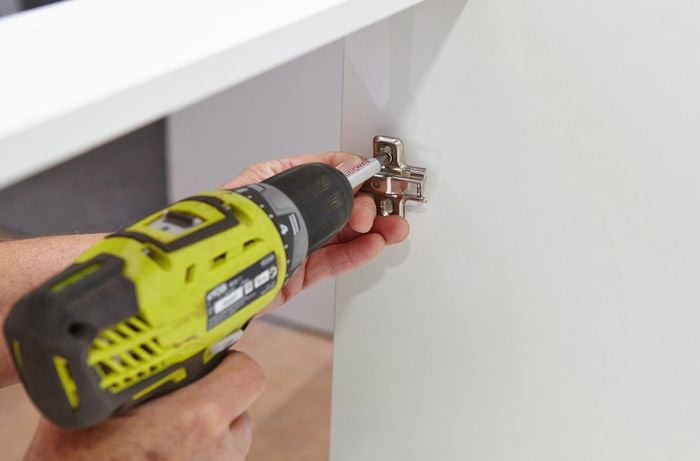

Use the cordless drill and the screws to attach the four hinge plates into the side of the cabinet. The holes for the hinge plates have been pre-drilled. Don't over-tighten the screws because they may need adjusting once the doors are attached.

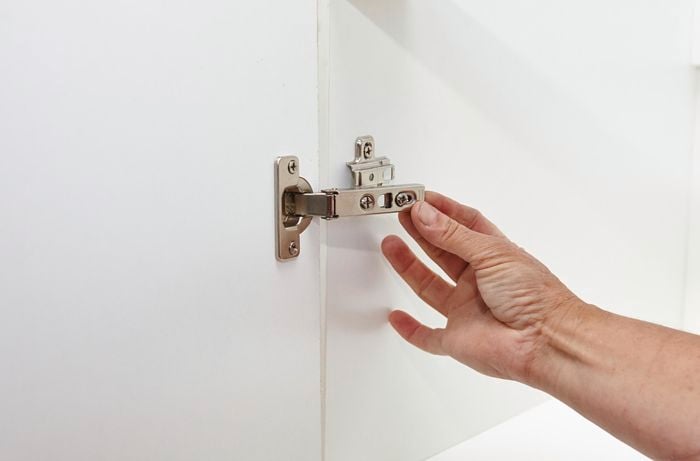

Attach the doors to the cabinet by lining up the hinges with the hinge plates and pushing the hinges and clicking them into the plates. Use the screwdriver to align your doors using the screws on the hinge and plate. Refer to the instructions for help adjusting the doors. After the doors are aligned clip-on the cover plates over the screws.

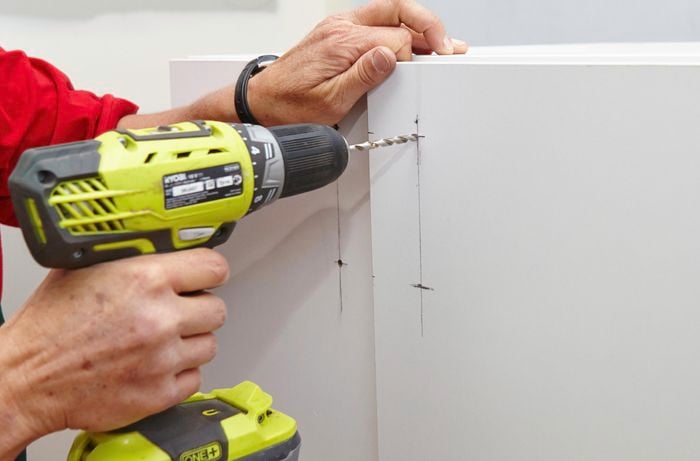

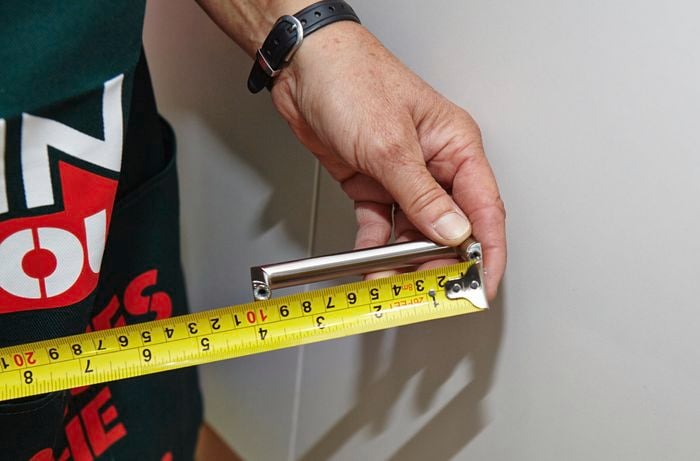

Use a pencil to mark on one door where you want the handle to be. Use the set square to draw a vertical line down from this mark. Repeat this process on the other door. Measure the distance between the two holes in the door handle. Mark where you want to drill the first hole, measure down to where the second hole will be. Use the set square to transfer these markings to the second door.
Asbestos, lead-based paints and copper chromium arsenic (CCA) treated timber are health hazards you need to look out for when renovating older homes. These substances can easily be disturbed when renovating and exposure to them can cause a range of life-threatening diseases and conditions including cancer. For information on the dangers of asbestos, lead-based paint and CCA treated timber and tips for dealing with these materials contact your local council's Environmental Health Officer or visit our Health & Safety page.
When following our advice in our D.I.Y. videos, make sure you use all equipment, including PPE, safely by following the manufacturer’s instructions. Check that the equipment is suitable for the task and that PPE fits properly. If you are unsure, hire an expert to do the job or talk to a Bunnings Team Member.
