- Wire stripping stations: 0,4 / 0.5 / 0.6 / 0.8 / 1.0 / 1.3 mm, AWG 26 / 24 / 22 / 20 / 18 / 16
- Opening spring and locking mechanism
- Material: C 70 steel
- Head shape: Wide, long head with ridged gripping surface, shears blade and firm wire stripping stations
- For gripping, cutting and stripping wires

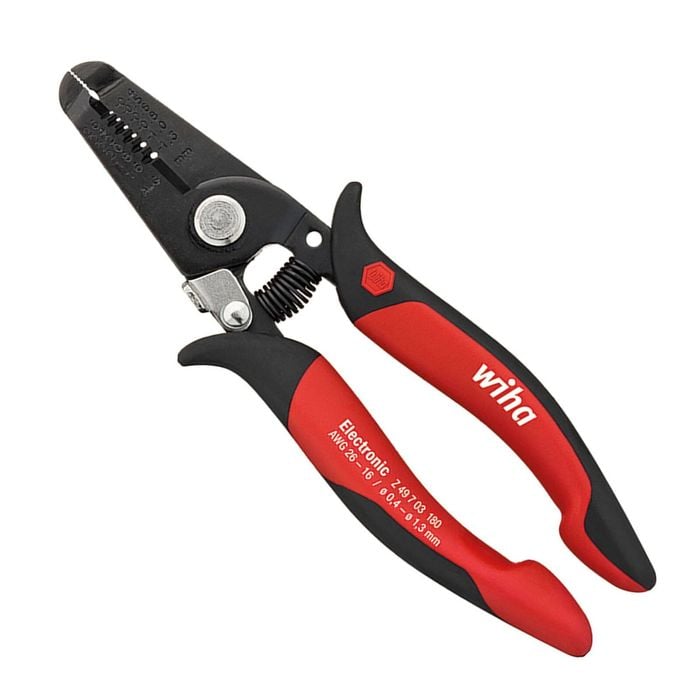

Electronic stripping pliers Stripping points 0.4 - 1.3 mm

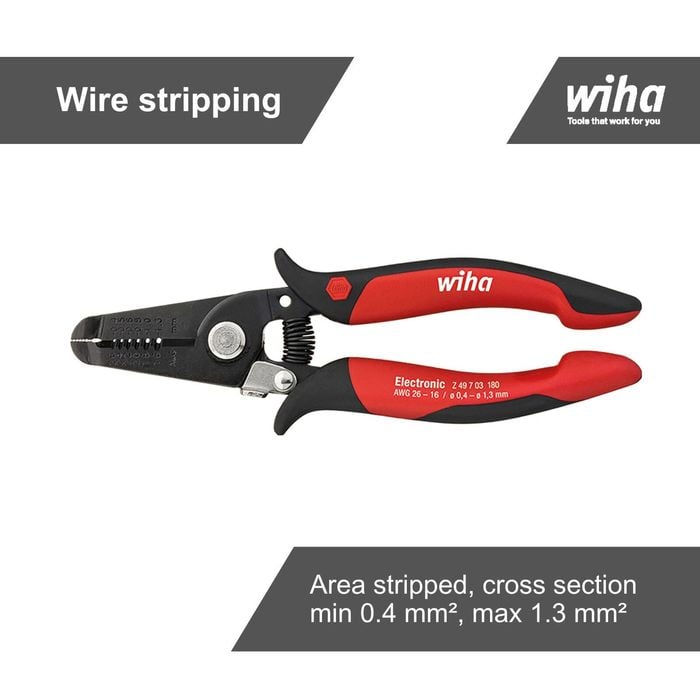

Area stripped, cross section min (mm²) 0.4 mm²
Area stripped, cross section max (mm²) 1.3 mm²
Area stripped min (AWG) 26
Area stripped max (AWG) 16
Overall length (mm) 165 mm
Application: For gripping, cutting and stripping of wires with diameter.
Design: Wire stripping stations: 0,4 / 0.5 / 0.6 / 0.8 / 1.0 / 1.3 mm, AWG 26 / 24 / 22 / 20 / 18 / 16.
Design: With opening spring and locking mechanism.

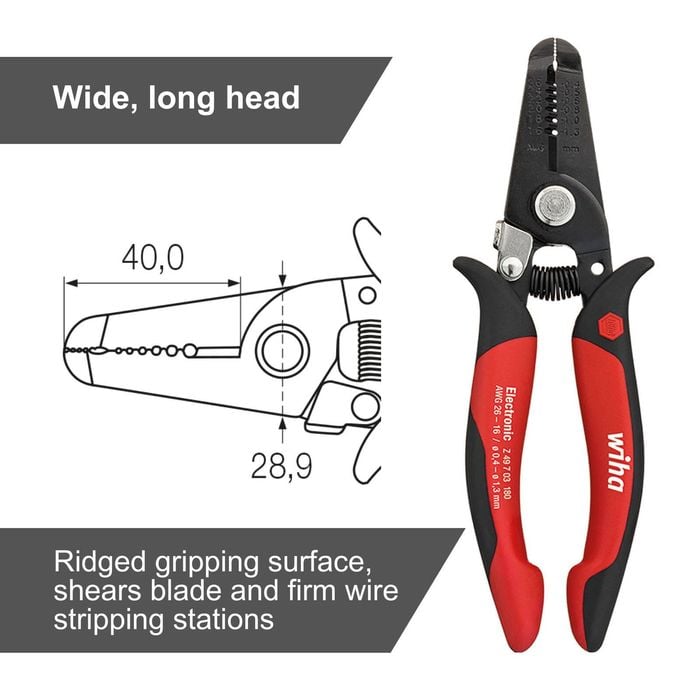

Head shape: Wide, long head with ridged gripping surface, shears blade and firm wire stripping stations.
Material: C 70 special tool steel.
