- Specific torque controlled fastening for changing indexable cutter inserts
- Required Nm value can be easily set within the continuously adjustable range on the cap at the end of the iTorque®'s handle.
- Large digital display with numeric readings to read the set Nm value easily.
- Release accuracy of +/- 6%, the torque tool complies with EN ISO 6789 requirements.
- Alarm function reminds users when calibration is due – the calibration cycle is set at 5,000 tasks ex works, and can be adjusted.
The intelligent torque tool.
Variably adjustable torque covers a wide range of applications.

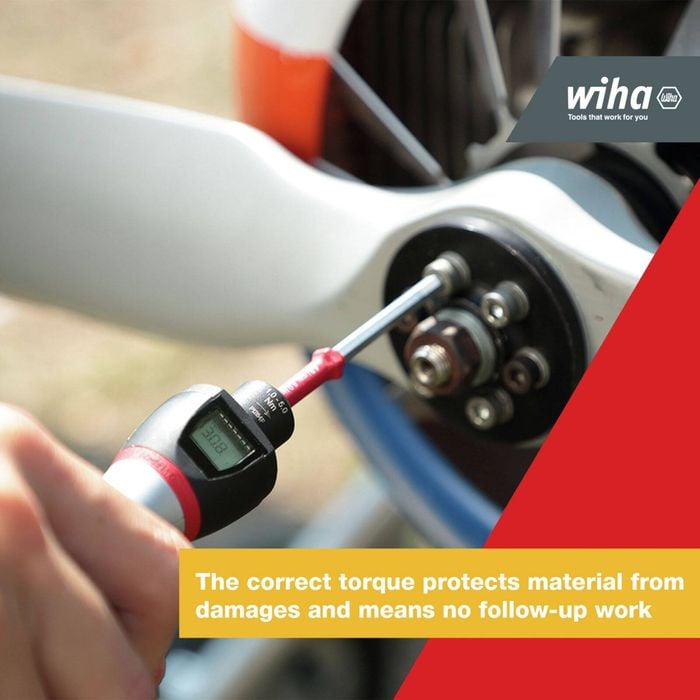

Efficient: The correct torque protects material from damage and means no follow-up work.
Lowers your costs: The correct torque protects you from warranty claims.
Productivity: Utmost process safety thanks to integrated ClickControl counting function and calibration alarm.

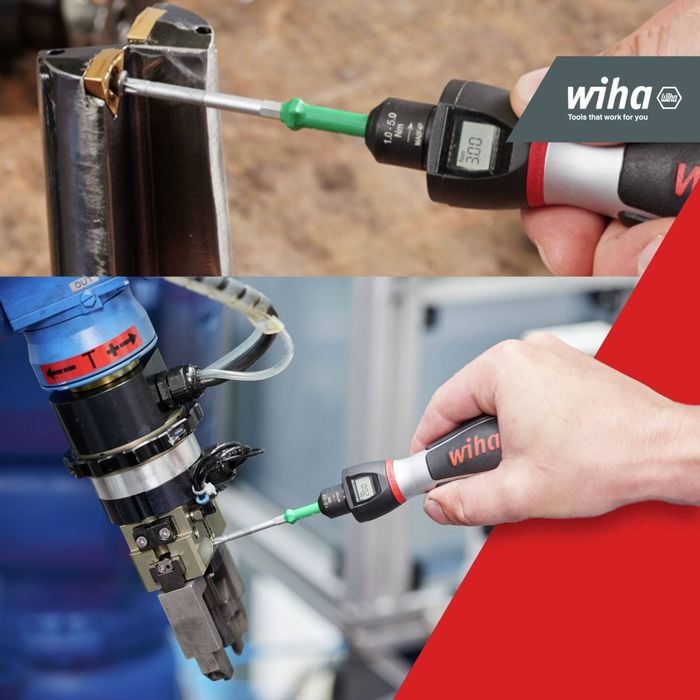

Application: For controlled fastening with the pre-set torque.
Bit holder: Torque bit universal holder exchange blade for accommodating C 6.3 and E 6.3 (1/4") bits.
Handle:
> Torque can be conveniently set directly via push button integrated in handle.
> Ergonomic plastic/metal compound handle of quality, robust materials.
> Handle sizes proportioned to optimise torque setting.
> Distinctly audible and perceptible click signal when set toque is reached.
> Compatible with all blades of the 2859.
Specifications:
> Handle diameter 34 mm
> Handle Length 134 mm
Required Nm value can be easily set within the continuously adjustable range on the cap at the end of the iTorque®'s handle. Large digital display with numeric readings to read the set Nm value easily. Release accuracy of +/- 6%, the torque tool complies with EN ISO 6789 requirements. Alarm function reminds users when calibration is due – the calibration cycle is set at 5,000 tasks ex works, and can be adjusted.
