Wiha Tools
Special Order
Wiha Tools

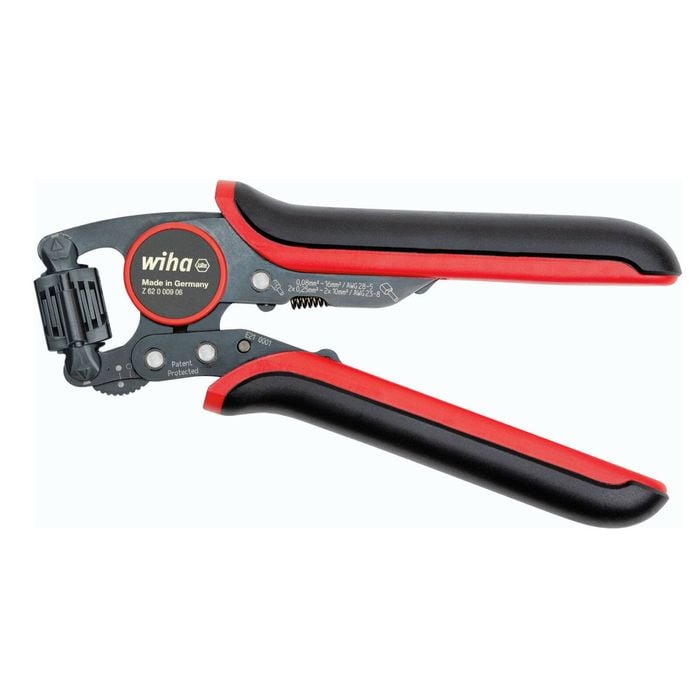

Wiha Automatic Crimp Tool Wire End Sleeves 0.08 – 16mm2

I/N: 0456748

$329

Earn 1 Flybuys point per $1329 pts

How to purchase

Special Order

This item can only be purchased online or in-store from the Special Orders desk. Learn more(opens in a new tab)

Click & Collect

Select a store for availability

In-store

Select a store for availability

Delivery

Enter postcode or suburb for estimate

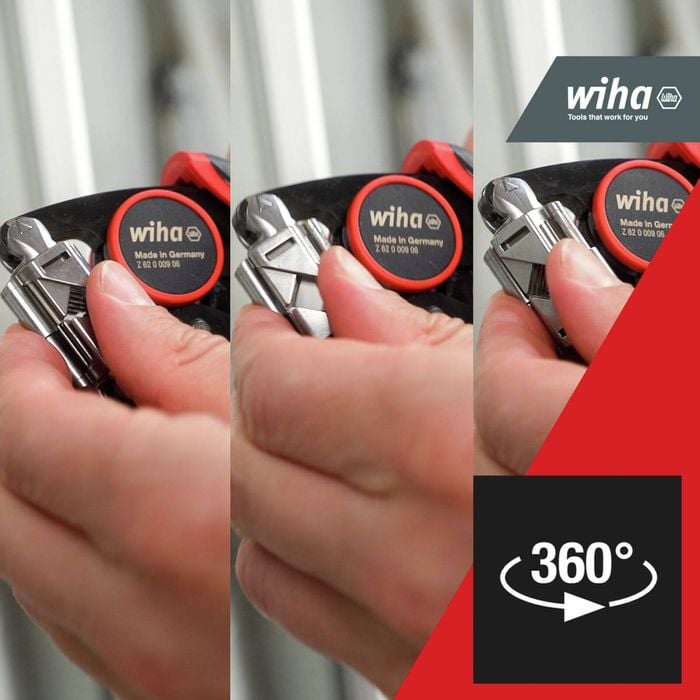

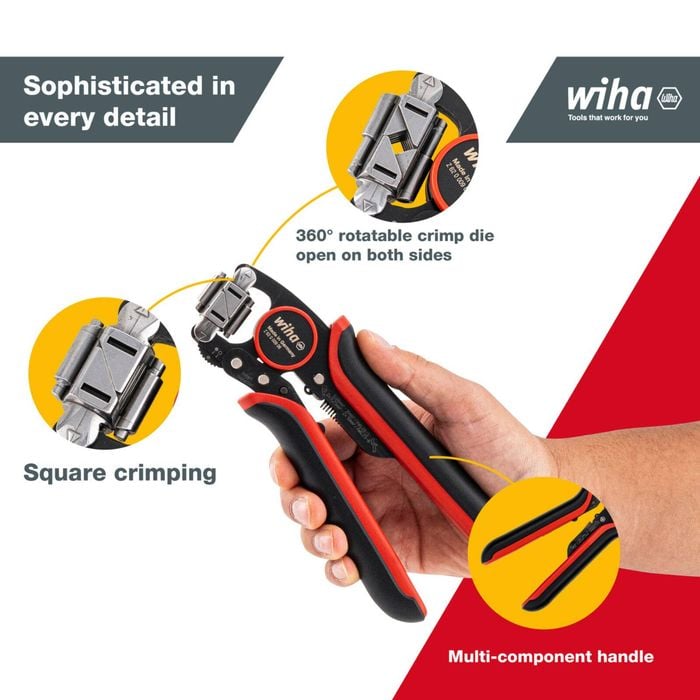

  • Makes handling easier: 360° rotatable crimping die open on ‘both’ sides for optimal accessibility.

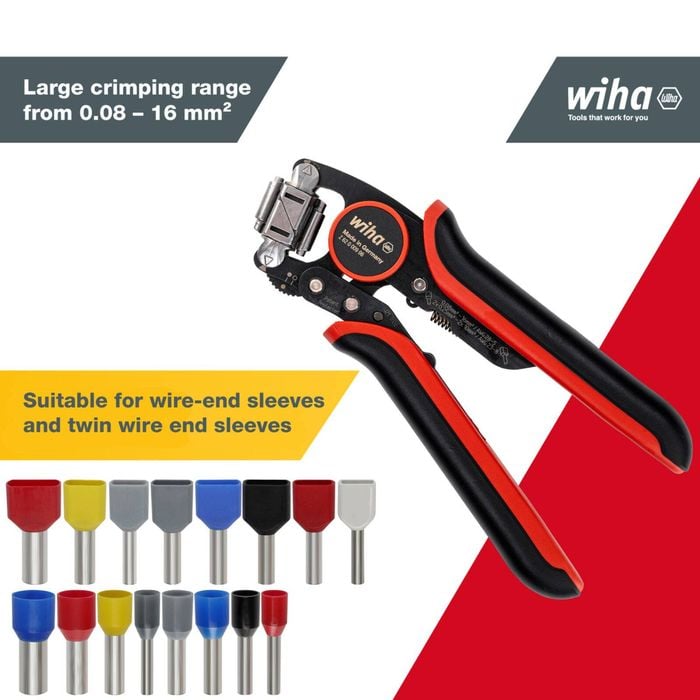

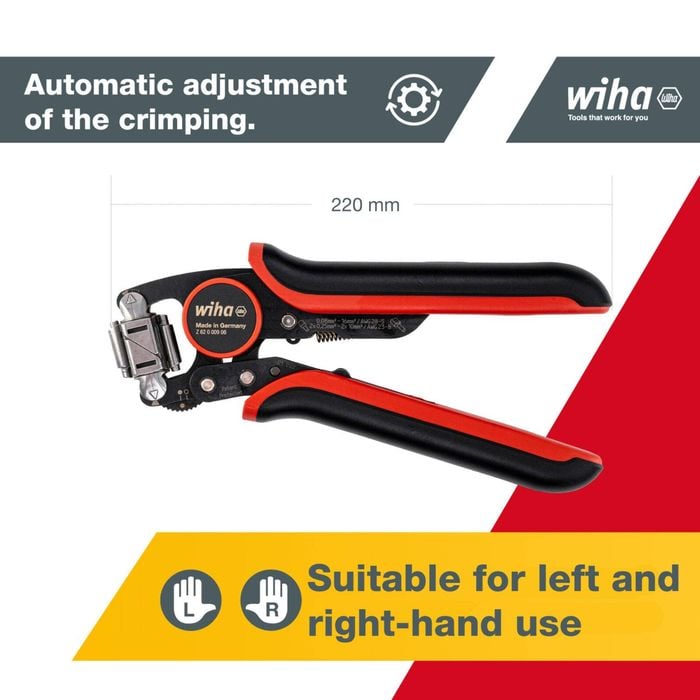

  • Increases your efficiency: Pressing power automatically adjusted to the wire end sleeve dimensions. Covers a large application area 0.08 – 16 mm².

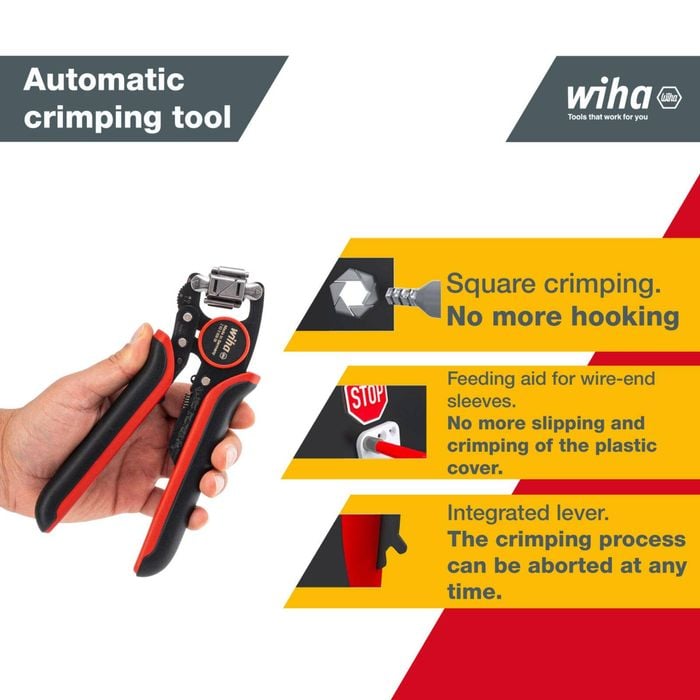

  • Lowers your costs: An emergency lever enables users to manually interrupt the crimping process at any time to protect the pliers.
  • Application: For processing of wire-end sleeves with and without isolating collar according to DIN 46228, EN 50027.
> Crimp wire-end sleeves on hard to access cables. > Automatic crimping pliers with square crimping 360° rotatable crimping head, front and side access in 45° grids. > Crimping opening accessible both sides > For wire-end sleeves up to a length of 18mm. > Crimping range from 0.08 to 16mm², also suitable for crimping twin sleeves up to 2x10mm². >Automatic crimping function sets the tool automatically to the different cross sections. > Emergency release function, the crimping process can be manually interrupted at all times. > Ergonomic soft handles with anti-slip protection allow comfortable operation. > Lightweight easy to handle crimp tool with toggle joint technology ensures high power transmission. >Highly rigid special steel guarantees stability and durability. Overall length (mm) 193 mm height (mm) 62 mm Width (mm) 24 mm Area stripped, cross section min. (mm²) 0.08 mm² Area stripped, cross section max. (mm²) 16 mm² Area stripped, cross section min. – max. (mm²) 0.08 – 16 Area stripped min (AWG) 28 Area stripped max (AWG) 5 5 Area stripped (min – max) (AWG) 28-May Min. AWG size 28 Max. AWG size 5 Min. – Max. AWG size 28-May
