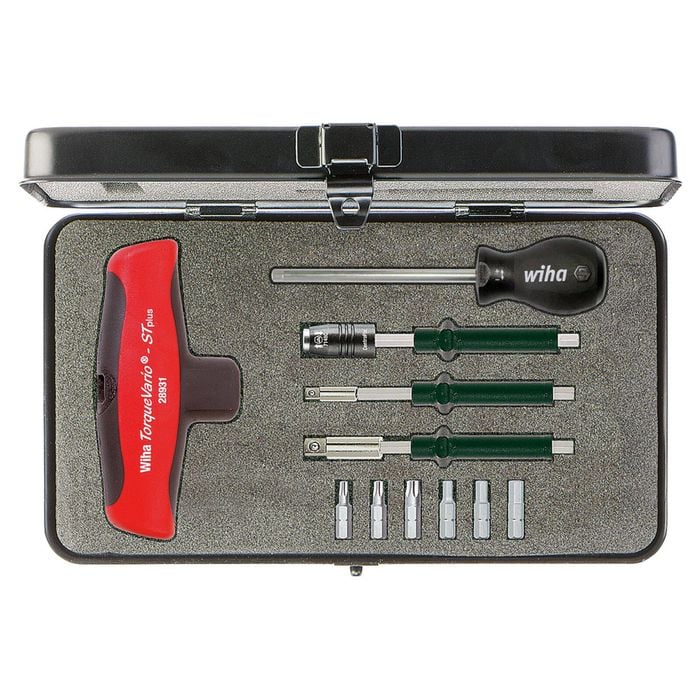

- T handle torque screwdriver, setting tool, 2 x adapter blades, bit holder, 6 bits, box
- 5–14 Nm mixed pieces, variably adjustable torque limit
- Practical and robust metal box
- Effortless and comfortable transmission of high torques thanks to torque screwdriver with handle (T-handle)
For controlled fastening with the pre-set torque. Ideal for applying high torques.
Great force is required to fasten screws at a specific torque value over 5 Nm with a normal torque screwdriver. Using a torque screwdriver with the TorqueVario®-S Tplus T-handle makes things much easier. Integrated numeric scale and the supplied adjusting tool, variable torque settings can be made, thus covering a wide application field.
A clearly audible and tactile signal is emitted when triggering the set torque value, guaranteeing process-safe work, protecting material and eliminating follow-up work. Integrated friction clutch prevents the user from exceeding the required torque value. With a release accuracy of +/- 6%, the torque tool complies with EN ISO 6789 requirements.
The comfortable T-handle with soft zones ensures optimum torque transmission. In addition to the torque T-handle, the set also includes 1/4" and 3/8" internal square adapter blades, a bit holder and six single bits. The TorqueVario®-S Tplus is also compatible with Wiha interchangeable blades for torque screwdrivers with a T-handle (series 2899). All tools in the set are safely stored neatly away in a robust, clearly organised box.
Accuracy ±6%, traceable to national standards.
Handle: Soft-grip T-handle for comfort and optimal torque transmission.
Window scale displays torque value numerically.
Torque infinitely adjustable with Torque-Setter setting tool (also supplied).
Standards: DIN EN ISO 6789.
Supply in robust box including works inspection protocol.
Application: For controlled fastening with the pre-set torque. Ideal for applying high torques.

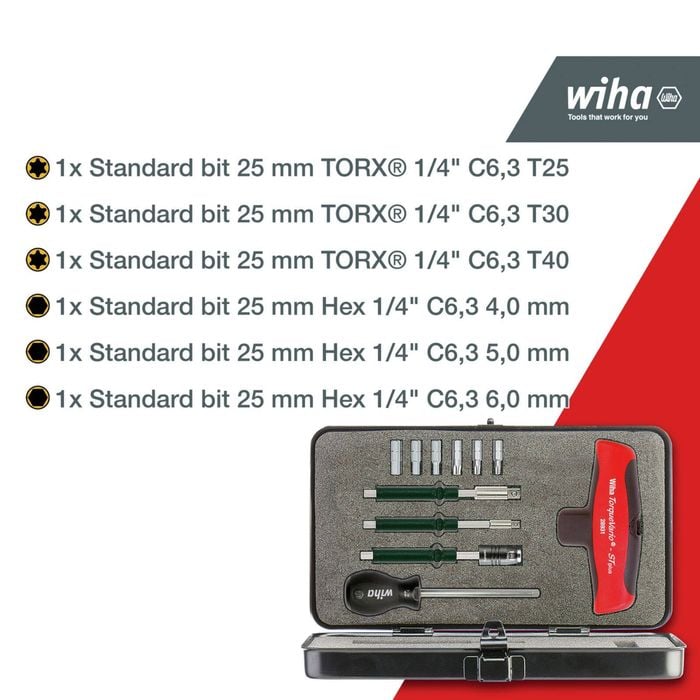

Contents in set:
1x Torque screwdriver with T-handle TorqueVario®-S T 5-14 Nm variably adjustable torque limit 5 - 14 (29233)
1x Setting tool for torque screwdriver with T-handle 90 mm (28691)
1x Adapter blade for torque screwdriver with T-handle 1/4" x 120 mm (28756)
1x Adapter blade for torque screwdriver with T-handle 3/8" x 120 mm (28757)
1x Bit holder for torque screwdriver with T-handle 125 mm (28758)
1x Bit Standard 25 mm TORX® 1/4" C6,3 T25 (01719)
1x Bit Standard 25 mm TORX® 1/4" C6,3 T30 (01721)
1x Bit Standard 25 mm TORX® 1/4" C6,3 T40 (01722)
1x Bit Standard 25 mm Hexagon 1/4" C6,3 4.0 mm (01706)
1x Bit Standard 25 mm Hexagon 1/4" C6,3 5.0 mm (01707)
1x Bit Standard 25 mm Hexagon 1/4" C6,3 6.0 mm (01708)
1x Box
Product dimensions: 281 x 46 x 169 mm (LxWxD)
