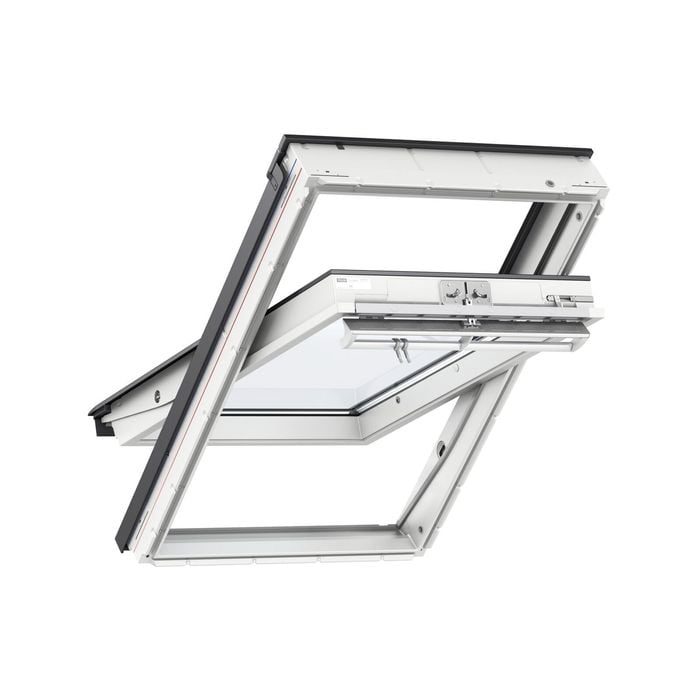

VELUX 780 x 980mm Dual-Action Roof Window

I/N: 0820056
$766
Price correct as at Wed 20 Sep 2017 3:54:35 PM
Add to Store Order
Products can be picked up or delivered. Your local store will contact you to confirm stock availability, delivery charges and organise payment.
Add to Cart
Confirm whether the customer will pick up their order or have it delivered. Contact the supplier to confirm stock availability. If applicable, please organise payment at this time.

Product Description

Beautifully engineered for a lifetime of use, the VELUX GPL roof window is ideal for in-reach attic solutions.
The dual action hinge system offers choice of function, allowing for centre-pivot motion or top hung operation. With a choice of blinds available to add that finishing touch, the GPL roof window is the perfect option for any attic space.

  • Approximately 70% radiant heat block and approximately 95% harmful UV reduction
  • Ventilation flap provides passive ventilation while keeping the elements out
  • Bushfire rated to BAL 40 (18-55° pitch, requires custom flashing and additional mesh screening - consult VELUX)
  • Laminated safety pane as standard to meet AS1288
  • Sash rotates 180 degrees allowing the outer pane to be cleaned from inside

Product Details

Model Name
VELUX Dual Action Roof Window / Skylight
Model Number
GHL MK04 3076FG
Material
Timber frame, aluminium cappings, insulated glazing unit
Product Dimensions (mm)
W:780 H:980 L:165
Package Dimensions (mm)
W:171 H:809 L:1048
Frame Material
Nordic Pine
Glazing Type
Laminated Double Glazed, Argon filled, low E coating
Insect Screen
No
Maximum roof pitch (degrees)
55
Minimum roof pitch (degrees)
15
Mounting type
Brackets mount to battons
Operation
Manual in reach centre-pivot and top hung operation
Rotates for Cleaning
Yes
Severe weather ready
No
Skylight Mounting Type
Brackets mount to battons
Telescoping control rod
No
U-factor (Btu/hr ft^2 F)
1.2
UV protection (%)
95
Flashing Included
Yes
Hardware Included
Yes

Product Downloads

Brochure
Download
Installation Guide
Download
Specifications
Download
Warranty
Download

Additional Info

Warranty Info

10 Year Warranty, 3 Year Warranty on Hinges & Handles
*See VELUX warranty for details

Installation Info

See supporting files

Delivery Info

Refer to page 14 of our brochure - see Product Downloads
