1/6
Special Order
$2,826
How to purchase
Special Order
This item available only by submitting an enquiry online or purchasing in-store at the Special Orders desk. Learn more(opens in a new tab)
Order Enquiry
Select a store for availability
- Custom Made to Project Requirements
- Flame Zone Areas - BAL FZ Rated
- Panels are made from light weight GALVASPAN® steel

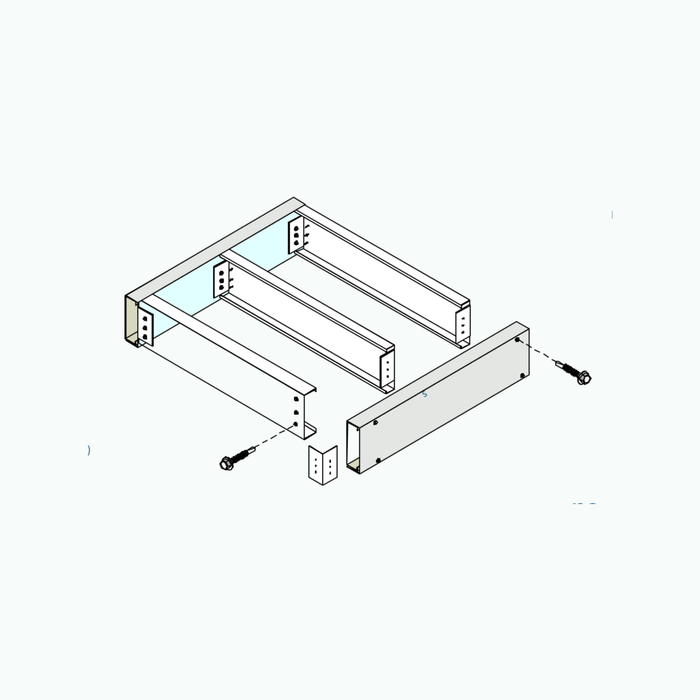

- The system is entirely Tek screw fixed for a fast & easy assembly
- Compatible with most types or brand of decking, including composite, timber, tile & hardwood
Steel-Deck custom made frames are designed and engineered with our core concepts of low maintenance, ease of installation, durability, and safety in mind.

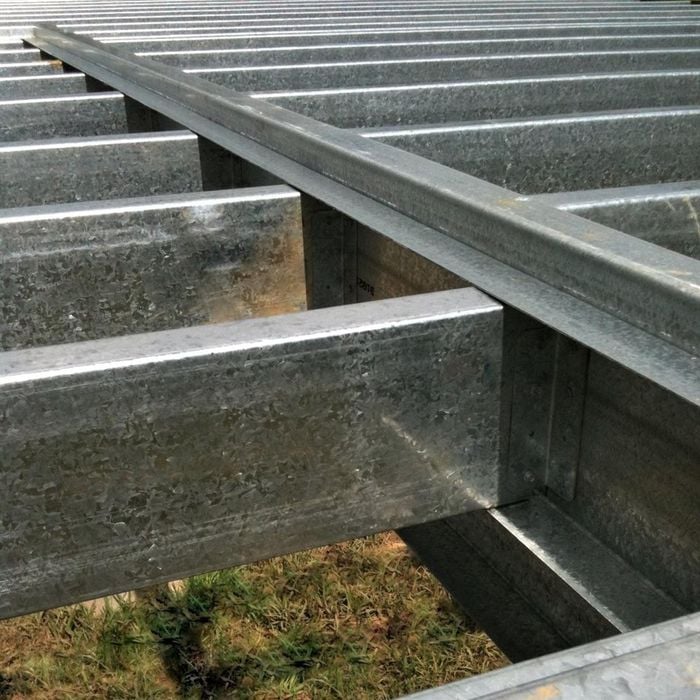

Our Kits include long span channel bearers and joists, using corrosion and fire resistant GALVASPAN® steel, offering a reliable and high-performance frame, resistant to rot and warping.
Make up complete floor frames with as many modular Panels needed.
- Panels can be of any size up to 12.0 m long in the bearer direction, and 5.0 m wide in the joist direction.
- There are two Panel depths: 185mm for Panels up to 3.8m wide, and 235mm deep for Panels over 3.8m wide, up to 5.0m wide.
The system is suitable for most residential and light commercial sub-floor applications, including office loaded shed mezzanines of 3.0kPa live load and 2.7kN concentrated load. Designs for 5.0kPa live loads are available.
Options
Post Tube Duragal
Stump Packs / Piers – Telescopically Height Adjustable
Site Specific Certification available for order
Verandah Posts

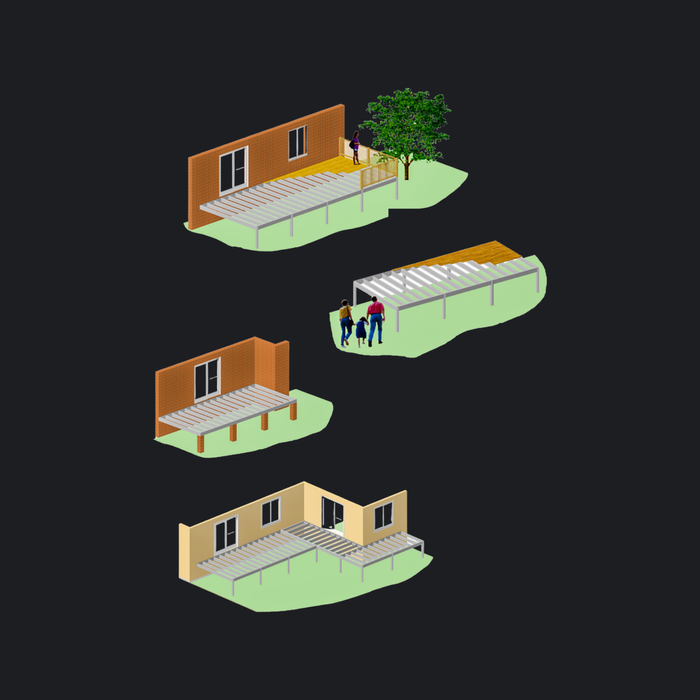

Steel-Deck can be used in the following applications
Decks
Mezzanines
New Homes
Extensions
Garages / Carports
Pool Decks
Pods & Granny Flats

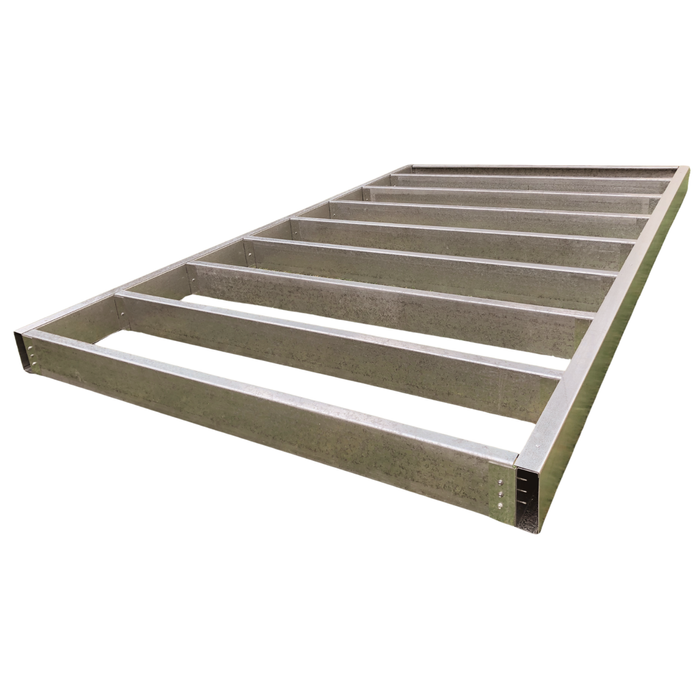

PurchaseSteel-Deck 9000 x 3300 x 185mm Modular Steel Kit F...
$2,826
$2,826
