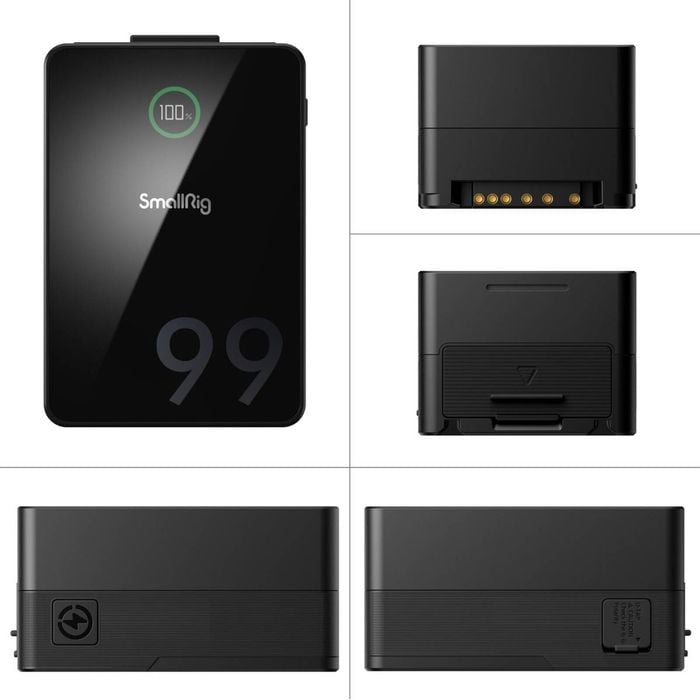

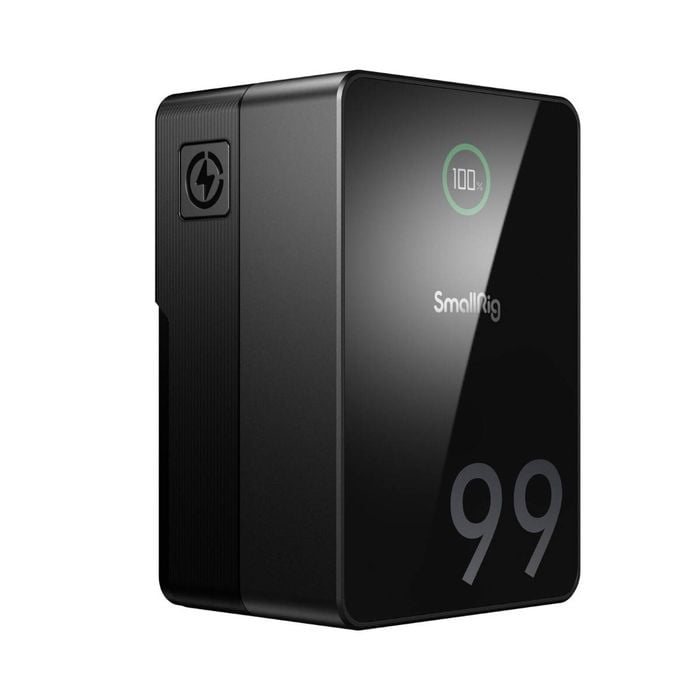

SmallRig VB99 Pro mini V Mount Battery 4292

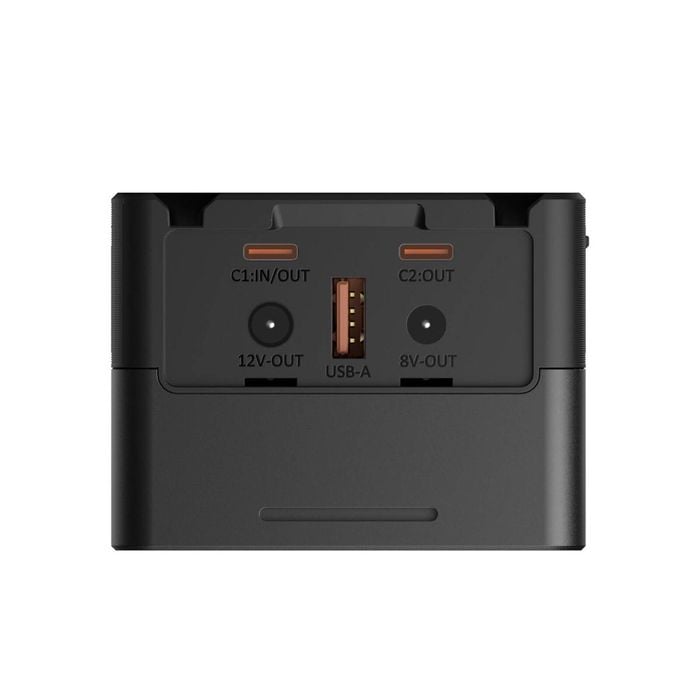

- BMS intelligent chip supports 100W (Max.) fast charging, fully charged in 2.5 hours. - Imported top-class large-capacity LG battery cell endures repeated charging and discharging, safe and stable. - Highly integrated design, about 70% the size of a normal V-mount battery, lighter and more portable. - Interfaces: 2 USB-C, 1 D-Tap, 1 USB-A, 1 8V-OUT, 1 12V-OUT, each with a shunt design to allow simultaneous USB-C and USB-A fast charging. - Aluminum alloy and fireproof PC, sturdy and drop-proof. - Durable, scratch-resistant PC and acrylic cover on the front. - The TFT color screen displays the status clearly and accurately. SmallRig VB99 Pro mini V Mount Battery 4292 is about 70% the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / PPS etc.), bi-directional 100W (Max.) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation, etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage, etc. Such interfaces as D-tap / USB-C / USB-A / 8V-OUT / 12V-OUT / BP electrode are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / LED video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16-bit ADC / power meter algorithm, together with an MCU and a TFT digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which is rechargeable and stable, and meets MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards. Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC and features a durable, scratch-resistant PC and acrylic cover on the front, with a TFT color screen displaying battery status clearly and accurately. Overall, this item is safe and powerful enough for you to capture every moment without burden! Certification: FCC CE RoHS ISED RCM PSE KC IMPORTANT Manually measured weight and size may not be accurate. Key Features Product Dimensions: 107.2 × 73.2 × 55.2mm Package Dimensions: 146 × 113 × 74mm Product Weight (including charging cable): 660 ± 10g Package Weight: 847 ± 10g Material(s): Aluminum Alloy, Fireproof PC Capacity: 14.54V 6.8Ah 98.872Wh Rated Power: 100W BP / D-tap Input: 8A (Max.) BP / D-Tap Output: 14.8V / 14A (Max.) USB-A Output QC2.0 / QC3.0: 5V / 3A, 9V / 3A, 12V / 2.5A（Max.） USB-C1 Input / Output Input / Output: 100W (Max.) PD3.0 / QC2.0 / QC3.0 / PPS: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.) USB-C2 Output Output: 100W (Max.) PD3.0 / QC2.0 / QC3.0 / PPS: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.) 8V-OUT: 8V / 3A (Max.) 12V-OUT: 12V / 3A (Max.) Cut-off Voltage: 11V Optional Charging Method: BP charger、16.8V D-TAP charger、USB-C charger, such as GaN charger with PD fast charging tech (up to 100W) Compatibility MILC, camcorder, camera, monitor, follow focus, image transmitter, LED video light, cell phone, tablet, laptop, etc. What’s in the box? 1x VB99 Pro mini V Mount Battery 1x 240W USB-C Charging Cable 1x User Manual
