- Revolutionized zoom in/out design: simply rotate the focus button with one hand without any risk of burning your hand by the lens body; adjust the flooding and spotting light output from 10° to 40° beam angle.
- New heat dissipation technology: features brand new heat dissipation fan together with heat dissipation holes, heat sinks, etc. To achieve the most efficient heat dissipation.
- Improved illumination: adopting high-transparency, high-temperature-resistant borosilicate glass, using the process of high-temperature lamination, can enhance the glass's heat resistance, also improving the glass's transparency and light transmittance.
- Revolutionized zoom in/out design: simply rotate the focus button with one hand without any risk of burning your hand by the lens body; adjust the flooding and spotting light output from 10° to 40° beam angle.
- New heat dissipation technology: features brand new heat dissipation fan together with heat dissipation holes, heat sinks, etc. to achieve the most efficient heat dissipation. Wide compatibility (suitable for any video lights with a lower than 600W output) and can prolong the service life of the light units.
- Improved illumination: Adopting high-transparency, high-temperature-resistant borosilicate glass, using the process of high-temperature lamination, can enhance the glass's heat resistance, also improving the glass's transparency and light transmittance.

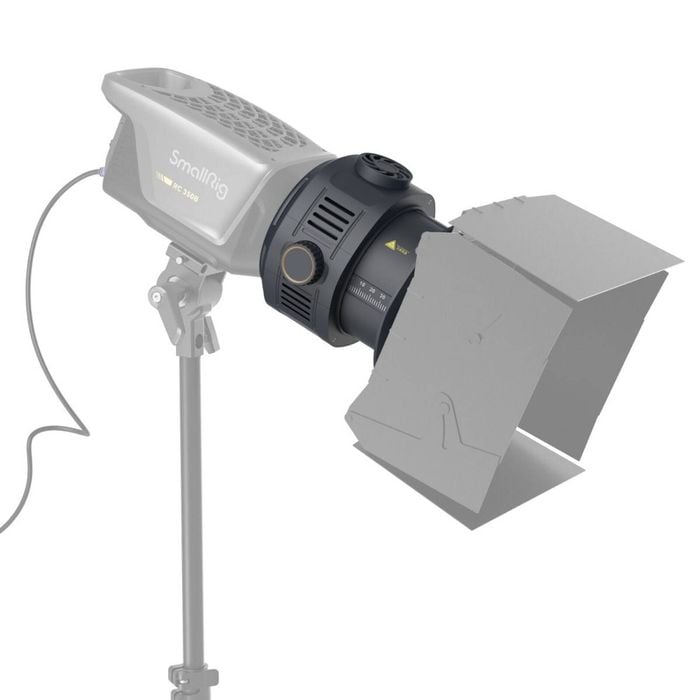

- Works with SmallRig 8-leaf Barndoors for additional creative effects.
- Storage bag for greater protection while transportation.

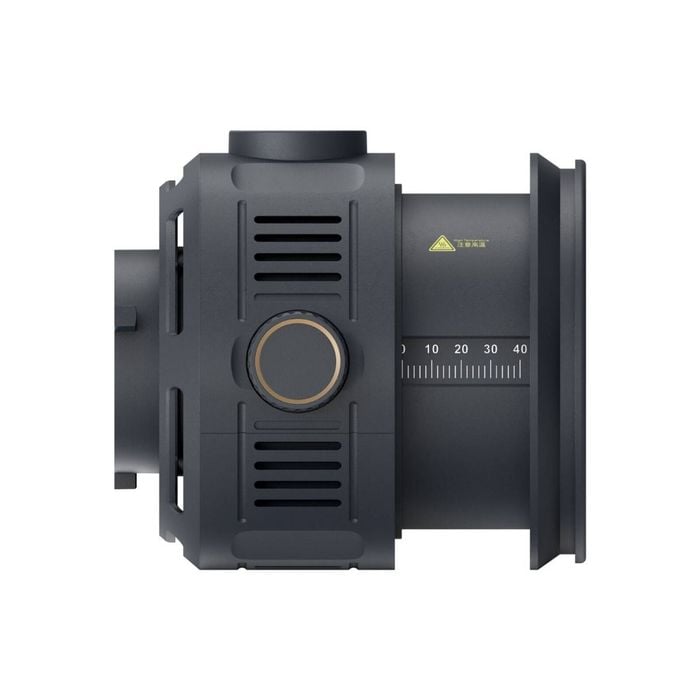

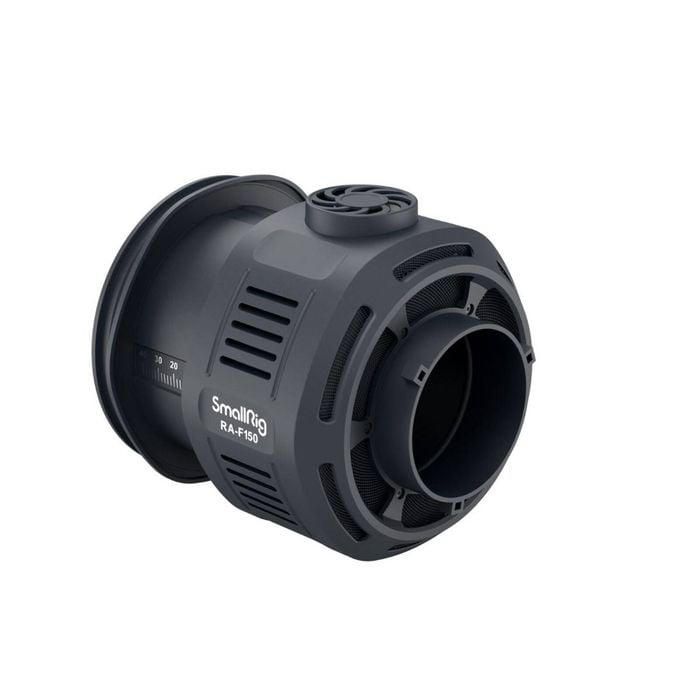

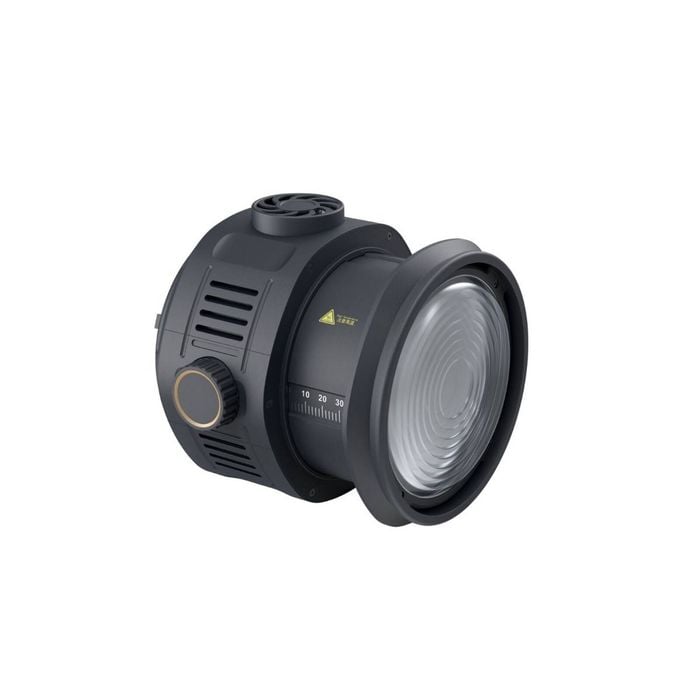

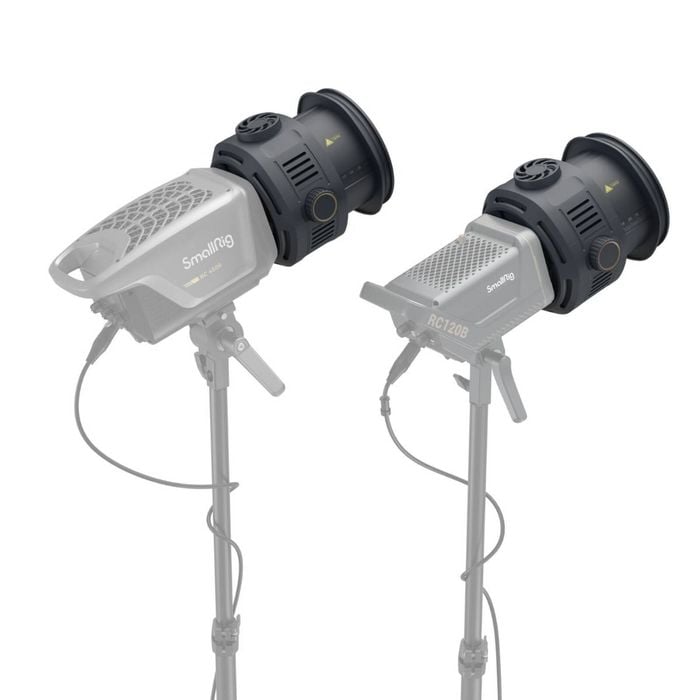

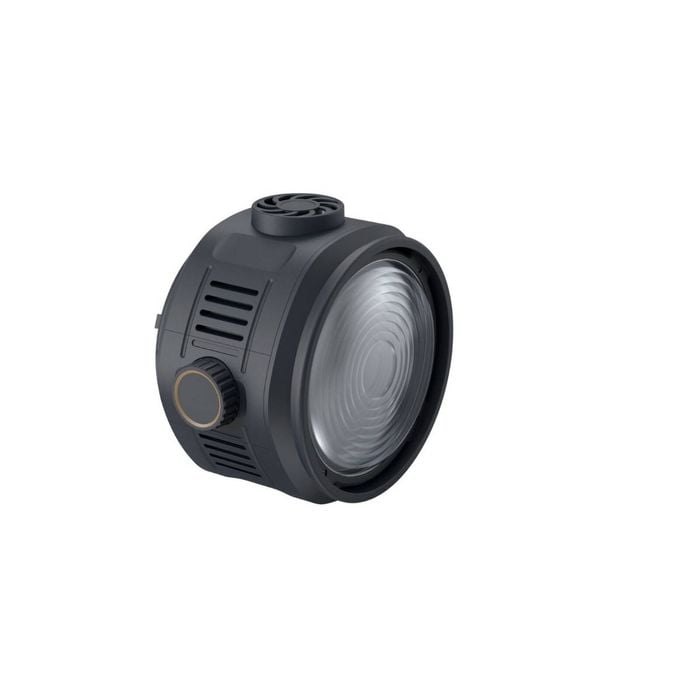

SmallRig RA-F150 Fresnel Lens 4246 is a pro-focusing attachment. It allows more accurate flooding and spotting light onto any given object or scene. The innovative design of a high-transmittance Fresnel lens with a diameter of 150mm and a built-in reflector brings 10 times more output. Innovative zoom-in/out design allows adjusting the focus with just one hand, saving time during the shooting and eliminating the possibility of overheating your hand. Rotate the focus button to flood the beam angle from 10° to 40°. The standard Bowens mount interface is compatible with SmallRig RC120 / 220 / 350 / 450 as well as other Bowens mount lights on the market. Also, this Fresnel lens can work with SmallRig 8-leaf Barndoors to create more lighting effects.
IMPORTANT
Only compatible with Bowens mount COB LED lights with less than 600W output.
Key Features
Product Dimensions: 185x 192x 150mm
Storage Bag Dimensions: 195x 195x 160mm
Mount Type: Bowens

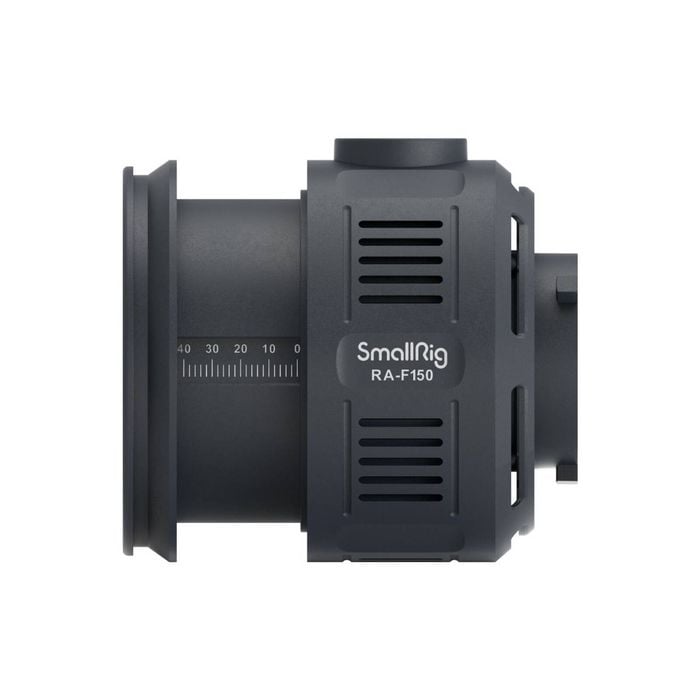

Beam Angle: 10° - 40°
Inner Package Dimensions: 17.5x 21x 22cm (±0.5-1cm)
Outer Package Dimensions: 56 x 52.5x 28cm(±0.5-1cm)
Packing Quantity: 6PCS
Net Weight: 1500g±5g
Gross Weight: 2273g±5g
Material(s): 36.6% Nylon, 28.9% Glass Fiber, 14.6% Glass, 14.0% Aluminum, 2.7% Iron, 3.2% others
Compatibility
Bowens mount light
What’s in the box?
1x Fresnel Lens
1x Storage Bag
1x User Manual
