Simpson Strong-Tie

Simpson Strong-Tie Strong-Wall Site-Built Single Wall Portal Frame Kit

No reviews yet

I/N: 0179402

No reviews yet

I/N: 0179402

Select your preferred purchase method

Features

  • Available in Single and Double Wall Systems
  • Narrow Wall Width — 240 mm or 300 mm nominal column sizes allow builders to maintain narrow return walls at garage openings and allow designers to maximize portal openings in standard wall framing, such as for large windows or sliding glass doors
  • Cost Effective — site-built portal frames are less expensive than steel or moment frames
  • Easy to Assemble — saves time for the installer and increases the confidence of the specifier that it will be installed properly
  • Larger Openings — designers need as much bracing capacity as possible to economically design structures

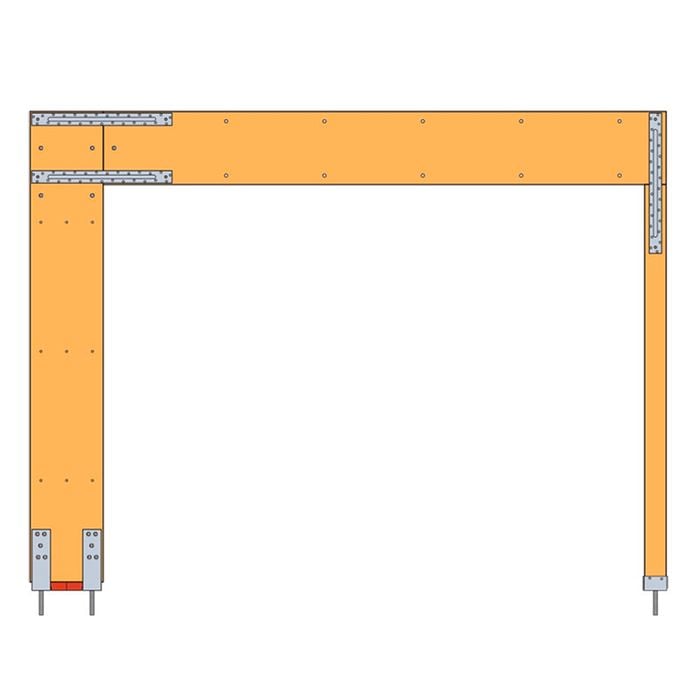

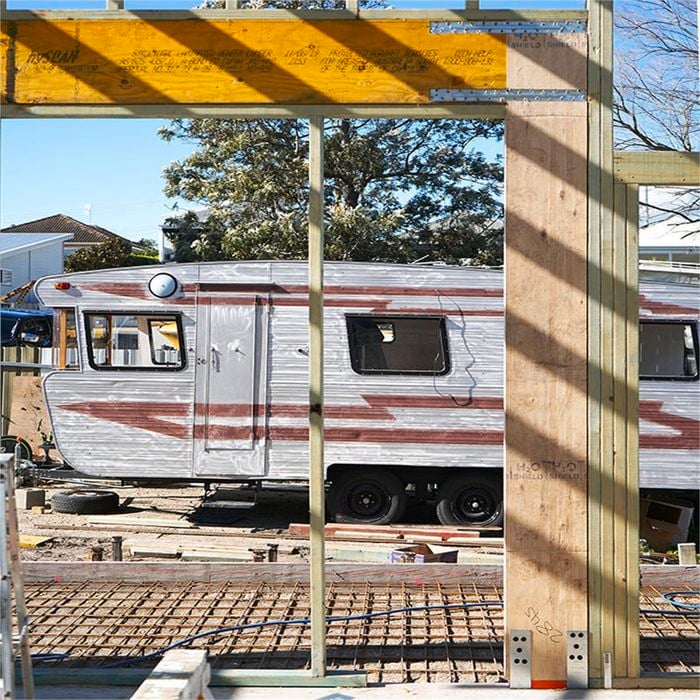

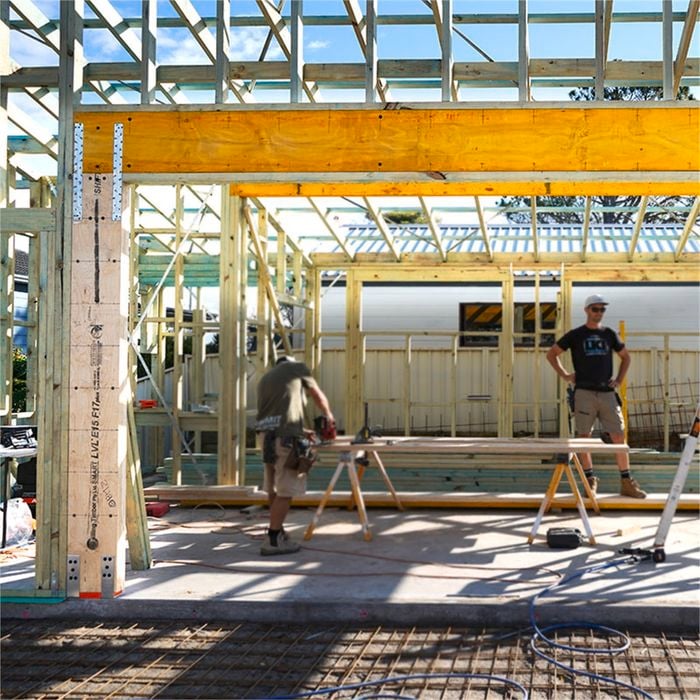

The Strong-Wall® Site-Built Portal Frame System (PFS) provides designers, builders and contractors an easy way to achieve wall-bracing requirements with narrow wall widths. Simple and quick to install, the PFS is a cost-effective alternative to steel braced-wall solutions.

Single-Wall Portal Frame Kit (PFS-HKSAU) Includes:

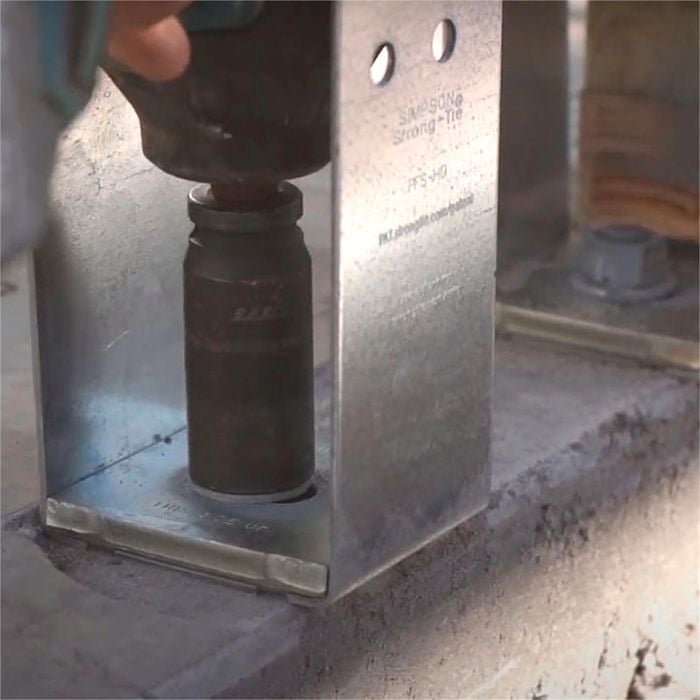

(2) Holdown assemblies

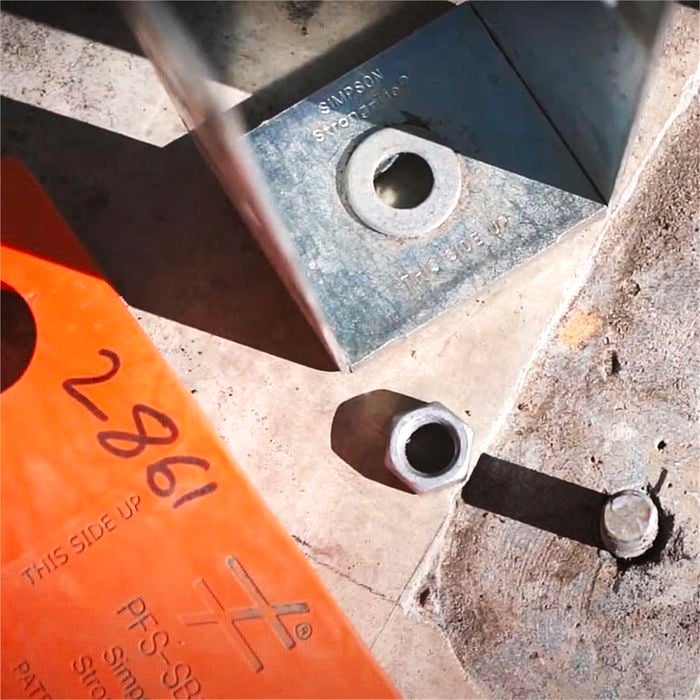

(2) Composite standoff bases*

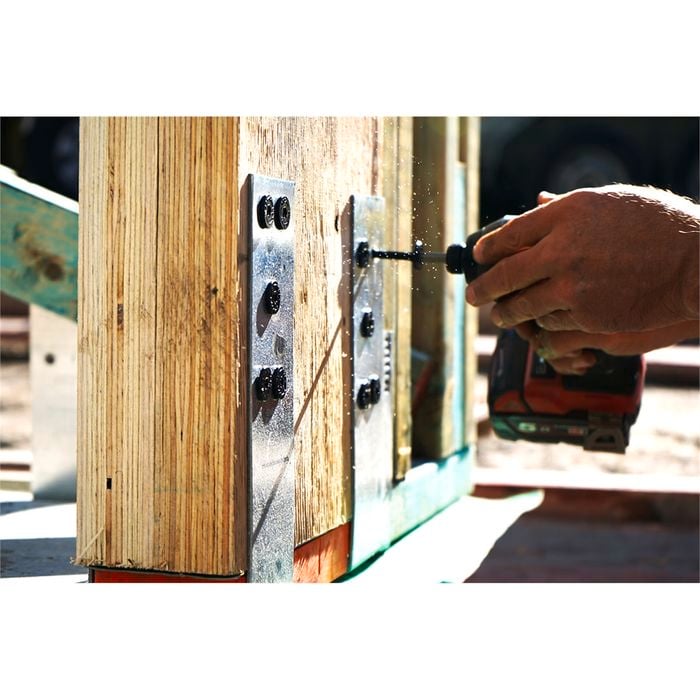

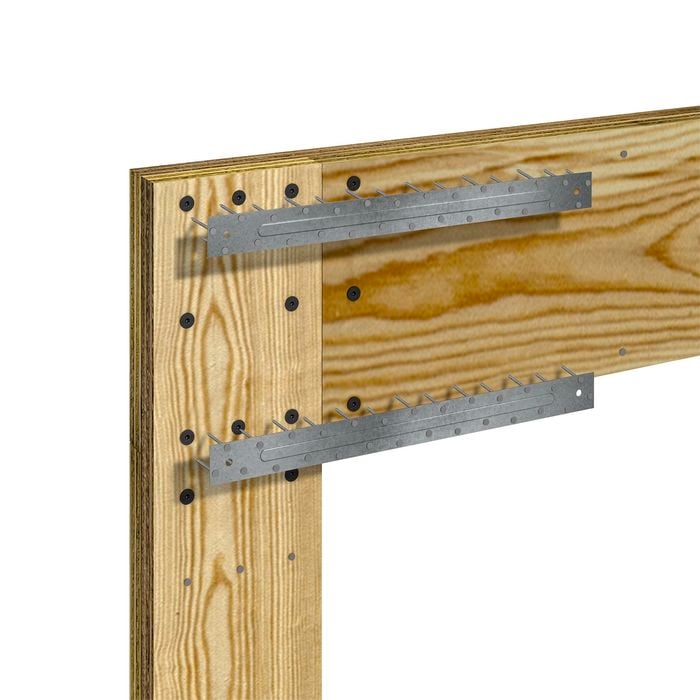

(5) Moment connection straps
(1) Adjustable post base (ABW44Z)
(33) SDW22300 truss-ply screws
(8) SD9112 Connector screws
(1) 6-lobe T40 driver bit
(1) Installation instructions (T-L-PFSHWAU20)

Details

Dimensions



Width

Height

Length

Product

640mm130mm120mm

Package

130mm110mm640mm

Weight

Easy To Carry

Total Weight 6.4kg

Specifications

Colour
Grey
Model Name
Strong-Wall Site-Built Portal Frame System (Single-Wall)
Model Number
PFS-HKSAU
Material
1.3mm Carbon Steel, ZMAX® Galvanised Finish
Pack Quantity
1
Finish
Galvanised ZMAX®
