Simpson Strong-Tie

Simpson Strong-Tie Strong-Wall Site-Built Double Wall Portal Frame System

No reviews yet

I/N: 0179401

No reviews yet

I/N: 0179401

Select your preferred purchase method

Features

  • Narrow Wall Width — 240 mm or 300 mm nominal column sizes allow builders to maintain narrow return walls at garage openings and allow designers to maximize portal openings in standard wall framing, such as for large windows or sliding glass doors
  • Easy to Assemble — saves time for the installer and increases the confidence of the specifier that it will be installed properly
  • Cost Effective — site-built portal frames are less expensive than steel or moment frames
  • Larger Openings — designers need as much bracing capacity as possible to economically design structures
  • Available in Single and Double Wall Systems

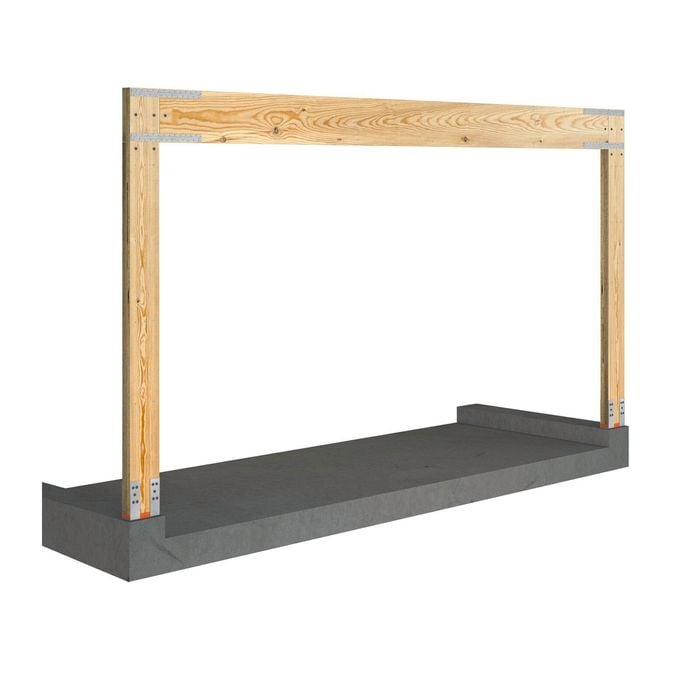

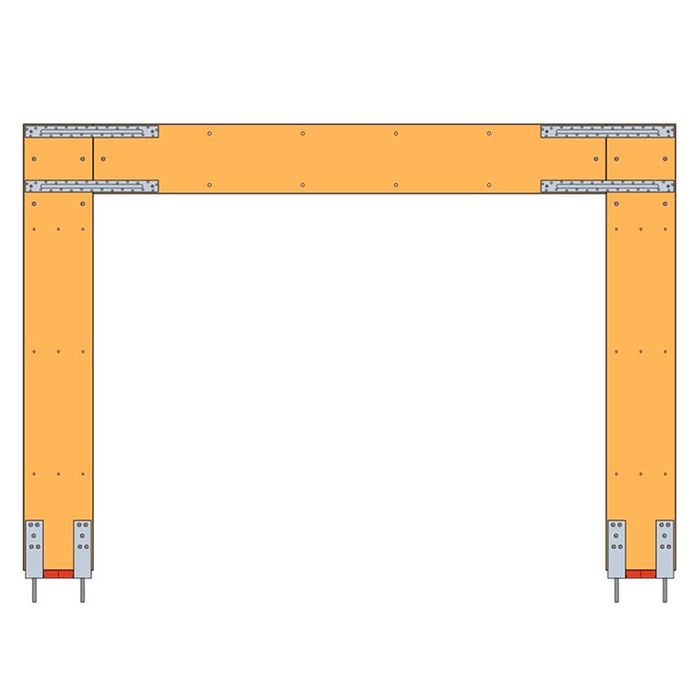

The Strong-Wall® Site-Built Portal Frame System (PFS) provides designers, builders and contractors an easy way to achieve wall-bracing requirements with narrow wall widths. Simple and quick to install, the PFS is a cost-effective alternative to steel braced-wall solutions.

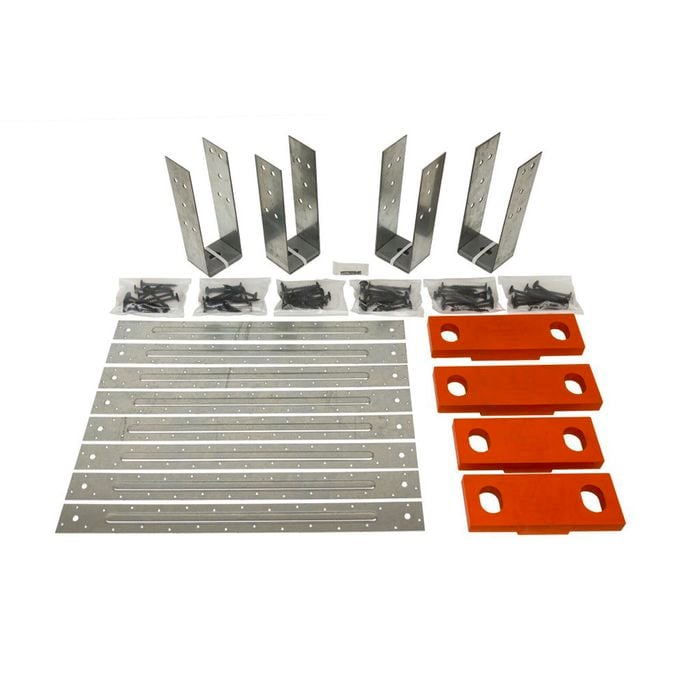

Double-Wall Portal Frame Kit (PFS-HKDAU) Includes:

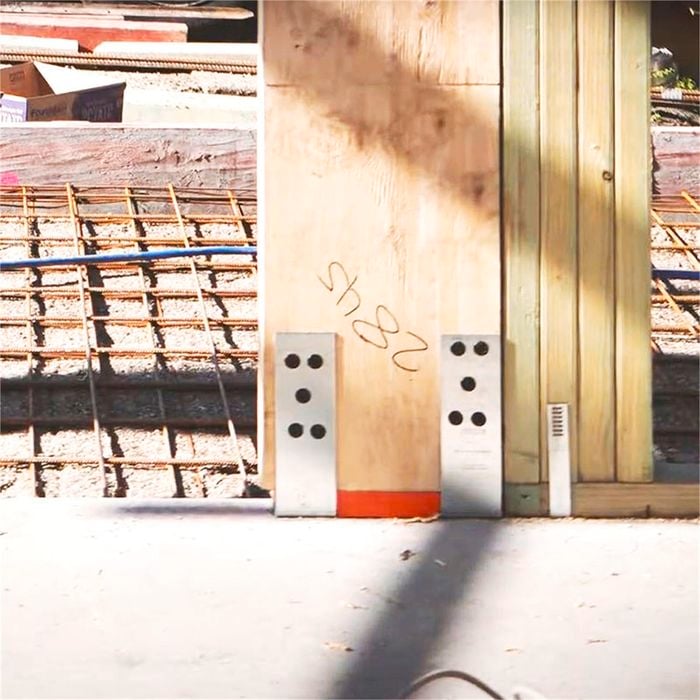

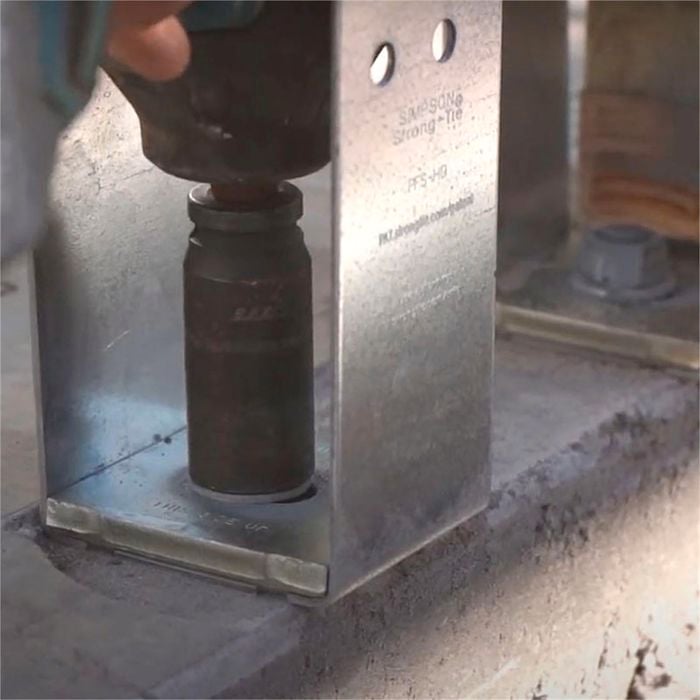

(4) Holdown assemblies

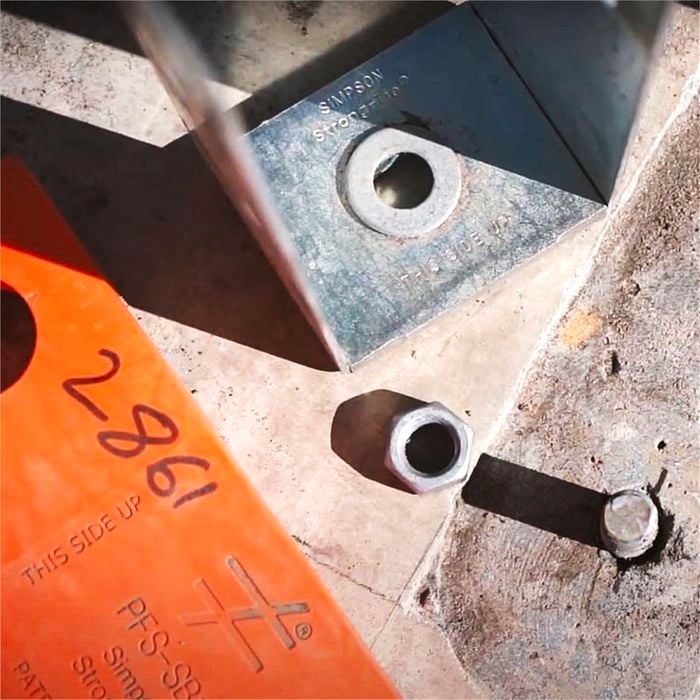

(4) Composite standoff bases*

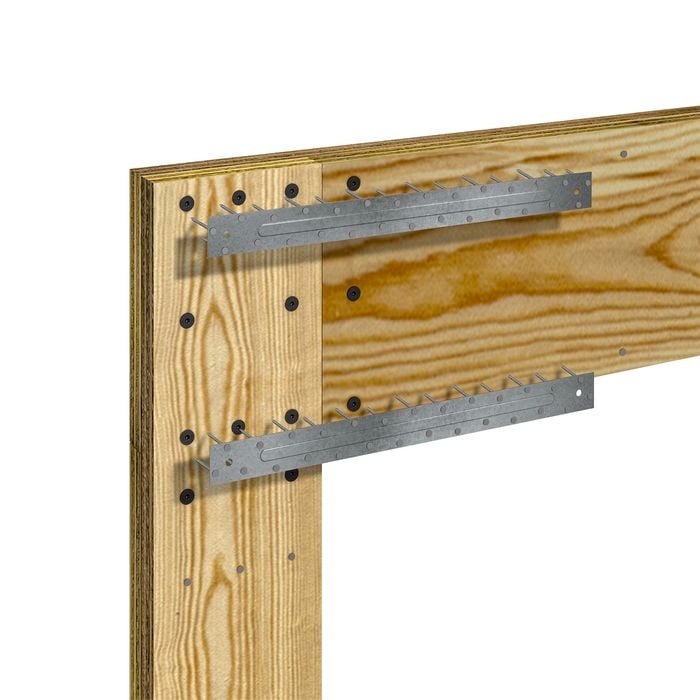

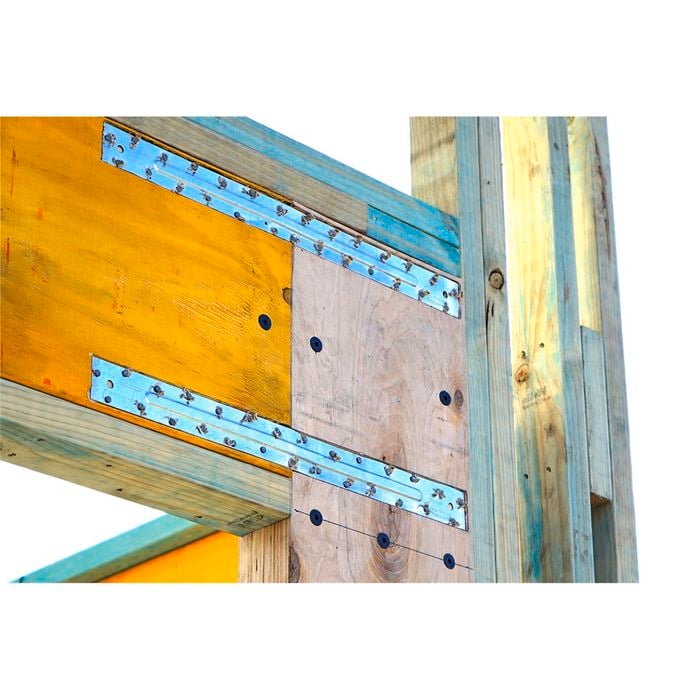

(8) Moment connection straps
(66) SDW22300 truss-ply screws
(1) 6-lobe T40 driver bit
(1) Installation instructions (T-L-PFSHWAU20)
*Extra composite standoff bases included. Use only the base that corresponds to the column width and discard extra base(s)

Details

Dimensions



Width

Height

Length

Product

640mm130mm120mm

Package

130mm110mm640mm

Weight

Easy To Carry

Total Weight 10.4kg

Specifications

Colour
Grey
Model Name
Strong-Wall Site-Built Portal Frame System (Double-Wall)
Model Number
PFS-HKDAU
Material
1.3mm Carbon Steel, ZMAX® Galvanised Finish
Pack Quantity
1
Finish
Galvanised ZMAX®
