Simpson Strong-Tie

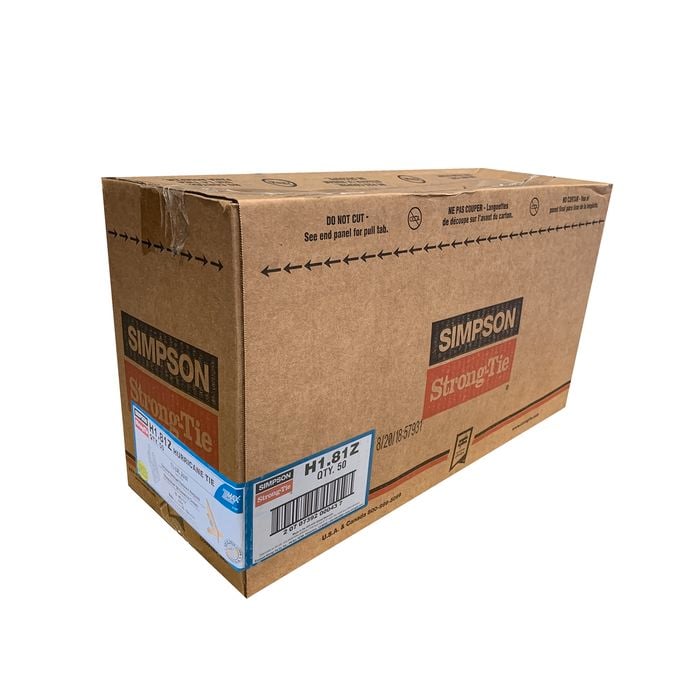

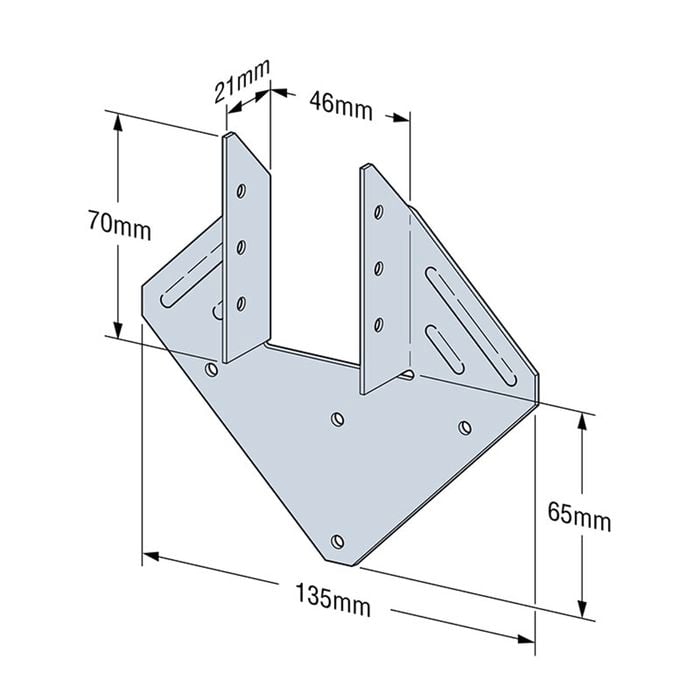

Simpson Strong-Tie 135 x 135 x 21mm Hurricane Tie 45mm Joist And Rafter - 50 Pack
I/N: 0116513
$172.50
Earn 1 Flybuys point per $1172 pts
How to purchase
Special Order
This item can only be purchased online or in-store from the Special Orders desk. Learn more(opens in a new tab)
Click & Collect
Select a store for availability
In-store
Select a store for availability
Delivery
Enter postcode or suburb for estimate
- Wider seat to fit 45 mm structural timber framing
- Resists high winds and seismic forces, provides a secure hold to help weather storms
- H1.81 has a wider seat to fit 45 mm structural timber framing
- Engineered swages for extra strength and to minimise deflections, install in pairs on either side of the rafter/truss/joist to provide resistance to uplift and lateral forces
- May be used for general tie purposes, strongback attachments, and as all-purpose ties where one member crosses another
Hurricane Ties provide a positive connection between the truss/rafter and the wall of the structure to resist wind and seismic forces. These ties connect both solid-sawn and engineered timber across a wide range of applications. Some hurricane tie models are available with additional corrosion resistance for exterior and treated-timber applications.

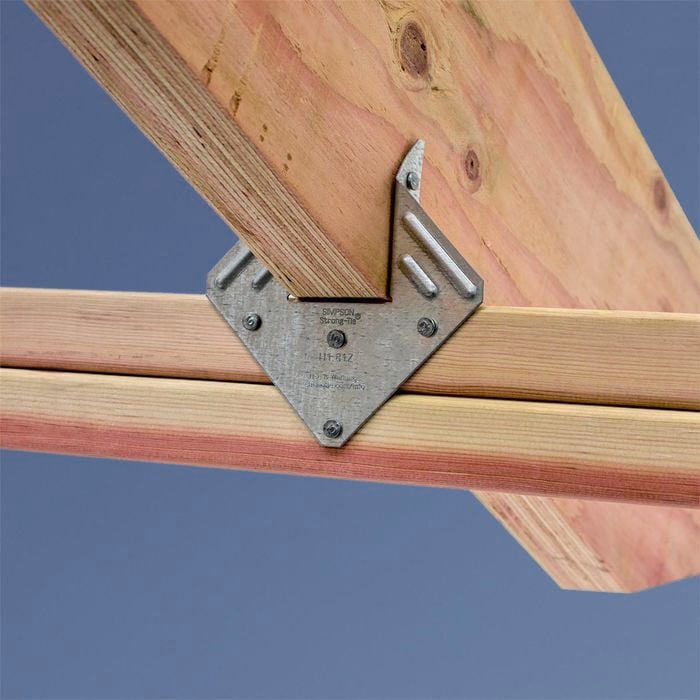

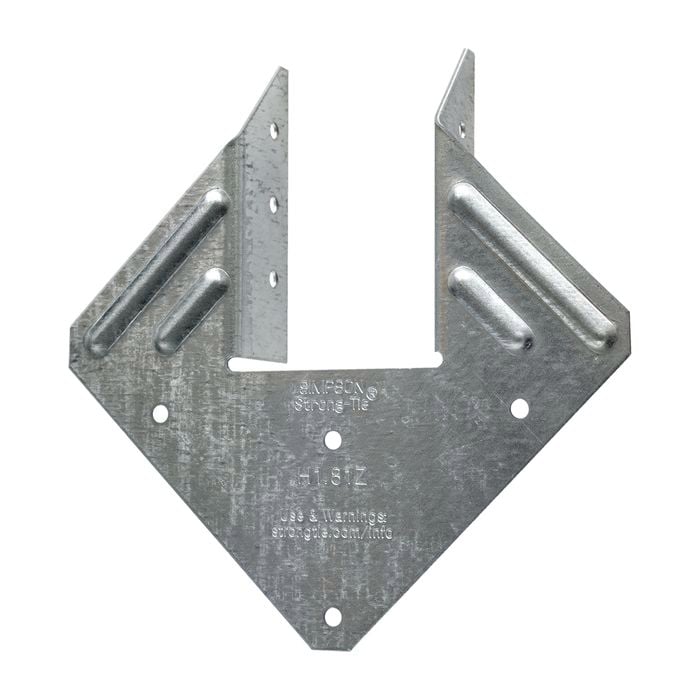

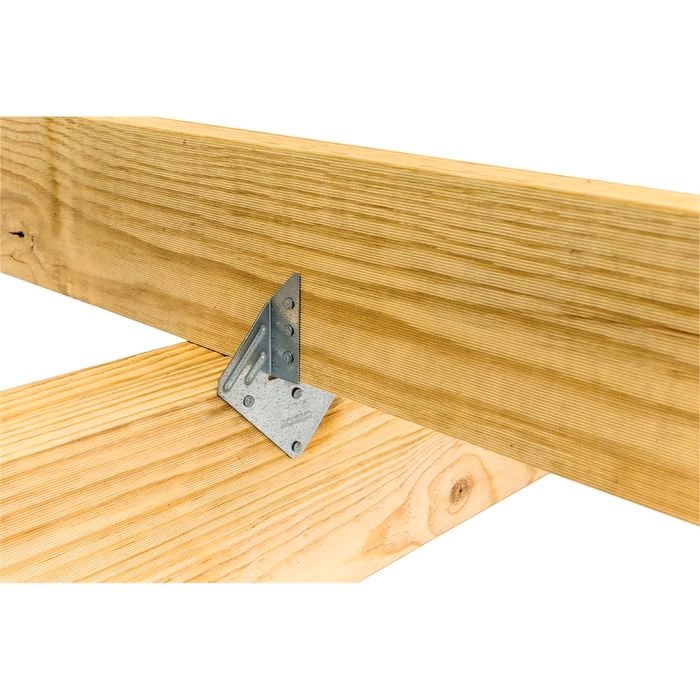

The H1.81Z Hurricane Tie is designed for use with 45mm structural timber framing to provide a stronger connection between the top plate of the wall and rafter. It's ideal for connections when there are higher-load demands on the structure, like a heavy snow load, and provides lateral resistance in a seismic event. It also suits for bearer to joist connection in flooring and deck framing applications.
The H1.81Z installs with half the nails that are needed for two single-sided twist straps (like the H2.5A) and offers a higher lateral allowable load, making it a cost effective and higher-performing solution to tie down a rafter roof.
The H2.5A connects the truss/rafter to the top plate and is also suitable for joist to bearer connections. It is available in galvanised and stainless steel for extra corrosion protection.
Installation: Use all specified fasteners , Simpson Strong-Tie Stainless Steel connectors require stainless steel fasteners, Ties can be installed with flanges facing inward or outward, Hurricane ties do not replace solid blocking.
Applications: Rafter/Truss/Joist tie down, Top Plate-to-Stud tie down, Decking Joist tie down, Structural timber framing.
The H1.81Z Hurricane Tie is designed for use with 45mm structural timber framing to provide a stronger connection between the top plate of the wall and rafter. It's ideal for connections when there are higher-load demands on the structure, like a heavy snow load, and provides lateral resistance in a seismic event. It also suits for bearer to joist connection in flooring and deck framing applications.
The H1.81Z installs with half the nails that are needed for two single-sided twist straps (like the H2.5A) and offers a higher lateral allowable load, making it a cost effective and higher-performing solution to tie down a rafter roof.
The H2.5A connects the truss/rafter to the top plate and is also suitable for joist to bearer connections. It is available in galvanised and stainless steel for extra corrosion protection.
Installation: Use all specified fasteners , Simpson Strong-Tie Stainless Steel connectors require stainless steel fasteners, Ties can be installed with flanges facing inward or outward, Hurricane ties do not replace solid blocking.
Applications: Rafter/Truss/Joist tie down, Top Plate-to-Stud tie down, Decking Joist tie down, Structural timber framing.
