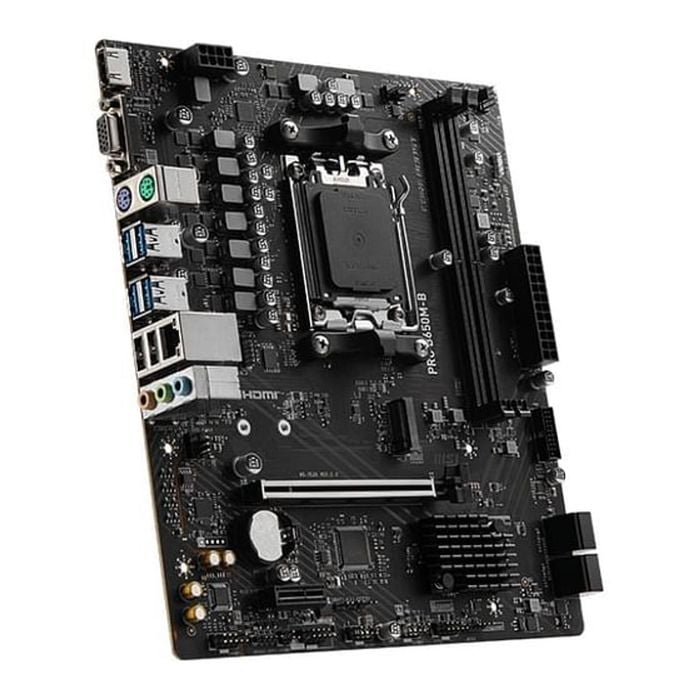

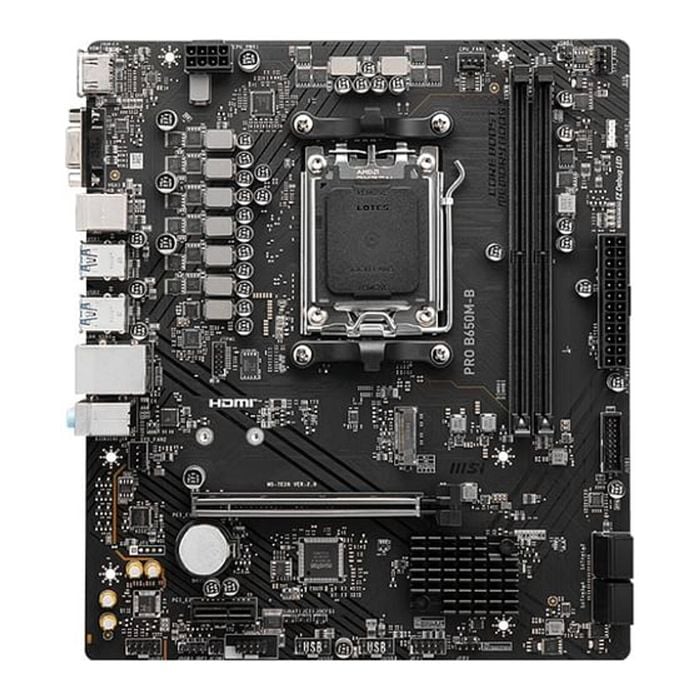

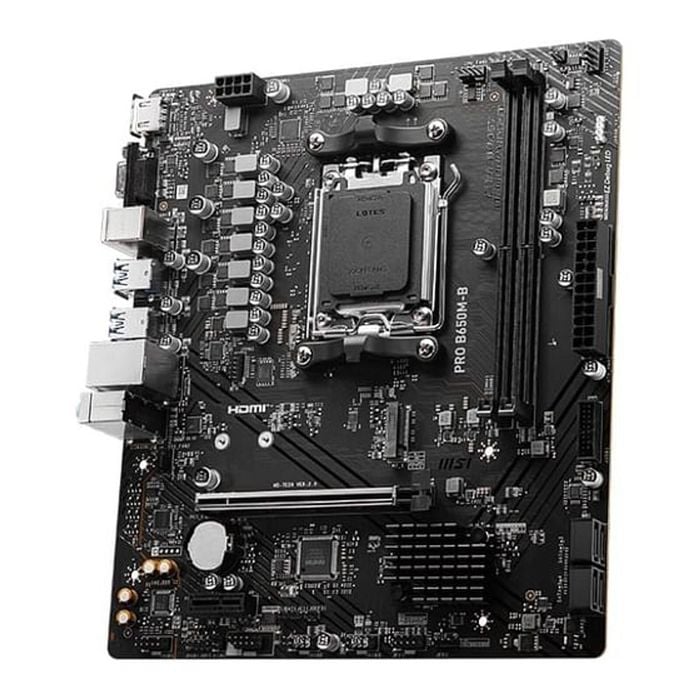

Msi Pro B650m-b Am5 Micro-atx Motherboard

msi pro b650m-b am5 micro-atx motherboard msi pro b650m-b amd am5 matx motherboard, 4x ddr5 ~128gb, 1x pci-e x16, 2x m.2, 4x sata, 8x usb 3.2, msi pro b650m-b amd am5 matx motherboard, 4x ddr5 ~128gb, 1x pci-e x16, 2x m.2, 4x sata, 8x usb 3.2, chipset amd b650 cpu support supports amd ryzen 7000 series desktop processors socket am5 memory 4x ddr5, maximum memory capacity 128gb memory support ddr5 6400+(oc)/6200(oc)/6000(oc)/5800(oc)/5600(oc)/5400(oc)/5200(oc)/5000(oc)/4800(jedec) mhz max. Overclocking frequency: 1dpc 1r max speed up to 6400+ mhz 1dpc 2r max speed up to 5800+ mhz 2dpc 1r max speed up to 6000+ mhz 2dpc 2r max speed up to 4000+ mhz supports dual-channel mode supports non-ecc, un-buffered memory supports amd expo onboard graphics 1x hdmi 1x displayport support hdmitm 2.1, maximum resolution of 4k 60hz* supports dp1.4, maximum resolution of 4k 60hz* *available only on processors featuring integrated graphics. Graphics specifications may vary depending on the cpu installed. expansion slot 2x pci-e x16 slot 1x pci-e x1 slot pci_e1 pcie 4.0 supports up to x16 (from cpu) pci_e2 pcie 3.0 supports up to x1 (from chipset) pci_e3 pcie 4.0 supports up to x4 (from chipset) storage 2x m.2 slot m.2_1 (from cpu) supports up to pcie 4.0 x4 , supports 2280/2260 devices m.2_2 (from cpu) supports up to pcie 4.0 x4 , supports 2280/2260 devices 4x sata 6g port usb 4x usb 2.0 (front) 4x usb 3.2 gen1 type a (rear) 2x usb 3.2 gen1 type a (front) 4x usb 3.2 gen2 type a (rear) 1x usb 3.2 gen2 type c (front) pcb dimension matx 243.84mmx243.84mm product specifics specification value case form factor micro-atx cpu socket am5 mpn pro b650m-b motherboard chipset amd b650 product condition brand new/unused product use general ram form factor dimm ram type ddr5 sku 768101
