Klein Tools

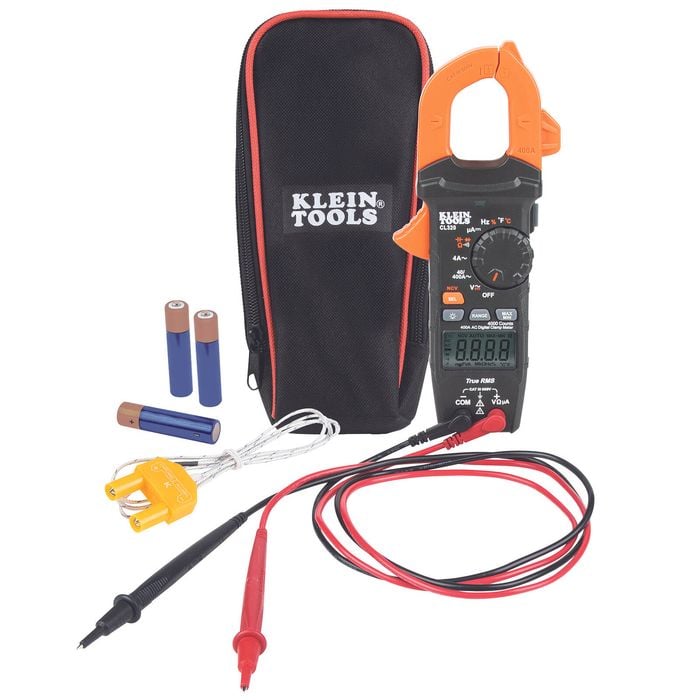

Klein Tools HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp CL320

No reviews yet

I/N: 0385729

Klein Tools HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp CL320

$164

Afterpay logo
4 payments of $41.00
PayPal logo
4 payments of $41.00
Zip logo
From $10 a week

How to purchase

Special Order

This item can only be purchased online or in-store from the Special Orders desk. Learn more(opens in a new tab)

Click & Collect

Select a store for availability

In-store

Select a store for availability

Delivery

Enter postcode or suburb for estimate

Features

  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Measures temperature with a K-Type thermocouple probe
Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.

Details

Dimensions



Width

Height

Length

Product

89mm215mm38mm

Package

139.7mm287.02mm76.2mm

Weight

Easy To Carry

Total Weight 0.3kg

Specifications

Model Name
HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp
Model Number
CL320
Battery Required
Yes
AC Current Range
400
Duty Cycle
10-60kHz
Battery Included
Yes
Display Type
LCD
Visual Alert
Yes
DC Volts Range
600
Test Leads Included
Yes
Battery Type
AAA
AC Volts Range
600
Resistance Range
40
Temperature Probe Included
Yes
