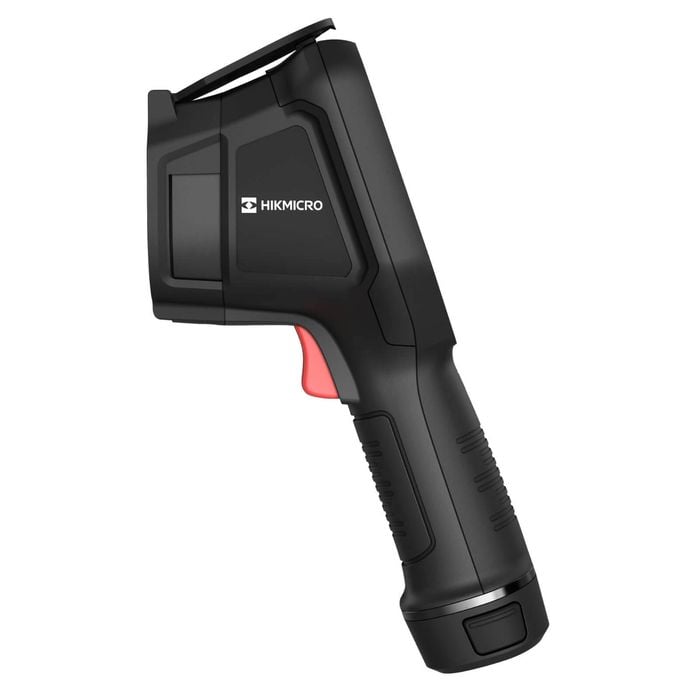

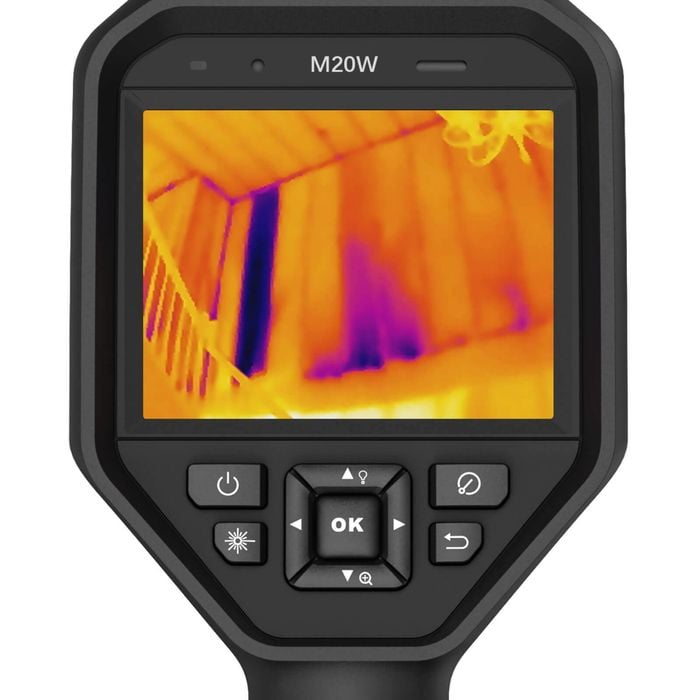

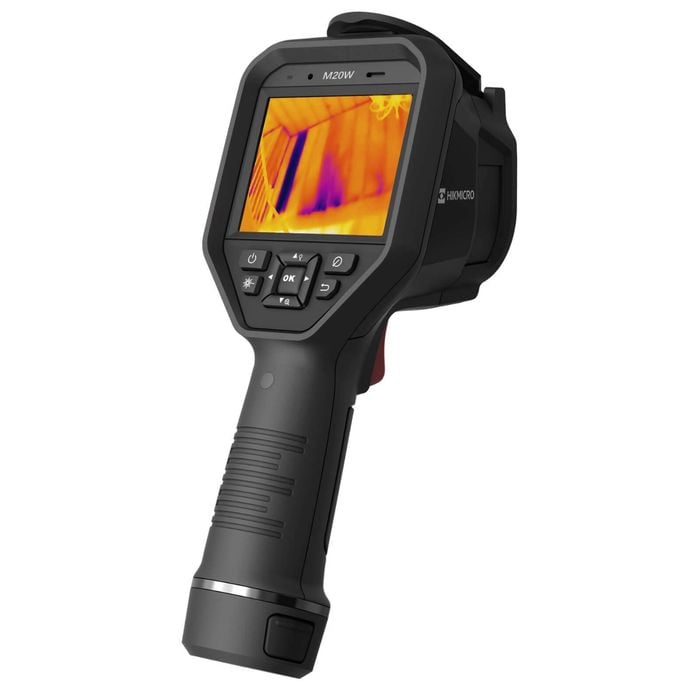

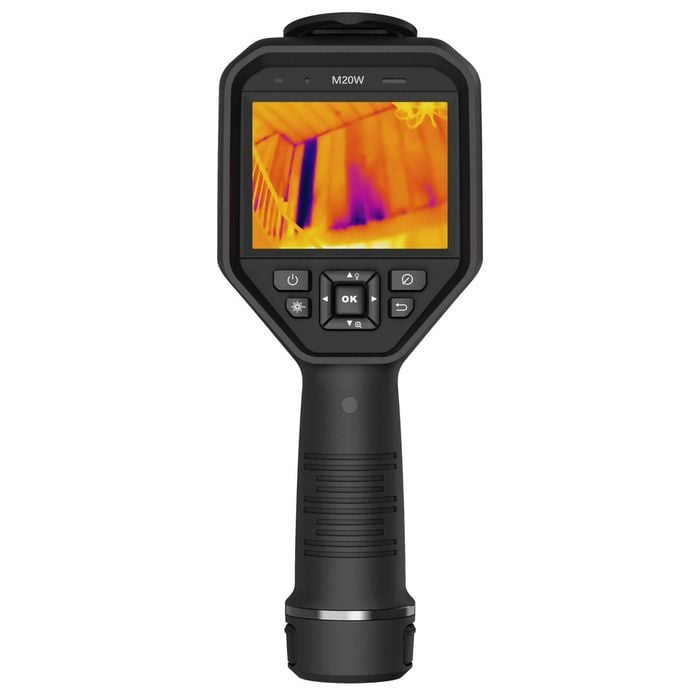

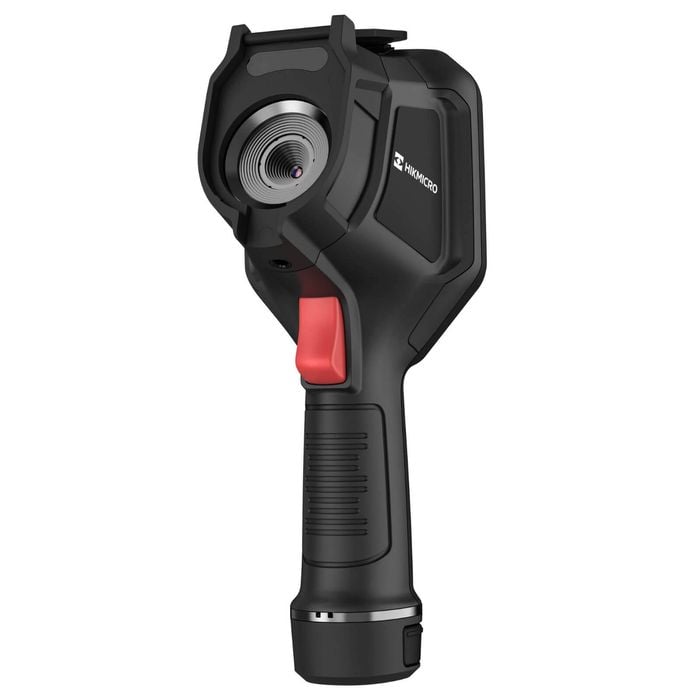

HIKMICRO 256 x 192 M20W 25 Hz -20 to 550 Degrees Thermal Imaging Camera

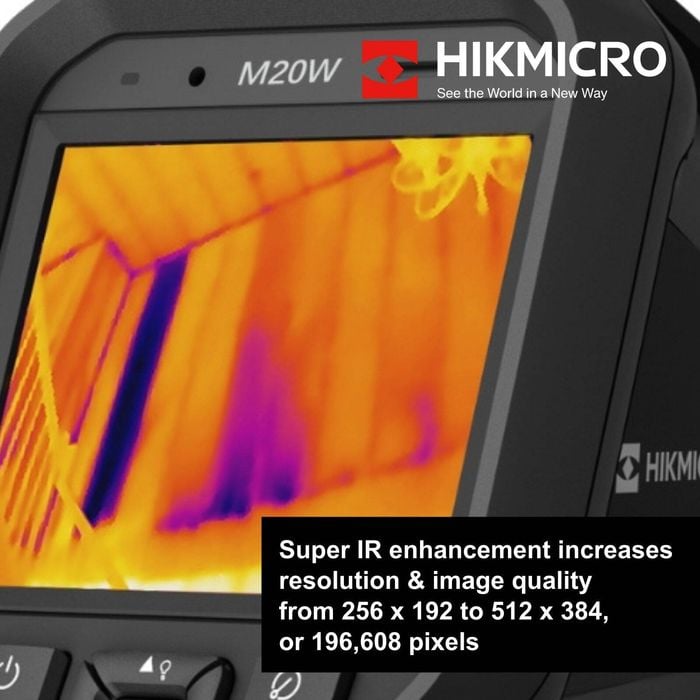

Professional thermal imaging camera for electrical, building, and HVAC inspections with 256 × 192 resolution (SuperIR enhancement to 512 × 384, capturing 196,608 pixels for detailed inspections) and -20°C to 550°C range. The HIKMICRO M20W handheld thermal camera delivers professional-grade thermography for tradies, inspectors, and maintenance professionals. Whether you're conducting electrical inspections, diagnosing HVAC issues, or identifying building defects, the M20W provides accurate temperature measurement and detailed imaging to get the job done right. Available for purchase in-store at your local Bunnings or online at bunnings.com.au for convenient delivery or click and collect. Advanced Thermal Imaging Technology -High-Sensitivity Infrared - 256 × 192 thermal resolution capturing 49,152 individual temperature points - SuperIR technology enhances images to 512 × 384 resolution (196,608 pixels) - Exceptional thermal sensitivity of <40 mK for detecting subtle temperature variations - 25 Hz refresh rate for smooth real-time imaging - 7.5 to 14 μm spectral range optimised for building and electrical inspections Comprehensive Temperature Measurement - Extra-wide measurement range from -20°C to 550°C (-4°F to 1022°F) - High accuracy of ±2°C or ±2% for reliable diagnostics - Multiple measurement tools including centre spot, hot spot, and cold spot detection - User-definable measurement zones: 10 spots, 1 line, 5 rectangles, and 5 circles - Automatic, manual, or one-tap touchscreen level and span adjustment Dual-Camera Visual System - 8-Megapixel Optical Camera - Sharp 3264 × 2448 resolution visual images for detailed documentation - Seamlessly integrated with thermal imaging for complete site records - Manual focus control for precise image capture - LED light supplement functions as a torch for dark environments - Long-distance laser pointer for identifying target areas from afar Versatile Imaging Modes - Thermal-only mode for pure temperature analysis - Visual mode for standard photography - Fusion mode blends thermal and visual data for context-rich images - Picture-in-picture displays thermal hotspot within visual scene - Blending mode for customisable thermal overlay transparency Intuitive Operation and Display - Large Touchscreen Interface - Bright 640 × 480 resolution, 3.5-inch LCD display - Responsive touchscreen for effortless operation - Adjustable brightness for visibility in any lighting condition - 1.0x to 8.0x continuous digital zoom for close-up inspection - Clear, crisp image rendering for confident decision-making Multiple Colour Palettes - Eight colour schemes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red - Colour alarm modes highlight temperatures above, below, or within specific ranges - Insulation palette specifically designed for building envelope inspections - Easily switch palettes to suit different applications and viewing preferences Efficient Documentation and Reporting - Extensive Storage Capacity - Included 16 GB Micro SD card stores approximately 60,000 thermal images - MP4 video recording with approximately 15 hours of storage capacity - Voice annotations up to 60 seconds per image - Text notes supporting up to 200 characters for detailed on-site documentation Wireless Connectivity - Wi-Fi (802.11 b/g/n) on both 2.4 GHz and 5 GHz bands - Bluetooth 4.2 for seamless device pairing - Remote album access via smartphone app - Quick report generation and image download through app - USB Type-C for fast file transfer and charging Built for Professional Use - Rugged Construction - IP54 protection against dust and water splashes - Survives drops from 2 metres for job site durability - Tested to withstand 15 g shock (IEC 60068-2-27) - 1 g vibration resistance (IEC 60068-2-6) - Compact design: 244 × 100 × 104 mm, weighing approximately 660 g Long-Lasting Power - Interchangeable rechargeable lithium-ion battery - Up to 6 hours of continuous operation per charge - Approximately 4 hours for full recharge - Swap batteries in the field for extended inspection sessions - USB Type-C charging for convenience Professional Safety Standards - IEC 61010-1 safety certification - Class II laser (635 nm wavelength, <1 mW power) - EMC compliant: EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3 - Operating temperature range: -10°C to 50°C - Storage temperature range: -20°C to 70°C - Humidity tolerance: <95% non-condensing Versatile Applications - Electrical Inspections - Identify overheating components, loose connections, and circuit overloads - Detect failing switchgear and transformer hot spots before breakdown occurs - Verify balanced loads across three-phase systems - Inspect solar panel performance and connection integrity Building Diagnostics - Locate heat loss and air leakage in building envelopes - Detect moisture intrusion and insulation defects - Identify thermal bridging in walls, roofs, and foundations - Verify HVAC system performance and ductwork integrity Mechanical and HVAC Maintenance - Monitor bearing temperatures and identify failing components - Detect blocked or leaking pipes and ducts - Verify proper heating and cooling system operation - Identify motor and pump overheating issues What's Included 1. HIKMICRO M20 thermal imaging camera 2. Rechargeable lithium-ion battery 3. 16 GB Micro SD card 4. USB Type-C charging cable 5. Carrying case for protection and portability 6. User manual and quick start guide Technical Specifications Summary Thermal Imaging: 256 × 192 IR resolution (SuperIR 512 × 384) | <40 mK sensitivity | 25° × 18.8° FOV | 0.1 m minimum focus Visual Camera: 8 MP (3264 × 2448) | Manual focus | LED light | Laser pointer Temperature Measurement: -20°C to 550°C range | ±2°C accuracy | Multiple measurement tools Display: 3.5-inch LCD touchscreen | 640 × 480 resolution | 1.0x to 8.0x zoom Connectivity: Wi-Fi (2.4/5 GHz) | Bluetooth 4.2 | USB Type-C Durability: IP54 rated | 2 m drop test | 6-hour battery life Dimensions: 244 × 100 × 104 mm | 660 g weight
