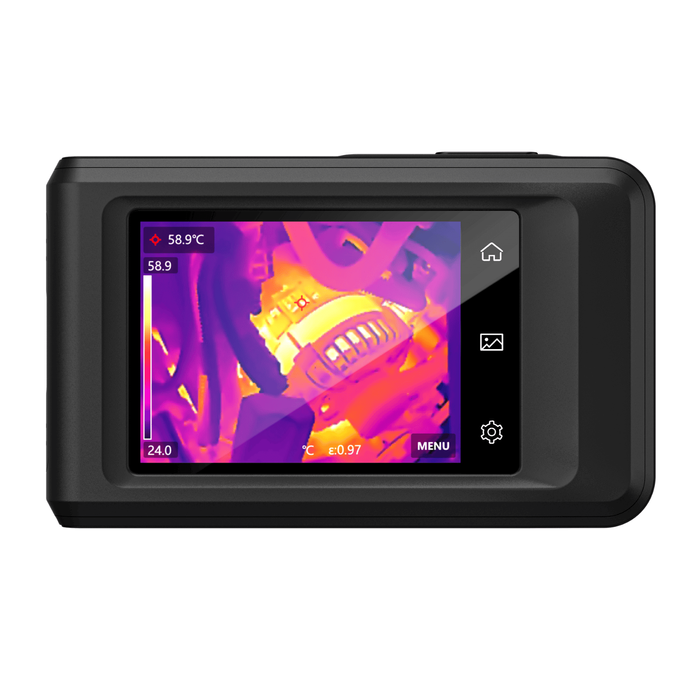

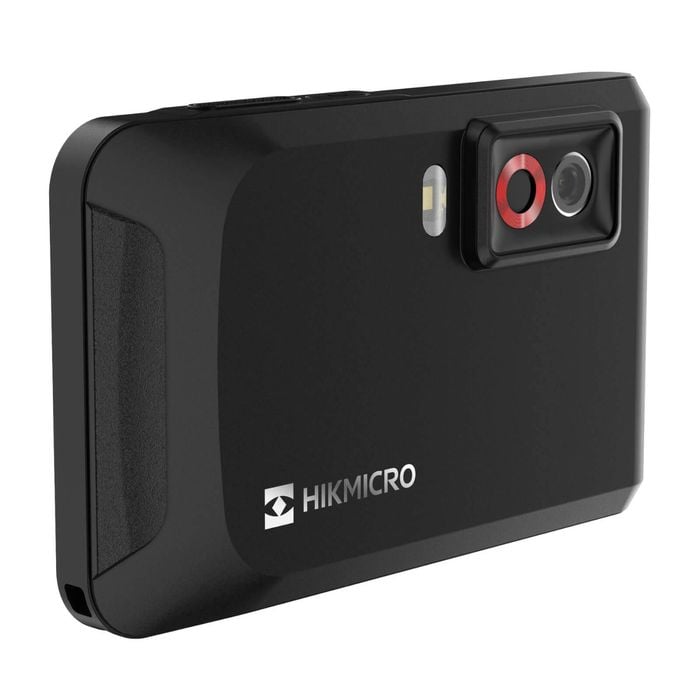

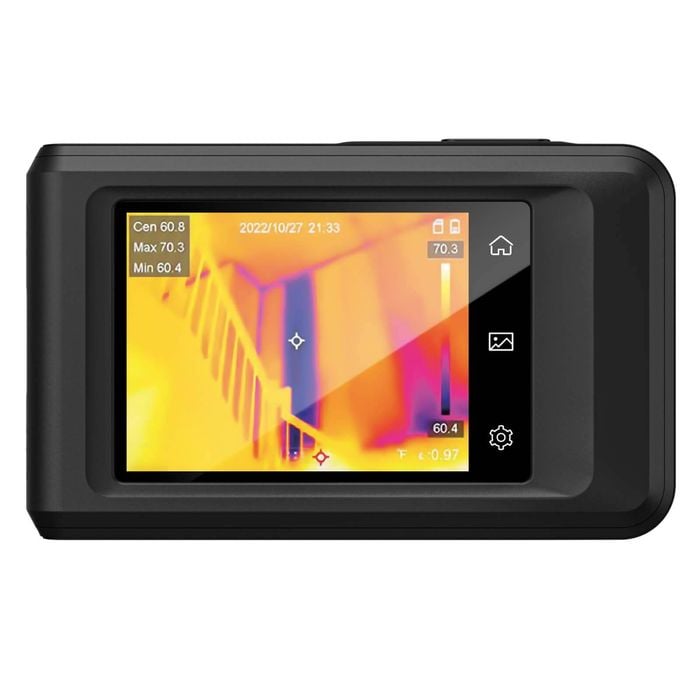

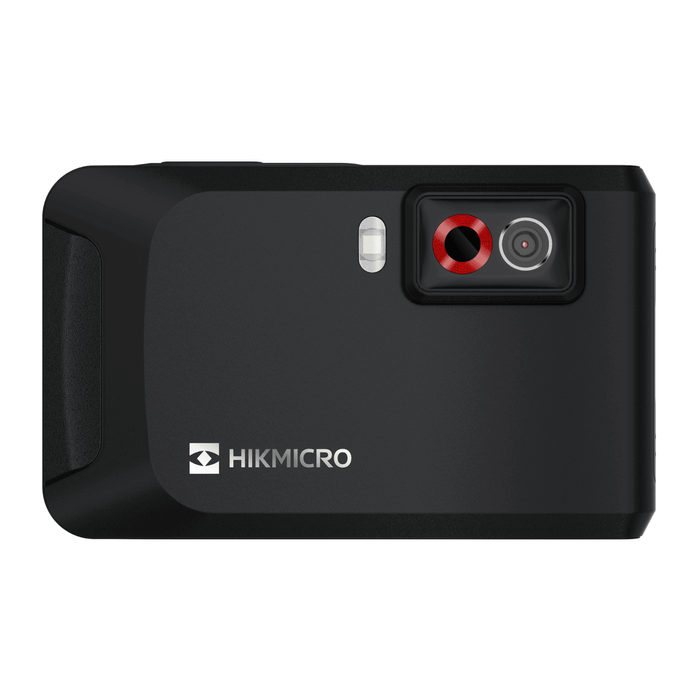

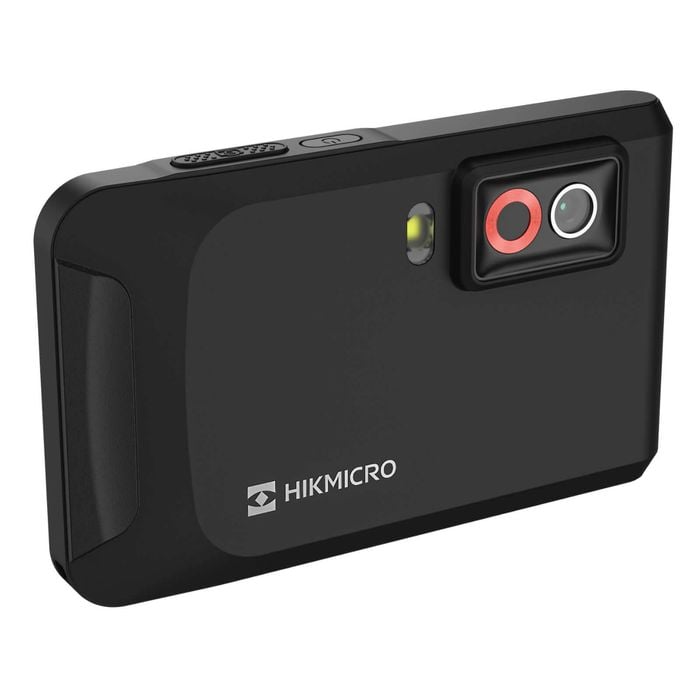

HIKMICRO 256 x 192 Black Pocket2 Thermal Imaging Camera

Compact thermal camera featuring 8 MP optical lens, WiFi connectivity, and 4-hour battery. Detect electrical faults, insulation issues and more. The HIKMICRO Pocket2 puts professional-grade thermal imaging in the palm of your hand. This compact powerhouse combines advanced thermography with user-friendly features to help tradies, inspectors, and maintenance professionals quickly identify hidden problems and diagnose issues with precision. Advanced Thermal Detection - High-resolution 256 × 192 HIKMICRO VOx detector captures 49,152 pixels of thermal data - Exceptional thermal sensitivity with NETD < 40 mK for detecting minute temperature differences - 50° × 37.2° field of view provides wide area coverage - 25 Hz image frequency ensures smooth, real-time thermal imaging - Fixed focus with 0.3 m minimum focusing distance for close-up inspections Versatile Temperature Measurement - Wide measurement range from -20°C to 400°C (-4°F to 752°F) suits diverse applications - High accuracy: Max. (±2°C/3.6°F, ±2%) for reliable diagnostics - Automatic emissivity correction from 0.01 to 1.0 or select from materials list - Reflected temperature compensation for accurate readings - Transmission correction based on distance and humidity inputs - Adjustable temperature span with 2°C minimum for detailed analysis Intelligent Viewing Options - Four display modes: Thermal, Optical, Fusion, and Picture-in-Picture (PIP) - 8 MP built-in visual camera (3264 × 2448) for high-quality reference images - Fusion mode blends thermal and visual data for enhanced detail - Resizable and movable PIP window positions infrared on visual image - Seven color palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, and Rain - 1.0x to 4.0x continuous digital zoom for detailed examination Smart Analysis Features - Multiple measurement presets: Center Spot, Hot Spot, Cold Spot - High temperature alarm with audible and visual alerts - User-defined temperature threshold settings - Manual, automatic, and 1-Tap touch-screen level and span adjustment - Radiometric JPEG format preserves measurement data for analysis - Add text notes up to 200 characters directly to images Professional Display & Interface - Large 3.5" LCD touch screen with 640 × 480 resolution - Intuitive touch interface for easy operation - Adjustable screen brightness for various lighting conditions - Clear, responsive display visible in bright environments - Simple menu navigation for quick setting changes Robust Storage & Connectivity - 16 GB built-in memory stores approximately 60,000 thermal images - Up to 10 hours of video recording capacity - Standard MP4 video format for easy sharing - Wi-Fi connectivity (802.11 b/g/n, 2.4 GHz and 5 GHz) for real-time image transmission - Bluetooth 4.2 for wireless pairing - USB Type-C connection for data transfer and charging - Compatible with HIKMICRO Analyzer PC software and Viewer mobile app All-Day Reliability - Rechargeable Li-ion battery provides 4 hours of continuous operation - Fast charging: 94% in 1.5 hours, full charge in 2.5 hours - In-camera charging via USB or AC adapter (100-240 VAC, 50/60 Hz) - Low 1.92 W power consumption maximizes battery life - AC operation available for extended use Built for the Worksite - Compact design: 138.5 mm × 85.2 mm × 23.6 mm, weighs just 218 g - IP54 protection rating resists dust and water spray - Survives 2 m drop test for jobsite durability - Operating temperature range: -10°C to 50°C (14°F to 122°F) - Built-in LED torch for working in dark spaces - UNC ¼"-20 tripod mount for hands-free operation - Includes protective carrying pouch Ideal Applications 1. Building inspections and energy audits 2. HVAC system diagnostics and maintenance 3. Electrical panel and connection assessments 4. Mechanical equipment monitoring 5. Plumbing leak detection 6. Insulation defect identification 7. Preventive maintenance programs 8. Quality control inspections Comprehensive Warranty & Support - 3-year warranty on complete device - 10-year warranty on thermal detector - 2-year battery warranty Compliant with international safety standards (IEC 62368-1, RoHS, FCC, RCM) Take your inspections to the next level with the HIKMICRO Pocket Series.
