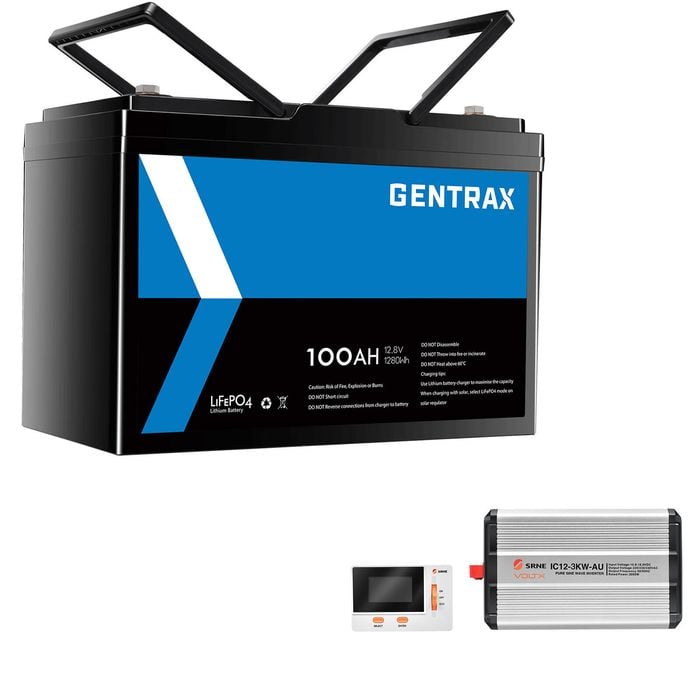

Gentrax 12v 100ah Lithium Battery, 3kw Inverter, Lcd Display

--- Product 1: 12V 100Ah Lithium Battery --- ### Specifications ・Brand: GENTRAX ・Nominal Voltage: 12.8V ・Nominal Capacity: 100Ah ・Rated Energy: 1280Wh ・Approx Life Cycles: ≥3000 ・Battery Manage System: 100A ・Standard Charging Current: 50A ・Max. Charging Current: 100A ・Standard Discharge Current: 100A ・Max. Continuous Discharge Current: 100A ・Max. Discharge Current 5 sec: 200A ・Charger: 14.6V 50A (not include) ・Charging Voltage: 14.2-14.6V ・Absorption Voltage: 14.2-14.6V ・Float Voltage: 13.6V ・Overcharge Protection: 15V ・Overcharge Recovery: 14.4V ・Overdischarge Protection: 11.2V ・Overdischarge Recovery: 10.6V ・Charge Temperature : 0°C to 45°C ・Discharge Temperature : -20°C to 60°C ・Storage Temperature: -10°C to 50°C ・Charge Method: CC/CV ・Charging Way: LiFePO4 Charger, Solar Panel, Generator ・Case Material: ABS Plastic ・Battery Type: LiFePO4 Lithium Battery ・Battery Model: Standard ・Battery Shape: General ・Certifications: UN38.3 ・Protection Class: IP65 ・Warranty in Years: 2 ・Bolt Type: M8 ・Bolt Material: Iron nickel-plated ・Cell Grouping: 4S2P ・Parallel Connection: Max 4 ・Series Connection: No ### Dimensions & Weight ・Product Size: L306 x W169 x H215mm ・Package Size: L360 x W230 x H271mm ・Bolt Terminal Size: Hexagon x 14mm ・Bolt Terminal Perimeter: 25.12mm ・Net Weight: 9.5kg ・Gross Weight: 10.4kg ### What's In The Box ・1x 100Ah Lithium Battery ・2x Terminal Bolts M8*14 ・2x Insulating Covers ・2x Screw Spring Washer ・4x Screw Washers ・1x User Manual --- Product 2: VoltX 12V 3KW Pure Sine Wave Inverter --- ### Specifications ・Rated Output Power: 3000W ・Rated Output Power VA: 3000VA ・Withstand Instantaneous Impact Power: 6000W ・Rated Output Voltage: 220VAC/230VAC/240VAC(±3%) ・Output Frequency: 50/60HZ(±0.2%) ・Output Wave: Pure sine wave ・Output Harmonic Component: THDV > 3% (pure resistance load) ・Load Power Factor: 0.2-1 (load power ≤ output continuous power) ・Rated Input Voltage: 12VDC ・Input Voltage Range: 10.8~16.0VDC ・Rated Output Efficiency: 0.87 ・Maximum Output Efficiency: > 91.5% (30% overload) ・Standby Current: <0.24A ・No-load Current: <1.45A ・USB Interface: Dual USB output, 5VDC/2A ・ON/OFF/ECO Mode: ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch ・ECO Starting Power: ＜30W ・ECO Interval Time: 1min ・TTL Interface: Non-isolated TTL communication, power supply 12.5V/200mA ・Indicator: Green - normal operation; Red - fault ・External Switch Contact Interface: Switch on or off by control equipment such as external relay and mechanical switch ・Protection Function: Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection ・Operating Ambient Temperature: -20℃~60℃ ・Storage Ambient Temperature: -35℃~80℃ ・Relative Humidity: ≤95% ・IP Grade: IP20 ・Heat-dissipating Method: Natural heat dissipation + intelligent air cooling ・Noise Level: ≤60dB ・Warranty: 3 Years ### Dimensions & Weight ・Dimensions: 409 x 249 x 120mm ・Mounting Hole Spacing: 374 x 141mm ・Fixed Hole Position: 5mm ・Net Weight: 8.0kg --- Product 3: VoltX LCD Display --- ### Specifications ・Input Voltage: 5V-12V ・Stand-by Power Consumption: >0.1W ・Operation Power Consumption: >0.36W ・Communication Baud Rate: 1200-11520bps (9600bps by default) ・Communication Mmethod: RS485 ・Communication Interface: RJ45 ・Operating Temperature: -35℃ ~+65℃ ・IP Grade: IP32 ・Altitude: ≤3000M ### Dimensions & Weight ・Dimensions: 79 x 52 x 32mm ・Net Weight: 90g Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
