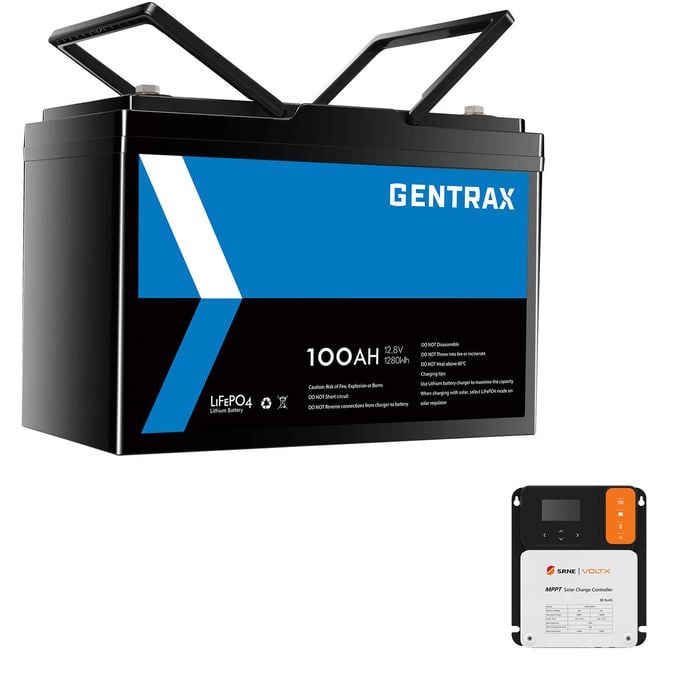

Gentrax 12v 100ah Lithium Battery + 30a Mppt Controller

--- Product 1: 12V 100Ah Lithium Battery --- ### Specifications ・Brand: GENTRAX ・Nominal Voltage: 12.8V ・Nominal Capacity: 100Ah ・Rated Energy: 1280Wh ・Approx Life Cycles: ≥3000 ・Battery Manage System: 100A ・Standard Charging Current: 50A ・Max. Charging Current: 100A ・Standard Discharge Current: 100A ・Max. Continuous Discharge Current: 100A ・Max. Discharge Current 5 sec: 200A ・Charger: 14.6V 50A (not include) ・Charging Voltage: 14.2-14.6V ・Absorption Voltage: 14.2-14.6V ・Float Voltage: 13.6V ・Overcharge Protection: 15V ・Overcharge Recovery: 14.4V ・Overdischarge Protection: 11.2V ・Overdischarge Recovery: 10.6V ・Charge Temperature : 0°C to 45°C ・Discharge Temperature : -20°C to 60°C ・Storage Temperature: -10°C to 50°C ・Charge Method: CC/CV ・Charging Way: LiFePO4 Charger, Solar Panel, Generator ・Case Material: ABS Plastic ・Battery Type: LiFePO4 Lithium Battery ・Battery Model: Standard ・Battery Shape: General ・Certifications: UN38.3 ・Protection Class: IP65 ・Warranty in Years: 2 ・Bolt Type: M8 ・Bolt Material: Iron nickel-plated ・Cell Grouping: 4S2P ・Parallel Connection: Max 4 ・Series Connection: No ### Dimensions & Weight ・Product Size: L306 x W169 x H215mm ・Package Size: L360 x W230 x H271mm ・Bolt Terminal Size: Hexagon x 14mm ・Bolt Terminal Perimeter: 25.12mm ・Net Weight: 9.5kg ・Gross Weight: 10.4kg ### What's In The Box ・1x 100Ah Lithium Battery ・2x Terminal Bolts M8*14 ・2x Insulating Covers ・2x Screw Spring Washer ・4x Screw Washers ・1x User Manual --- Product 2: 30A MPPT DC to DC Solar Controller Battery Charger --- ### Electrical Parameters ・Static power consumption: ≤30mA ・Battery Type: USE/FLD/GEL/LI/SLD(Default) ・System voltage: 12V/24V ・Battery's operating voltage range: 8V-32V ・Rated charging current: 30A ・Maximum PV Input Current: 27A ・Maximum solar panel power: 400W/12V; 800W/24V ・Maximum PV open-circuit voltage: 150V ・MPPT operating voltage point range: (Battery Voltage +2)~110V ・MPPT tracking efficiency: >99% ・Charging conversion efficiency: 85%-98% (10%-100% of rated power) ・Rated load current: 30A ・Load operating mode: Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened. ・TTL communication: Baud Rate 9600kps ・RS485 communication: One isolated RS485 communication port, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable. ・Bluetooth communication: Built-in ・CAN communication: RV-C Protocol ・Historical data: Can store historical data of the past 300 days ・Protection function: PV Overvoltage Protection, PV Reverse Connection Protection, PV Short-Circuit Protection, Nighttime Reverse Charge Protection, Input Limited Power Protection, Overtemperature Protection, Load Short-Circuit Protection, Load Overload Protection, Battery Supervoltage/Over-discharge Protection, Battery Reverse Connection Protection and Battery Terminal Short-Circuit Protection. ・Grounding type: Co-negative design and negative grounding ・Cooling mode: Natural Cooling ・Parallel connection for charging: No ・Charging voltage line loss compensation: No ・Support full settings: Yes ・Constant voltage output setting: Yes ・Charging temperature compensation of lead-acid battery: Yes ・Temperature protection: Yes ・Overload/short-circuit protection: Yes ・Load pre-start: Yes ### Other Data ・Protection grade: IP32 ・Operating ambient temperature range: -35°C~ 65°C (no derating within 45°C if well ventilated) ### Mechanical Specifications ・Dimension: 260*216*83.2mm ・Mounting hole spacing: 200 mm ・Weight: 2.3kg ・Fixed hole position: φ10mm Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait. Tips for Bluetooth functionality: Additional Bluetooth module is required to achieve Bluetooth functionality.
