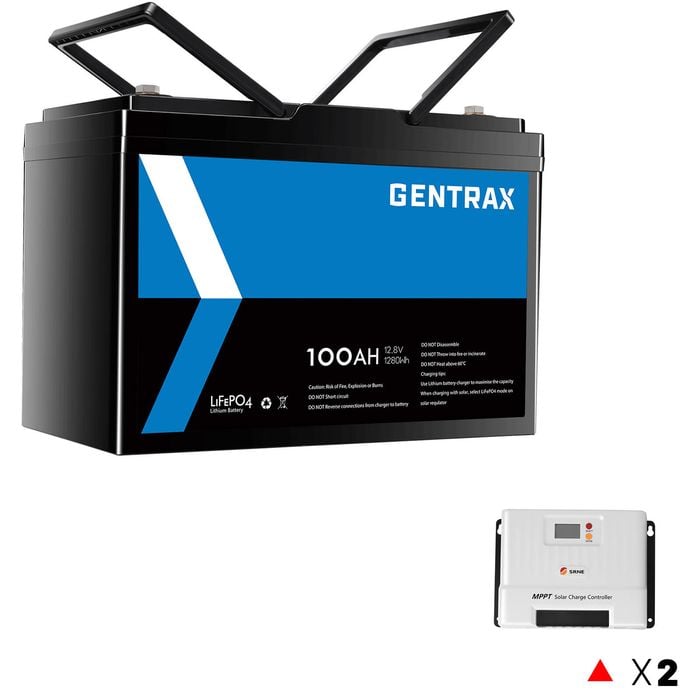

Gentrax 12v 100ah Lithium Battery + 2x 20a Solar Controller

--- Product 1: 12V 100Ah Lithium Battery --- ### Specifications ・Brand: GENTRAX ・Nominal Voltage: 12.8V ・Nominal Capacity: 100Ah ・Rated Energy: 1280Wh ・Approx Life Cycles: ≥3000 ・Battery Manage System: 100A ・Standard Charging Current: 50A ・Max. Charging Current: 100A ・Standard Discharge Current: 100A ・Max. Continuous Discharge Current: 100A ・Max. Discharge Current 5 sec: 200A ・Charger: 14.6V 50A (not include) ・Charging Voltage: 14.2-14.6V ・Absorption Voltage: 14.2-14.6V ・Float Voltage: 13.6V ・Overcharge Protection: 15V ・Overcharge Recovery: 14.4V ・Overdischarge Protection: 11.2V ・Overdischarge Recovery: 10.6V ・Charge Temperature : 0°C to 45°C ・Discharge Temperature : -20°C to 60°C ・Storage Temperature: -10°C to 50°C ・Charge Method: CC/CV ・Charging Way: LiFePO4 Charger, Solar Panel, Generator ・Case Material: ABS Plastic ・Battery Type: LiFePO4 Lithium Battery ・Battery Model: Standard ・Battery Shape: General ・Certifications: UN38.3 ・Protection Class: IP65 ・Warranty in Years: 2 ・Bolt Type: M8 ・Bolt Material: Iron nickel-plated ・Cell Grouping: 4S2P ・Parallel Connection: Max 4 ・Series Connection: No ### Dimensions & Weight ・Product Size: L306 x W169 x H215mm ・Package Size: L360 x W230 x H271mm ・Bolt Terminal Size: Hexagon x 14mm ・Bolt Terminal Perimeter: 25.12mm ・Net Weight: 9.5kg ・Gross Weight: 10.4kg ### What's In The Box ・1x 100Ah Lithium Battery ・2x Terminal Bolts M8*14 ・2x Insulating Covers ・2x Screw Spring Washer ・4x Screw Washers ・1x User Manual --- Product 2: 20A Solar Charge Controller MPPT Battery Charger (2 Packs) --- ### Electrical Parameters ・System voltage: 12V/24V ・Rated charging current: 20A ・Static power consumption: ≤10mA ・Maximum solar panel power: 260W/12V; 520W/24V ・Maximum PV open-circuit voltage: 60V (55V protection, 50V recovery) ・MPPT operating voltage range: (Battery voltage +2V)~45V ・Battery operating voltage range: 8V-32V ・MPPT tracking efficiency: >99% ・Charging conversion efficiency: 85%-98% (10%-100% of rated power) ・Rated load current: 20A ・Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open ・TTL communication: Baud rate: 9,600 bps ・RS485 communication: RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable. ・Bluetooth communication: Optional ・CAN communication: RJ45 interface, optional (RV-C protocol) ・Historical data: Save the last 200 days of historical data ・Protection function: PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection. ・Grounding type: Grounding of common negative electrode ・Cooling mode: Natural heat dissipation ・Charging current setting: Yes ・Full-charging setting: Yes ・Constant voltage output setting: Yes ・Charging temperature compensation of lead-acid battery: Yes ・Temperature unit setting: Yes ・Overload/Short-circuit protection: Yes ### Other Data ・Protection grade: IP32 ・Operating ambient temperature range: -35°C~65°C ### Mechanical Specifications ・Dimension: 181*118*61.7mm ・Mounting hole spacing: 161*96mm ・Weight: 650g ・Fixed hole position: φ4.5mm Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait. Tips for Bluetooth functionality: Additional Bluetooth module is required to achieve Bluetooth functionality.
