A storage unit with timber shelving and PVC pipes used to store electric tools and batteries

Overview

Power tools can take up a lot of room in your shed and are at risk of getting damaged. This easy-to-build D.I.Y. drill and power tool station will help you keep them neat, tidy and fully charged for when you need them.

Steps

1Cut the timber to size

To make this project easier, you can have your timber pre-cut at your local Bunnings. For our cut list, we had the ply sheet cut to the following dimensions:

  • 120mm x 295mm x 2
  • 700mm x 295mm x 3

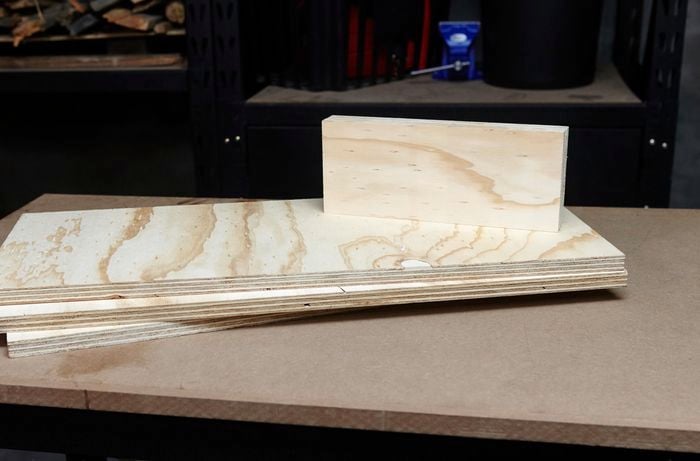

Plywood and timber required to complete this project

2Build the station box

Start this project by creating an open-ended rectangular-shaped box. Use the two 120mm ply lengths for the sides and two of the 700m ply lengths for the top and bottom. Apply PVA glue to the edges where they will be joined. Wipe away any excess glue.

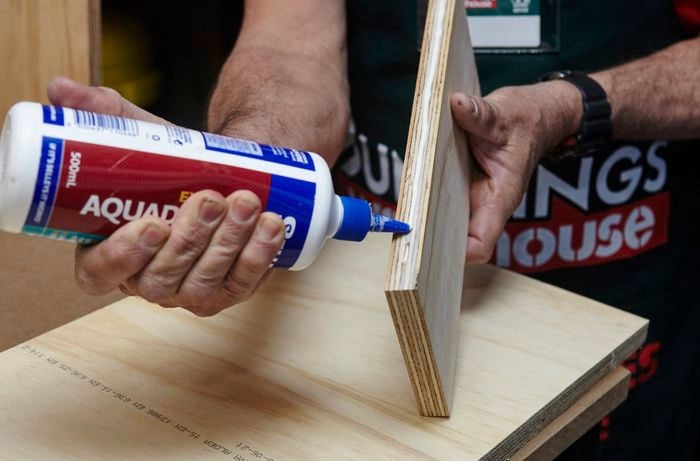

A person applying glue to the edge of a piece of plywood

3Fix the box together

Make sure the edges are flush. Then use the drill and 50mm screws to attach the four sides of the box. You should use two screws on each side to join them.

A person attaching two pieces of plywood at right angles using a cordless drill

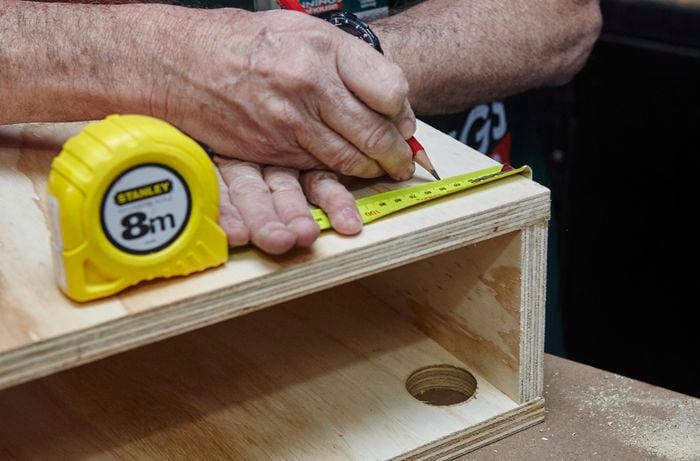

4Measure and mark for the electrical cable

We need to drill a hole in the top and bottom of the box to run electrical cables through for the battery chargers. Choose which side you want to do it, based on where your power supply is. To avoid damaging the edge of the box, measure out from the box edge so you don't drill into the edge. Turn the box over and repeat this step for both sides of the box.

A person marking a measurement on a plywood box

5Drill the cable holes

Use the 40mm hole saw attachment and the drill to cut both holes for the cable.

A person drilling a hole in a plywood box using a hole saw

6Attach the backing board

The backing board is to attach the drill station to a wall or fixing point. Apply a bead of glue around the edges of the box. Then place the final 700mm x 295mm piece of ply on top. Wipe away any excess glue, then attach the backing board to the drill station unit with 50mm screws.

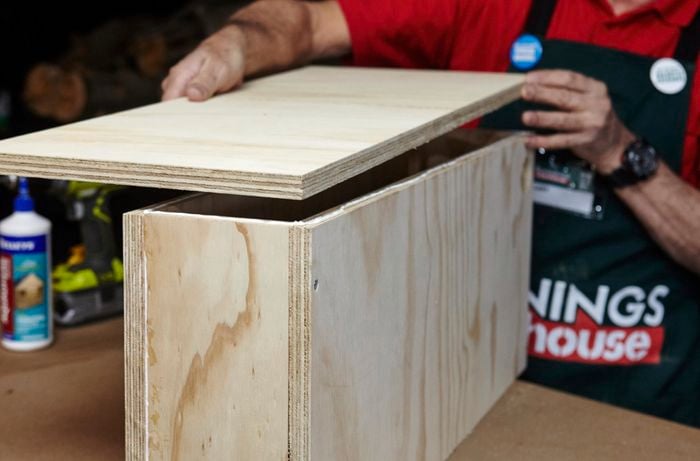

A person attaching a side panel to a plywood box

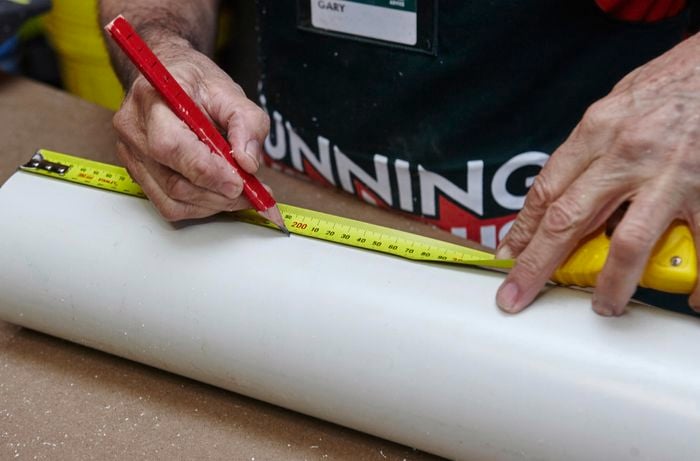

7Measure and mark the PVC pipe

PVC piping makes ideal drill holders for the station. Measure and mark your pipe to length to fit your drills, ours measured 200mm each.

A person marking a measurement on a length of PVC pipe

8Cut the PVC to length

To cut the PVC to the lengths you've marked, use a drop saw with a fine blade. You could also use a hand saw and a mitre box instead.

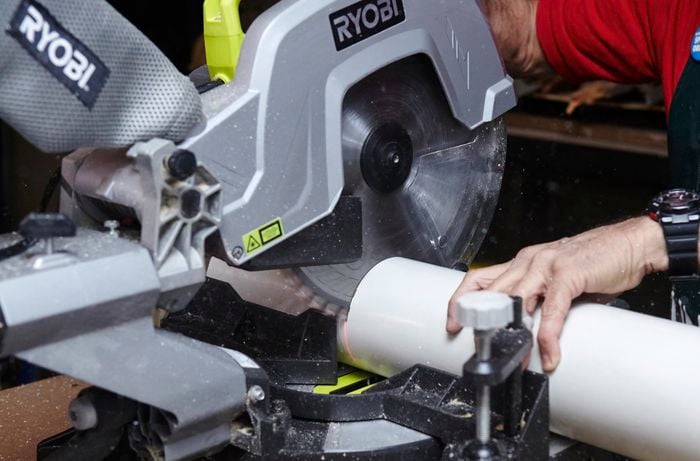

A person cutting a length of PVC pipe using a drop saw

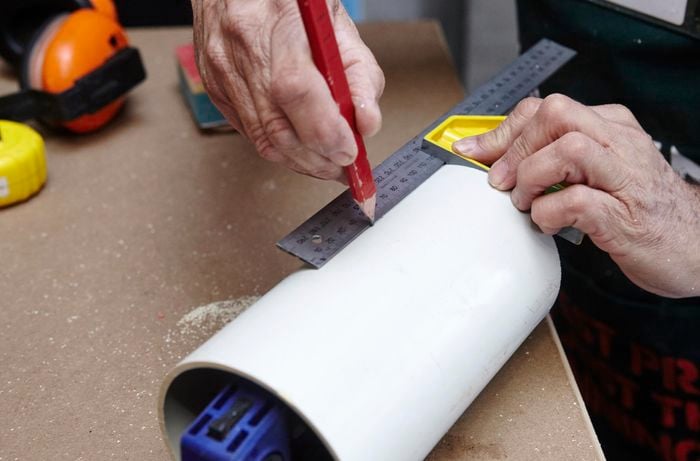

9Measure and mark the PVC for the slot

Next you'll need to measure and mark the slots in each pipe to hold the drills. Our slots measured 40mm wide x 85mm in length.

A person attaching a length of PVC pipe to a timber shelving unit using a cordless drill

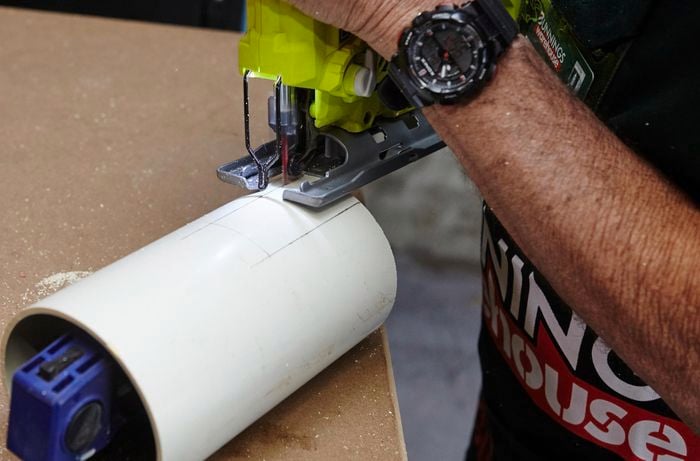

10Cut out the slots

Clamp each pipe length to your workbench and use the jigsaw with the fine-tooth blade to cut out the slot you've marked. You may also want to cut off the square edges of the slots. Repeat this for each pipe you add to your work station.

A person cutting a slot in a length of PVC pipe using a jigsaw

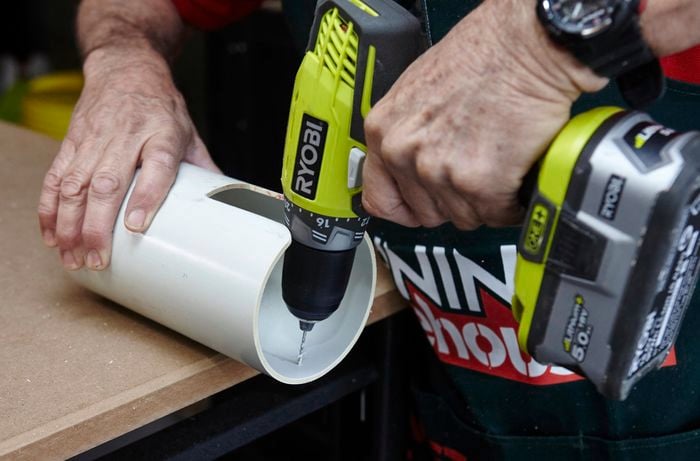

11Pre-drill the holes in the PVC

Use the 2mm drill bit to pre-drill a hole at each end of the PVC pipe. These will be used to attach the storage pipes to the work station.

A person drilling a hole in a length of PVC pipe using a cordless drill

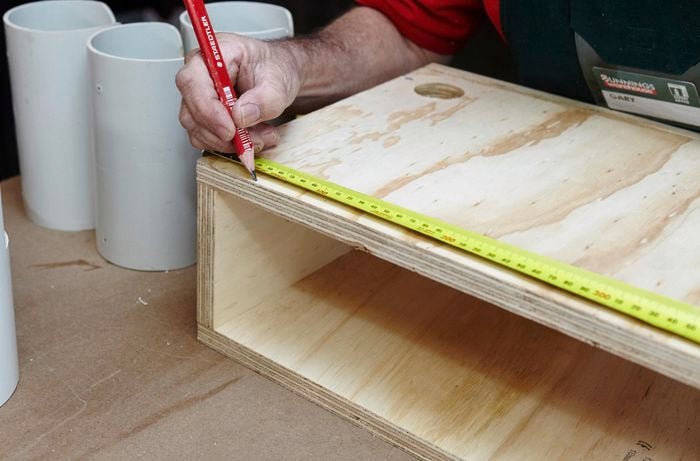

12Measure and mark for the drill holders

Measure and mark along the bottom of the drilling station where you want to attach the drill holders. We've spaced ours out evenly along the station. Use the square to run a straight line as an attachment guide.

A person marking a measurement on a plywood box

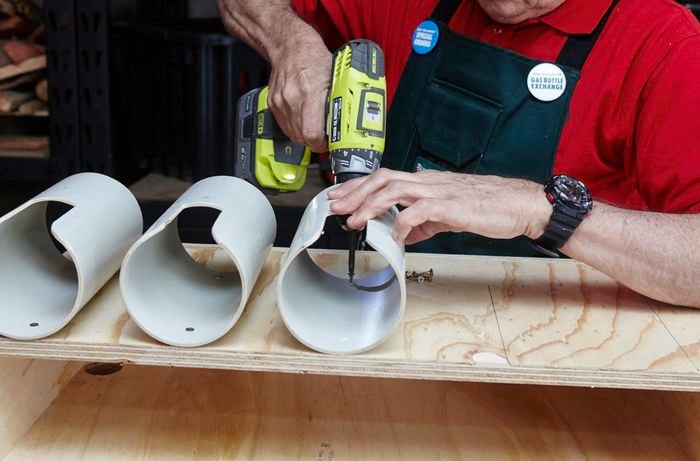

13Attach the drill holders

Secure all of the drill holders to the drilling station using the drill and 20mm screws.

A person attaching a length of PVC pipe to a timber shelving unit using a cordless drill

14Attach your drill and power tool station

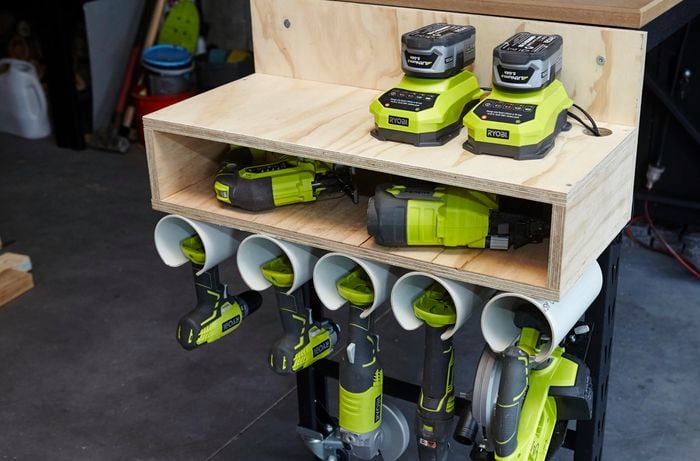

You can attach your drill and power tool station to a wall or against a workbench. We used 100mm bugle screws to securely attach it. It's a great way to clean up your shed and you'll know exactly where your power tools are.

A storage unit with timber shelving and PVC pipes used to store electric tools and batteries
