Overview

Kickboards are one of the last things you install when you are building a kitchen. We'll teach you how to measure up your drilling points properly and install your kickboards neatly. You will also learn how to protect the laminate surface while you cut.

Steps

1Prepare the kickboards for cutting

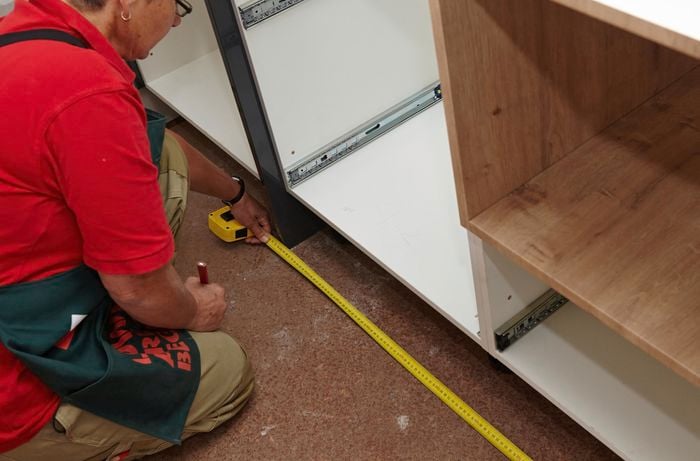

Measure the lengths your kickboards need to cover under your cabinets and mark them up with a combination square. To protect the front of the laminate from the teeth of your saw blade, lay your board face down on the sawhorses and cover your cut lines with masking tape.
DIY Step Image - How to install kickboards . Blob storage upload.

2Cut the kickboard to size

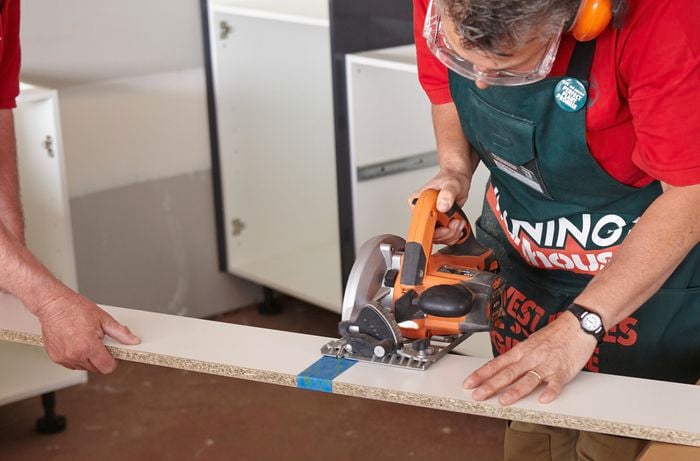

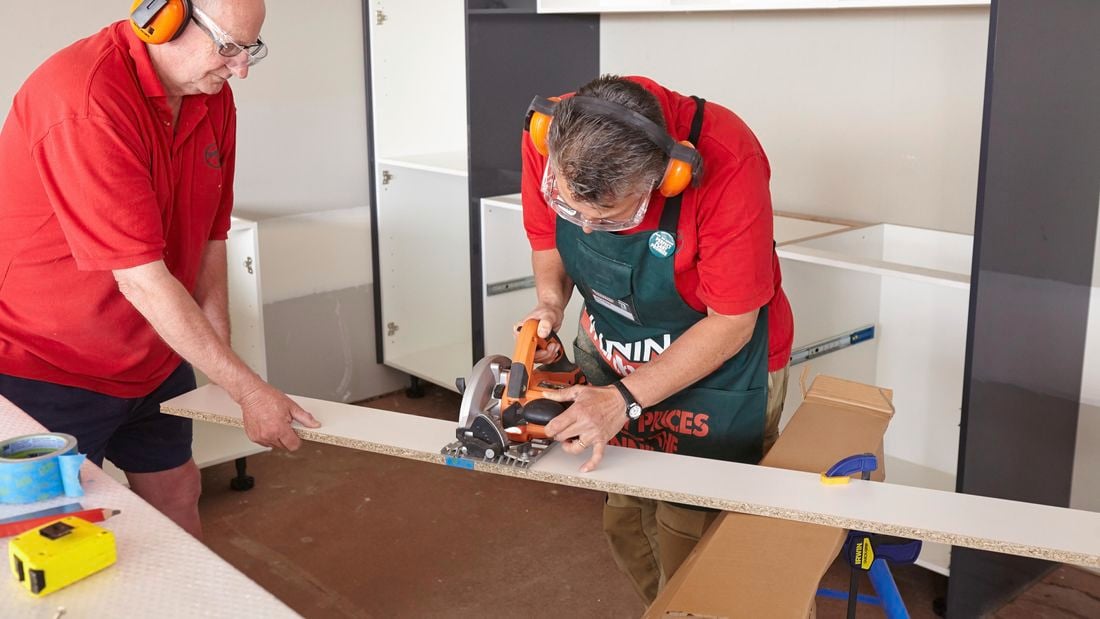

Put some cardboard under the kickboard and clamp it to the sawhorses. This will help protect the front face from scratching. Then use your circular saw to trim the kickboard to size. To ensure you get a really clean cut, have someone hold the offcut as you saw. This stops the offcut snapping off early and stripping the laminate.
DIY Step Image - How to install kickboards . Blob storage upload.

3Mark out the drilling points for the kickboard

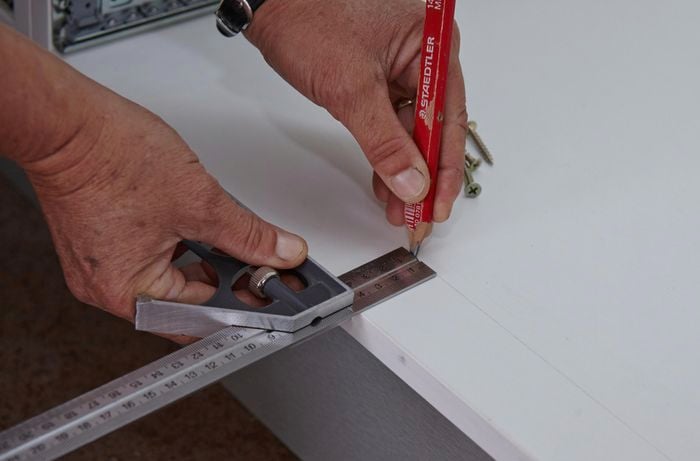

Insert the kickboard under the cabinets, up against the legs. Now use your combination square to measure from the front of the cabinet to the kickboard. Then add half the thickness of your kickboard to that measurement to get your drilling distance. In this case, our kickboard is 19mm thick, so we add 9mm to our measurement and mark that line on our cabinets.
DIY Step Image - How to install kickboards . Blob storage upload.

4Install the kickboard

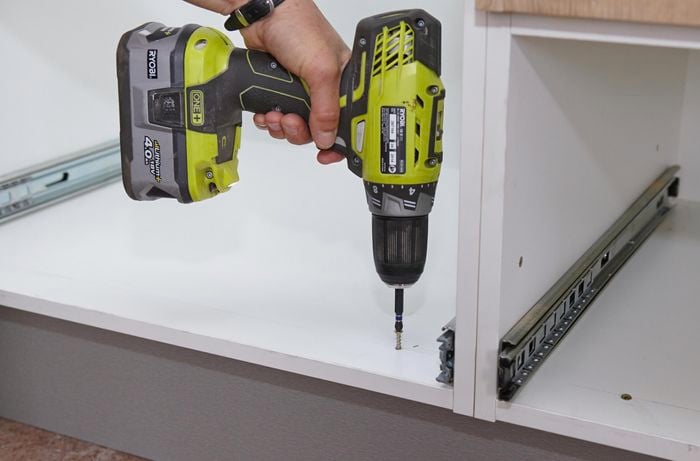

Remove the kickboard and drill pilot holes for the screws using the line marked out in the previous step. Drill two holes per cabinet, the whole way along the line. Then reinsert the kickboard and screw it into place using 28mm screws. To give your job a clean finish, drive your screws in until the heads ‘countersink' just below the surface.
DIY Step Image - How to install kickboards . Blob storage upload.
