Overview

A wire trellis can help transform a garden or courtyard into an attractive, lush and modern outdoor space. Find out how easy it is to bring your garden to life in a few simple steps.

Steps

1Pre-cut your timber at Bunnings

You can tailor the size of your wire trellis to suit your space. Ours measured 920mm x 1825mm. To make your project easier you can have your timber pre-cut at Bunnings.

DIY Step Image - How to make a wire espalier trellis . Blob storage upload.

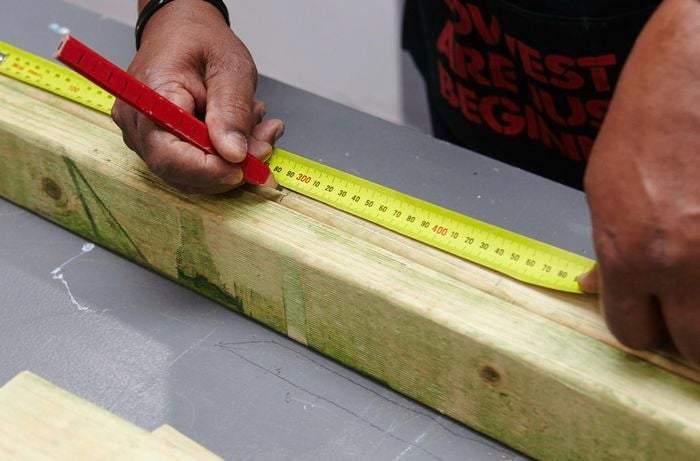

2Measure and mark for the saddle clips

Measure and mark one of the long pieces of timber for the saddle clips to hold the wire. Ours were spaced 150mm apart. Use the set square to transfer the marks onto the other long piece of timber. This will ensure the clips are in the same place.

DIY Step Image - How to make a wire espalier trellis . Blob storage upload.

3Mark the centre point on the timber

Find the centre point of the timber and mark where you want to fix each of the saddle clips.

DIY Step Image - How to make a wire espalier trellis . Blob storage upload.

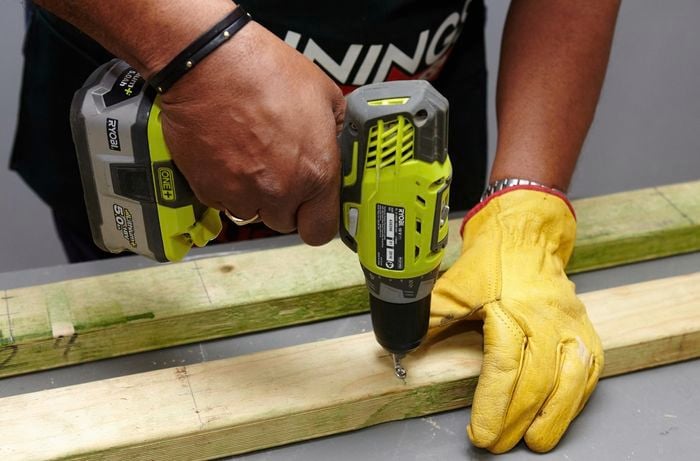

4Pre-drill holes for the clips

Place a saddle clip, so it's centred on the line where it will be attached. Use the 3mm drill bit to pre-drill the holes. Repeat this step where the saddle clips will be attached.

DIY Step Image - How to make a wire espalier trellis . Blob storage upload.

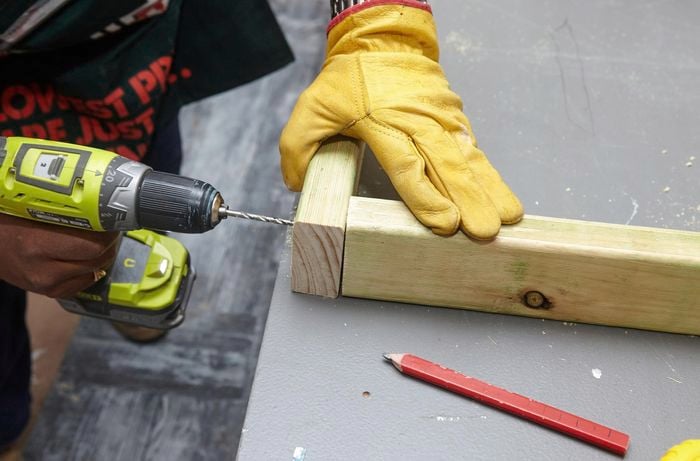

5Pre-drill holes and fix the outer frame

Assemble the rectangular frame, so the shorter pieces of timber are between the longer pieces. Make sure the edges of the timber are flush. Pre-drill two holes into each corner with the 4.5mm drill bit. Use the drill and 75mm batten screws to join the frame together. Use two screws in each corner.


DIY Step Image - How to make a wire espalier trellis . Blob storage upload.

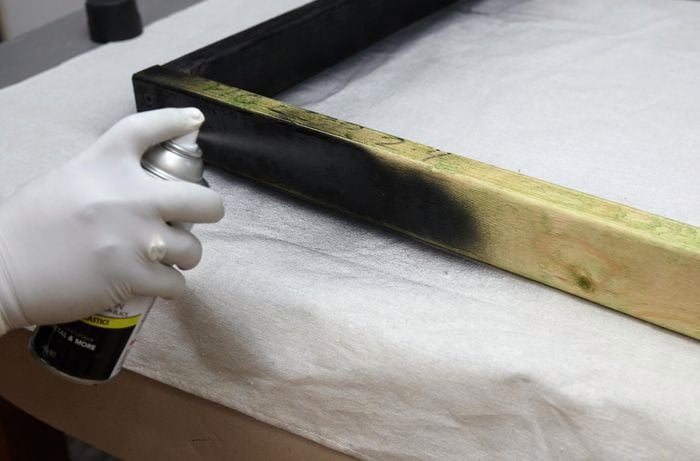

6Paint the frame

You can paint the frame any colour you choose. We spray painted ours black. When spray painting, try to use smooth, even strokes. Make sure you work in a well-ventilated area and wear a ventilator mask. Apply as many coats as needed. Leave the paint to dry between coats.

DIY Step Image - How to make a wire espalier trellis . Blob storage upload.

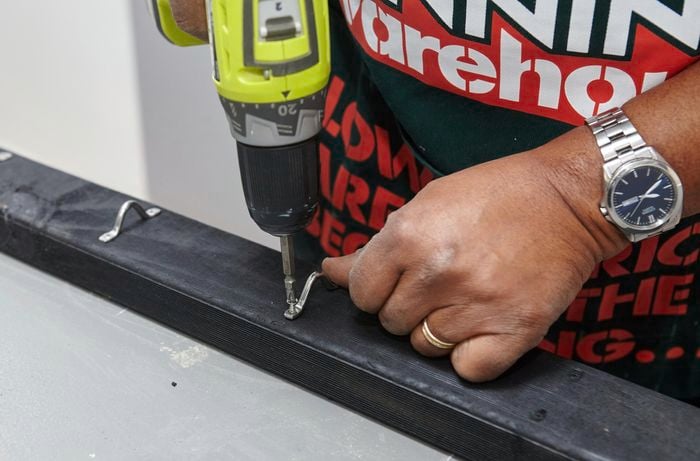

7Attach-the-clips

Turn the frame onto its side and clamp it to your workbench. Use the drill and screws provided to attach all of the saddle clips to the frame.

DIY Step Image - How to make a wire espalier trellis . Blob storage upload.

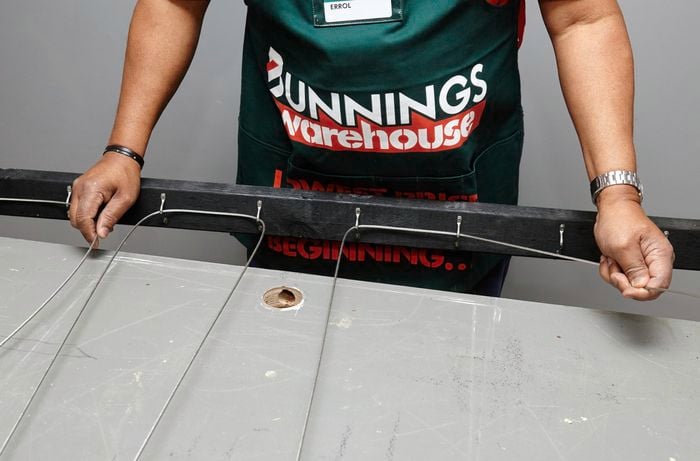

8Thread the wire

Starting at one end, loop the wire through the saddle clips. Attach a swage at one end and crimp it tight.

DIY Step Image - How to make a wire espalier trellis . Blob storage upload.

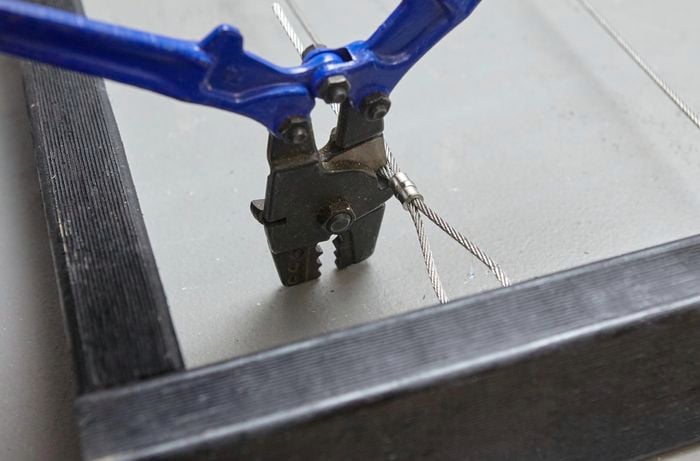

9Tighten the wire

When one end of the wire is crimped, hand tighten the wire and crimp the other end. Trim the wire as close to the swage as possible. Hand tightening the wire is fine for the trellis we built, but for tighter wire, use a turnbuckle.
DIY Step Image - How to make a wire espalier trellis . Blob storage upload.

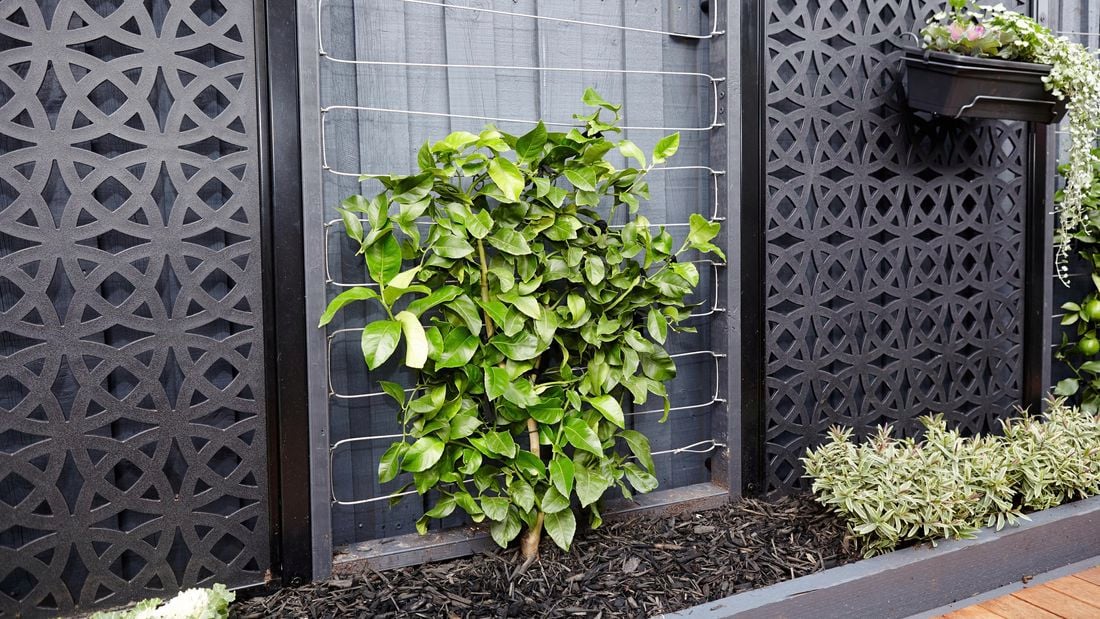

10Install the wire trellis

Now the trellis is made, plant your favourite tree or vine and start training it upwards. Before long, you'll have a lush green screen that will make a real feature of your garden or courtyard.

DIY Step Image - How to make a wire espalier trellis . Blob storage upload.
