How to install pull-out cupboard storage
How to install pull-out cupboard storage
Overview
Pull-out storage is an easy way to make better use of deep cupboard storage and keep everyday items within easy reach. By bringing the contents of your cabinet out to you, pull-out drawers can help improve pantry organisation and reduce clutter. Designed to glide out fully, these drawer systems make it easier to see and access everything in your cupboard, helping prevent items from getting lost at the back. With pre-assembled rails and a simple installation process, it's a quick D.I.Y. upgrade that can make kitchens, laundries, pantries and under-sink cabinets more functional.
Steps

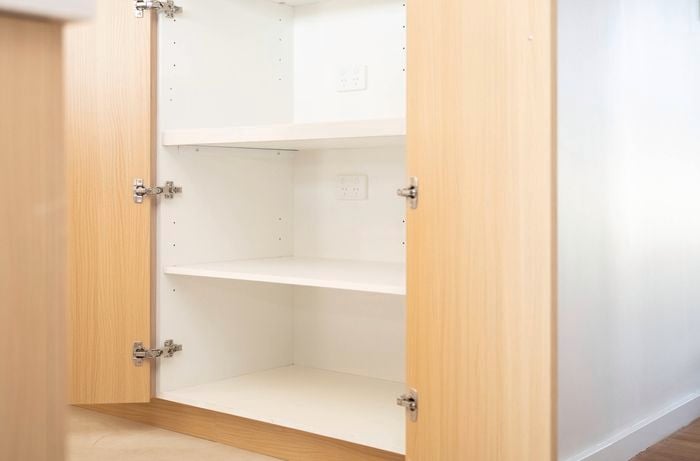

Measure the cabinet space
Before purchasing pull-out storage, clear out your cupboard then measure the inside width, depth and height of your cabinet to make sure the drawer system will fit. Don't forget to check for obstacles such as hinges, plumbing pipes or shelf supports that could interfere with the drawer opening fully. Taking accurate measurements now can save a lot of frustration later.
Choose the right drawer system
Pull-out storage comes in different sizes and configurations, including single-tier and two-tier options. Think about what you'll be storing and how much access you need. A single-tier drawer can work well for larger items, while a two-tier system can help maximise vertical space and keep smaller items organised. They're ideal for kitchens, pantries, laundries and under-sink cupboards where items can easily become difficult to reach.

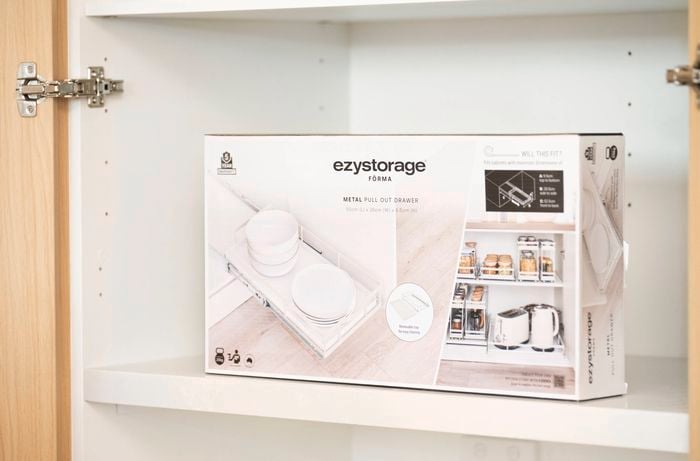

Many pull-out drawer systems come partially or fully pre-assembled to make installation easier. Before you begin, unpack all components and check that everything listed in the instructions is included. Familiarise yourself with how the runners and drawer system fit together before moving on to installation of your drawer organisation.
Install the stabilising brackets if included
If your pull-out storage system includes anti-tip or stabilising brackets, install these according to the manufacturer's instructions before loading the drawer. These help prevent the unit from tipping forward when the drawer is fully extended and loaded with heavier items. Once you're happy with the positioning, tighten all fixings securely.

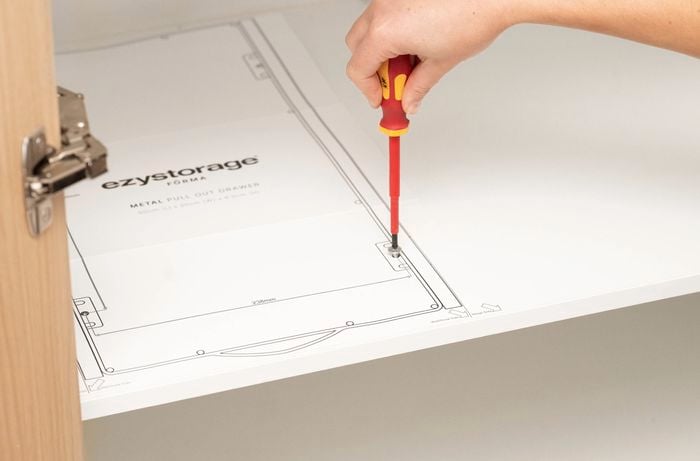

Position and mark the rails
Many pull-out drawer systems include a paper template that shows exactly where the fixing holes need to be drilled. Position the template inside the cabinet according to the manufacturer's instructions and use a pencil to mark the hole locations. Once marked, place the rails into position and double-check that they sit square and parallel to each other before installing. Even small misalignments can affect how smoothly the drawer operates.

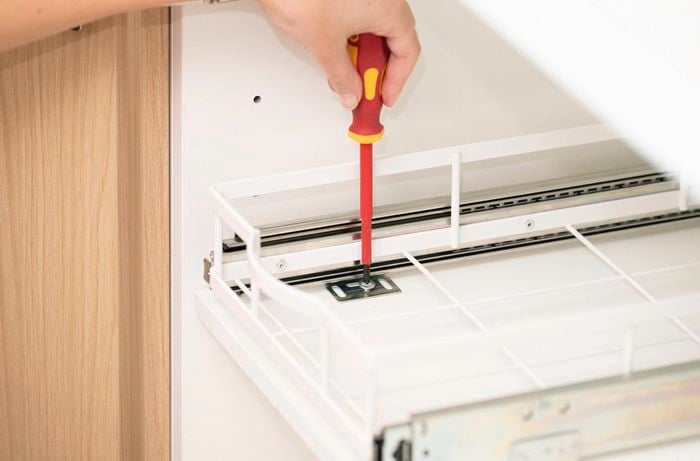

Install the rails
Secure the rails to the cabinet using screws. A spirit level can help ensure the rails are installed evenly, particularly in older cabinets where surfaces may not be perfectly level. Avoid fully tightening the screws until you've checked both sides are aligned correctly. Once you're happy with the positioning, tighten all fixings securely.
Once the rails are installed, slide the drawer unit into position. Follow the manufacturer's instructions for engaging the runners and locking mechanisms. The drawer should move freely along the rails without catching or binding.

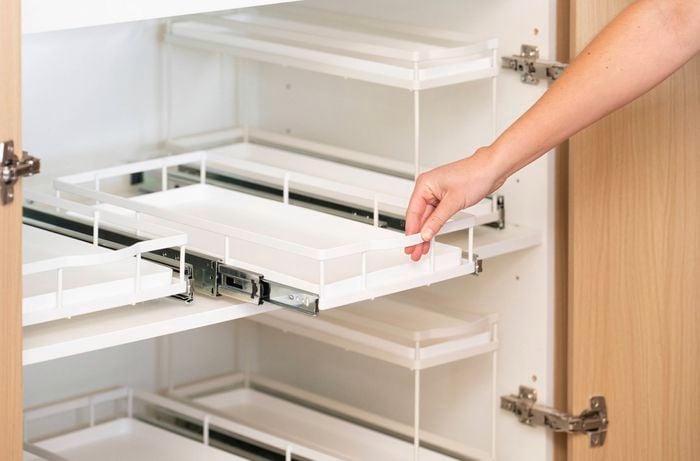

Test and adjust the movement
Open and close the drawer several times to check that it operates smoothly. The drawer should glide freely along the runners without catching or binding. If it feels stiff or uneven, check that the rails are level and that all screws are tightened correctly. Making small adjustments now will help ensure smooth operation and easy access to your cupboard contents.

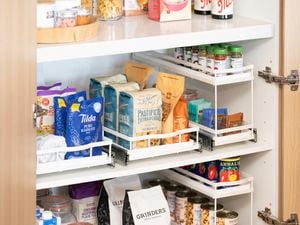

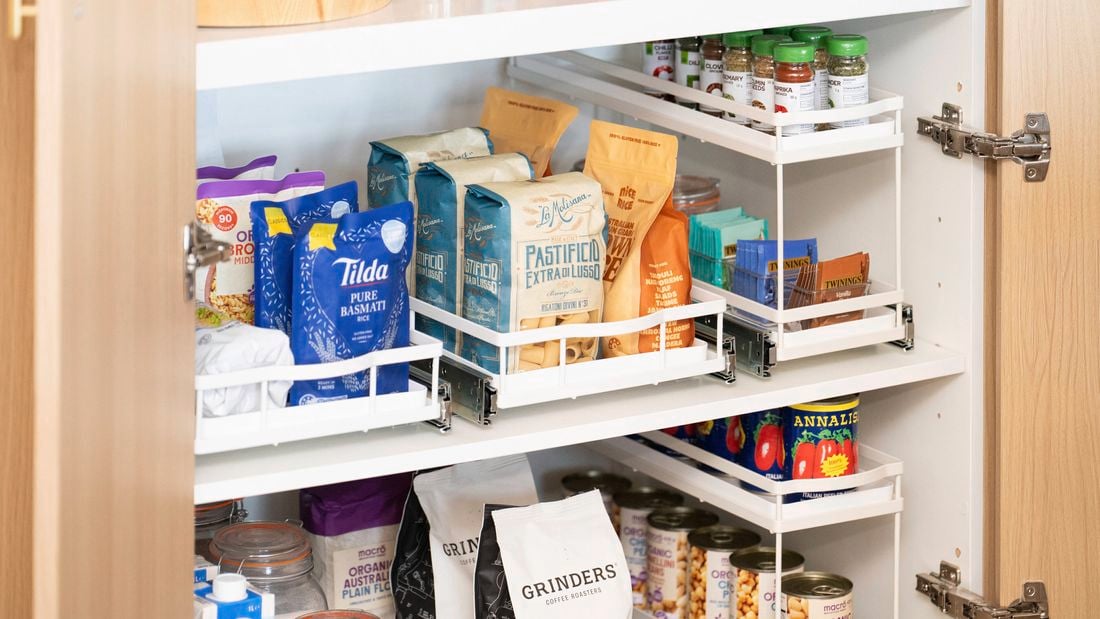

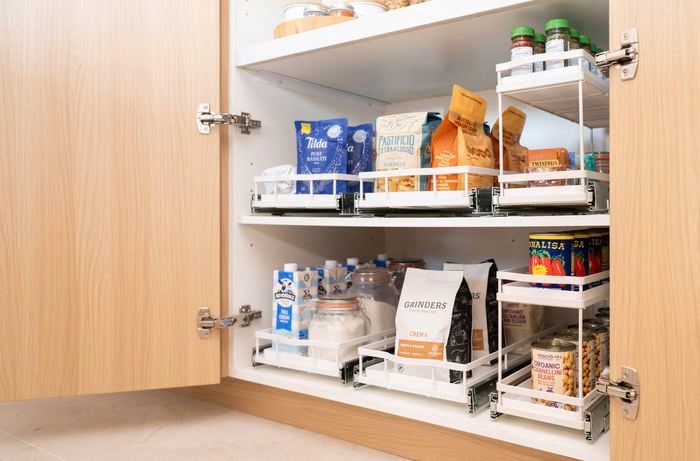

Organise your cupboard
Once you're happy with the installation, load up your new pull-out storage. Consider placing frequently used items where they're easiest to reach and grouping similar items together. Pull-out drawers inside cabinets are especially useful for deep cupboards, as they allow you to see and access items at the back without having to unpack everything in front first. Depending on the model, they can hold up to 20kg, making them suitable for everything from pantry staples and cleaning products to pots, pans and other everyday essentials.
Looking for another smart storage solution?
Check out our article on small laundry, smart storage.
