- Fully adapted to various LT projector
- 110% Ultra-wide color gamut
- Screen installation supported: wall-mounted
- Magnetic adhesive, easy to installation
- ten years quality assurance

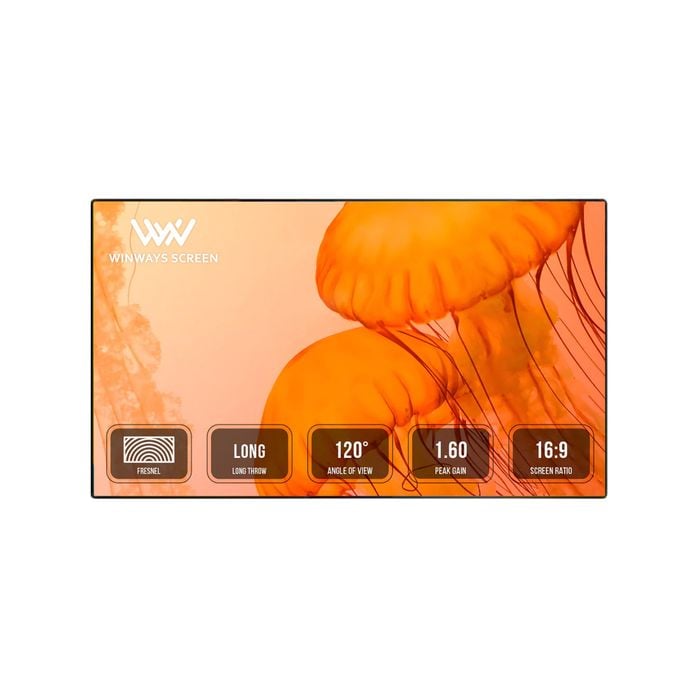

Fscreen fresnel optical screen-flexible s1 seires for laser tv/ projector
features:
only 0.7mm ultra-thin optical film but with 8 layers optical structure
anti-glare scratch layer
color plane
diffusion layer
columnar lens layer
speckle suppression layer
fresnel lens layer
reflecting layer
blackebed layer
projector supported: throw ratio between 1.0-1.39, s1 series is not suitable for ust projectors
support projector installation method: orthographic projection or ceiling mounted projection
screen installation supported: wall-mounted
specification:
screen material: polymer resin
screen type: integrated flexible screen
screen color: dark grey
screen frame: printed frame
backboard design:magnetic adhesion
ALR Rate ≥85%
Peak Gain ≥1.6
Viewing Angle: 120°±5°

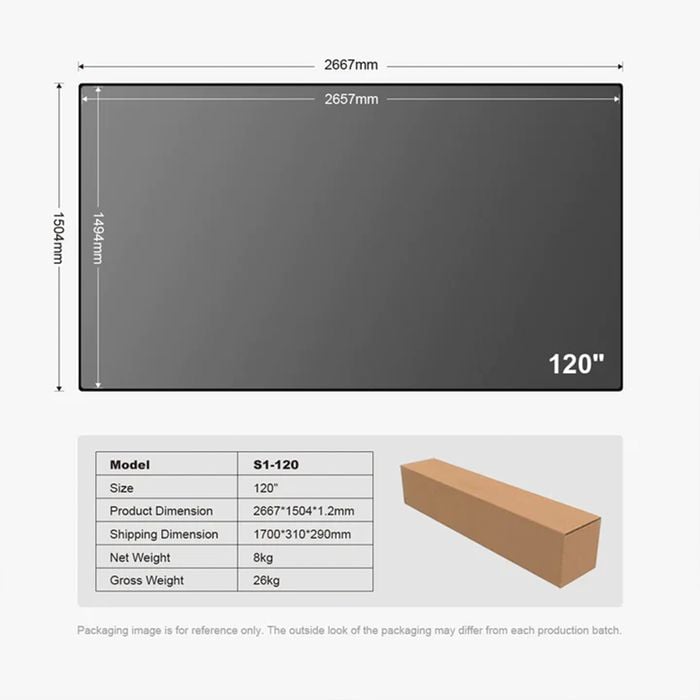

package dimension:
size display size(mm) installation size(mm) packing box dimension(mm) net weight(kg) gross weight(kg)
100'' 2214x1245 2224x1255x1.2 1470x310x290 6.9 17.50
88'' 1948x1096 1958x1106x1.2 1470x310x290 5.4 15.10
80'' 1776x1001 1797x1022x1.2 1470x310x290 5.4 14.00
warranty:
product warranty: 1 year
not intended or designed for commercial use
