- Easy install
- Economical price point
- G300 steel in 3mm thickness and corrosion protected with HDG
- Two fixing styles with either one or two M12 concrete bolts

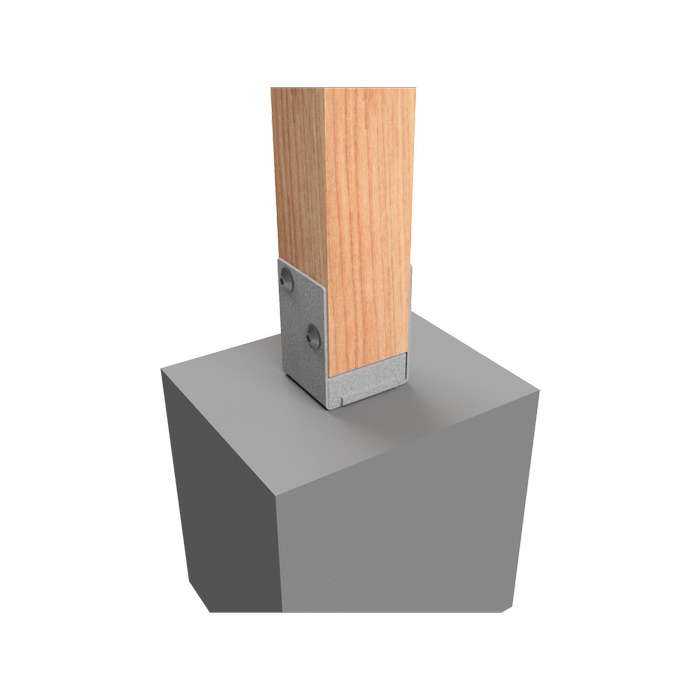

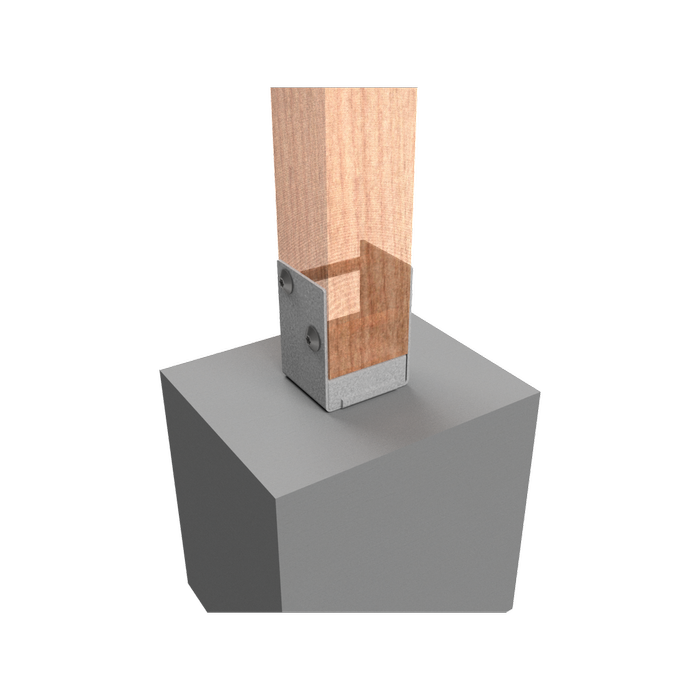

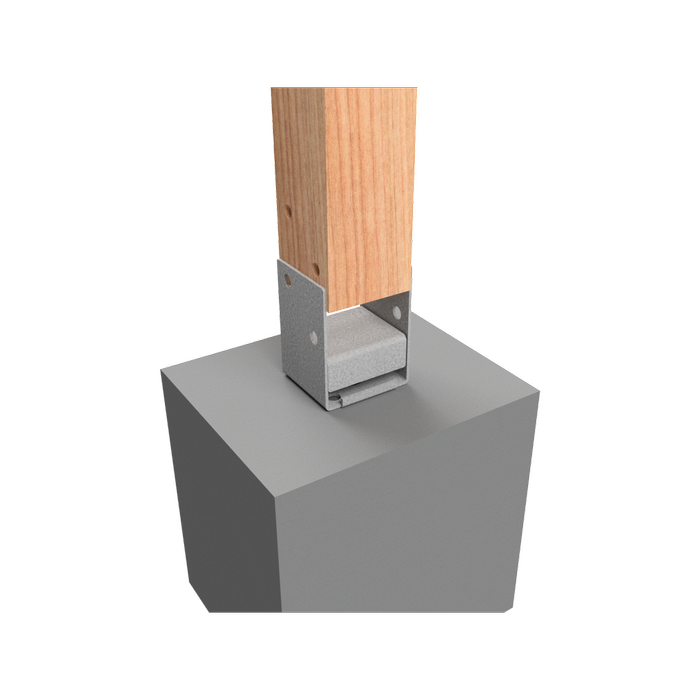

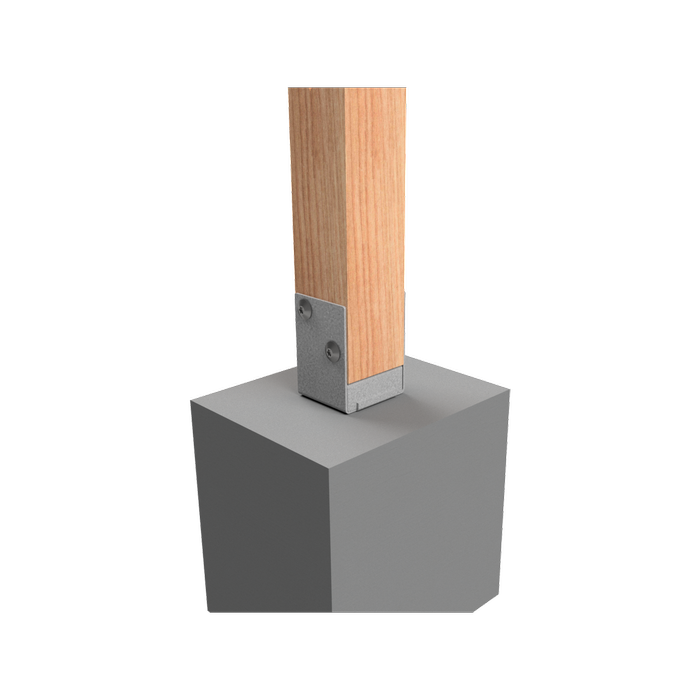

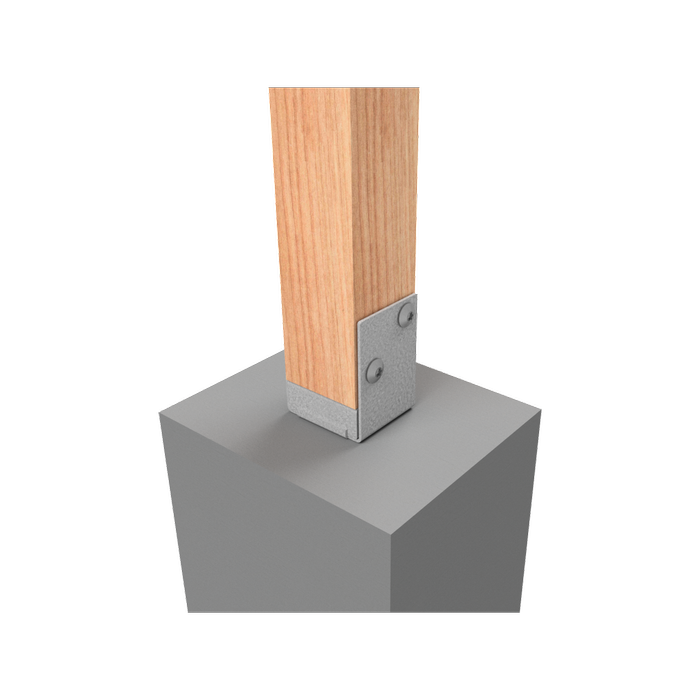

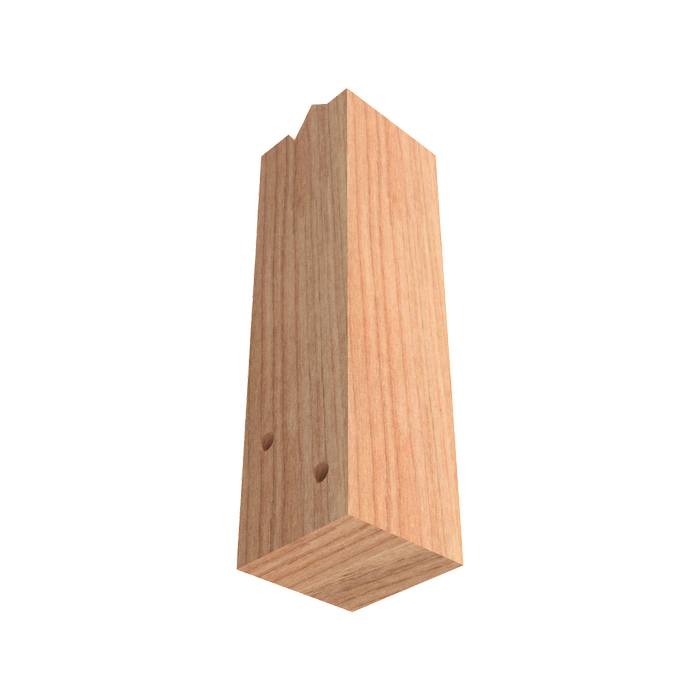

VUEPRO Bolt Down Post Supports are connectors ideal for strong, concealed bolting of timber posts onto concrete bases.
VUEPRO Galvanised Bolt Down Post Supports are typically used when setting post supports into wet concrete is not an option. VUEPRO Bolt Down Post Supports offer a strong and solid connection.

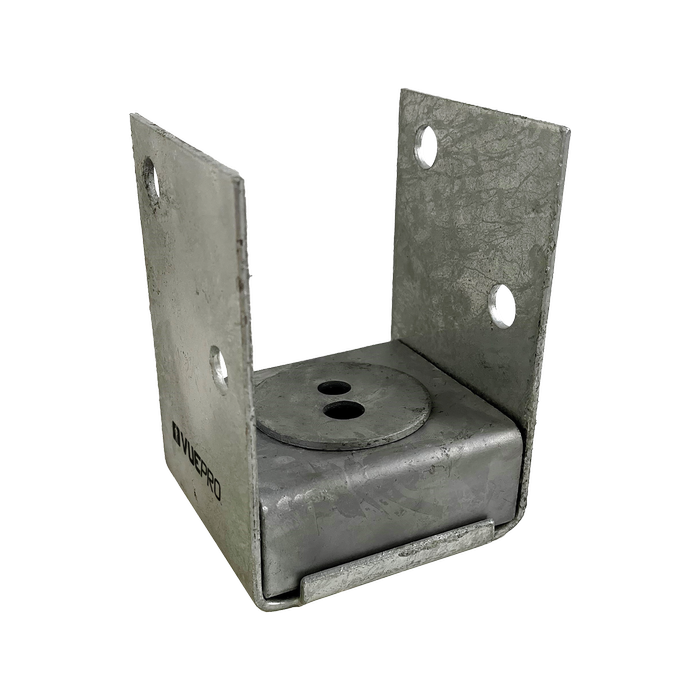

VUEPRO Galvanised Bolt Down Post Supports are manufactured out of G300 steel in 3mm thickness and corrosion protected with Hot-Dipped Galvanise as per required in AS4680.
Fasteners Required:

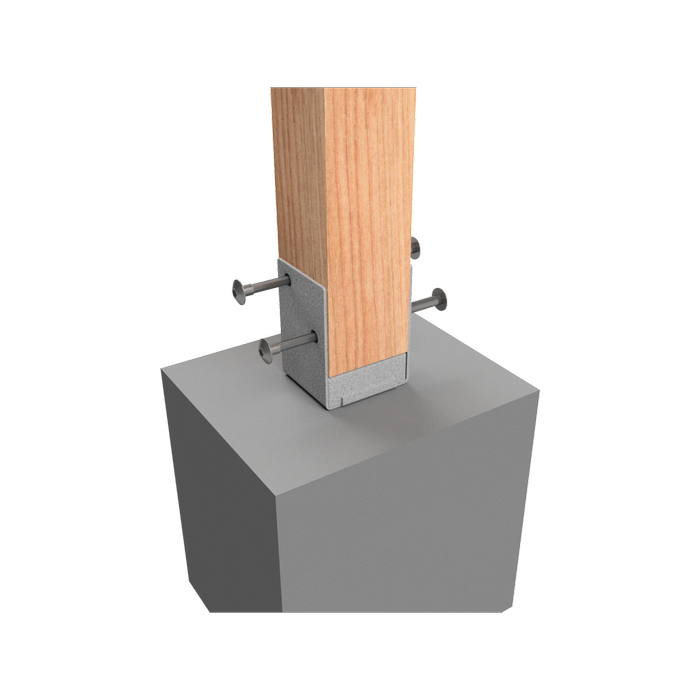

Saddle: 2x Zinc-Nickel Coated VUEPRO Concealed Thread Bolt or appropriate M12 bolts with hex nuts

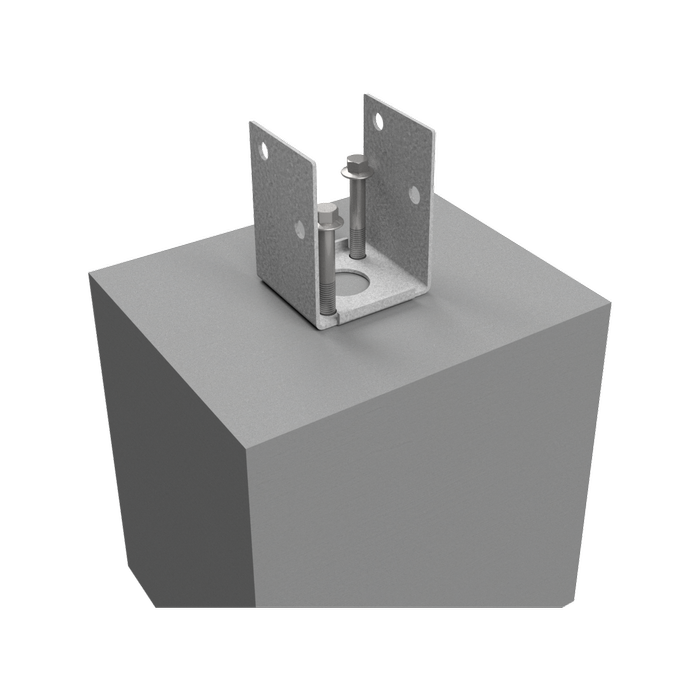

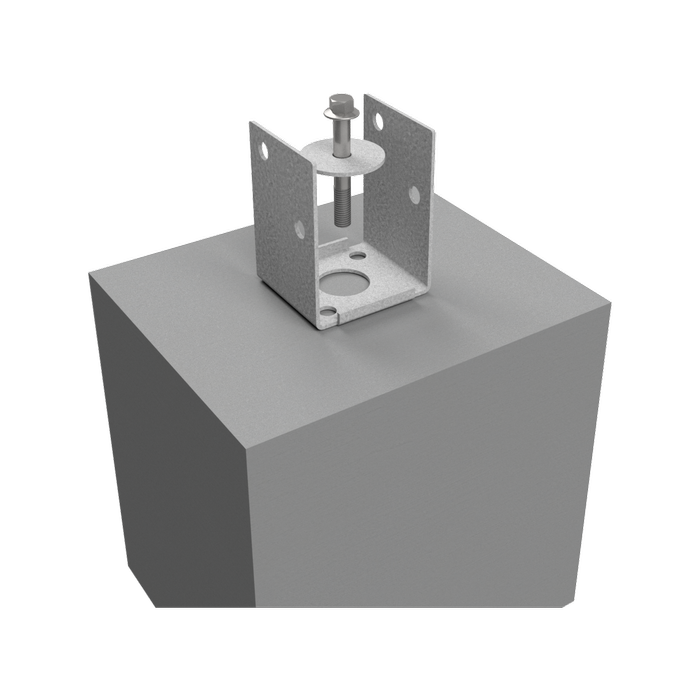

Base: (Fixing Style 1: 2x M12 concrete bolts or equivalent OR Fixing Style 2: 1x M12 concrete bolt fastened with supplied washers)
SOLD SEPARATELY:
I/N: 0182344
VUEPRO M12 90 - 110mm Heavy Duty VUEPRO Concealed Thread Bolt - 2 Pack
