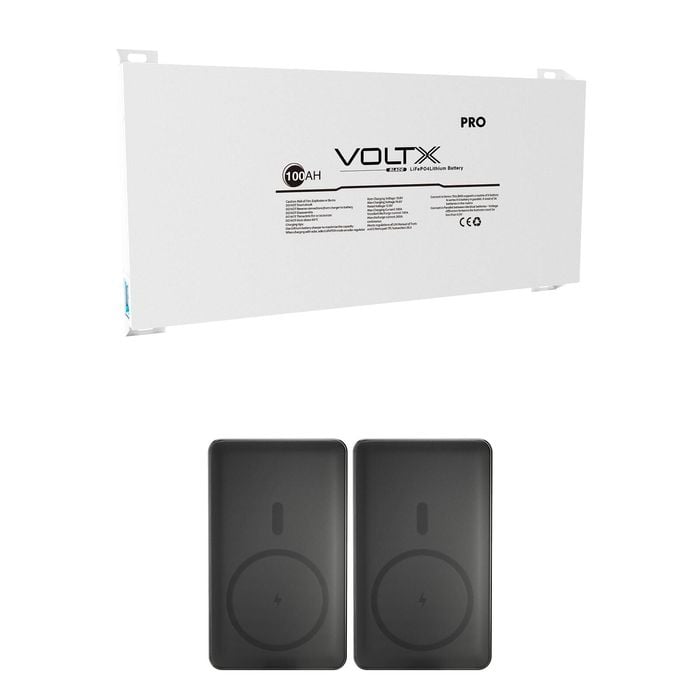

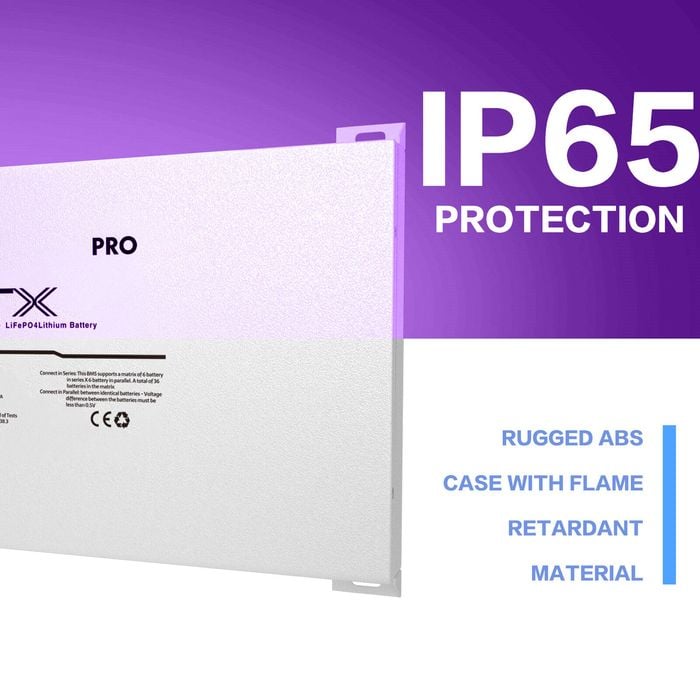

VoltX Blade 12V 100Ah Lithium Battery + 20000mAh Power Bank

I/N: 0919169

Marketplace | Online only

$1,279

How to purchase

Marketplace | Online only

Items sold and delivered by VoltX. This item is not available in-store or for click & collect.

Marketplace FAQs

Delivery

Delivery policyReturns & refunds
VoltX
Enter postcode or suburb for estimate

  • ✨【compact upgrade from lead-acid】— ultra-slim 6.5cm blade design fits tight spaces without compromising 1280wh of real power. Perfect replacement for bulky batteries.

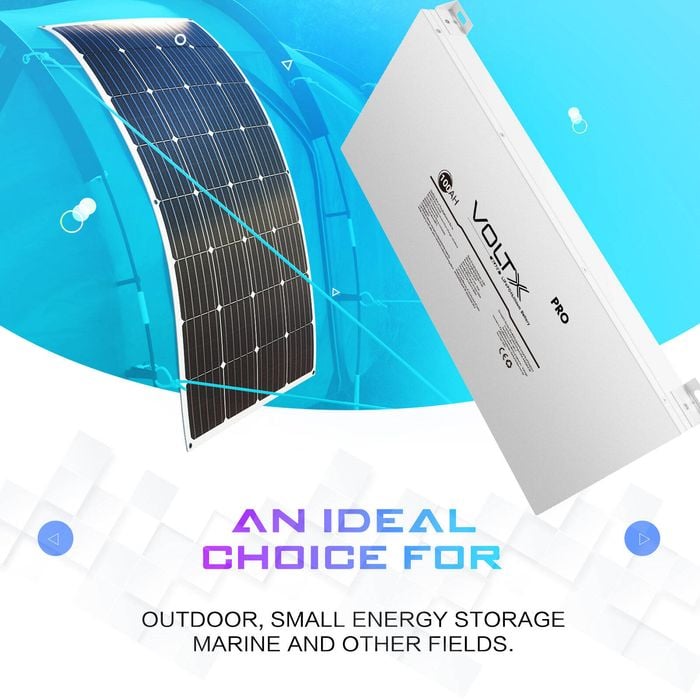

  • ✨【lightweight adventure companion】— ideal for caravans, rvs, 4wds, boats, and solar setups. Run fridges, lights, inverters, and essential 12v devices.

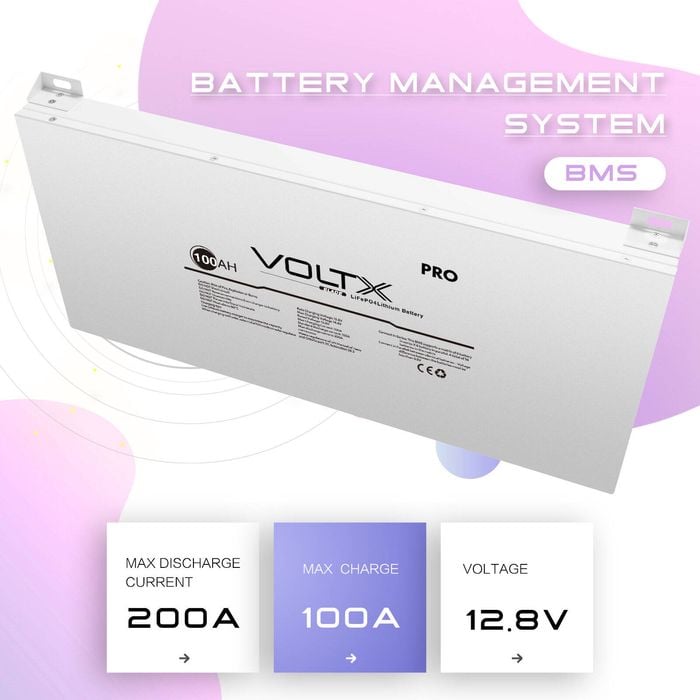

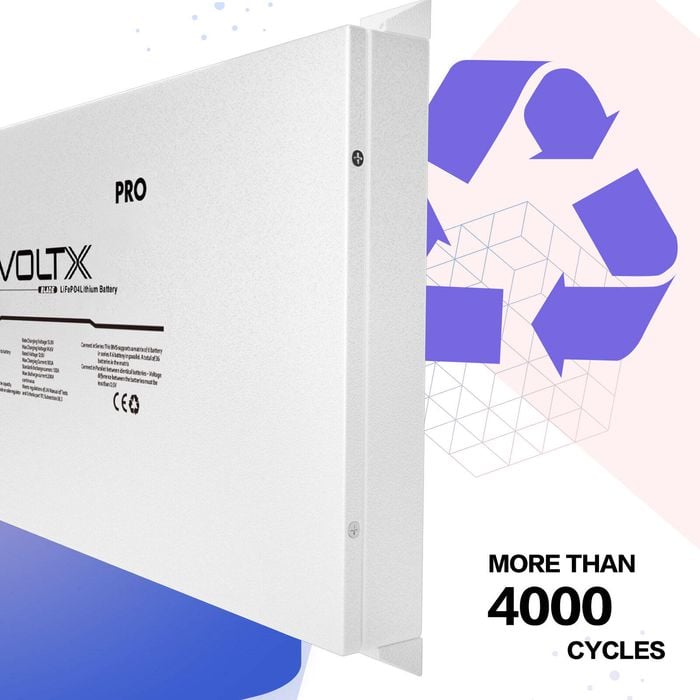

  • ✨【smart & durable】— 200a bms with overcharge, over-discharge, overcurrent, and temperature protections. Lifepo₄ cells last 4000+ cycles for long-term reliability.

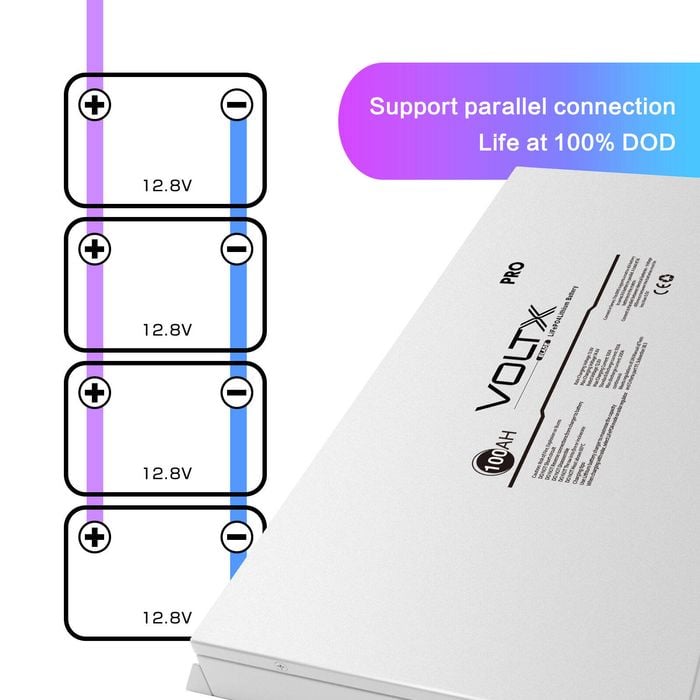

  • ✨【expandable energy】— connect up to 6 batteries in series or parallel to scale capacity and voltage, giving you flexible, future-proof power.
  • ✨【trusted brand & support】— voltx is a reliable local brand. 5-year warranty, sydney stock with 24h dispatch, plus expert support for setup and personalized solutions.

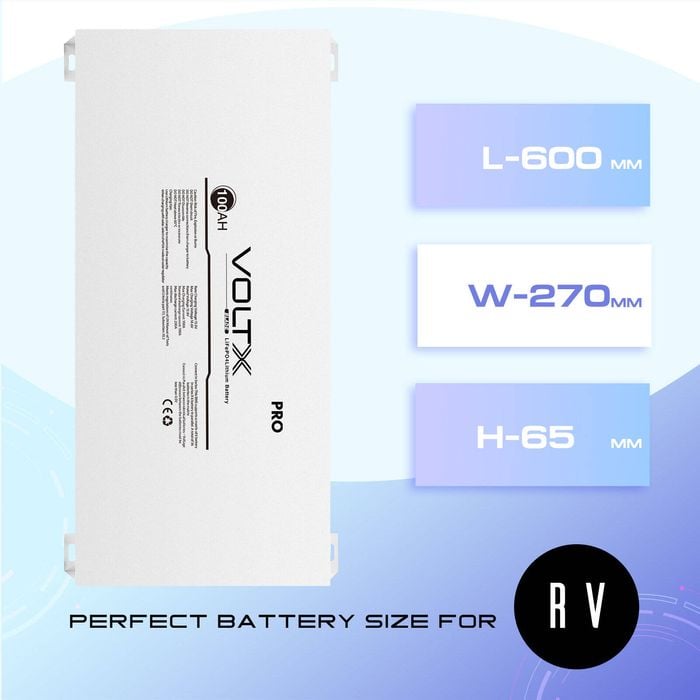

--- Product 1: VoltX Blade 12V 100Ah Lithium Battery --- ### Specifications ・Brand: VoltX ・Nominal Voltage: 12.8V ・Nominal Capacity: 100Ah ・Rated Energy: 1280Wh ・Approx Life Cycles: 4000 ・Battery Manage System: 200A ・Rated Discharge Current: 100A ・Max. Discharge Current: 200A ・Max. Discharge Current 5 sec: 600A ・Charging Voltage: 14.2-14.6V ・Absorption Voltage: 14.4V ・Float Voltage: 13.6V ・Overcharge Protection: 14.4V ・Overcharge Recovery: 14V ・Overdischarge Protection: 11.2V ・Overdischarge Recovery: 11.6V ・Working Temperature Range: Charge: 0°C to 45°C | Discharge: -25°C to 65°C ・Storage Temperature: -10℃ to 50℃ ・Battery Cells: Prismatic ・Case Material: SPCC ・Cell Grouping: 4S1P ・Parallel Connection: Yes, max 6 batteries ・Series Connection: Yes, max 6 batteries ・Warranty in Years: 5 ### Dimensions & Weight ・Dimensions: 600(L) x 270(W) x 65(H)mm ・Weight: 15.5kgs ### What's In The Box ・1 x Lithium Battery --- Product 2: VoltX 10000mAh Power Bank --- ### Specifications ・Battery Capacity: 10000mAh/3.7V/37Wh ・Type-C Input/Output: 5V/3A 9V/2.22A (PD20W) ・Wireless charger Output: 5W/7.5W/10W/15W(Max) ・Output: 15W(Max) ### Dimensions & Weight ・Product Size: 112 x 67 x 17.8mm ・Package Size: 140 x 100 x 28mm ・Product Weight: 0.26kg ・Package Weight: 0.26kg ### What's In The Box (2 Packs) ・1x VoltX 10000mAh Power Bank ・1x 0.3m Cable ・1x User Manual Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
