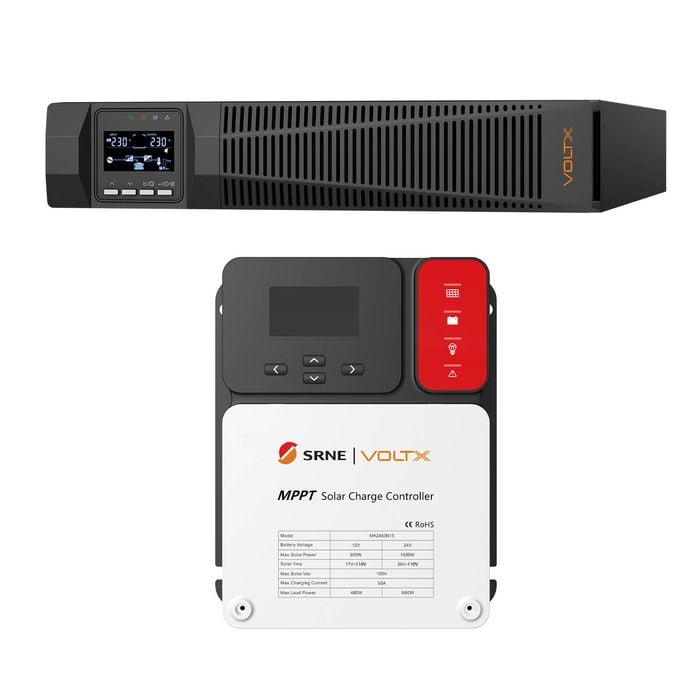

Voltx 3000va 3000w Ups + 60a Mppt Solar Charge Controller - Solar Backup Power System

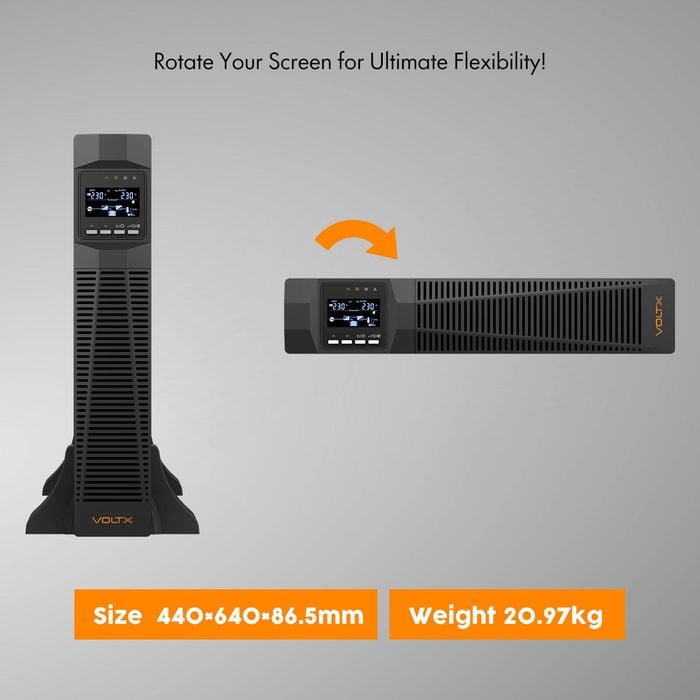

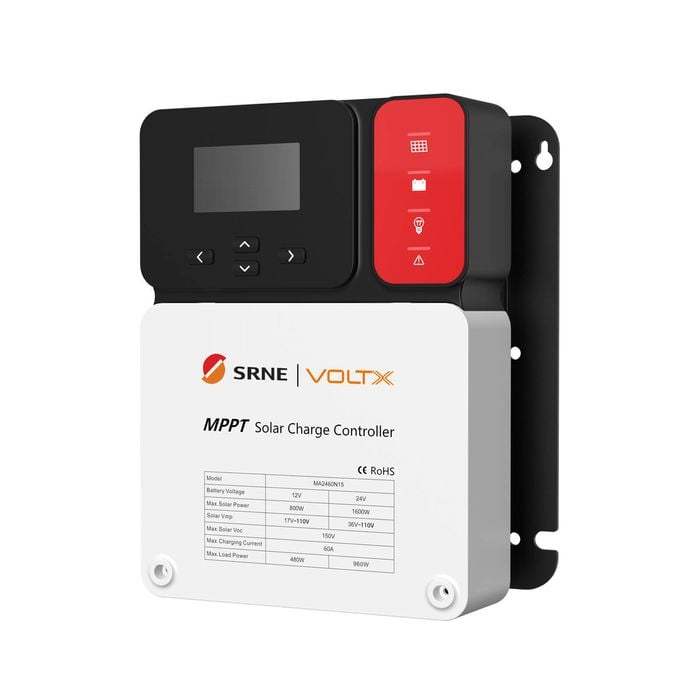

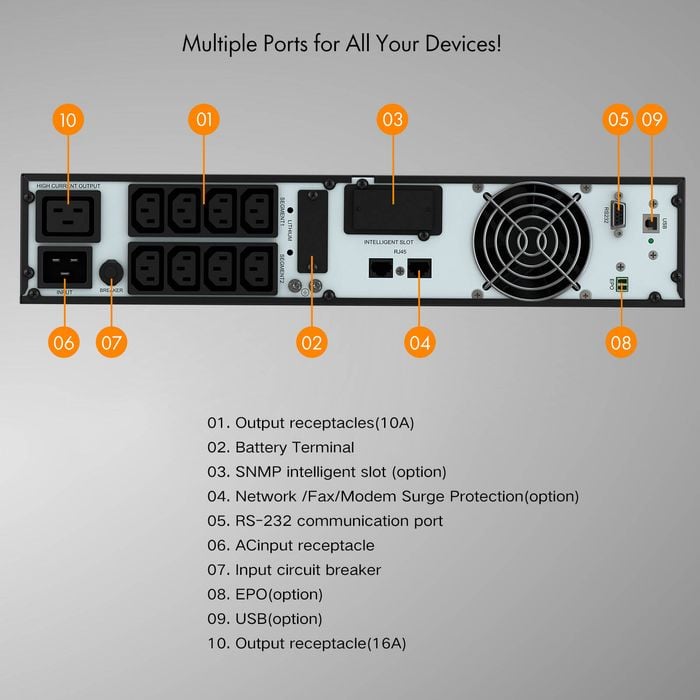

⚡ Now back online — improved stock & faster dispatch. Ideal for camping, home backup & off-grid power solutions ⚡ VoltX 3000VA UPS + 60A MPPT Solar Controller Bundle — Backup & Off-Grid Power Solution ・Reliable Backup Power — VoltX 3000VA UPS keeps computers, routers, and office devices running during outages ・Smart Solar Charging — 60A MPPT Controller efficiently charges batteries from solar panels ・Perfect for Off-Grid Use — Ideal for RVs, cabins, remote workstations, or emergency backup setups ・Extended Equipment Life — Intelligent UPS and MPPT protections prevent overload, over-discharge, and short circuits ・Complete Power Solution — Everything you need in one bundle, shipped separately for safety and convenience --- Product 1: VoltX 3000VA 3000W UPS --- ### Specifications --- Quick Look --- ・Phase: Single Phase with Ground ・Capacity: 3000VA /3000W ・Output: 8x 10A; 1x 16A ・Input: 1x 220/230/240V ・Communication Port: 1x USB; 1x RS232 ・Product Size: W440 x D640 x H86.5mm ・Warranty in Years: 5 --- Input --- ・Nominal voltage: 220/230/240VAC ・Operating voltage range (Ambient Temp. <40) ・Low line transfer: 176Vac±5% @100%-50% load; 110Vac±5% @50%-0% load; ・Low line comeback: 186Vac±5% @100%-50% load; 120Vac±5% @50%-0% load; ・High line transfer: 300Vac±5% @100%-0% load; ・High line comeback: 290Vac±5% @100%-0% load; ・Operating frequency range: 40-70Hz ・Input Power factor: >0.98@100% load(Nominal Input Voltage) ・Bypass voltage range: ・Bypass high voltage point ・230-264: setting the high voltage point in LCD from 230Vac to 264Vac (Default: 264Vac) ・Bypass low voltage point ・176-220: setting the low voltage point in LCD from 176Vac to 220Vac. (Default: 176Vac) ・Generator input: Support --- Output --- ・Output voltage: 200/208/220/230/240Vac ・Power factor: 1.0 ・Voltage regulation: ±1% ・Frequency ・Line Mode (synchronized range): 46-54Hz or 56-64Hz ・Bat. Mode: (50/60±0.1)Hz ・Crest factor: 3:1 ・Harmonic distortion (THDv): ・≤3% THD with linear load ・≤5% THD with non linear load ・Waveform: Pure Sine Wave ・Transfer time ・AC mode <->Batt. mode: 0ms(Typical) ・Inverter <-> bypass: 4ms(Typical) ・On Line Efficiency: 92% ・Economy mode efficiency: 96.50% --- Battery --- ・Battery Type(Lithium): 76.8V6AH ・Backup time: 9min @ full Load ・Typical recharge time(standard model): 4 hours recover to 90% capacity (Typical) ・Charging voltage: 84.0 VDC ±0.2VDC ・Charge current: 2A --- System Features --- ・Over Load Capability (Online mode): ・105%-125%: UPS transfer to bypass after 1 minute when the utility is normal ・125%~130%: UPS transfer to bypass after 30 seconds when the utility is normal ・>130%:UPS transfer to bypass after 0.2 second when the utility is normal ・Over Load Capability (Battery mode): ・105%-125%: UPS after 1minute shut down ・125%~130%: UPS after 10 seconds shut down ・>130%: UPS after 0.2 second shut down ・Short Circuit: Hold Whole System ・Overheat: Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately ・Low battery voltage: Alarm and Switch off ・EPO (optional): Shut down UPS immediately ・Audible & Visual alarms: Line Failure, Battery Low, Overload, System Fault ・Communication interface: USB(or RS232), SNMP card(optional), Relay card (optional) --- Others --- ・Operating temperature 0°C~40°C ・Storage temperature -25°C~55°C ・Humidity range 0~95% (non-condensing) ・Altitude: Up to 1000m (no derating) ・Noise level: <50 dB at 1m --- Standards --- ・Safety: CB: IEC 62040-1:2017, CE-LVD: EN 62040-1:2008+A1:2013 ・EMC: IEC 62040-2-2016, EN 62040-2-2018 C2 ・Transportation: ISTA Procedure 2A ・Surge protection: IEC 61000-4-5 ### Dimensions & Weight ・Product Size: W440 x D640 x H86.5mm ・Net Weight: 20.97kg ### What's In The Box ・1x VoltX 3000VA /3000W UPS ・1x USB Cable ・1x RS232 Cable ・1x Power Cord ・2x Mounting Ears ・4x Standing Holders ・1x User Manual --- Product 2: 60A MPPT Solar Charge Controller --- ### Specifications --- Electrical Parameters --- ・Static power consumption: ≤50mA ・Battery Type: USE/FLD/GEL/LI/SLD(Default) ・System voltage: 12V/24V ・Battery's operating voltage range: 8V-32V ・Rated charging current: 60A ・Maximum PV Input Current: 53A ・Maximum solar panel power: 800W/12V; 1600W/24V ・Maximum PV open-circuit voltage: 150V ・MPPT operating voltage point range: (Battery Voltage +2)~110V ・MPPT tracking efficiency: >99% ・Charging conversion efficiency: 85%-98% (10%-100% of rated power) ・Rated load current: 40A ・Load operating mode: Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened. ・TTL communication: Baud Rate 9600kps ・RS485 communication: 2 isolated RS485 communication ports, ・supporting parallel use, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable. ・Bluetooth communication: Built-in ・CAN communication: RV-C Protocol ・Historical data: Can store historical data of the past 300 days ・Backlight function: Light up if the key is pressed down, and automatically turn off in 20s if there is no key action ・Protection function: PV Overvoltage Protection, PV Reverse Connection Protection, PV Short-Circuit Protection, Nighttime Reverse Charge Protection, Input Limited Power Protection, Overtemperature Protection, Load Short-Circuit Protection, Load Overload Protection, Battery Supervoltage/Over-discharge Protection, Battery Reverse Connection Protection and Battery Terminal Short-Circuit Protection. ・Grounding type: Co-negative design and negative grounding ・Cooling mode: Natural Cooling ・Parallel connection for charging: Yes ・Charging voltage line loss compensation: Yes ・Support full settings: Yes ・Constant voltage output setting: Yes ・Charging temperature compensation of lead-acid battery: Yes ・Temperature protection: Yes ・Overload/short-circuit protection: Yes ・Load pre-start: Yes ・Protection grade: IP32 ・Operating ambient temperature range: -35°C~ 65°C (no derating within 45°C if well ventilated) ### Dimensions & Weight ・Dimension: 260x216x98.5mm ・Mounting hole spacing: 200 mm ・Weight: 3.4kg ・Fixed hole position: φ10mm ### What's In The Box ・1x 60A MPPT Solar Charge Controller Tips for Bluetooth functionality: Additional Bluetooth module is required to achieve Bluetooth functionality. Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
