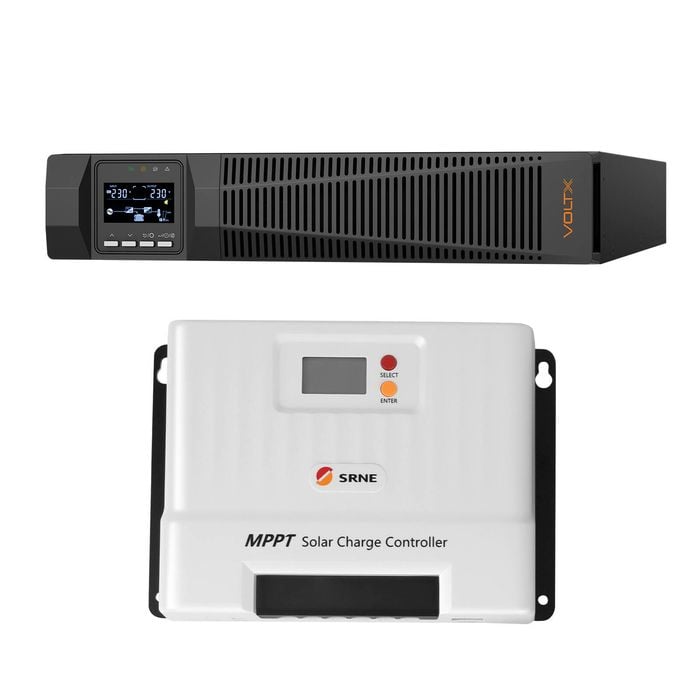

Voltx 1000va 1000w Ups + 40a Mppt Solar Charge Controller - Solar Backup Power System

⚡ now back online — improved stock & faster dispatch. Ideal for camping, home backup & off-grid power solutions ⚡ voltx 1000va ups + 40a mppt solar controller bundle — backup & off-grid power solution ・reliable backup power — voltx 1000va ups keeps computers, routers, and office devices running during outages ・smart solar charging — 40a mppt controller efficiently charges batteries from solar panels ・perfect for off-grid use — ideal for rvs, cabins, remote workstations, or emergency backup setups ・extended equipment life — intelligent ups and mppt protections prevent overload, over-discharge, and short circuits ・complete power solution — everything you need in one bundle, shipped separately for safety and convenience --- product 1: voltx 1000va 1000w ups --- ### specifications --- quick look --- ・phase: single phase with ground ・capacity: 1000va /1000w ・output: 8x 10a; 1x 16a ・input: 1x 220/230/240v ・communication port: 1x usb; 1x rs232 ・product size: w440 x d325 x h86.5mm ・warranty in years: 5 --- input --- ・nominal voltage: 220/230/240vac ・operating voltage range (ambient temp. <40) ・low line transfer: 176vac±5% @100%-50% load; 110vac±5% @50%-0% load; ・low line comeback: 186vac±5% @100%-50% load; 120vac±5% @50%-0% load; ・high line transfer: 300vac±5% @100%-0% load; ・high line comeback: 290vac±5% @100%-0% load; ・operating frequency range: 40-70hz ・input power factor: >0.98@100% load(nominal input voltage) ・bypass voltage range: ・bypass high voltage point ・230-264: setting the high voltage point in lcd from 230vac to 264vac (default: 264vac) ・bypass low voltage point ・176-220: setting the low voltage point in lcd from 176vac to 220vac. (default: 176vac) ・generator input: support --- output --- ・output voltage: 200/208/220/230/240vac ・power factor: 1.0 ・voltage regulation: ±1% ・frequency ・line mode (synchronized range): 46-54hz or 56-64hz ・bat. Mode: (50/60±0.1)hz ・crest factor: 3:1 ・harmonic distortion (thdv): ・≤3% thd with linear load ・≤5% thd with non linear load ・waveform: pure sine wave ・transfer time ・ac mode <->batt. Mode: 0ms(typical) ・inverter <-> bypass: 4ms(typical) ・on line efficiency: 90.00% ・economy mode efficiency: 95.00% --- battery --- ・battery type(lithium): 25.6v9ah ・backup time: 9min @ full load ・typical recharge time(standard model): 4 hours recover to 90% capacity (typical) ・charging voltage: 28.0 vdc ±0.2vdc ・charge current: 2a --- system features --- ・over load capability (online mode): ・105%-125%: ups transfer to bypass after 1 minute when the utility is normal ・125%~130%: ups transfer to bypass after 30 seconds when the utility is normal ・>130%:ups transfer to bypass after 0.2 second when the utility is normal ・over load capability (battery mode): ・105%-125%: ups after 1minute shut down ・125%~130%: ups after 10 seconds shut down ・>130%: ups after 0.2 second shut down ・short circuit: hold whole system ・overheat: line mode: switch to bypass; backup mode: shut down ups immediately ・low battery voltage: alarm and switch off ・epo (optional): shut down ups immediately ・audible & visual alarms: line failure, battery low, overload, system fault ・communication interface: usb(or rs232), snmp card(optional), relay card (optional) --- others --- ・operating temperature 0°c~40°c ・storage temperature -25°c~55°c ・humidity range 0~95% (non-condensing) ・altitude: up to 1000m (no derating) ・noise level: <50 db at 1m --- standards --- ・safety: cb: iec 62040-1:2017, ce-lvd: en 62040-1:2008+a1:2013 ・emc: iec 62040-2-2016, en 62040-2-2018 c2 ・transportation: ista procedure 2a ・surge protection: iec 61000-4-5 ### dimensions & weight ・product size: w440 x d325 x h86.5mm ・net weight: 9.5kg ### what's in the box ・1x voltx 1000va 1000w ups ・1x usb cable ・1x rs232 cable ・1x power cord ・2x mounting ears ・4x standing holders ・1x user manual --- product 2: 40a mppt solar charge controller --- ### specifications --- electrical parameters --- ・system voltage: 12v/24v ・rated charging current: 40a ・static power consumption: ≤10ma ・maximum solar panel power: 520w/12v; 1040w/24v ・maximum pv open-circuit voltage: 100v (95v protection, 90v recovery) ・mppt operating voltage range: (battery voltage +2v)~72v ・battery operating voltage range: 8v-32v ・mppt tracking efficiency: >99% ・charging conversion efficiency: 85%-98% (10%-100% of rated power) ・rated load current: 20a ・load operating mode: light control, light control + time control, manual mode (default), debugging mode, normally open ・ttl communication: baud rate: 9,600 bps ・rs485 communication: rj45 interface, with power output 5v/200 ma,the baud rate is 9,600 bps by default, adjustable. ・bluetooth communication: optional ・can communication: rj45 interface, optional (rv-c protocol) ・historical data: save the last 200 days of historical data ・protection function: pv overvoltage protection, pv reverse connection protection, pv shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection. ・grounding type: grounding of common negative electrode ・cooling mode: natural heat dissipation ・charging current setting: yes ・full-charging setting: yes ・constant voltage output setting: yes ・charging temperature compensation of lead-acid battery: yes ・temperature unit setting: yes ・overload/short-circuit protection: yes ・protection grade: ip32 ・operating ambient temperature range: -35°c~65°c ### dimensions & weight ・dimension: 228x160x72mm ・mounting hole spacing: 214x133mm ・weight: 1750g ・fixed hole position: φ5mm ### what's in the box ・1x 40a mppt solar charge controller tips for bluetooth functionality: additional bluetooth module is required to achieve bluetooth functionality. tips: the items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
