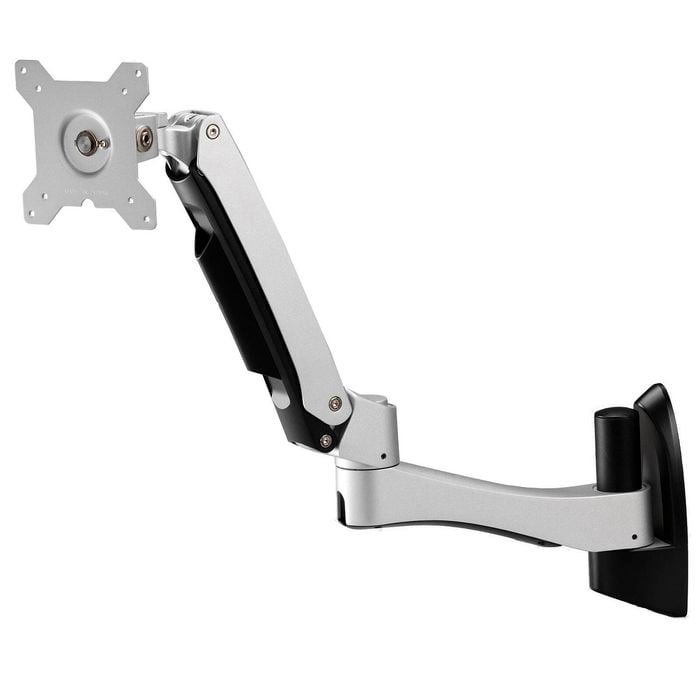

Up to 24" 10kg Tilt Swivel Pivot Arm Single LCD Screen Monitor Wall Mount VESA

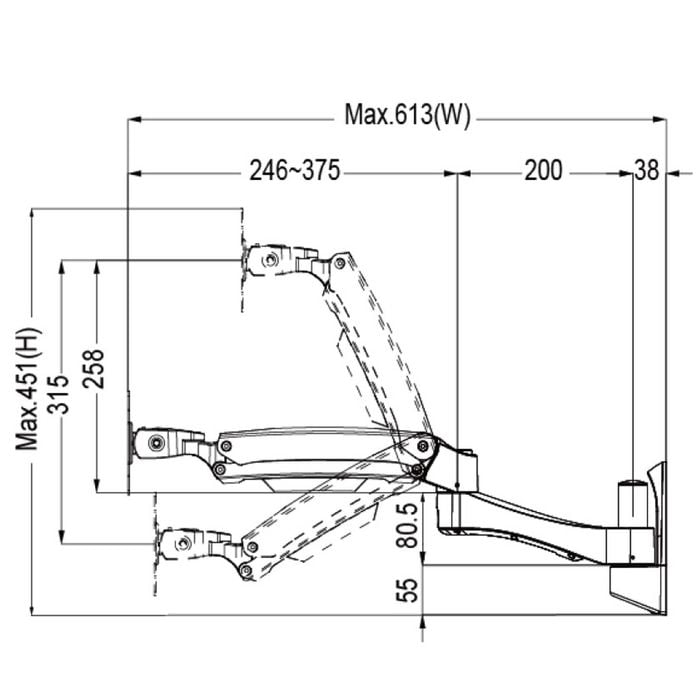

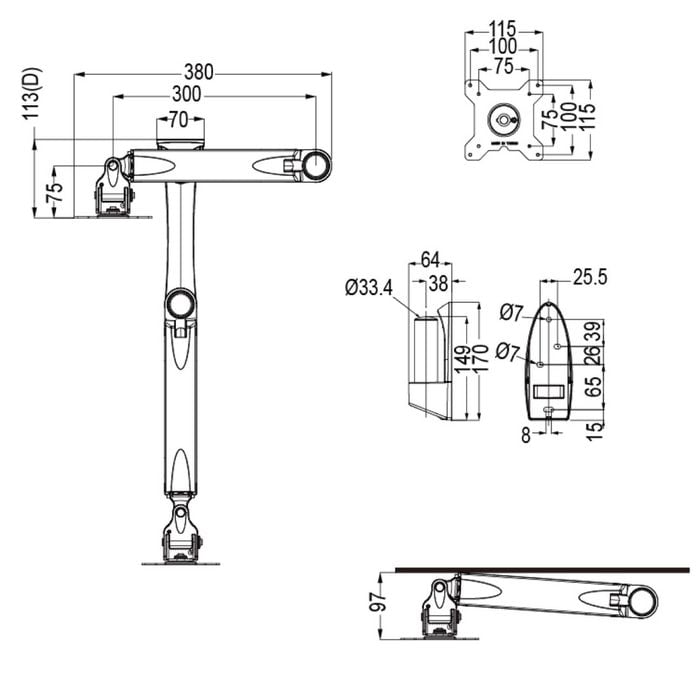

Height Adjustable Monitor Wall Mount&This quality LCD arm bracket is ideal for mounting your LCD TVs or monitors to a wall. The base of this mount can easily be mounted onto a&plaster board wall&&to achieve a sturdy and secure fit. The "Four-bar Linkage" design of this bracket provides plenty of suspension and flexibility to move and adjust your monitor&to various angles and lengths.&The bracket's sturdy aluminium structure provides great strength and stability and also features a cable&management component to help keep your cables neat and tidy when installing your TV or Monitor.Will This Bracket Fit My Monitor?- For screen sizes up to approx 24 inches (61cm) measured diagonally.- For monitors weighing up to 10kg each.- Fits VESA mounting standards 100 and 75 (ie: screw holes that are 100 x 100mm or 75 x 75mm apart). Features:&&- Height Adjust- 360 degrees rotation&- Cable Management&- Smart Torque adjust feature&- Aluminium Structure&- Easy InstallationMax. wall mount hole pitch&100x100mm/75x75mmScrew Type&M4Material&Steel/Aluminum Alloy/PlasticDimension (W*D*H):70 x 248 x 613mmWeight&2.1kgSwivel: +/-90° (Hinge)Tilt Max&+65° / -30° (Arm)Tilt Max&+90° / -20° (Hinge)Rotate (Pivot)&360° (Hinge)Support max. weight&10 KgSupport flat panel size:38.1 ~ 60.9cm (15''~ 24'')Mounting Panel Measurements:- Width: 5.6cm- Length: 16.5cm download.
