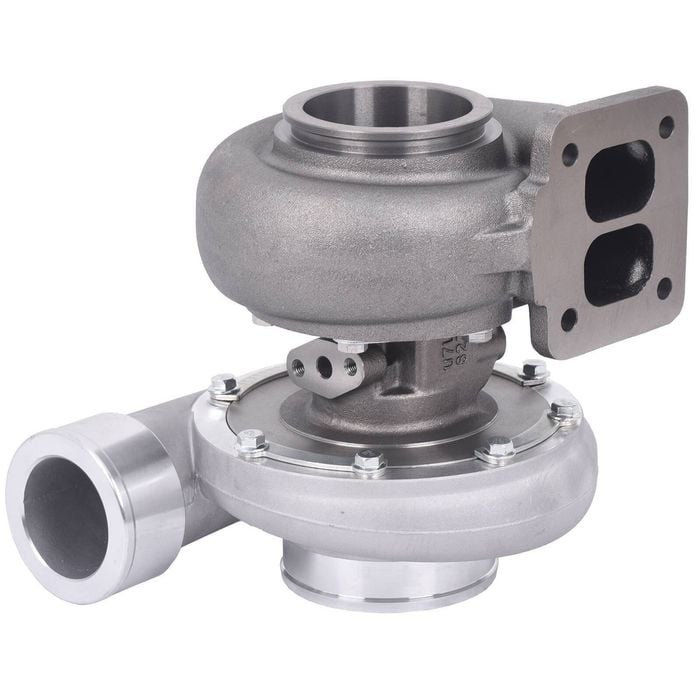

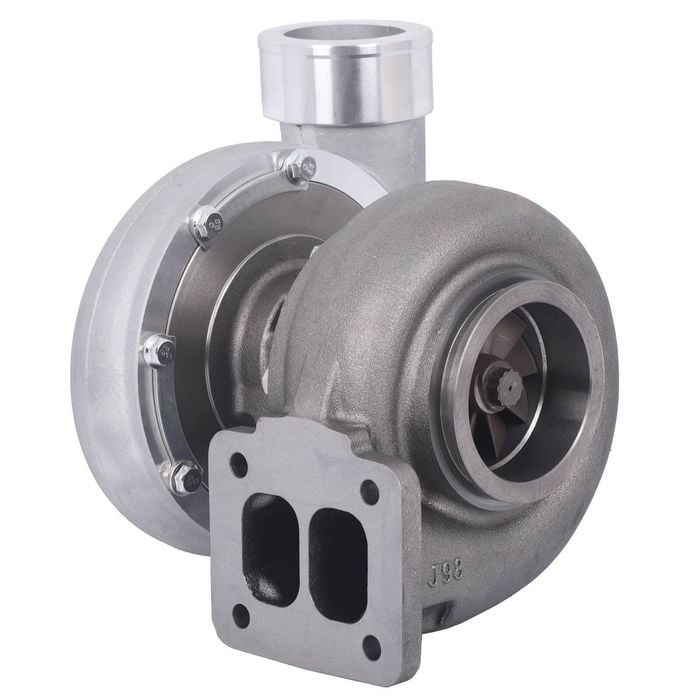

Universal Billet Gt45 Turbo T4 A/r 1.05 V-band Turbocharger For 4.0l-6l Engines

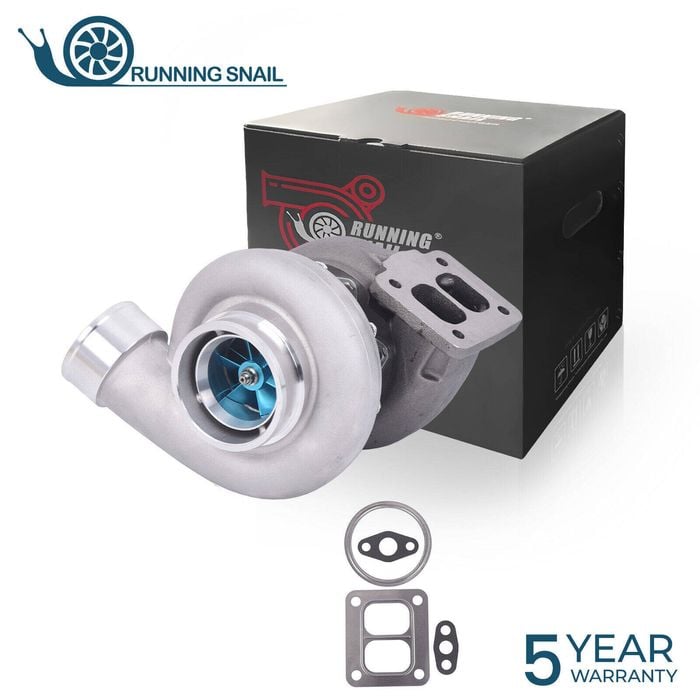

### **application** * universal application turbocharger — some modifications may be required depending on your vehicle setup. * suitable for all 4.0l–6.0l engines. ### **turbo model** * gt45 ### **specifications** * **exhaust inlet flange:** t4 * **exhaust outlet flange:** 3.25" inlet, 4.25" clamp v-band * **compressor trim:** 49.6 * **compressor inducer diameter:** 69 mm * **compressor exducer diameter:** 98 mm * **compressor air inlet size:** 107 mm * **compressor air outlet size:** 86.3 mm * **compressor a/r:** 0.66 * **turbine trim:** 77.6 * **turbine inducer diameter:** 88 mm * **turbine exducer diameter:** 77.5 mm * **turbine a/r:** 1.05 * **oil inlet:** m9 & 2 × m8×1.25 * **oil outlet:** m19 & 2 × m8×1.25 * **bearing type:** wet float * **cooling type:** oil cooled * **horsepower rating:** up to 600+ hp ### **gaskets** * this turbo comes with a free gasket set, as shown in the photo. ### **fitment notice** please confirm compatibility before purchasing. if you're unsure, send us your vehicle details — we’ll help determine if this turbo is right for your setup.
