- Industrial durability – built for demanding spaces, ensuring reliable performance during heavy lifting operations.

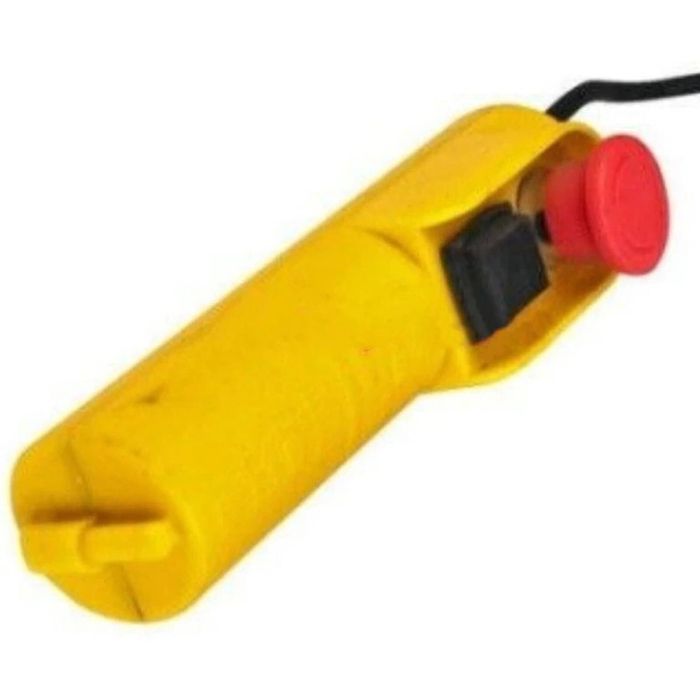

- Enhanced safety – equipped with a control pendant and emergency stop for secure handling during lifting tasks.
- Versatile mounting – designed for easy installation on horizontal beams, fitting diverse workspace configurations.

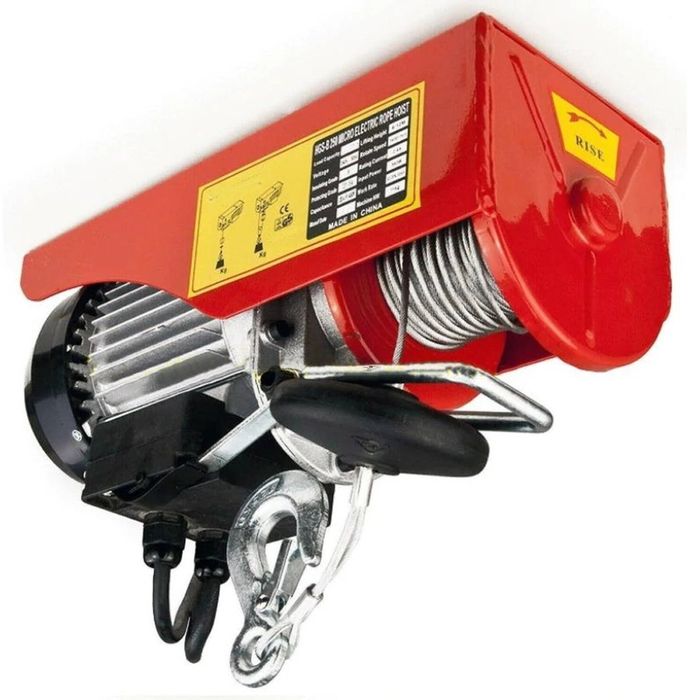

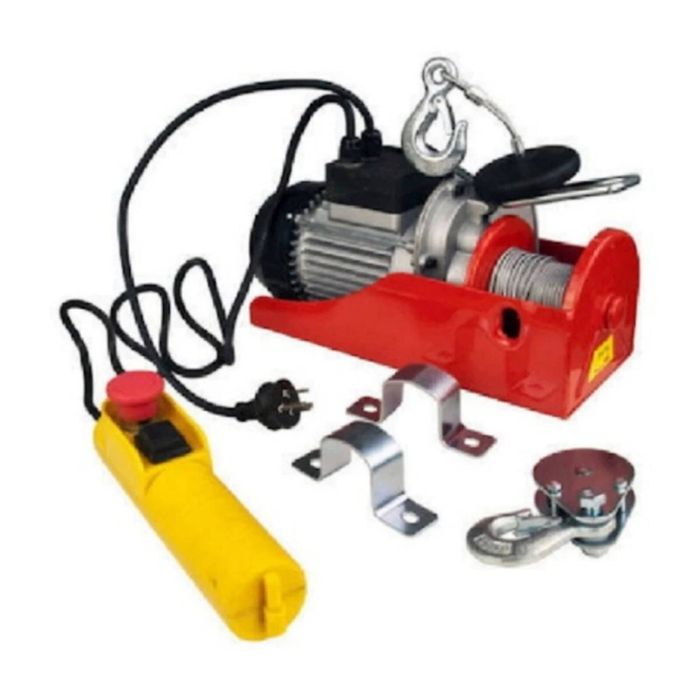

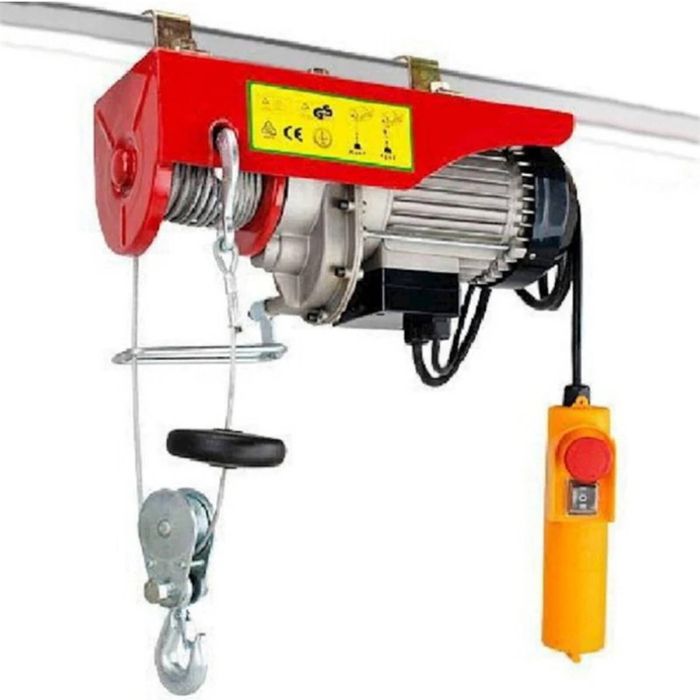

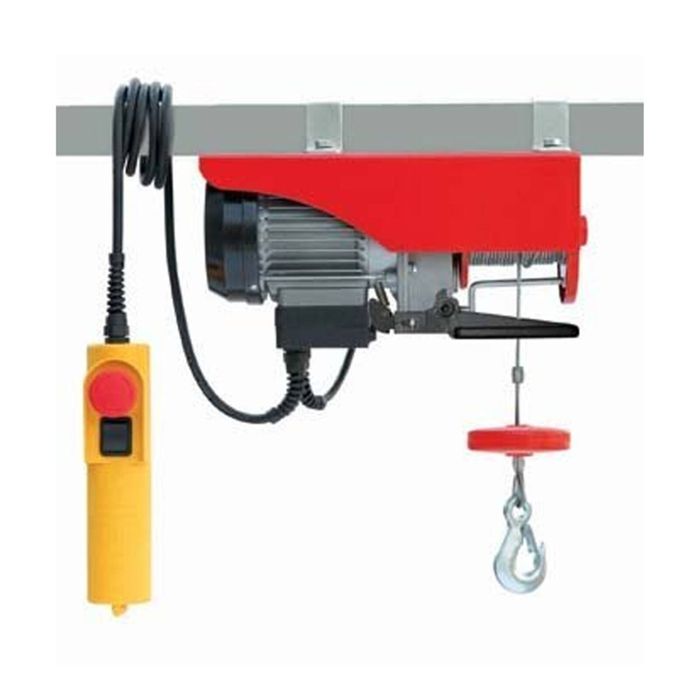

The TWM WHPA1200 is a 1200kg electric cable hoist designed for lifting and lowering loads with dual operating modes for flexible capacity and height requirements.
Dual cable mode – switch between single cable (600kg capacity, 11m height) and double cable (1200kg capacity, 5.5m height) configurations
Variable lifting speed – adjustable from 10m/min in single mode to 5m/min in double mode for controlled load handling
Tilting table – 0–45 degree adjustment for angled load positioning
Type: Electric cable hoist
Motor: 240V 1300W single phase
Load capacity (single cable mode): 600kg
Load capacity (double cable mode): 1200kg
Lifting height (single cable mode): 11m
Lifting height (double cable mode): 5.5m
Lifting speed (single cable mode): 10m/min
Lifting speed (double cable mode): 5m/min

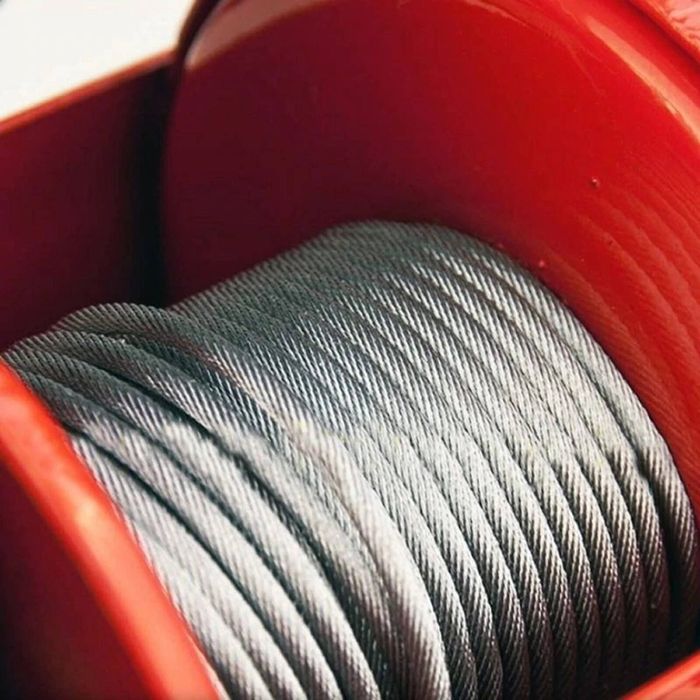

Cable length: 12m
Cable diameter: 6.2mm
Table tilt range: 0–45 degrees
