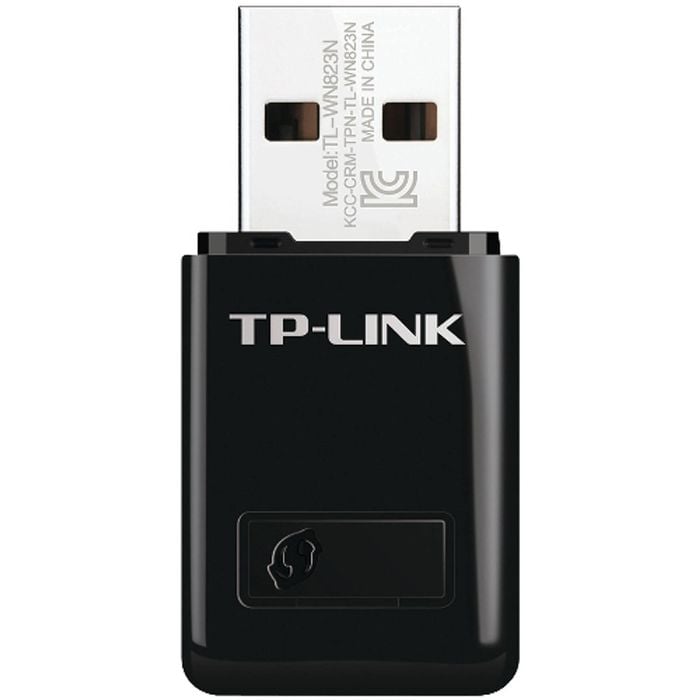

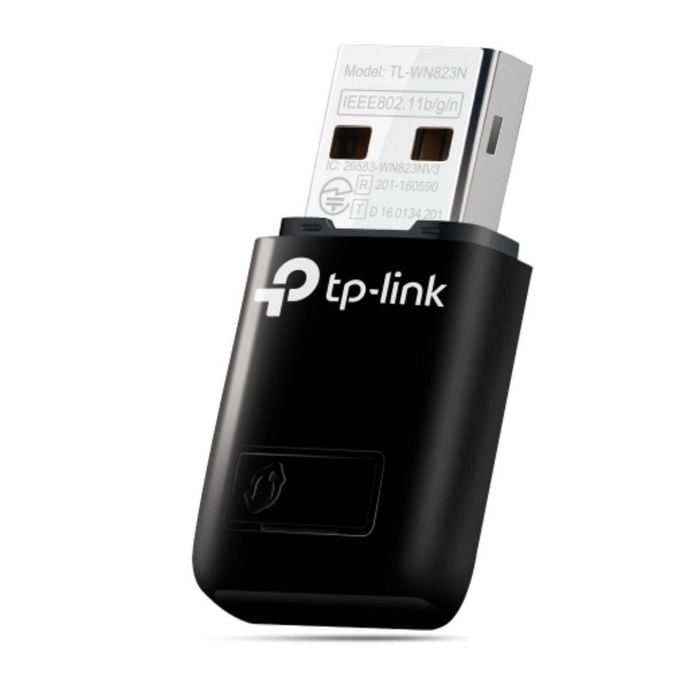

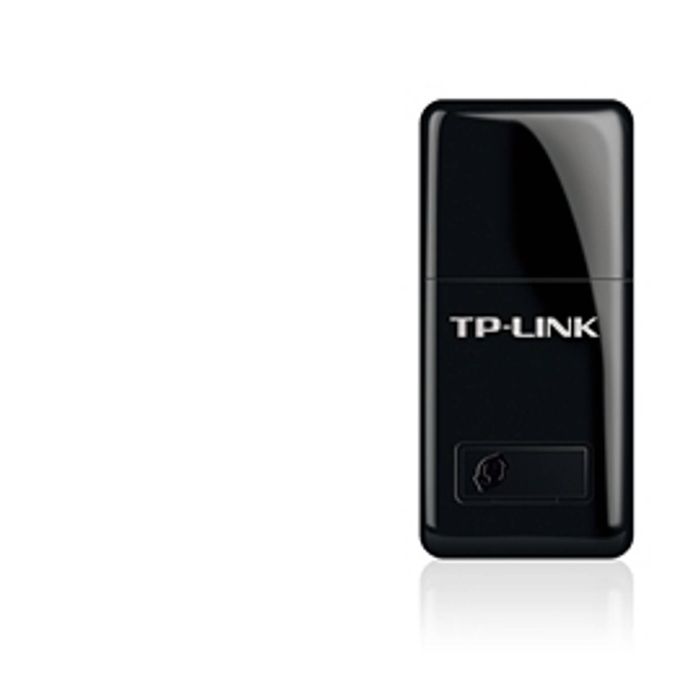

tp-link tl-wn823n n300 mini wireless n usb adapter 2.4ghz (300mbps) 1xusb2 802.11bgn internal antenna mini-sized design wps button
300mbps wireless speed ideal for smooth hd video, voice streaming and online gaming
mini-sized design for convenient portability with a reliable high performance
softap mode – turn a wired internet connection to a pc or laptop into a wi-fi hotspot
easily setup a secure wireless connection with one-touch wps button
hardware features
interface usb 2.0
button wi-fi protected setup (wps) button
dimensions ( w x d x h ) 1.54 x 0.72 x 0.31 in. (39 x 18.35 x 7.87mm)
antenna type internal
wireless features
wireless standards ieee 802.11b, ieee 802.11g, ieee 802.11n
frequency 2.400~2.4835ghz
signal rate 11b: up to 11mbps(dynamic)
11g: up to 54mbps(dynamic)
11n: up to 300mbps(dynamic)
reception sensitivity 300m: -65dbm@10% per
270m: -65dbm@10% per
130m: -68dbm@10% per
108m: -68dbm@10% per
54m: -72dbm@10% per
11m: -85dbm@8% per
6m: -87dbm@10% per
1m:-93dbm@8% per
transmit power <20dbm (eirp)
wireless modes soft ap mode
client mode (support ad-hoc/infrastructure network)
wireless security 64/128-bit wep
wpa-psk / wpa2-psk
wpa / wpa2
modulation technology dbpsk, dqpsk, cck, ofdm, 16-qam, 64-qam
others
certification ce, fcc, ic, rohs
package contents wireless adapter tl-wn823n
resource cd
quick installation guide
system requirements windows 8.1(32/64bits), windows 8(32/64bits),
windows 7(32/64bits), windows vista(32/64bits)
windows xp(32/64bits), mac os x 10.7~10.10, linux
environment operating temperature: 0℃~40℃ (32℉~104℉)
storage temperature: -40℃~70℃ (-40℉~158℉)
operating humidity: 10%~90% non-condensing
storage humidity: 5%~90% non-condensing
