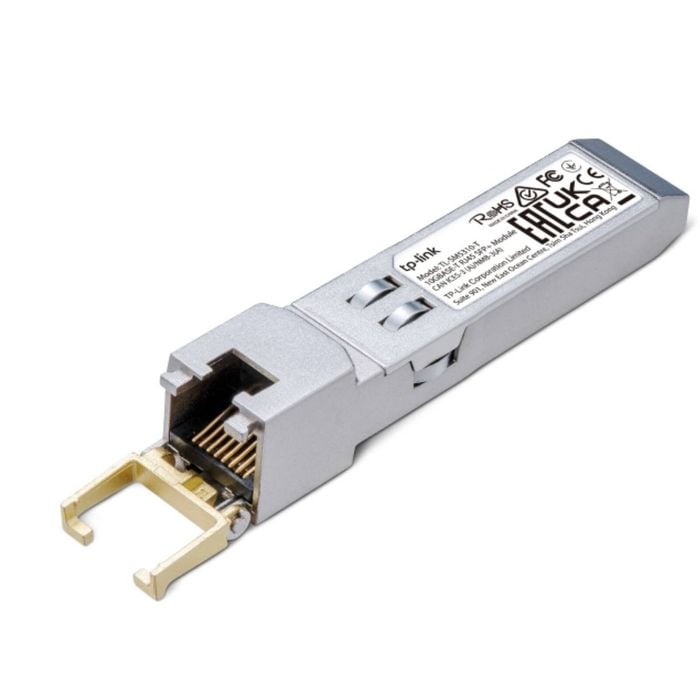

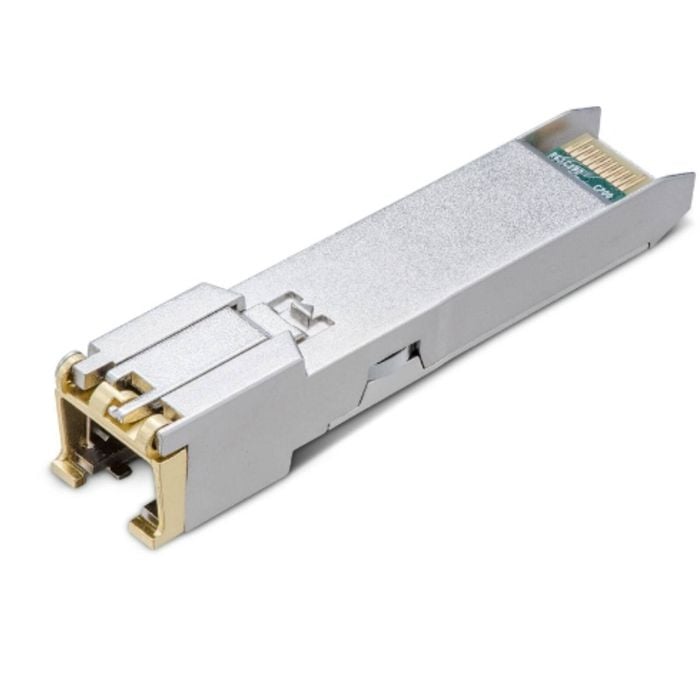

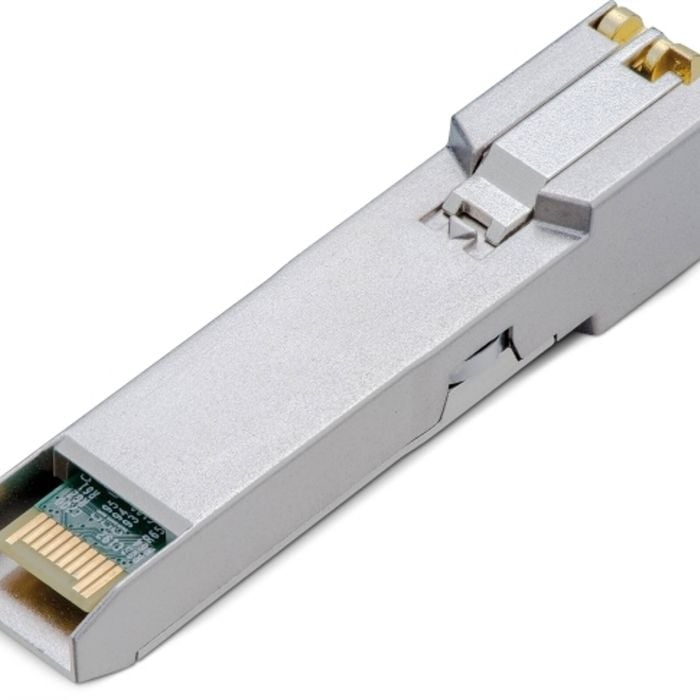

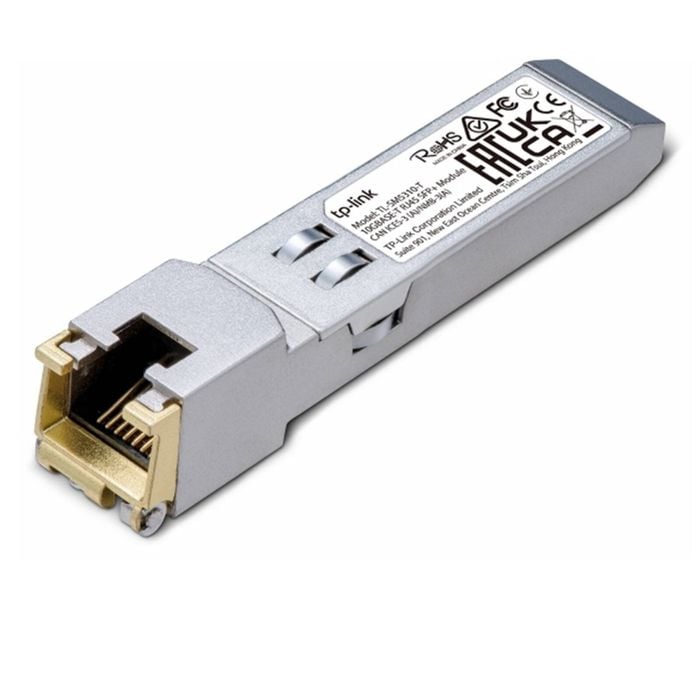

Tp-link Tl-sm5310-t 10g Base-t Rj45 Sfp+ Module, Transmit Data At 10 Gbps, Support Ddm, Support Tx Disable Function

tp-link tl-sm5310-t 10g base-t rj45 sfp+ module • support 10gbase-t, 5gbase-t, 2.5gbase-t, 1000base-t, and 100base-tx • transmit data up to 30m* at 10 gbps (utp cat.6a or above) • support ddm (temperature and voltage) • hot-pluggable sfp+ footprint features • support tx disable function • commercial product operating temperature range: 0-70°c • fully metallic enclosure for low emi package contents package contents • 10g base-t rj45 sfp+ module tl-sm5310-t • installation guide hardware features hot swappable yes transceiver standards and protocols ieee std 802.3, 802.3ab, 802.3bz, 82.3an power supply 3.3v max. Cable length 100base-tx: utp cat .5 or above (max. 100m) 1000base-t/2.5gbase-t/5gbase-t: utp cat.5e or above (max. 100m) 10gbase-t: utp cat.6a or above (max. 30m) data rate 10.3 gbps port type 1× 10g rj45 port safety & emission fcc, ce, rohs environment operating temperature: 0–70 ℃ (32–158 ℉) storage temperature: -40–85 ℃ (-40–185 ℉)
