- Easy installation
- Fit 0.5mm irrigation cable diameter
- Gel filled connector

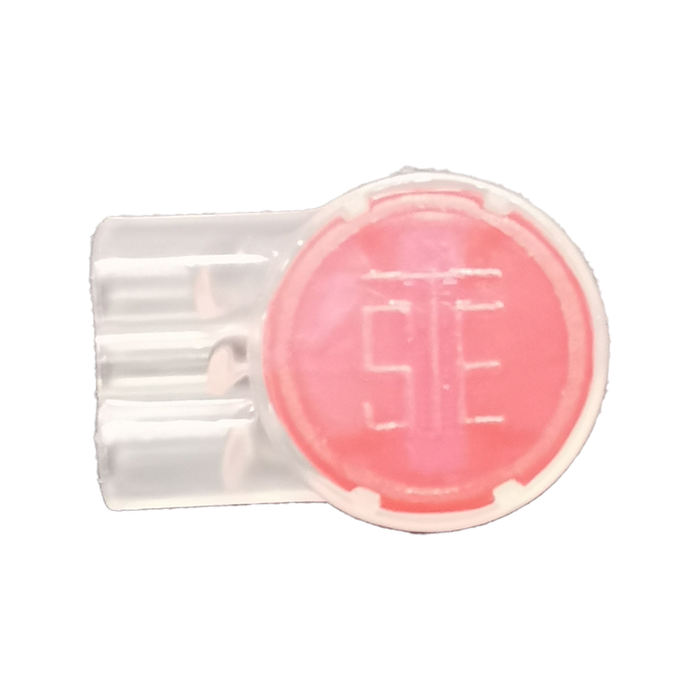

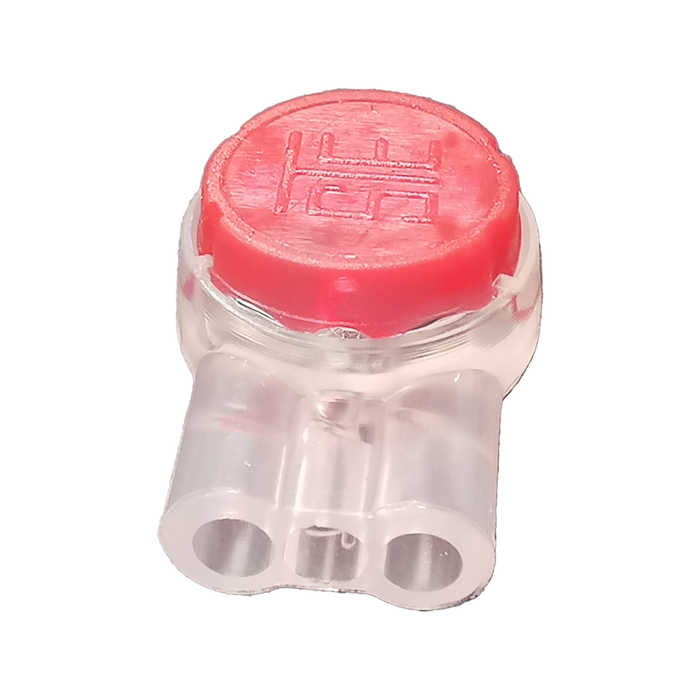

Moisture resistant wire connector for two or three copper wire connections. Suitable for 0.5 mm2 cables (19-26 AWG).
Maximum insulation OD is 2 mm for the two outside slots and 1.9 mm for the centre slot.
No need to strip the insulation back. Push the cable all the way to the stop. With all cables inserted, squeeze the cap with a pair of pliers. Check the gel oozes out of the connector slots.
