- Short circuit protection
- 100-240v ac input
- 50v dc output
- Input connector: au (type 1)
- Output voltage: 50 vdc

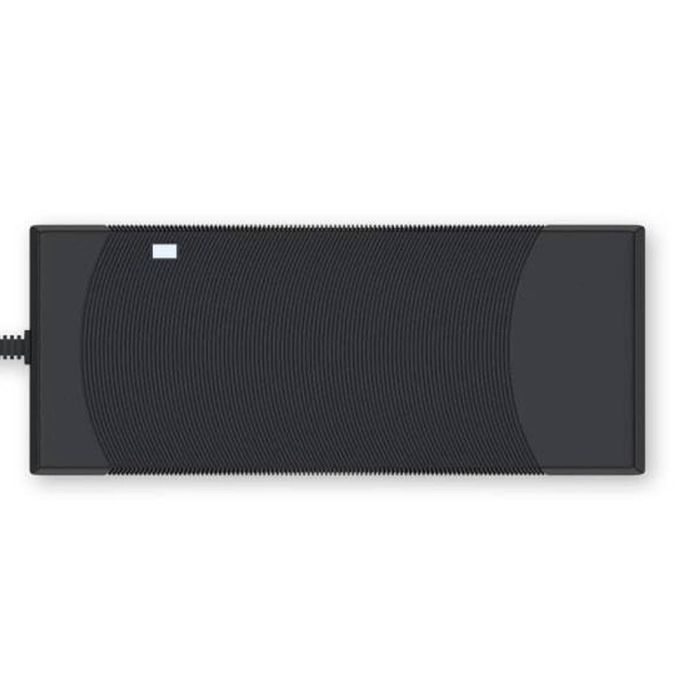

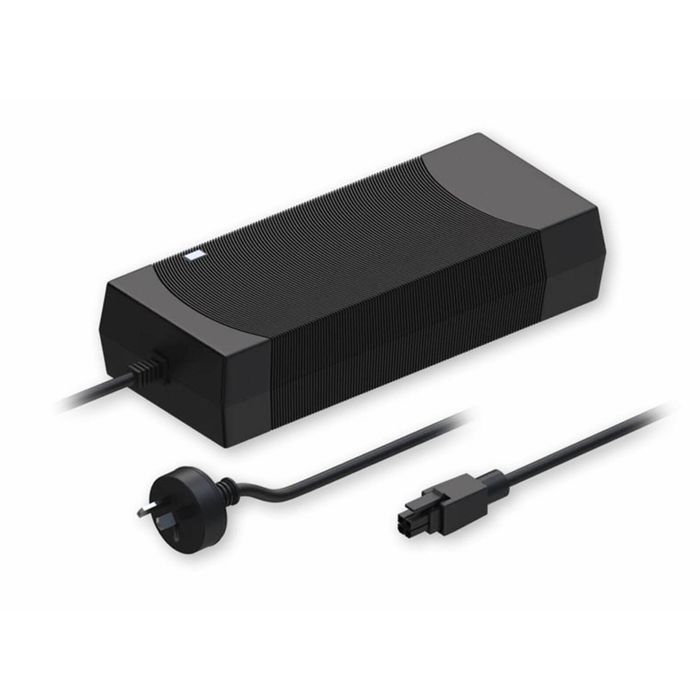

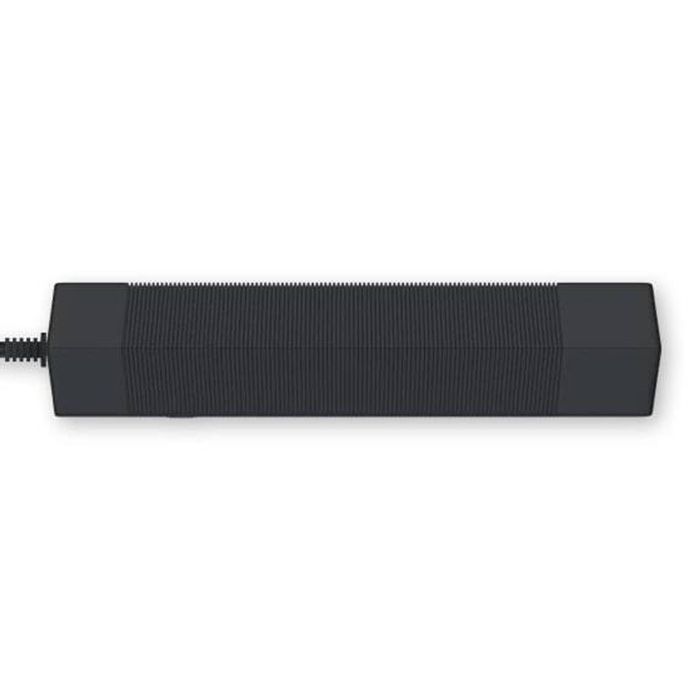

Teltonika AU POWER SUPPLY, 130W
TECHNICAL DATA
GENERAL
• Input voltage: 100 - 240 VAC
• Input frequency: 50/60 Hz
• Input current: 2.5 A
• Input connector: AU (Type 1)
• Output voltage: 50 VDC
• Output current: 2.6 A
• Output connector: 4pin, 3 mm pitch
• Weight: 640g
ADDITIONAL
• Input voltage absolute maximum rating: 90-264 VAC
• Input frequency absolute maximum rating: 47-63 Hz
• Maximum input inrush current: 50 A
• Output voltage absolute maximum rating: 47.5 - 52.5 VDC
• Short circuit protection: Yes
• HIPOT (dielectric withstand test): Primary to Secondary - 4242 VDC
• MTBF: 50000 h
• PSU efficiency standard: DOE Level VI
