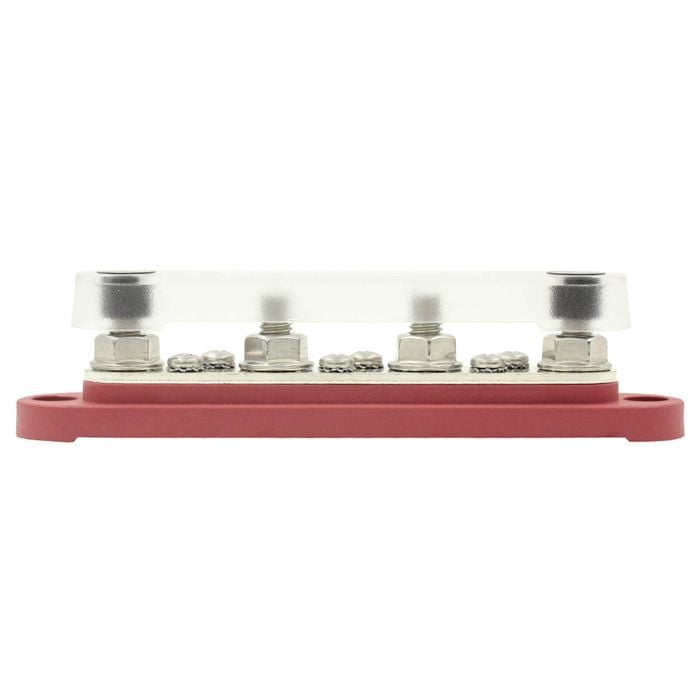

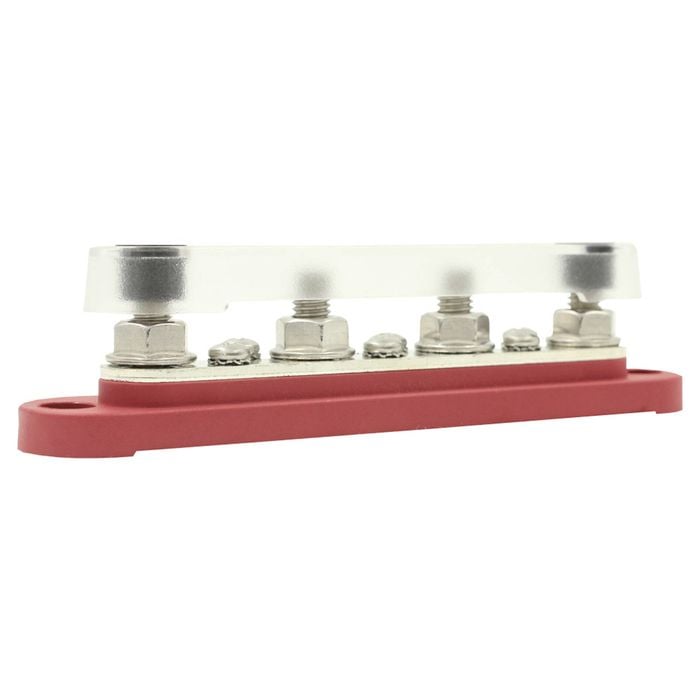

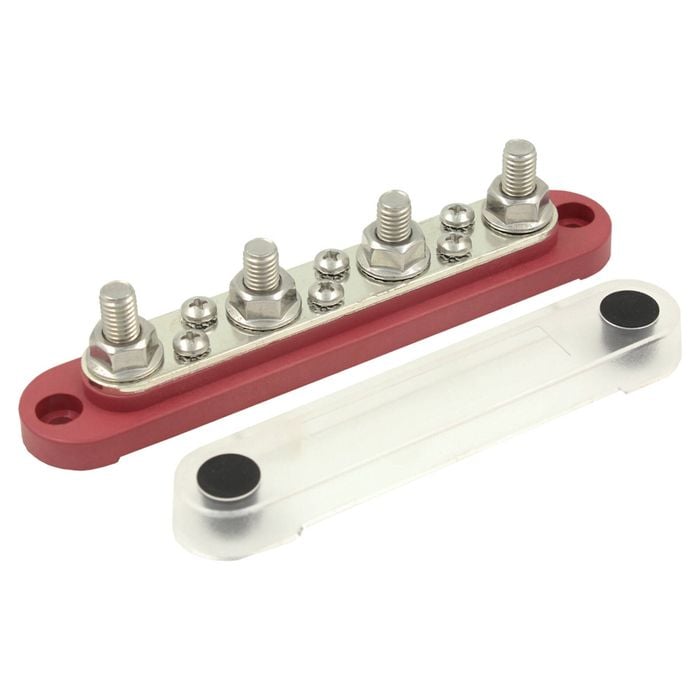

Switch Boss Red Positive 4 Gang M8 150A Bus Bar with Clear Push-On Cover for 12v/24v

Please select Colour option from the top of the page Black/Negative and Red/Positive Available This Positive/Negative 4 Gang x M8 Bus Bar by Switch Boss offers robust electrical distribution capabilities for automotive and marine applications. Constructed from stainless steel studs, nickel-plated brass bridge plate, and featuring an insulated polyurethane base, this bus bar supports both 12v and 24v systems. With a maximum voltage rating of 48 volts and capable of handling up to 150A at 12V, it provides efficient and secure distribution of power. Ideal for organizing and connecting multiple electrical circuits, this bus bar ensures reliable performance in demanding environments. These units also includes a push-on cover, for terminal and stud protection during operation. Specifications: Max. Rating: 150A @ 12v Max. Voltage Supply: 48vDC Body Dimensions: 27.8mm (W) x 150mm (L) x 36.5mm (H - including cover) Terminals: 4 x 8mm, 6 x 4mm Mounting Holes: 5.5mm (recessed) Mounting Hole Centres: 133.5 (L) Stud Material: 304 Stainless Steel Bridge Plate: Nickel Plated Brass Mounting Base: Insulated Polypropylene What's in the box: 1 x Bus Bar Assembly - select colour drop top of page Each assembly includes: 4 x M8 Stud 4 x M8 Locking Nuts 6 x #8/M4 Bolts 6 x #8 Anti-vibration washer 1 x Cover 1 x Bridge/Base plate 2 x Mounting Screws
