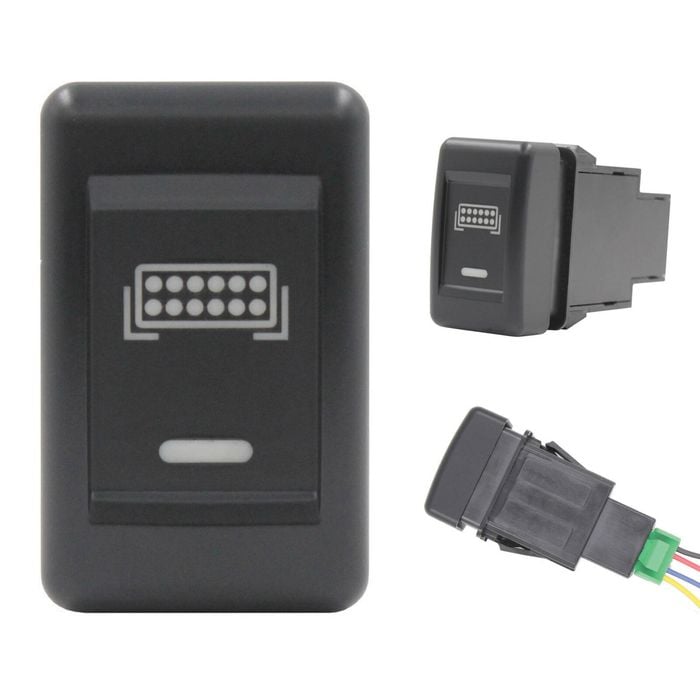

Switch Boss Push Switch for Isuzu F & N Series Trucks (24v) - LED Light Bar

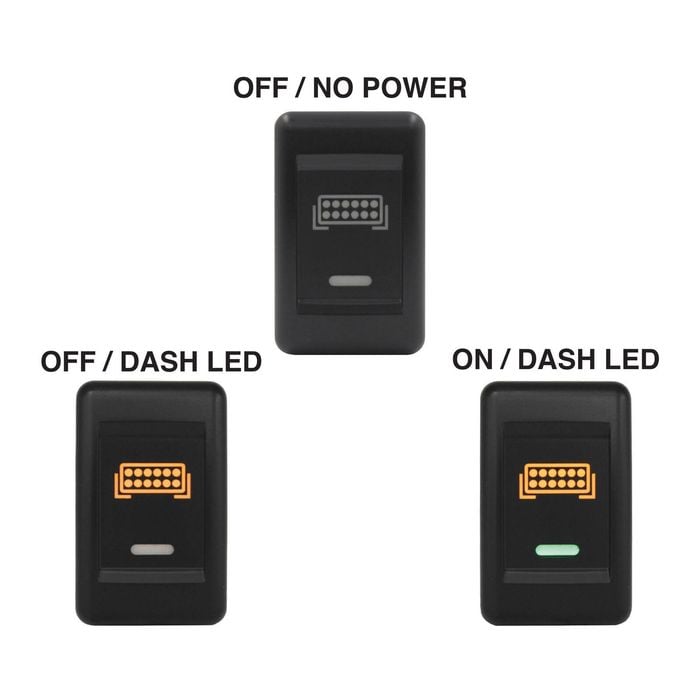

The Push Switch for Isuzu is designed by Switch Boss for On-Off functionality, specifically tailored for Isuzu F & N Series Trucks operating at 24 volts. Featuring an amber/green factory matched colour scheme, this switch is crafted from durable ABS and includes high-quality electrical components for reliable performance. It is ideal for controlling LED lights, and has a maximum amperage of 3A ensuring efficient operation within specified electrical parameters. Laser etched graphics ensure the switch labelling will not fade or wear through heavy duty applications. Specifications: Amber/Green LED Amber Top LED/Top Symbol is illuminated when powered for the "Dash Light" Green Lower LED/(Lower "On" Symbol) illuminates when switched "On" Minimum body cut out required for switch: 21mm (W) x 35.5mm (H) Switch face plate surface size: 23mm (W) x 39mm (H) Minimum depth required (from face plate): 60mm Rating: 3A @ 24v LED colour: Amber/Green Switch face/body colour: Black Function: On-Off - Push In for On. Push again for Out and Off Must be wired through a fused relay Designed for positively switched applications Compatibility: N Series: 2006+ F Series: 2005+ Included Models: NLR NLS NMR NNR NPR NPS NQR FRD FRR FSD FSR FSS FTR FTS FVD FVL FVR FVY FVZ What's in the box: 1 x Push Switch to suit 24v Isuzu F/N Series Trucks 1 x Plug + Wiring Extension 1 x Wiring Instructions
