- Oem replacement
- Dual led illumination
- Factory matched design for seamless dash integration
- Wiring instructions included
- Wiring instructions included

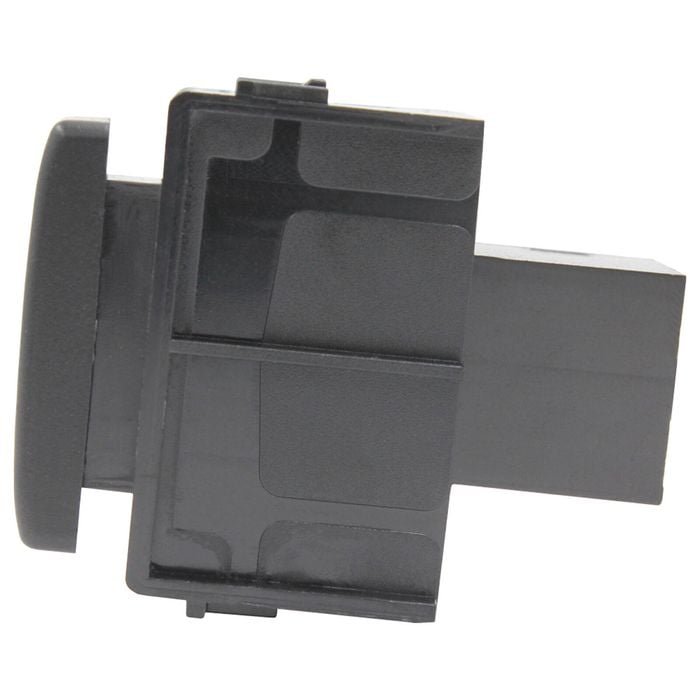

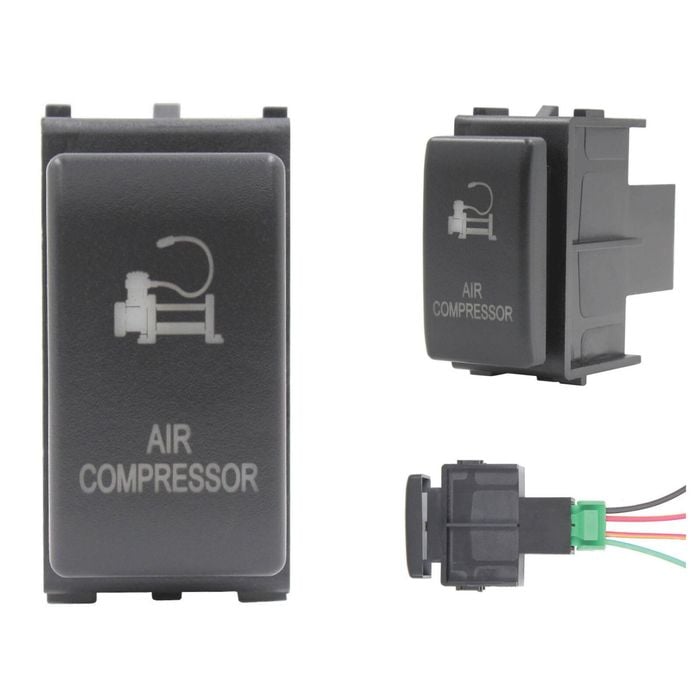

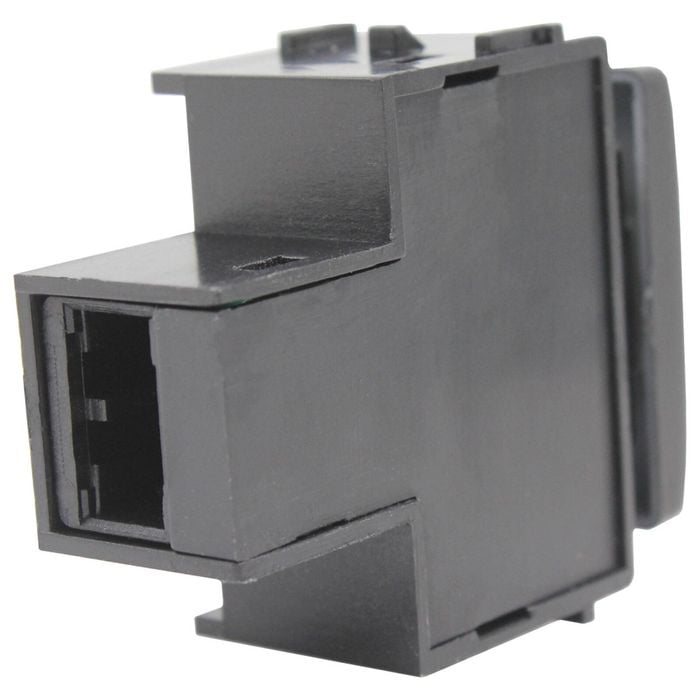

The Push Switch for Nissan Large compatible by Switch Boss offers reliable On-Off functionality tailored for Nissan Patrol and Navara models. Featuring an Amber LED colour, this switch is crafted from durable ABS and incorporates high-quality electrical components for dependable performance. Operating at 12 volts with a maximum amperage of 3A, it is ideal for controlling air compressors and similar applications, ensuring efficient operation within specified electrical parameters. Laser etched graphics ensure the switch labelling will not fade or wear through heavy duty applications.
Specifications:
Dual Amber LED
Top LED/Symbol is illuminated for the "Dash Light"
Lower LED/Text illuminates when switched "On"
Minimum body cut out required for switch: 21.1mm (W) x 43.5mm (H)
Switch Face Size: 19.8mm (W) x 35mm (H)
Minimum depth required (from face plate): 60mm
Rating: 3A @ 12v
Switch face/body colour: Black
LED colour: Amber-Amber
Function: On-Off - Push In for On. Push again for Out and Off
Must be wired through a fused relay
Designed for positively switched applications
Compatibility:
Nissan Patrol GU Series 4-8: 2000-2012
Nissan Patrol Y61 & Y62: 2013-2022
Nissan Navara D40: 2005-2014
Nissan Navara Navara NP300 (Centre Console/Handbrake Position)
Nissan X-Trail T31: 2007-2013
Nissan X-Trail T30: 2000-2007
Nissan Pathfinder R51: 2005-2012
What's in the box:
1 x Nissan Large Compatible Push Switch

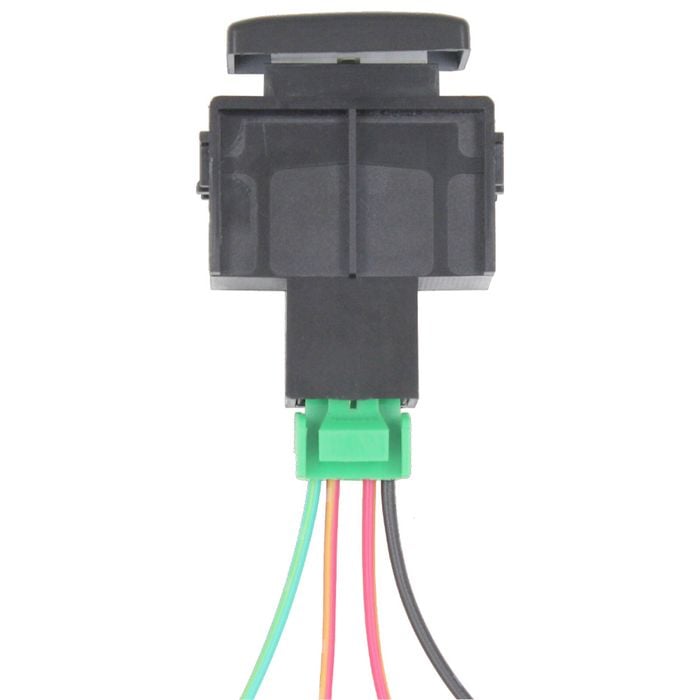

1 x Plug + Wiring Extension
1 x Wiring Instructions
