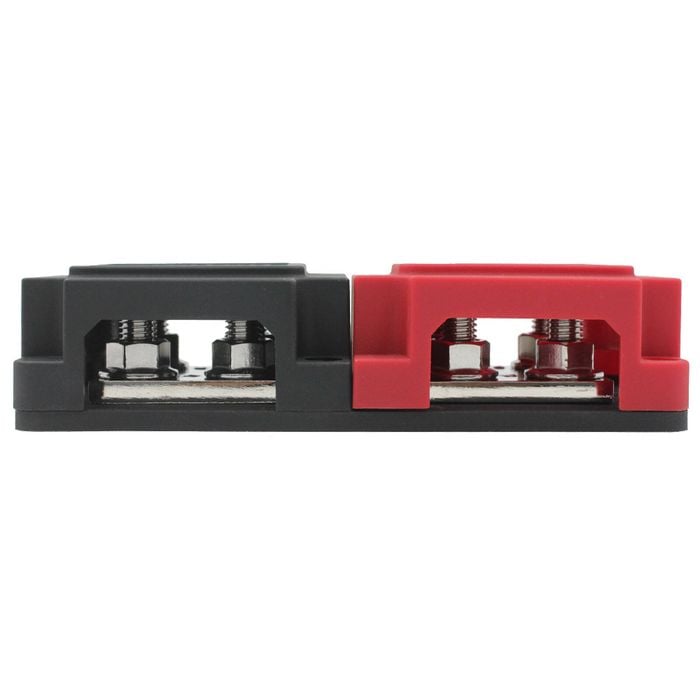

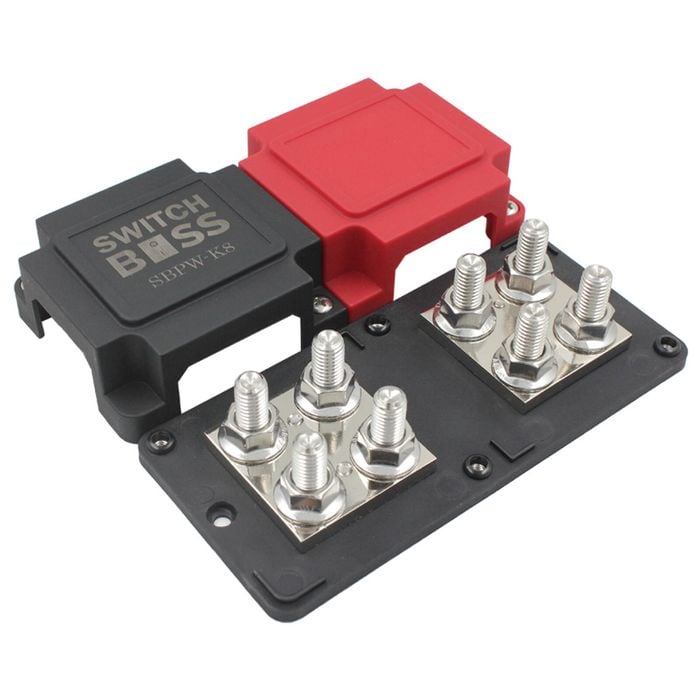

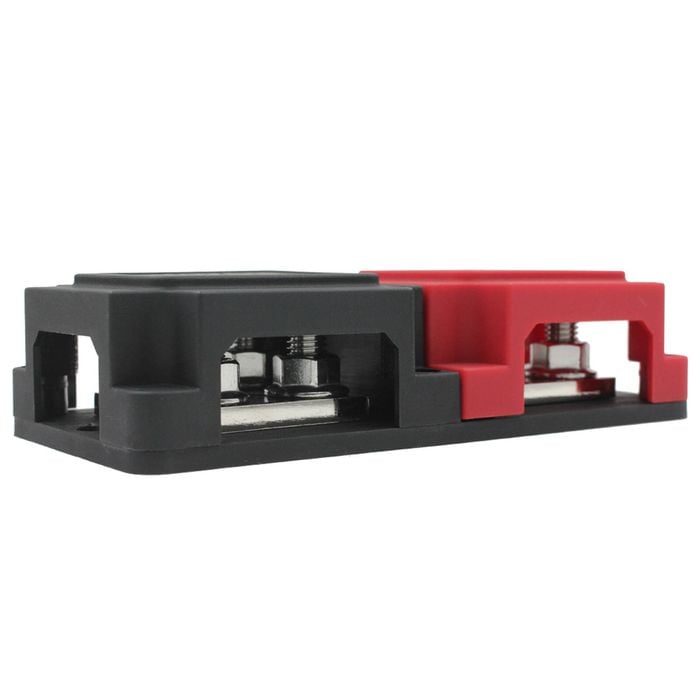

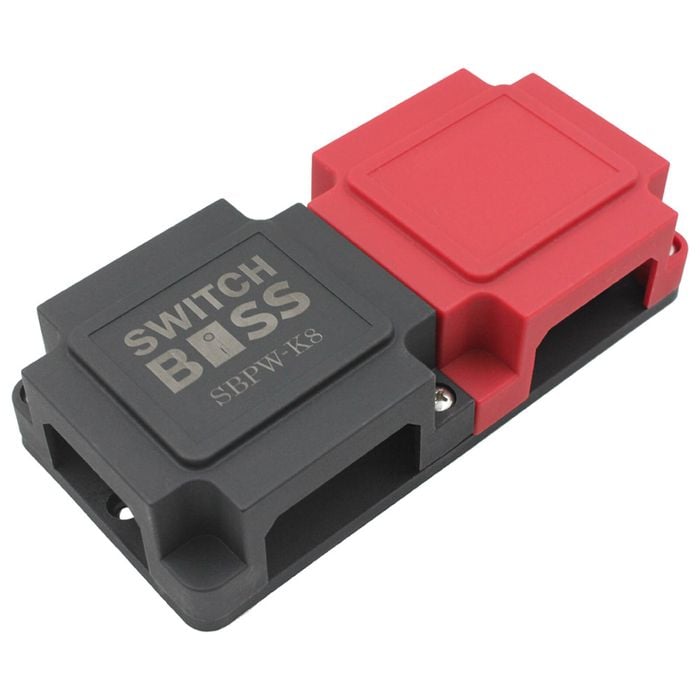

Switch Boss Positive/Negative 4+4 M10 400A Combination Bus Bar for 12v/24v Systems

This Positive/Negative 4+4 M10 Combination Bus Bar by Switch Boss offers robust electrical distribution capabilities for automotive and marine applications. Constructed from stainless steel studs, tin plated brass plates, and featuring an insulated polyurethane base, this bus bar supports both 12v and 24v systems. With a maximum voltage rating of 48 volts and capable of handling up to 400A at 12V, it provides efficient and secure distribution of power. Ideal for organizing and connecting multiple electrical circuits, this combination bus bar ensures reliable performance in demanding environments. These units also includes a bolt-on cover, for terminal and stud protection during operation. Specifications: Max. Rating: 400A @ 12v Max. Voltage Supply: 48vDC Body Dimensions: 79mm (W) x 160mm (L) x 34mm (H - including cover) Terminals: 8 x 10mm (4x each side) Mounting Holes: 5.5mm (recessed) Mounting Hole Centres: 155mm (L) Stud Material: 316 Stainless Steel Bridge Plate: Tin Plated Copper Mounting Base: Insulated Glass Fibre Reinforced Nylon What's in the box: 1 x Bus Bar Assembly Each assembly includes: 8 x M10 Stud 48x M10 Locking Nuts 1 x Black Cover 1 x Red Cover 2 x Mounting Screws
