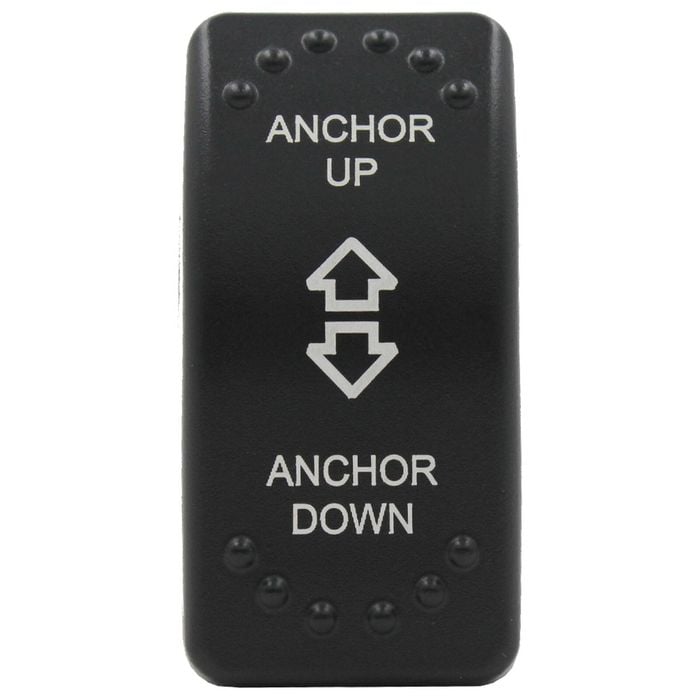

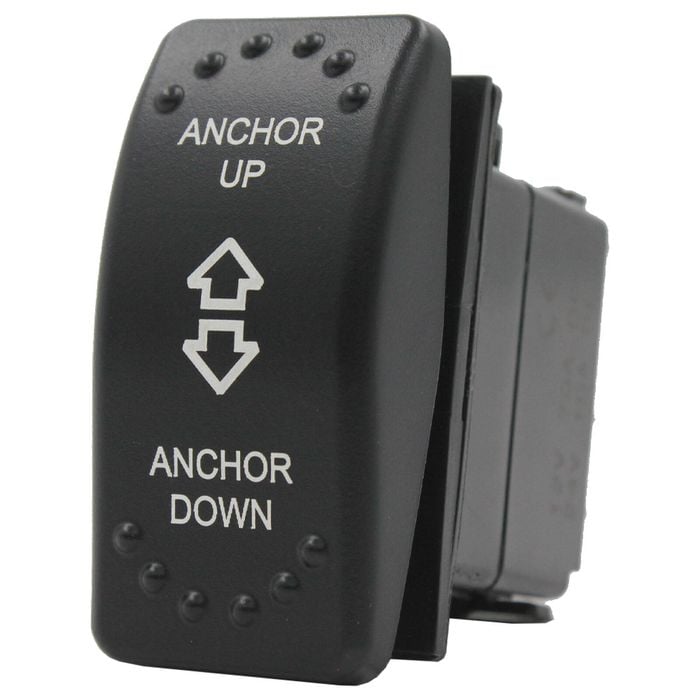

Switch Boss Dual White LED Laser Etched Rocker Switch - Anchor Up/Anchor Down (Momentary Up/Down)

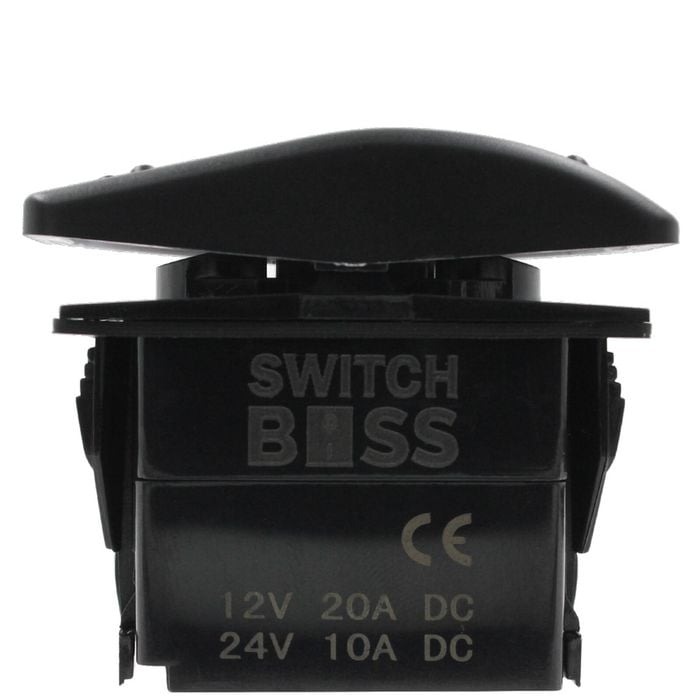

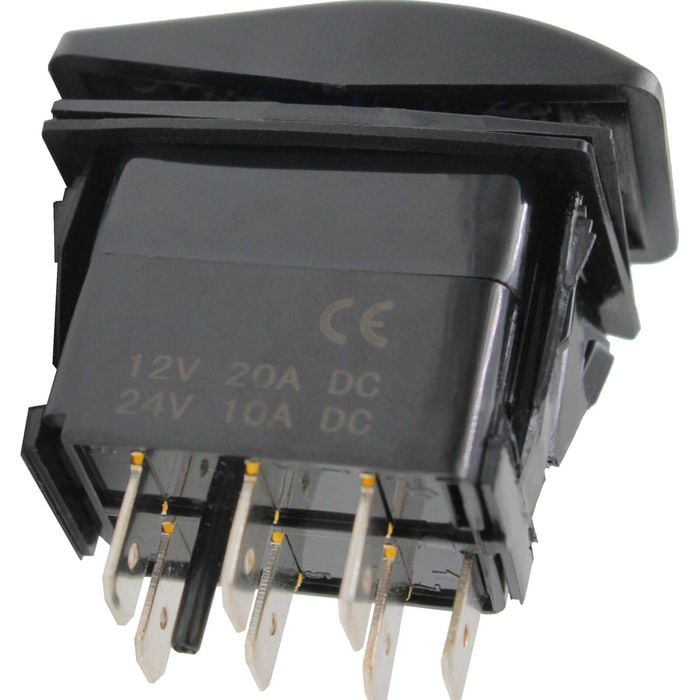

Please select LED Colour option from the top of the page Blue, Green, Red and White LED Illumination Available The Dual LED Rocker Switch by Switch Boss combines versatility with precision control. Featuring a (On)-Off-(On) momentary function, this switch is equipped with dual LEDs and laser-etched symbols for clear indication. Constructed from durable ABS and high-quality electrical components, it operates at either 12v or 24v, with a maximum capacity of 20A and 10A respectively. It is ideal for applications requiring reliable performance in demanding environments, and operation of anchor controls. Specifications: LED illumination is visable through laser etched text during function Lower LED is illuminated when pressed Down Top LEDl illuminates when pressed Up Press and Hold Up for On, Press and Hold Down for On, Release for Centre and Off - Momentary Function Size Of Cut Out Required for Switch: 21.5mm (W) x 37.5mm (H) Switch Face Size: 24.5mm (W) x 49.5mm (H) Depth (from back of mounting face): 38mm Voltage: 12v-24v Maximum Rating: 10A @ 24V, 20A @ 12V IP Rating: IP66 LED Colour: Select from top of page - Blue, Green, Red, White or available Switch Materials: ABS + electrical components Switch Function: 7 Pin (On)-Off-(On) Momentary Up/Down, DPDT What's in the box: 1 x Dual LED Laser Etched Rocker Switch - Anchor Up/Anchor Down (Momentary Up/Down) 1 x Wiring Instructions
