Sunrise Electric Jack Stand 12v 1587kg Caravan Trailer Boat Stabilizer Leg - Tje3501

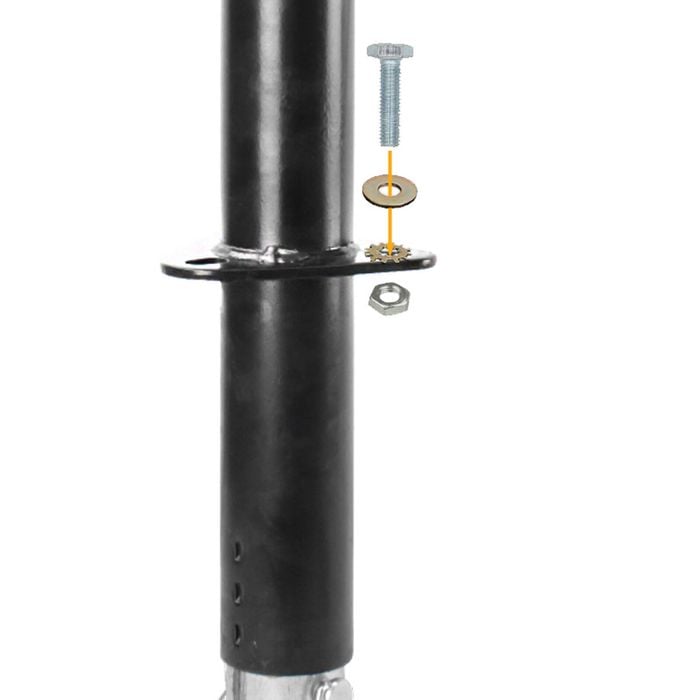

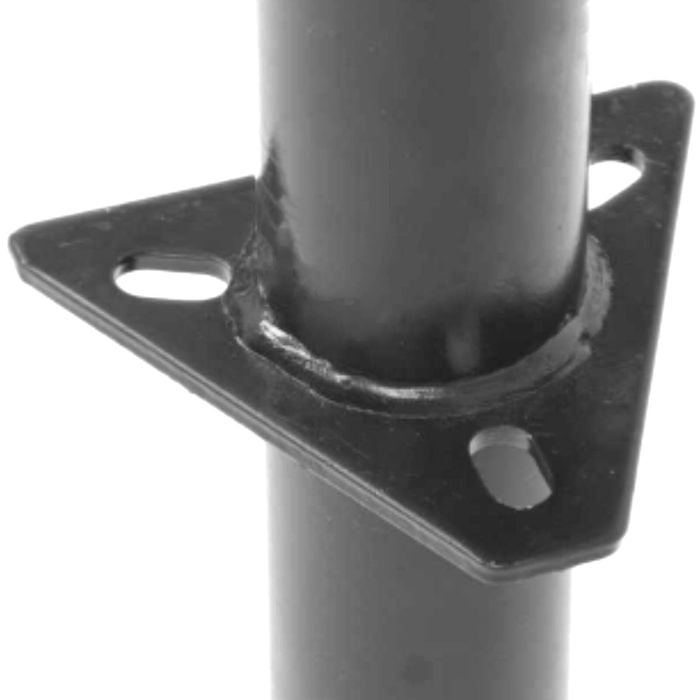

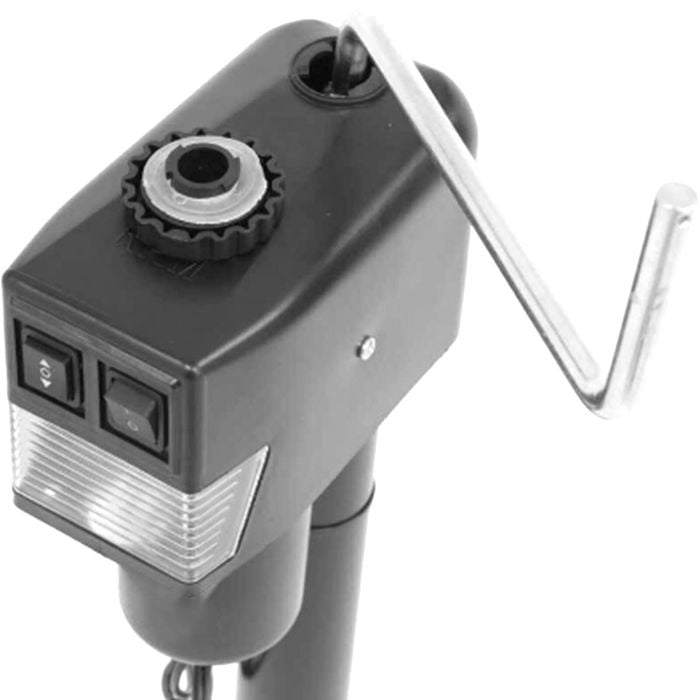

Skip manually winding and instead easily raise or lower your trailer with this simple 2-toggle switch-controlled electric jack. One switch controls the raising and lowering whilst the other is an on/off switch for a bright LED light which is aimed at the bottom, facing the coupling and also towards the vehicle, making it handy for illuminating tasks done in the dark. Fitted onto the a-frame, a simple bolt-on application through the three hole mount and a battery connection is all that is required for installation. This jack has a retracted height of only approx. 270mm for compact storage and an extended height of up to 1200mm in which both directions are automatically stopped at maximum direction. It also features an emergency manual override in the event there is no power supplied. The body of the electric jack is designed to work as the neutral (negative) wire when mounted properly to the A-frame of the trailer. If you are mounting the jack on the side of trailer you will need to run an additional wire from the chassis of trailer to the flange of the jack to earth it properly. Refer to our Resources and Downloads for additional help. Advantages 3500lbs (1587kg) rated Easily Raise or Lower your Trailer Zinc plated protection LED Light for Front and Underneath Manual Override Handle Included 12V Voltage What’s Included 1  x  Electric Jack stand 3500lbs  (TJE3501)
