- Convenient power management: allows up to 120w shared power across all ports
- Industrial-grade durability: built for demanding environments
- High-speed transfer: supports up to 5gbps data transfer speed
- Power & charge: when connected to a power source, the multiport usb expansion hub supports bc 1.2 charging; 120w is shared across all ports with 16 ports simultaneously charging at max 1.5a/7.5w per port, or up to 8 ports at max 2.0a/10w charging
- Dual-host switch: with a 2-port host switch, this usb hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch

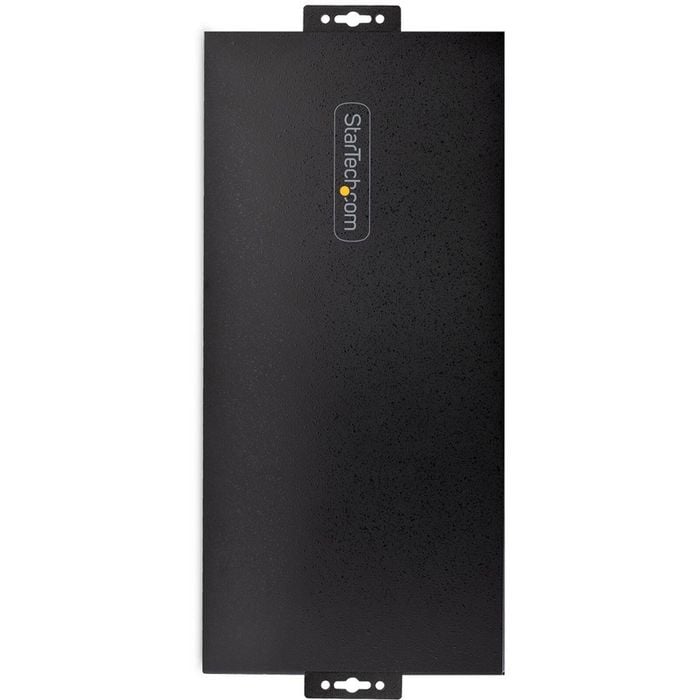

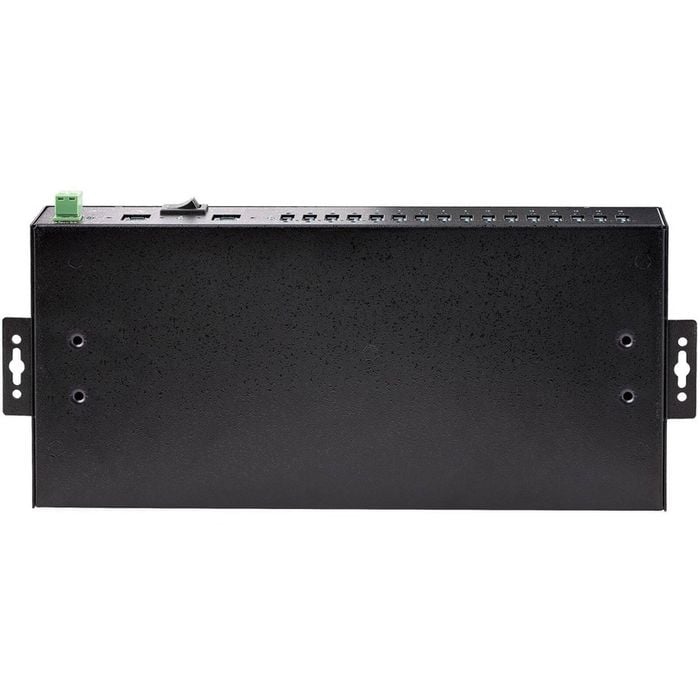

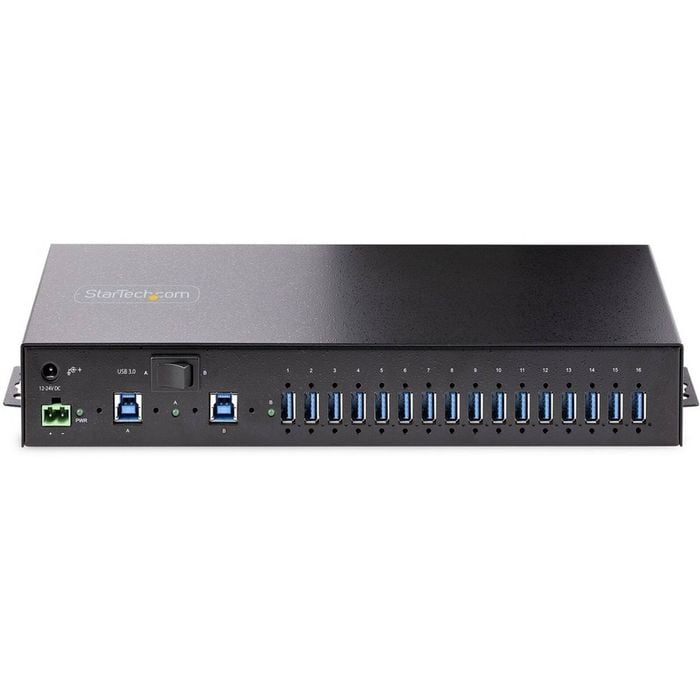

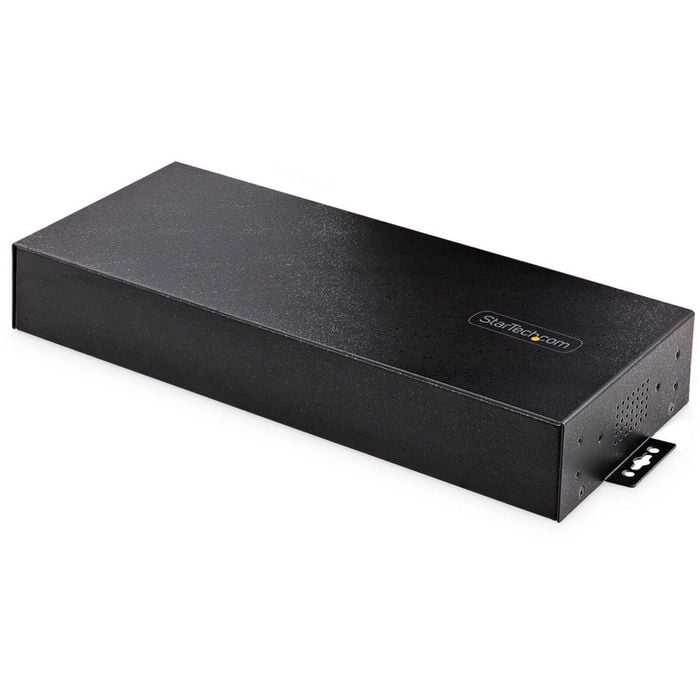

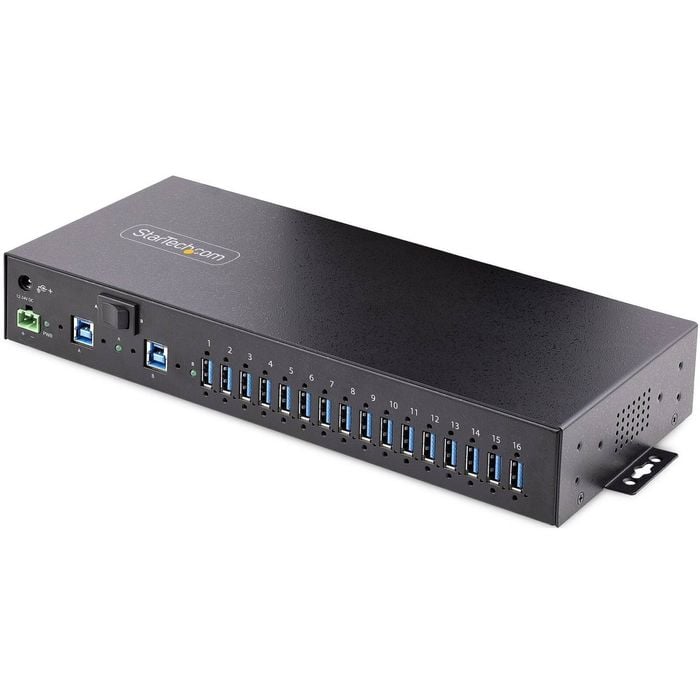

Startech.com 16-port industrial usb 3.0 hub 5gbps, mountable, terminal block power up to 120w shared, usb charging, dual-host hub/switch - 16 usb-a 3.2 gen 1 (5gbps shared) downstream facing ports (dfp) w/dual-host switch/hub - steel enclosure - locking ports - level-4 esd protection 15kv air/8kv contact - rack/surface/din rail mountable - bc 1.2 charging w/power source (not incl.)
engineered for use in industrial environments
this usb hub is built to withstand harsh industrial environments. It features a rugged steel housing that provides protection against physical hazards such as drops and impacts. It is equipped with level-4 esd protection, with 15kv air and 8kv contact discharge ratings, to safeguard against damage caused by static electricity. These features make the usb hub an excellent choice for use in factories, production lines, and other industrial settings.
Three mounting options

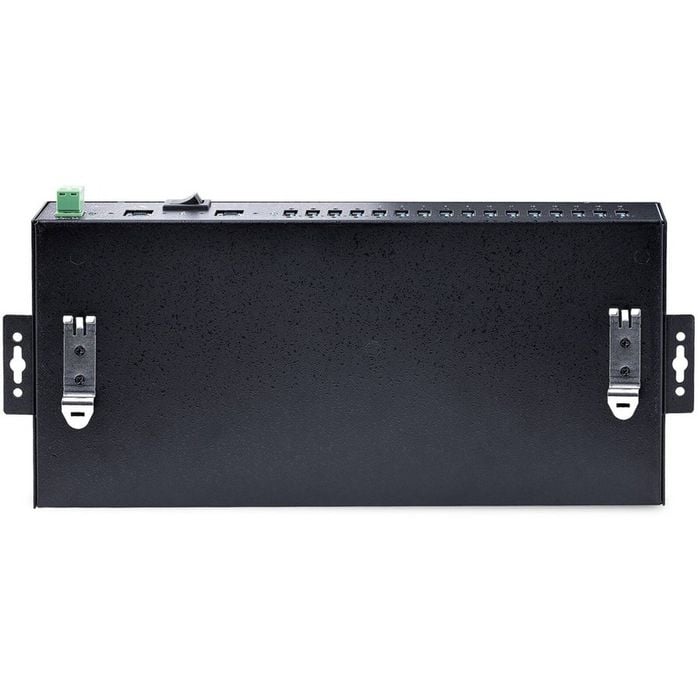

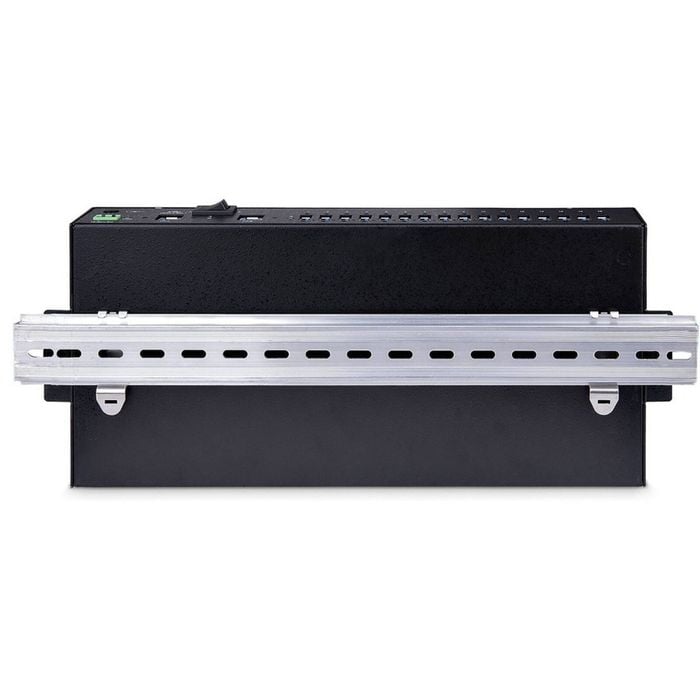

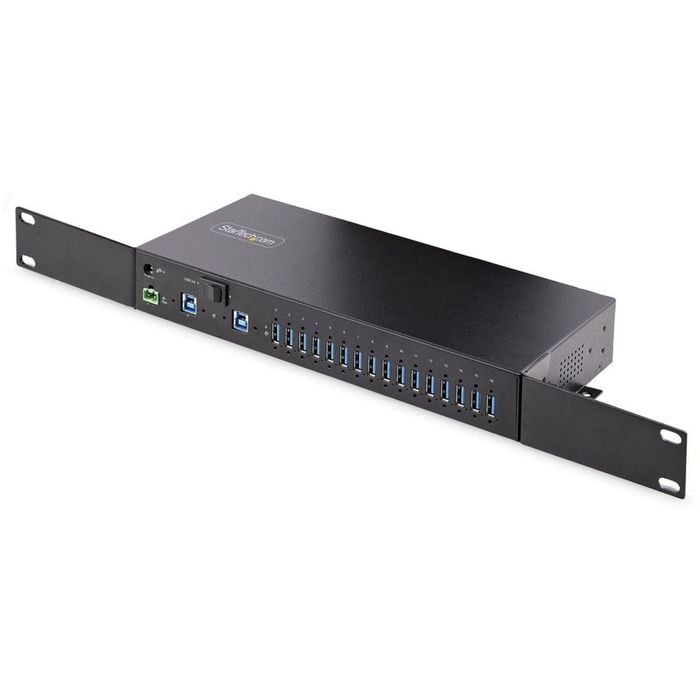

the 16-port usb hub offers three mounting options to accommodate a wide variety of applications, from it to industrial. The 19"" rackmount rails included with the 16-port usb hub are compliant with eia-310 standards, ensuring compatibility with standard racks. These rails can be used to install the usb hub into 1u of rack space for applications in data centers and server rooms. The built-in surface mount is perfect for workstations, desks, or walls, where users need quick access to the usb hub. The standard din-rail (top hat/th) mounting hardware is best suited for industrial automation and control equipment.
Connect and charge usb devices
this usb hub features two 12-24v dc power options. Power can be inputted using the 2-wire terminal block connector or the barrel connector. Both options enable support for usb battery charging specification 1.2 (bc 1.2) with 120w shared across all ports.
