- Compact with wifi and bluetooth
- Shuttle ns02av2 mini pc with rockchip
- Android 8.1 with digital signage software
- Hdmi 2.0
- Realtek gigabit lan 802.11 a/b/g/n/ac with bt 5.0

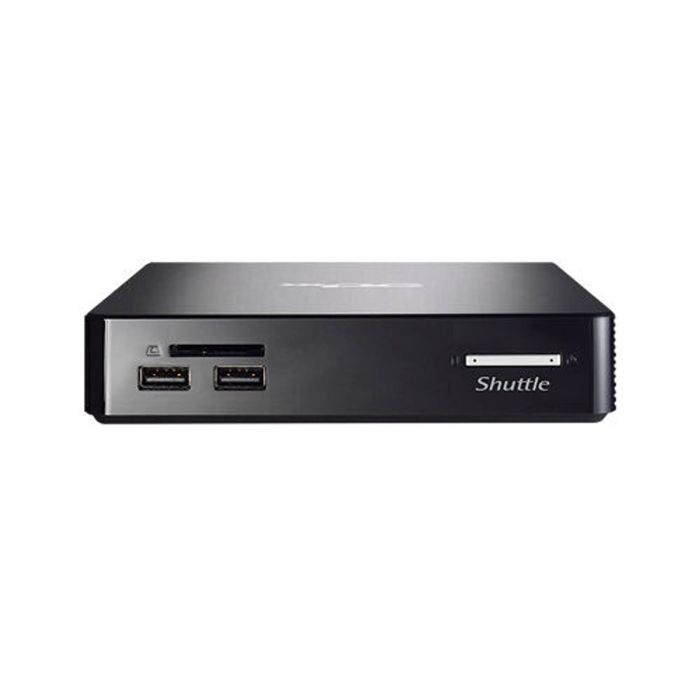

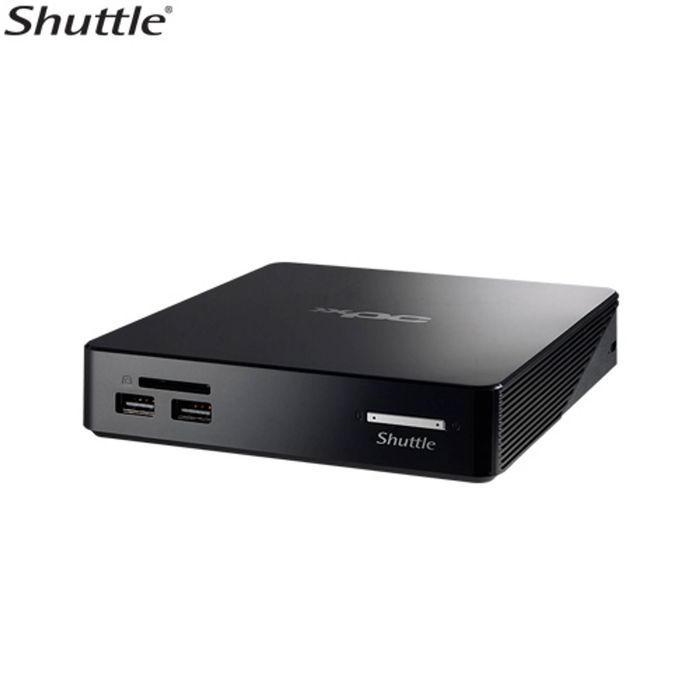

Shuttle NS02AV2 Mini PC 0.5L System-Rockchip RK3368, 2GB RAM, 16GB eMMC, LAN, 4xUSB, WIFI+BT, VESA, HDMI, Android 8.1, Free Digital Signage Software
Form Factor
• Shuttle 0.57L
Processor
• Rockchip RK3368 Octa core A53 1.5GHz Max.
Memory
• 4GB or 2GB On Board
Video Output
• HDMI 2.0
Ethernet
• Realtek Gigabit LAN 802.11 a/b/g/n/ac with BT 5.0
Storage Interface
• eMMC 16GB or 32GB on board Optional 2.5" 7mm SATA Interface HDD Support
Front Panel
• 1x Power Button
• 1x Power LED
• 1x HDD LED
• 1x USB 2.0
• 1x SD Card Reader

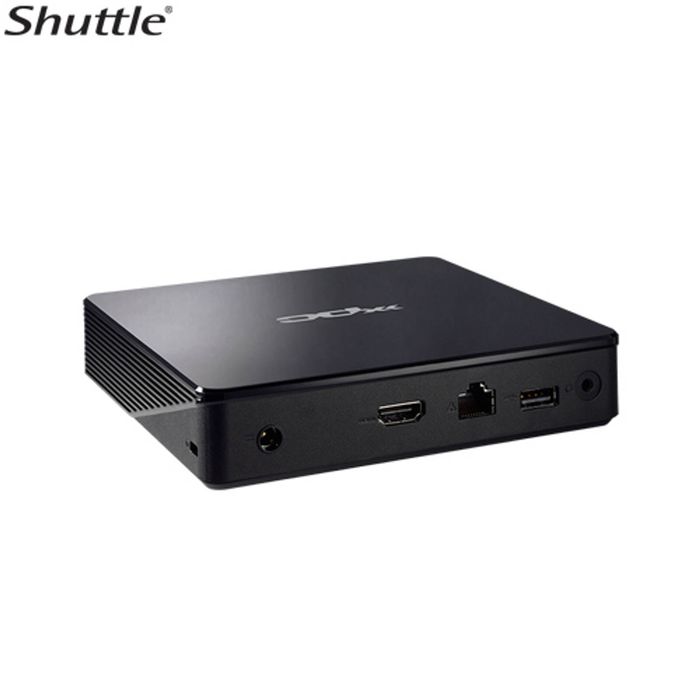

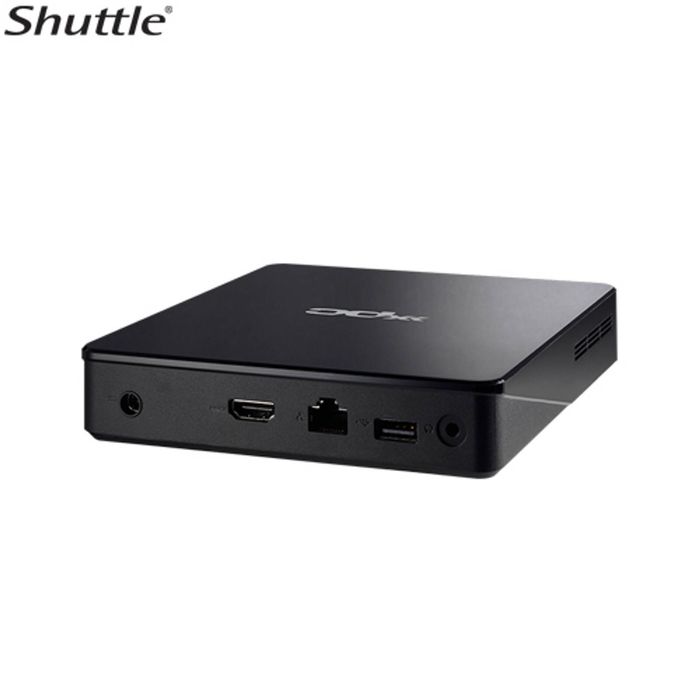

Back Panel
• 1x HDMI Out
• 2x USB 2.0
• 1x Ethernet Optional - POE Support
• 1x Headphone/MIC Combo jack
• 1x DC-In
• 1x 2 pin Remote Power Control Pin Header
• 1x 2 pin Recovery Pin Header
• 1x Kensington Lock
Dimensions
• 141x141x29mm
Power
• Automatics Voltage adjustment between 100 and 240VAC 50/60Hz
• Wall mount type, 12V/2A, 24W(LEVEL 6)
Accessories
• VESA mount
Expansion Slot
• PHD5 2.5" HDD Expansion Frame (Optional)
OS Support
• Android 8.1 Preinstalled
