- Multiple connectivity options (hdmi, vga)
- Shuttle dl30n slim mini pc
- Fanless design with intel n100
- Hdmi 2.0b + displayport + vga video output | support triple independent display | intel generation hd graphic engine
- 2 channels high-definition audio

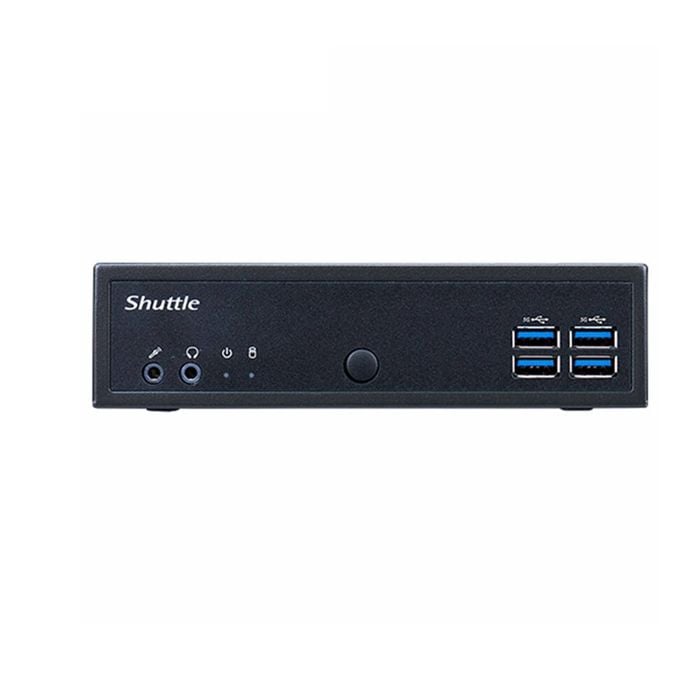

Shuttle DL30N Slim Mini PC 1L Barebone - Intel Processor N100, Fan-less, LAN, RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W Adapter
Form Factor
• 1.3L slim form factor
Processor
• Intel® Processor® N100 (DL30N)
Memory
• Support DDR5 4800Mhz SODIMM memory Max. 16GB
Video Output
• HDMI 2.0b + DisplayPort + VGA video output | Support triple independent display | Intel generation HD Graphic engine
Audio
• 2 channels High-Definition Audio
Ethernet
• Intel I226-LM Dual LAN controller | Supports 10Mb/s,100Mb/s,1Gb/s,2.5Gb/s operation | Support wake ON LAN (WOL) feature
Storage Interface
• SATA for HDD/SSD

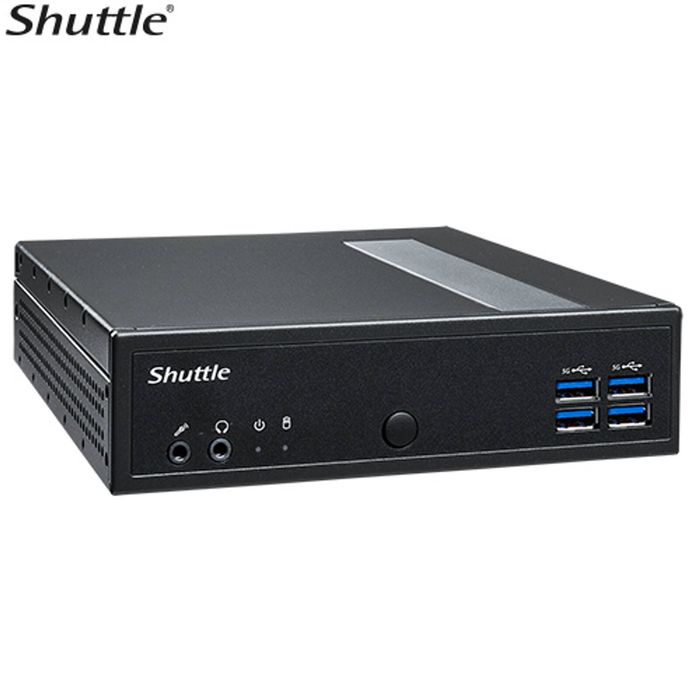

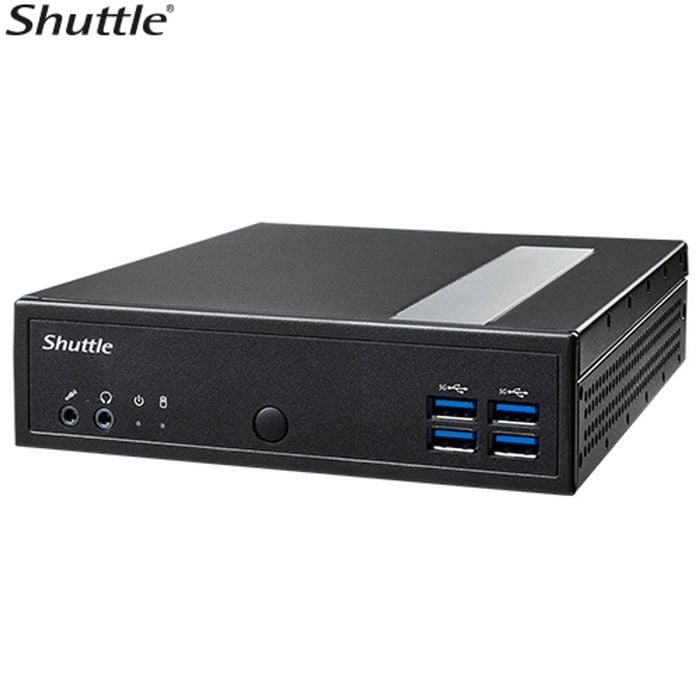

Front Panel
• Power button | Power Led | HDD Led | USB 3.2 Gen1 ports | MIC-IN | Audio out

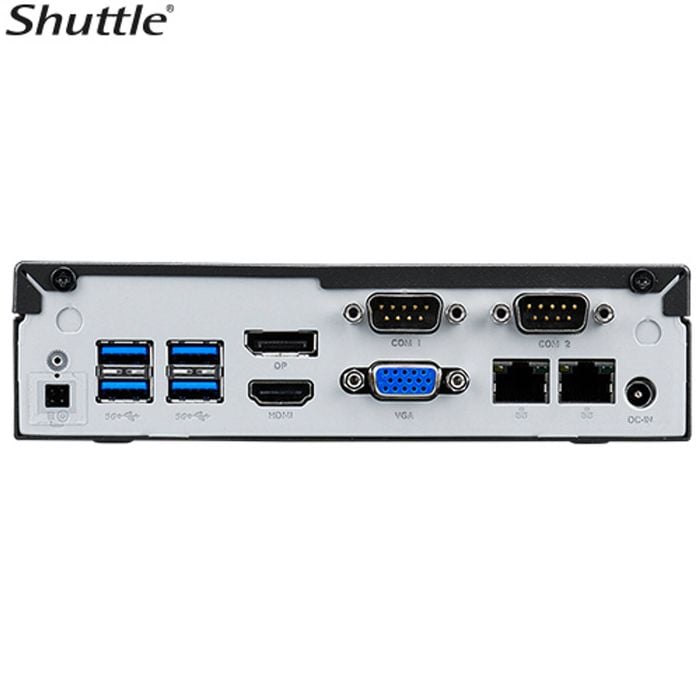

Back Panel
• Intel® 2.5GbE LAN w/LED | Display port | HDMI port | USB 3.2 Gen1 ports | DC in | RS232/RS422/RS485
Expansion Slot
• M.2 Type M (2280) | M.2 Type E (2230)
OS Support
• Windows 11 64 bit O.S
• Ubuntu
• Linux O.S
