ROOF EXTENDA

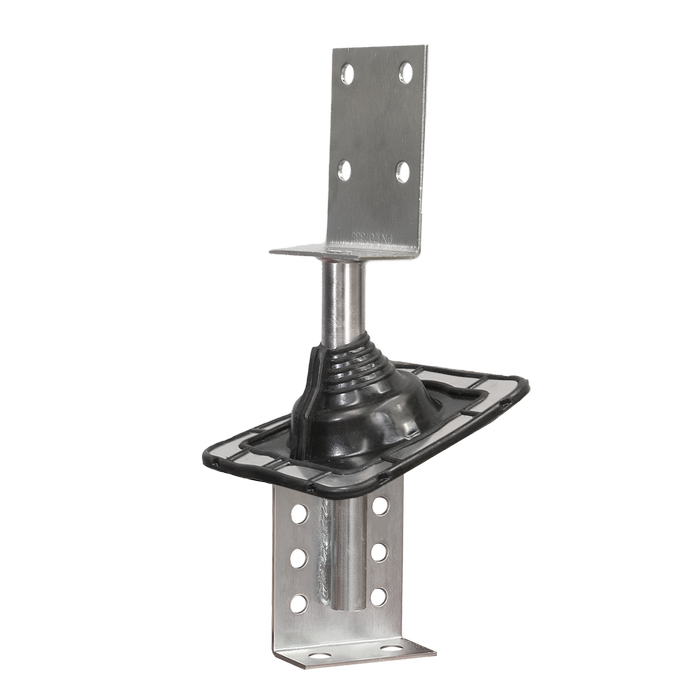

Roof Extenda MKII Bracket With Black Weather Seal Package

4.7 (3)

I/N: 1130000

Roof Extenda MKII Bracket With Black Weather Seal Package

$79.20

Afterpay logo
4 payments of $19.80
PayPal logo
4 payments of $19.80
Zip logo
From $10 a week

Select your preferred purchase method

StoreFind your item in store

We are unable to determine your nearest store
Textbox search

Features

  • Bolts attach brackets to rafter and top wall plate for extra strength and structural integrity
  • New roof line is raised above the existing spouting therefore providing easy access for cleaning and maintenance
  • Proudly Australian designed and made in Australia by a proud Australian owned company
  • Adjustability allows run off angle to be optimised and adds height to your carport for larger vehicles such as 4WD’s, boats, caravans.

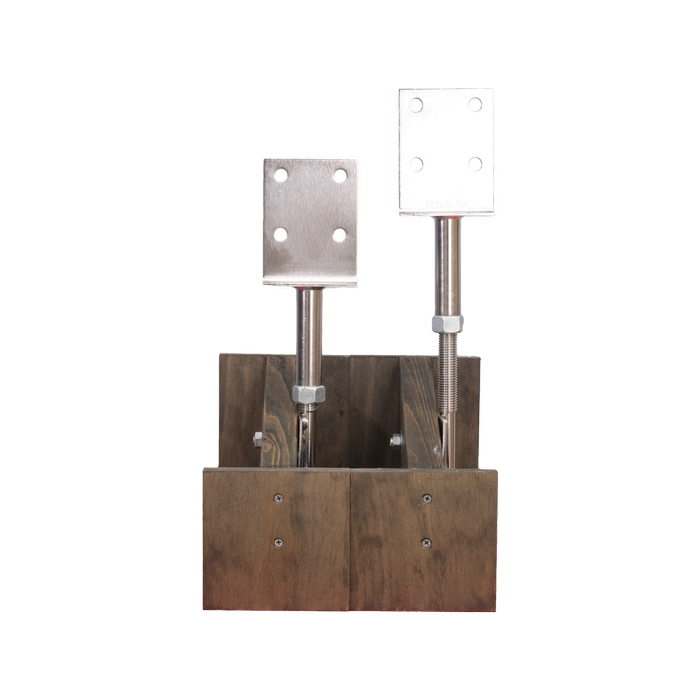

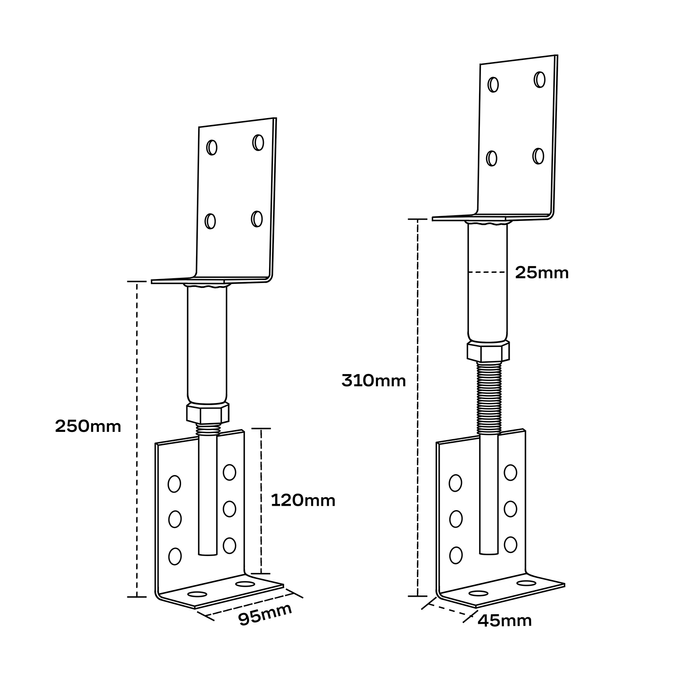

  • Using the hex nut, this bracket has an adjustable height from 250mm minimum to 310mm maximum

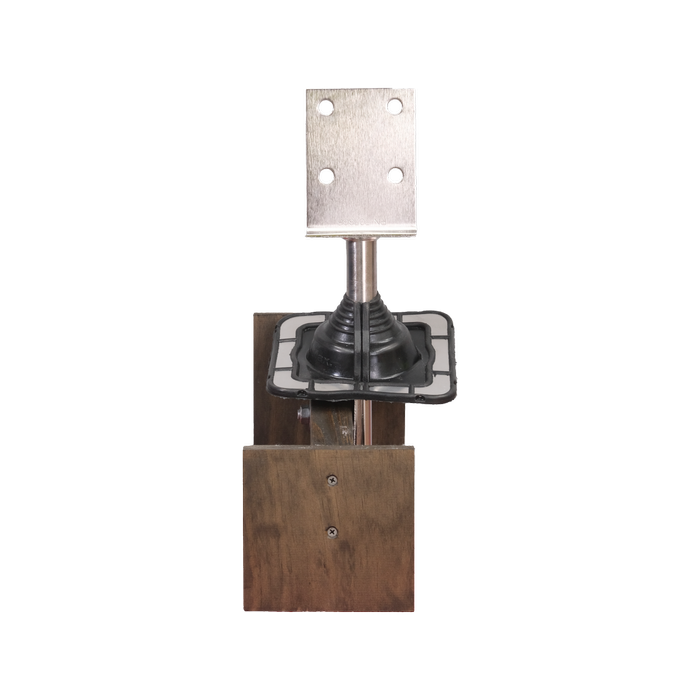

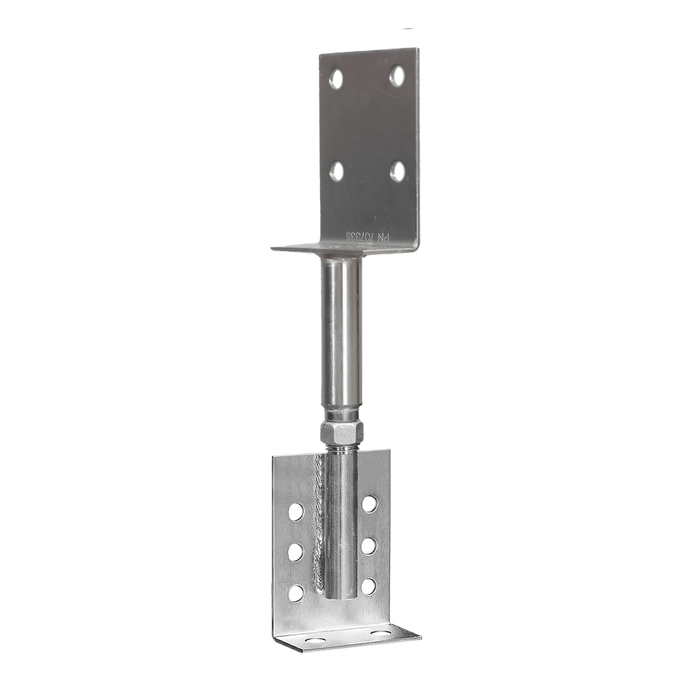

The Roof Extenda Bracket is designed to provide “A Better Way” of attaching main beams for carports, pergolas, pool enclosures or any other roofing project creating a new roofline over an existing building. Roof Extenda Brackets attach to the rafter and the wall top plate, therefore, providing strength, safety and peace-of-mind. Unique steel brackets offer structurally superior fixing.

Details

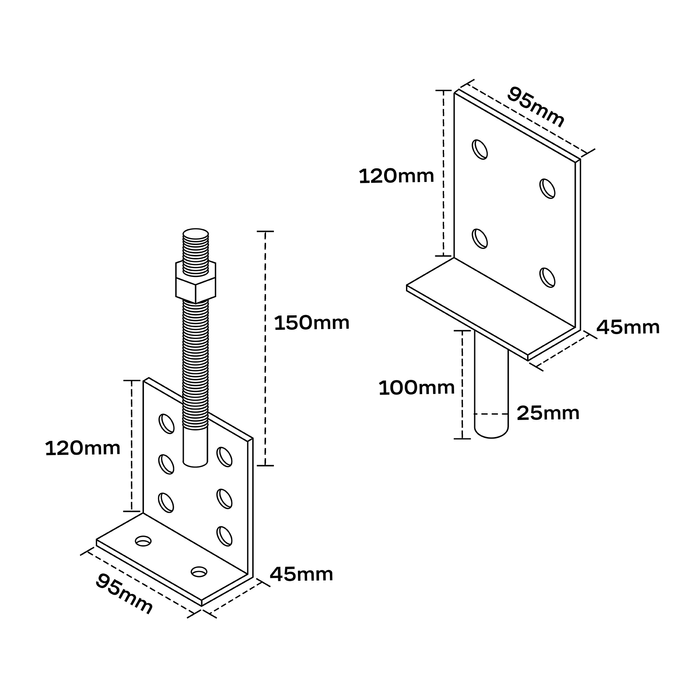

Dimensions



Width

Height

Length

Product 1

125mm250mm90mm

Package

125mm290mm90mm

Package

180mm90mm450mm

Weight

Easy To Carry

Total Weight 1.50kg

Specifications

Colour
Zinc Plated
Model Name
Roof Extenda MkII Bracket With Black Weather Seal Package
Model Number
040232
Material
Mild Steel
Pack Quantity
1
Finish
Zinc Plated Steel
Item Package Type
Plastic Bag

Guides & Documents

Documents

Warranty & Returns

Zinc electroplated. It is recommended the brackets are painted prior to installation.

We will gladly assist with returns and exchanges of this product in accordance with our returns and exchanges policy.

Returns Policy

Installation

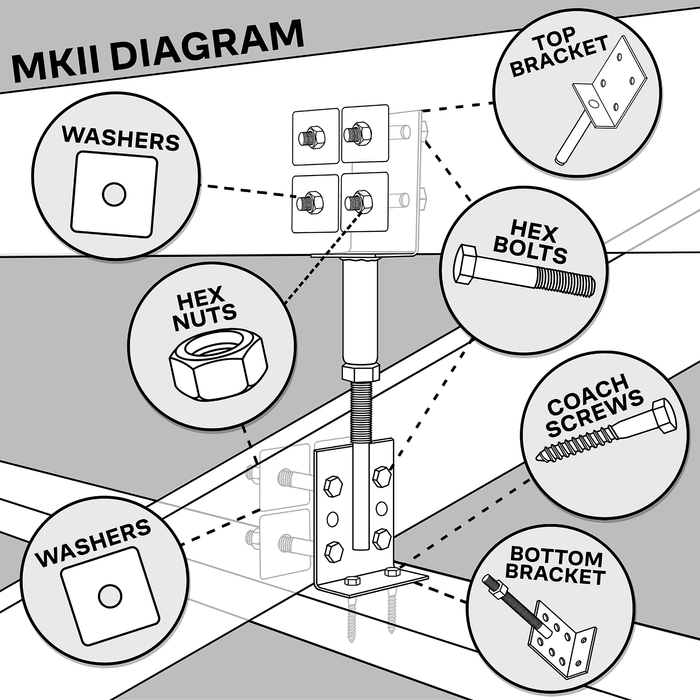

INSTALLATION DETAILS
Bracket must bear on and be fixed to existing top plate with 2 x M10 Hex screws.
1. Remove roofing tiles or lift roof sheet to achieve an opening to fit the Roof Extenda Bracket.

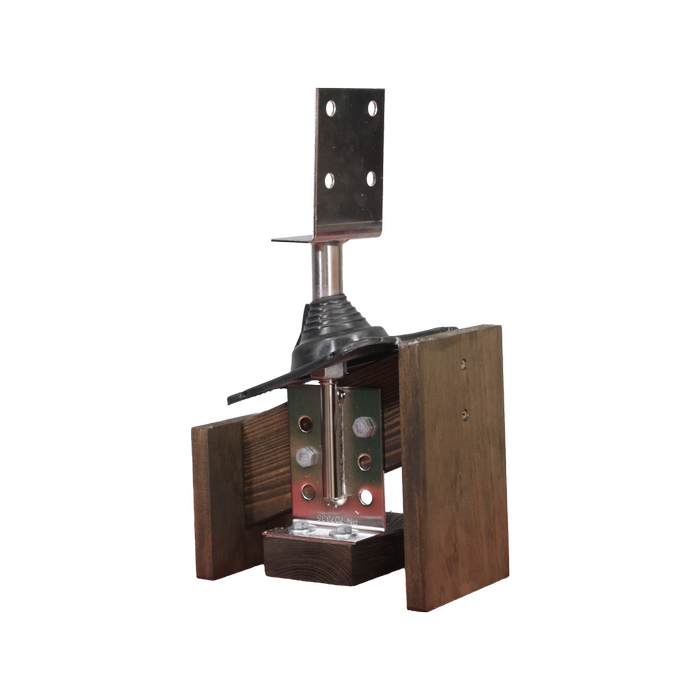

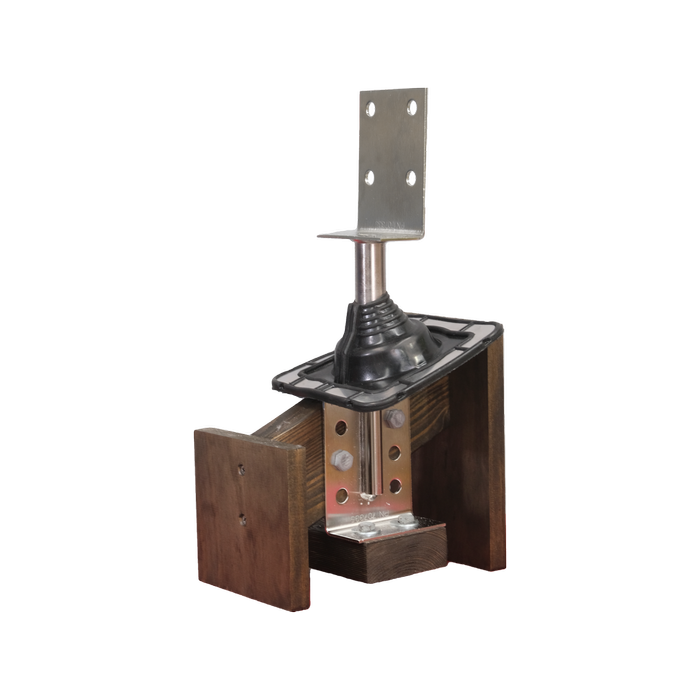

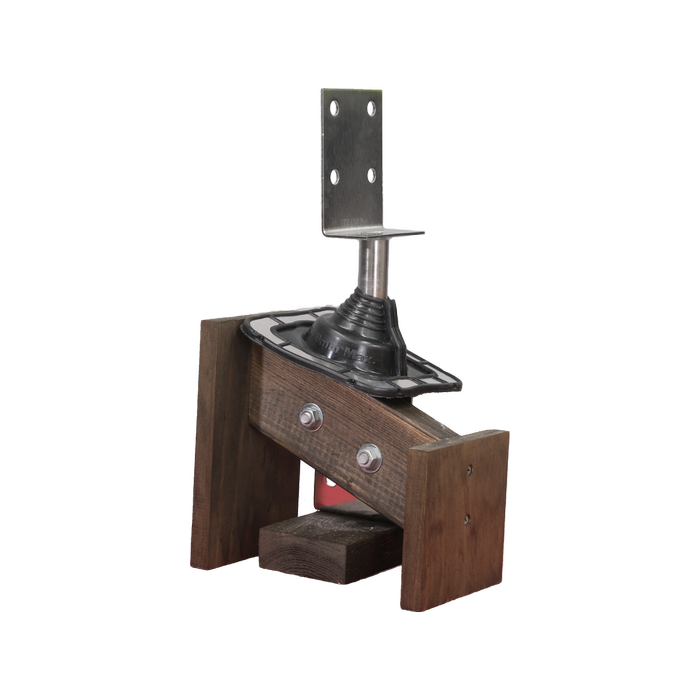

2. Bolt angle bracket section with the threaded rod to the selected rafter with min. 2 x M12 Hex bolts.
3. Provision has been made to screw the angle section to the existing wall plate using 2 x M10 Hex Screws to eliminate any uplift.

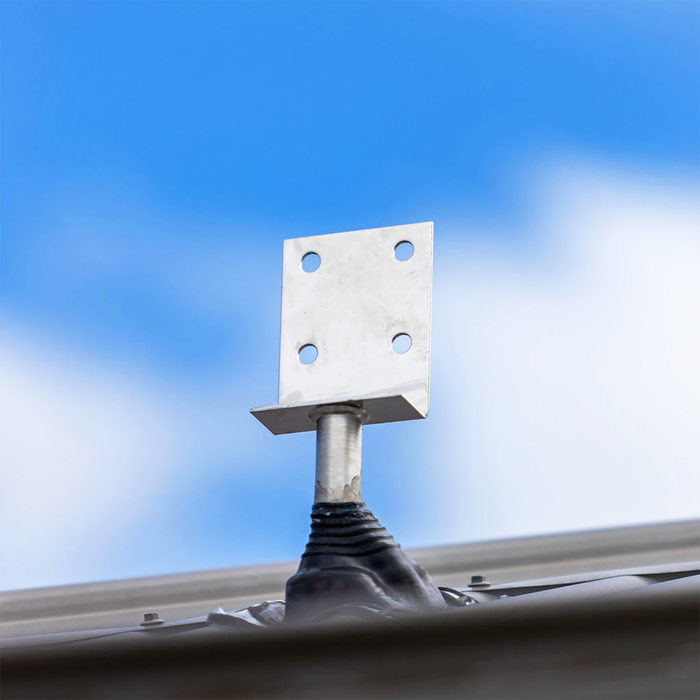

4. Replace roof tiles or roof sheet cutting a hole to allow the threaded rod to penetrate the roof.

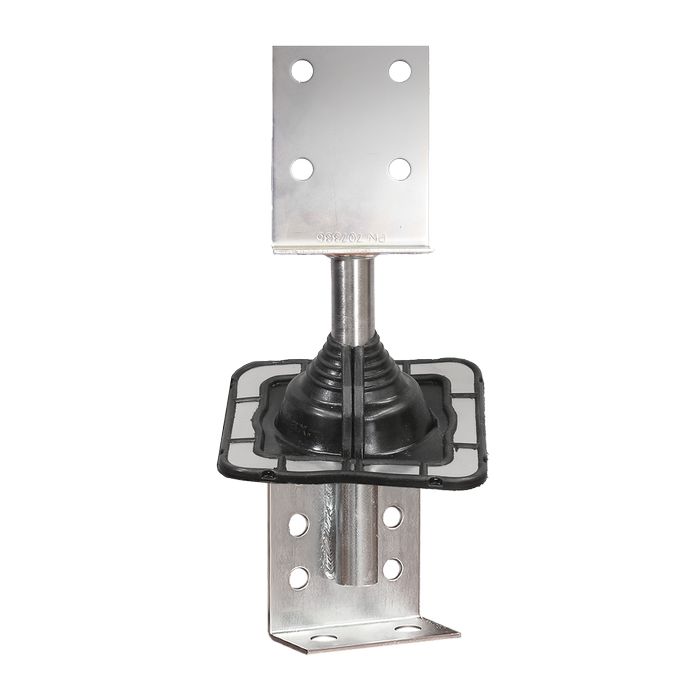

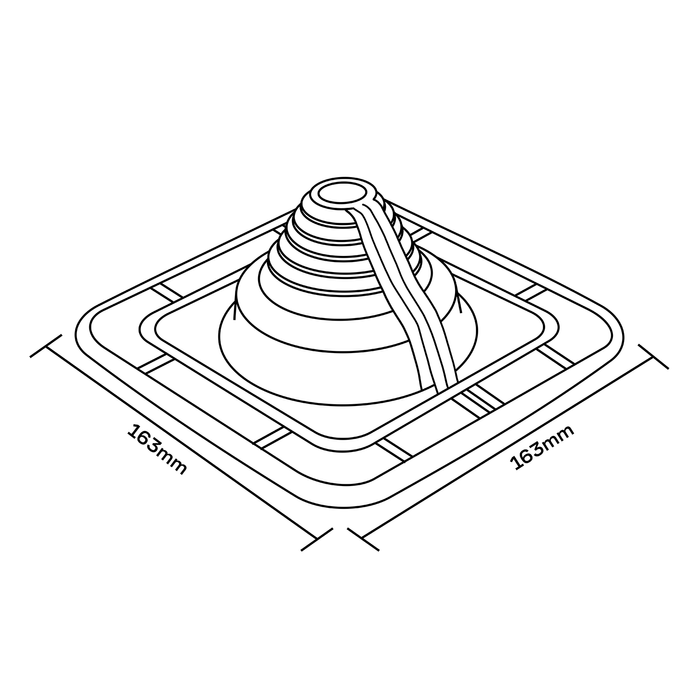

5. The weather seal is fitted to the top bracket, top bracket is then wound down to the desired height and the lock nut tightened. Mark the position of the weather seal on the roofing. Slide the weather seal up to apply clear neutral cure silicone inside the area
marked, press the weather seal into position and finish with a bead of silicone to the edges of the weather seal to complete the fitting.

NOTE: Local council or shire approval may be required prior to construction. Roof Extenda accepts no responsibility for the type of construction undertaken.
