- Suitable for commercial & domestic use
- Australia wide warranty
- High grade components used throughout

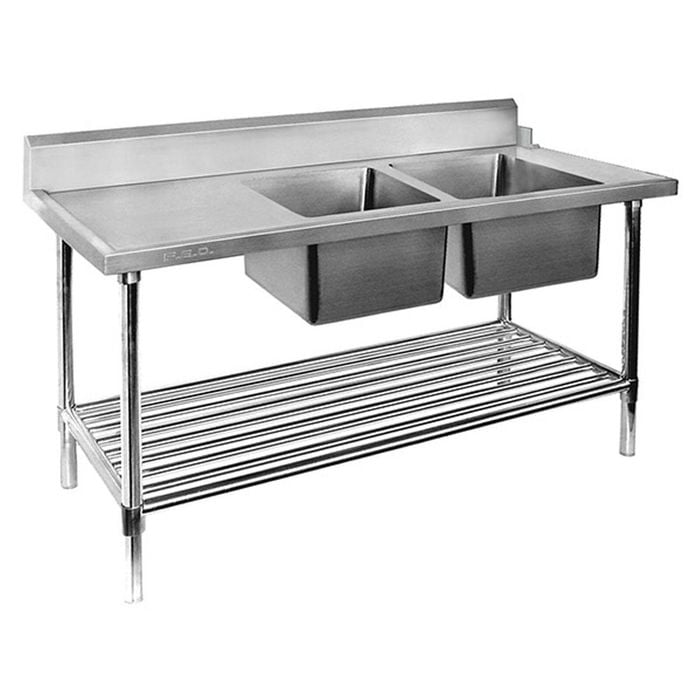

All Stainless Steel Right Inlet Double Sink Dishwasher Bench - DSBD7-1800R/A
1800mm wide
?¢ 700 mm deep ? 900 mm high
?¢ Bowl size 450mmW?450D?300H; 90 mm ? drain hole
?¢ specially designed for quick & simple assembly
?¢ come with instruction manual & tools
?¢ supplied flat-packed for ease of transport
?¢ 4 legs per bench
- 2100 & 2400 mm wide benches have 6 legs
?¢ 1.2 mm S/S
?¢ 15 mm wet edge
?¢ left or right bowl positioning
?¢ bowls are fully welded, polished inside & out
?¢ 90 mm ? drain hole
Splashbacks
?¢ Stainless Steel backed ?¢ 150 mm high; 30 mm thick
?¢ bevelled ?¢ fully enclosed
Legs
?¢ 1.2 mm S/S; 42 mm ?
?¢ fully adjustable S/S polished disc feet that match the legs perfectly
?¢ castor kits available (lockable)
Benchtops
?¢ 1.2 mm material; SUS304 (18/8)
?¢ lined with XPS board, 15 mm thick & S/S panel
?¢ special S/S ? ?U?TM channel reinforcements under
- as the bench size increases so does the number of channels
Note
LEFT side sink inlet bench
When facing the bench the dishwasher inlet & sinks are on the left side.
RIGHT side sink inlet bench
When facing the bench the dishwasher inlet & sinks are on the right side. 2 Years Parts only Warranty
