- Built tough : manufactured to oem specifications using heat-treated chrome steel for maximum strength and long service life.
- Contamination protection : high-quality neoprene dust boots and stainless-steel clamps keep out dirt and moisture for reliable performance.
- Smooth performance : packed with moly grease to reduce friction and ensure smooth operation at varying angles, speeds, and high revolutions.
- Oem confidence : designed and tested to oem standards, giving you peace of mind in durability and fitment.

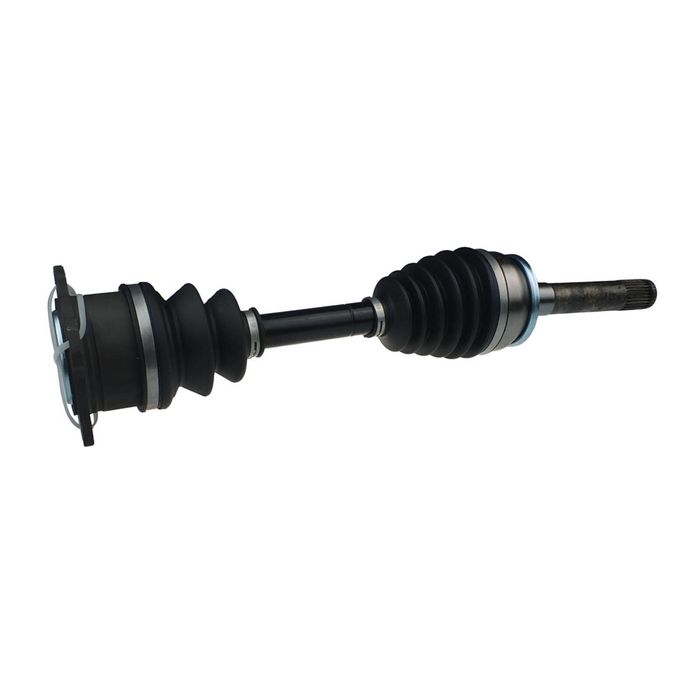

CV Axle Drive Shaft - Front Right Hand Side Automatic & Manual 4WD
28 Spline Outer Joint - Bolt On Inner Joint PCD: Suits 110mm & 114mm.
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.Â
Vehicle Fitment
Please note: Vehicles with 4M40 & 4M40T engine up to 08/2003 has 2 options for left shaft, 25 Spline (CVA1099) and 28 Spline (CVA1068). Please ensure you order the correct shaft for your application.
Mitsubishi Triton MK 2.8L Diesel 4M40 & 4M40T 06/1996~08/2006 (Check Spline Count)
Includes Sub Models: GLX, GLXR & GLS
Mitsubishi Triton MK 3.0L Petrol 6G72 06/1996~08/2006
Includes Sub Models: GLX, GLXR & GLS
Mitsubishi Challenger PA K96 3.0L 6G72 4WD MT & AT 12/1997~03/2007
Includes Sub Models: GLX, GLXR & GLS
Mitsubishi Pajero NJ NK NL 3.5L V6 Petrol 6G74 07/1993~06/2000
Includes Sub Models: GL, GLX & GLS
Mitsubishi Pajero NH NJ 3.0L V6 Petrol 6G72 01/1991~05/1996
Includes Sub Models: GL, GLX & GLS
Mitsubishi Pajero 2.8L Diesel 4M40T 09/1995~06/2000 (Check Spline Count)
Includes Sub Models: GL, GLX & GLS
Mitsubishi Delica 2.8L Diesel 4M40T 05/1994~12/2006 (Check Spline Count - Manual Only)
Mitsubishi Delica 3.0L V6 Petrol 6G72 05/1994~12/2006
Sizing and Specifications
Length (Compressed): 537mm
Spline Count - Outer/Wheel Side: 28T
PCD Mounting Bolt Holes: 110.46mm
Mounting Bolt Centre to Centre: 78mm
Mounting Bolt Hole Diameter: 10.5mm
Inner Joint Type: Bolt on
Outboard Joint Type: Ball
What's IncludedÂ
1 x CV Shaft
